Idler Frame

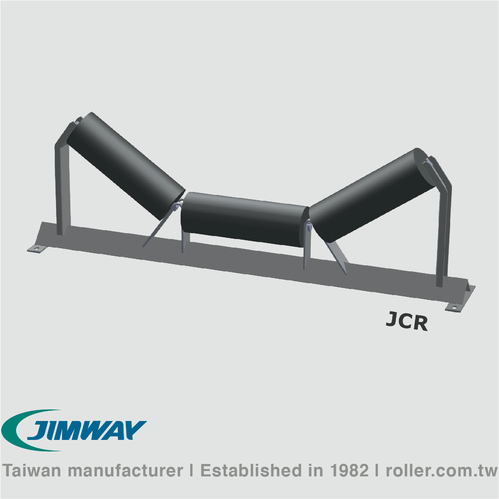

Troughing / Carry Idler
▪ Supporting the belt
▪ Position: the conveyor side
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Position: the conveyor side
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]

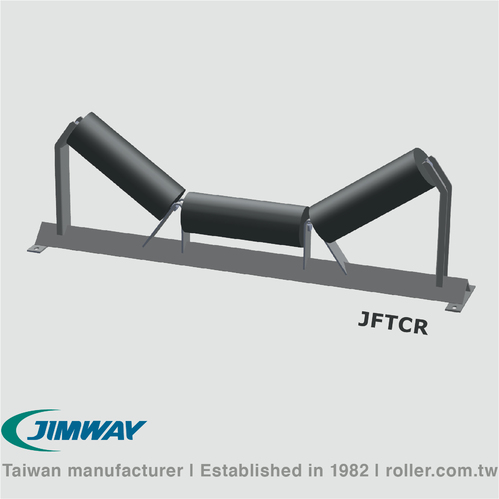

Forward Tilted Carrying Idler
▪ Prevent belt misalignment with high belt tension
▪ Tilted 0.5°~1° forward
▪ Operate in one direction only
▪ Position: the conveyor side
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Tilted 0.5°~1° forward
▪ Operate in one direction only
▪ Position: the conveyor side
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]

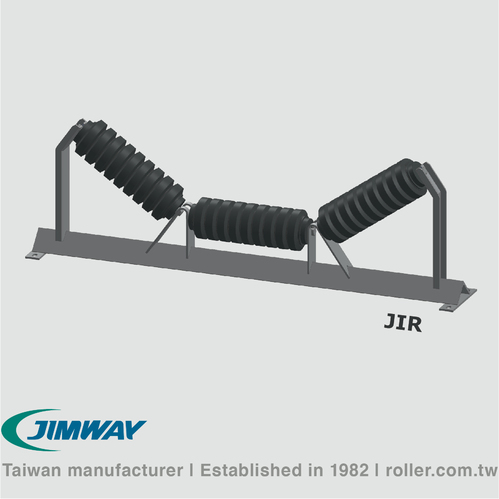

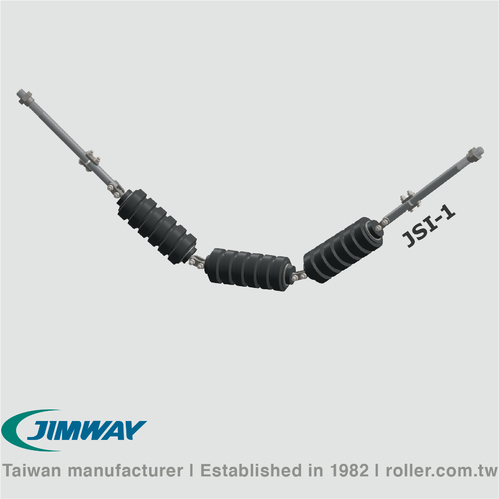

Impact Troughing Idler
▪ Installed in the loading area
▪ Absorbing impact loads
▪ Protecting the belt and idlers
▪ Position: transfer loading zone
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Absorbing impact loads
▪ Protecting the belt and idlers
▪ Position: transfer loading zone
▪ Trough angles: 0°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]

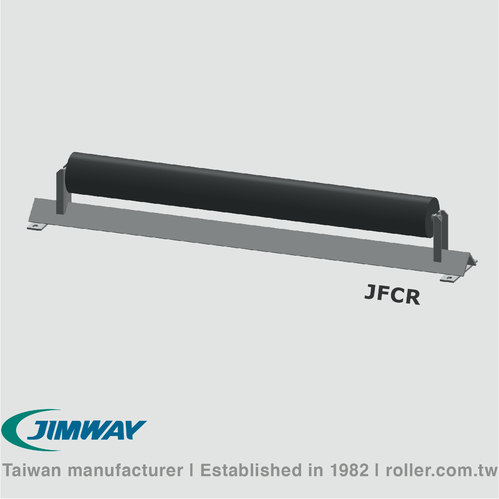

Flat Carrying Idler
▪ Moving box/bag for finished product
▪ Position: the conveyor side
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Position: the conveyor side
▪ Belt width: 400~2000mm [15.75"~78.74"]

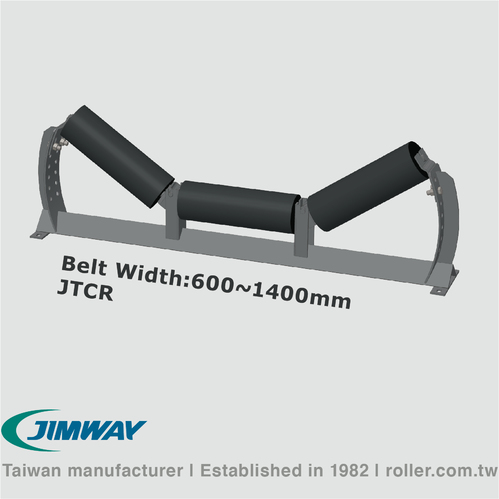

Transition Carrying Idler
▪ Bracket angle adjustment
▪ Position: Install near head and tail pulleys
▪ Trough angles: 5°~45°
▪ Belt width: 600~2000mm [23.62"~78.74"]
▪ Position: Install near head and tail pulleys
▪ Trough angles: 5°~45°
▪ Belt width: 600~2000mm [23.62"~78.74"]
Self-Training Carrying Idler
▪ Operating in one direction only
▪ Highly sensitive tracking
▪ Used on high-loading belt
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Highly sensitive tracking
▪ Used on high-loading belt
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]
Reversible Self-Training Carrying Idler
▪ Operating in reversible direction
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 1050~2000mm [41.34"~78.74"]
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 1050~2000mm [41.34"~78.74"]
Suspended Carrying Idler
▪ Absorbing high impact
▪ Less dynamic loads on the rollers
▪ Operating at a high belt speed
▪ Supporting the upper belt
▪ Position: the conveyor side
▪ Belt width: 750~2000mm [29.53"~78.74"]
▪ Less dynamic loads on the rollers
▪ Operating at a high belt speed
▪ Supporting the upper belt
▪ Position: the conveyor side
▪ Belt width: 750~2000mm [29.53"~78.74"]
Suspended Impact Idler
▪ Protecting belts at transfer points
▪ Absorbing high impact
▪ Less dynamic loads
▪ Transport heavier material
▪ Protecting the belt and idlers
▪ Preventing material spillage
▪ Preventing belt misalignment
▪ Position: transfer loading zone
▪ Belt width: 1200~2000mm [47.24"~78.74"]
▪ Absorbing high impact
▪ Less dynamic loads
▪ Transport heavier material
▪ Protecting the belt and idlers
▪ Preventing material spillage
▪ Preventing belt misalignment
▪ Position: transfer loading zone
▪ Belt width: 1200~2000mm [47.24"~78.74"]

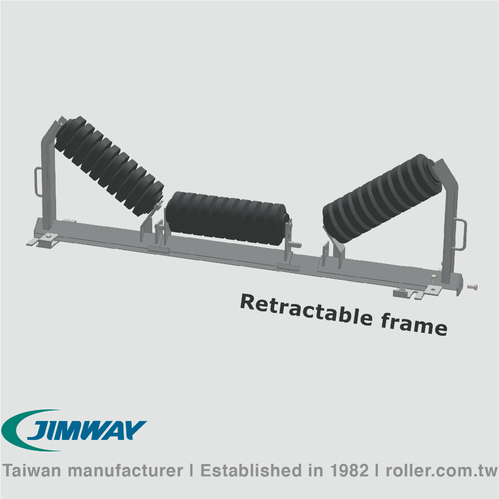

Retractable Impact Carrying Idler
▪ Easily and quickly change rollers
▪ Absorbing impact loads
▪ Protecting the belt and idlers
▪ Position: at transfer loading zone
▪ Size: be customized
▪ Absorbing impact loads
▪ Protecting the belt and idlers
▪ Position: at transfer loading zone
▪ Size: be customized

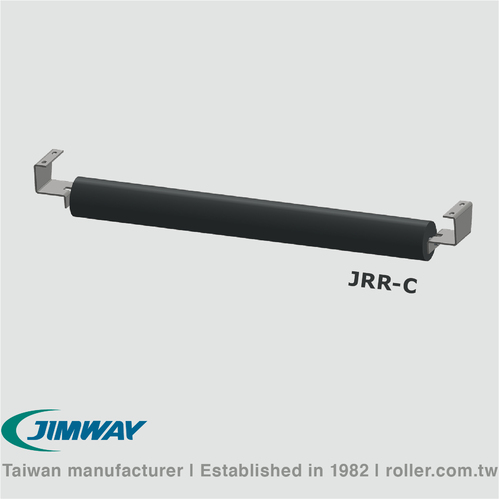

Return Idler
▪ Supporting the return belt
▪ Preventing structure damage (JRR-C type)
▪ Position: the return side
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ Preventing structure damage (JRR-C type)
▪ Position: the return side
▪ Belt width: 400~2000mm [15.75"~78.74"]

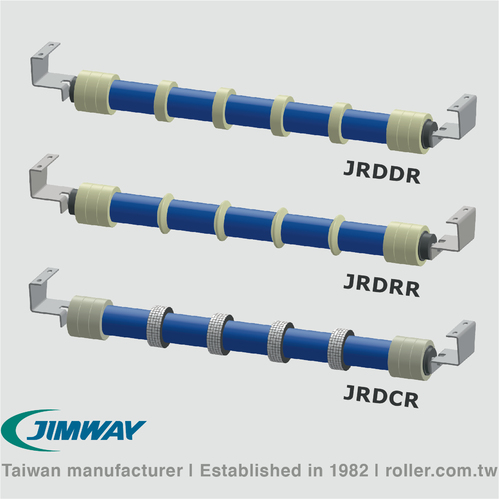

Disc Return Idler
▪ Wet/sticky material shedding
▪ High corrosion- and abrasion- resistance
▪ Reduction of clean-up cost
▪ Reduction of belt mistracking
▪ 3X steel roller lifetime
▪ Position : the return side
▪ Belt width: 400~2000mm [15.75"~78.74"]
▪ High corrosion- and abrasion- resistance
▪ Reduction of clean-up cost
▪ Reduction of belt mistracking
▪ 3X steel roller lifetime
▪ Position : the return side
▪ Belt width: 400~2000mm [15.75"~78.74"]
