Return Idler

▪ Supporting the return belt
▪ Preventing structure damage (JRR-C type)
▪ Position: the return side
▪ Belt width: 400~2000mm [15.75"~78.74"]

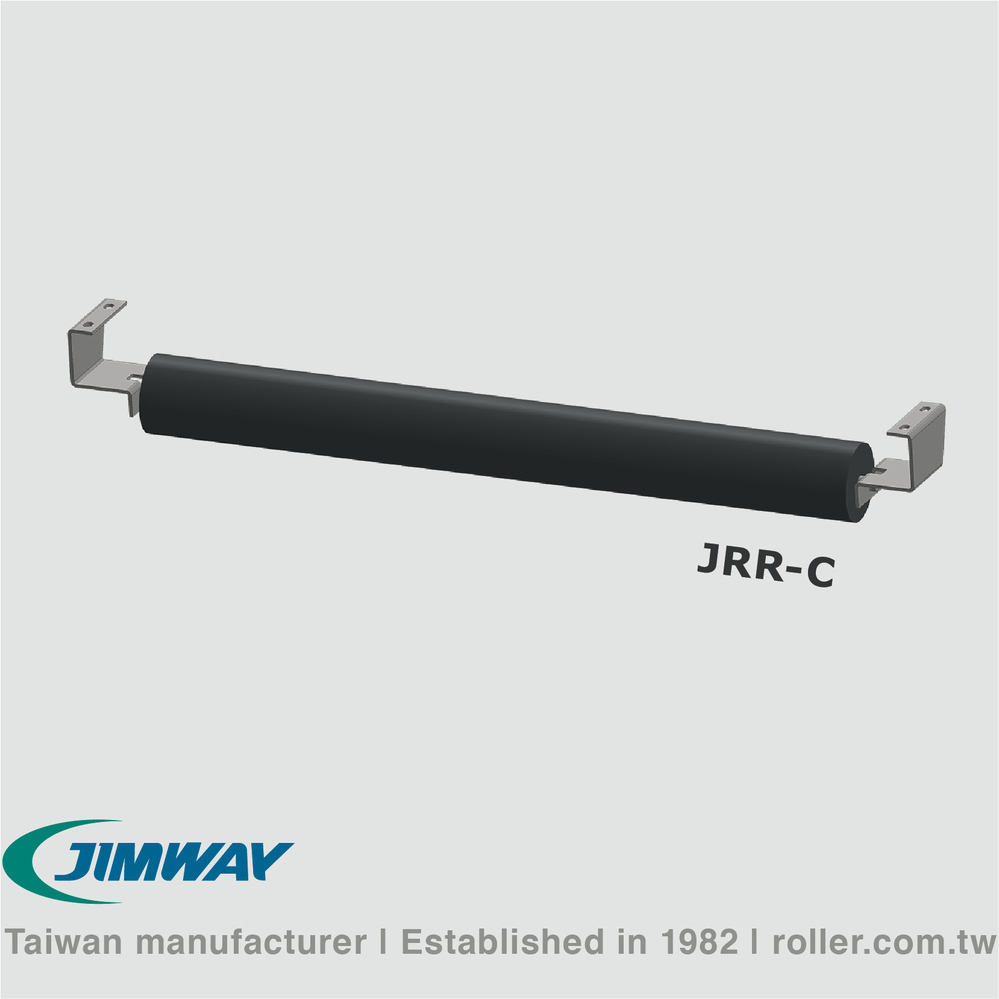

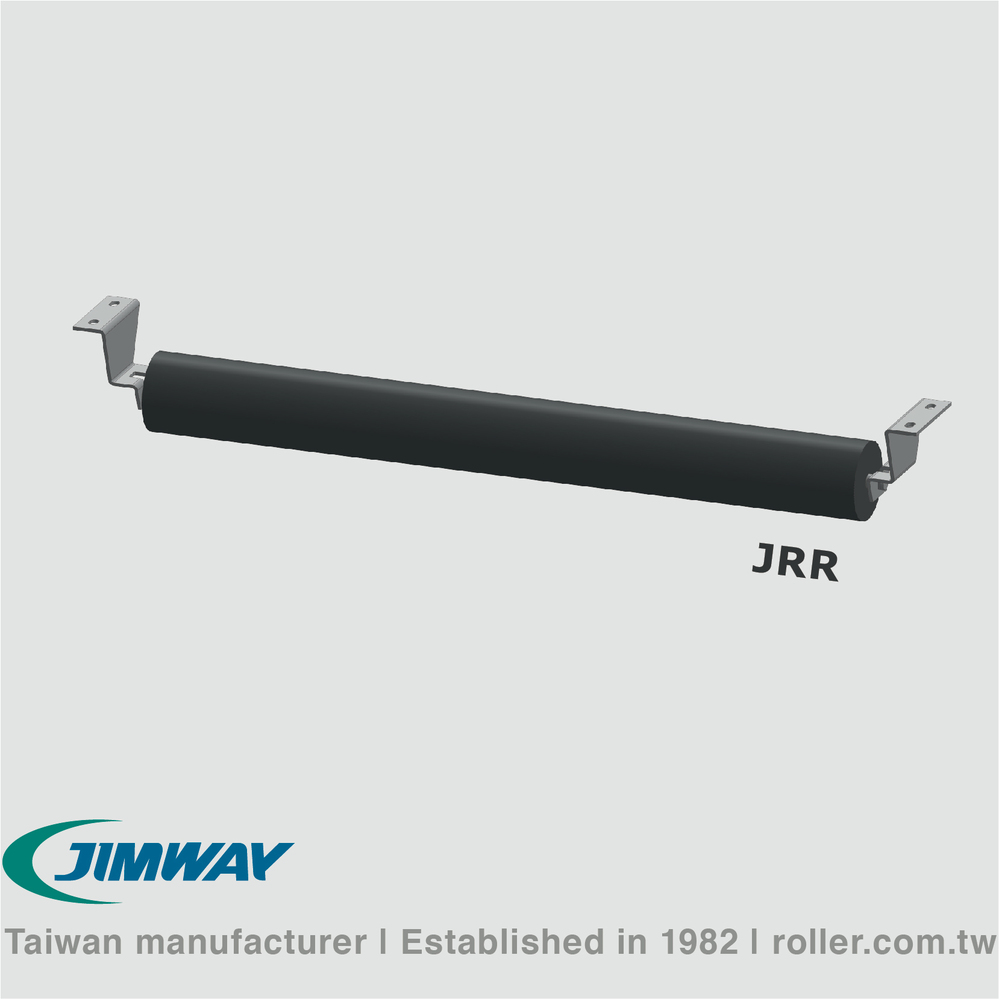

Model : JRR/JRR-C

Specifications

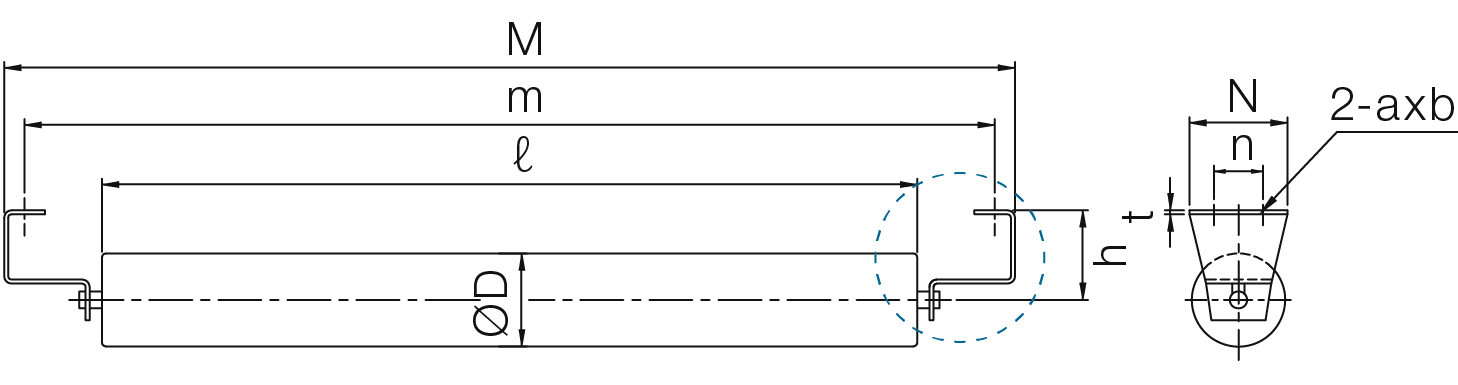

Type: JRR-C

Unit:mm [in]

Model BW ØD ℓ m M n N h t axb

JRR-C-040 400 [16] 89.1 460 640 690 60 130 110 4.5 15X25

JRR-C-045 450 [18] 89.1 510 690 740 60 130 110 4.5 15X25

JRR-C-050 500 [20] 89.1 560 740 790 60 130 110 4.5 15X25

JRR-C-060 600 [24] 89.1 660 840 890 60 130 110 4.5 15X25

JRR-C-075 750 [30] 114.3 850 1040 1090 60 130 110 4.5 15X25

JRR-C-090 900 [36] 114.3 1000 1190 1240 60 130 110 4.5 15X25

JRR-C-105 1050 [42] 139.8 1150 1340 1390 100 170 130 6.0 15X25

JRR-C-120 1200 [48] 139.8 1300 1490 1540 100 170 130 6.0 15X25

JRR-C-140 1400 [54] 165.2 1530 1730 1790 120 180 160 9.0 19X29

JRR-C-160 1600 [63] 165.2 1730 1930 1990 120 180 160 9.0 19X29

JRR-C-180 1800 [72] 165.2 2000 2220 2280 120 190 160 9.0 19X29

JRR-C-200 2000 [78] 165.2 2200 2420 2480 120 190 160 9.0 19X29

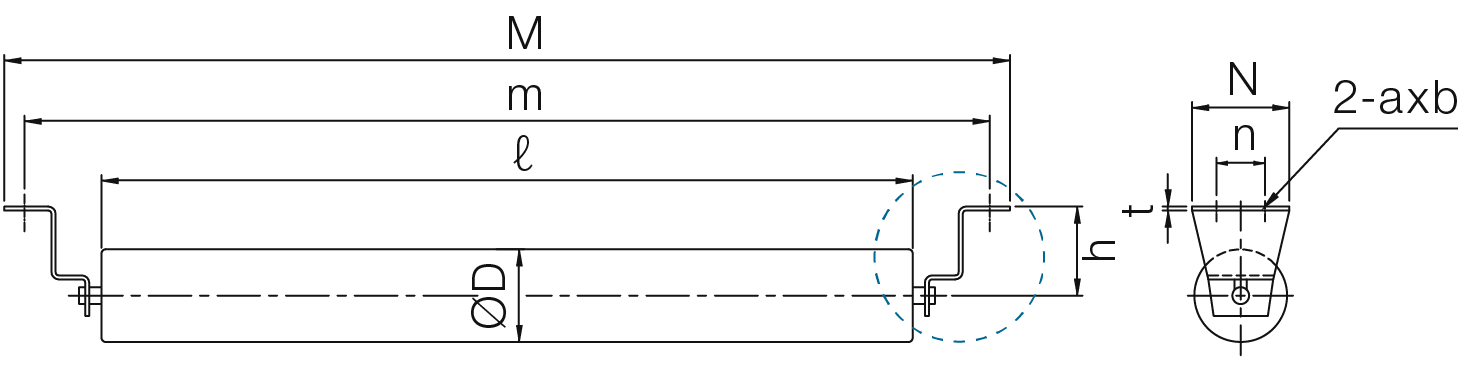

Type: JRR

Unit:mm [in]

Model BW ØD ℓ m M n N h t axb

JRR-040 400 [16] 89.1 460 640 700 60 120 110 4.5 14X30

JRR-045 450 [18] 89.1 510 690 750 60 120 110 4.5 14X30

JRR-050 500 [20] 89.1 560 740 800 60 120 110 4.5 14X30

JRR-060 600 [24] 89.1 660 840 900 60 120 110 4.5 14X30

JRR-075 750 [30] 114.3 850 1040 1100 60 120 110 4.5 14X30

JRR-090 900 [36] 114.3 1000 1190 1250 60 120 110 4.5 14X30

JRR-105 1050 [42] 139.8 1150 1340 1390 100 170 130 6.0 14X30

JRR-120 1200 [48] 139.8 1300 1490 1540 100 170 130 6.0 14X30

JRR-140 1400 [54] 165.2 1530 1730 1790 120 200 160 9.0 18X30

JRR-160 1600 [63] 165.2 1730 1930 1990 120 200 160 9.0 18X30

JRR-180 1800 [72] 165.2 2000 2220 2280 120 200 160 9.0 18X30

JRR-200 2000 [78] 165.2 2200 2420 2480 120 200 160 9.0 18X30

									Unit:mm [in]
Model	BW	ØD	ℓ	m	M	n	N	h	t	axb
JRR-C-040	400 [16]	89.1	460	640	690	60	130	110	4.5	15X25
JRR-C-045	450 [18]	89.1	510	690	740	60	130	110	4.5	15X25
JRR-C-050	500 [20]	89.1	560	740	790	60	130	110	4.5	15X25
JRR-C-060	600 [24]	89.1	660	840	890	60	130	110	4.5	15X25
JRR-C-075	750 [30]	114.3	850	1040	1090	60	130	110	4.5	15X25
JRR-C-090	900 [36]	114.3	1000	1190	1240	60	130	110	4.5	15X25
JRR-C-105	1050 [42]	139.8	1150	1340	1390	100	170	130	6.0	15X25
JRR-C-120	1200 [48]	139.8	1300	1490	1540	100	170	130	6.0	15X25
JRR-C-140	1400 [54]	165.2	1530	1730	1790	120	180	160	9.0	19X29
JRR-C-160	1600 [63]	165.2	1730	1930	1990	120	180	160	9.0	19X29
JRR-C-180	1800 [72]	165.2	2000	2220	2280	120	190	160	9.0	19X29
JRR-C-200	2000 [78]	165.2	2200	2420	2480	120	190	160	9.0	19X29

									Unit:mm [in]
Model	BW	ØD	ℓ	m	M	n	N	h	t	axb
JRR-040	400 [16]	89.1	460	640	700	60	120	110	4.5	14X30
JRR-045	450 [18]	89.1	510	690	750	60	120	110	4.5	14X30
JRR-050	500 [20]	89.1	560	740	800	60	120	110	4.5	14X30
JRR-060	600 [24]	89.1	660	840	900	60	120	110	4.5	14X30
JRR-075	750 [30]	114.3	850	1040	1100	60	120	110	4.5	14X30
JRR-090	900 [36]	114.3	1000	1190	1250	60	120	110	4.5	14X30
JRR-105	1050 [42]	139.8	1150	1340	1390	100	170	130	6.0	14X30
JRR-120	1200 [48]	139.8	1300	1490	1540	100	170	130	6.0	14X30
JRR-140	1400 [54]	165.2	1530	1730	1790	120	200	160	9.0	18X30
JRR-160	1600 [63]	165.2	1730	1930	1990	120	200	160	9.0	18X30
JRR-180	1800 [72]	165.2	2000	2220	2280	120	200	160	9.0	18X30
JRR-200	2000 [78]	165.2	2200	2420	2480	120	200	160	9.0	18X30
