Slider Impact Bed

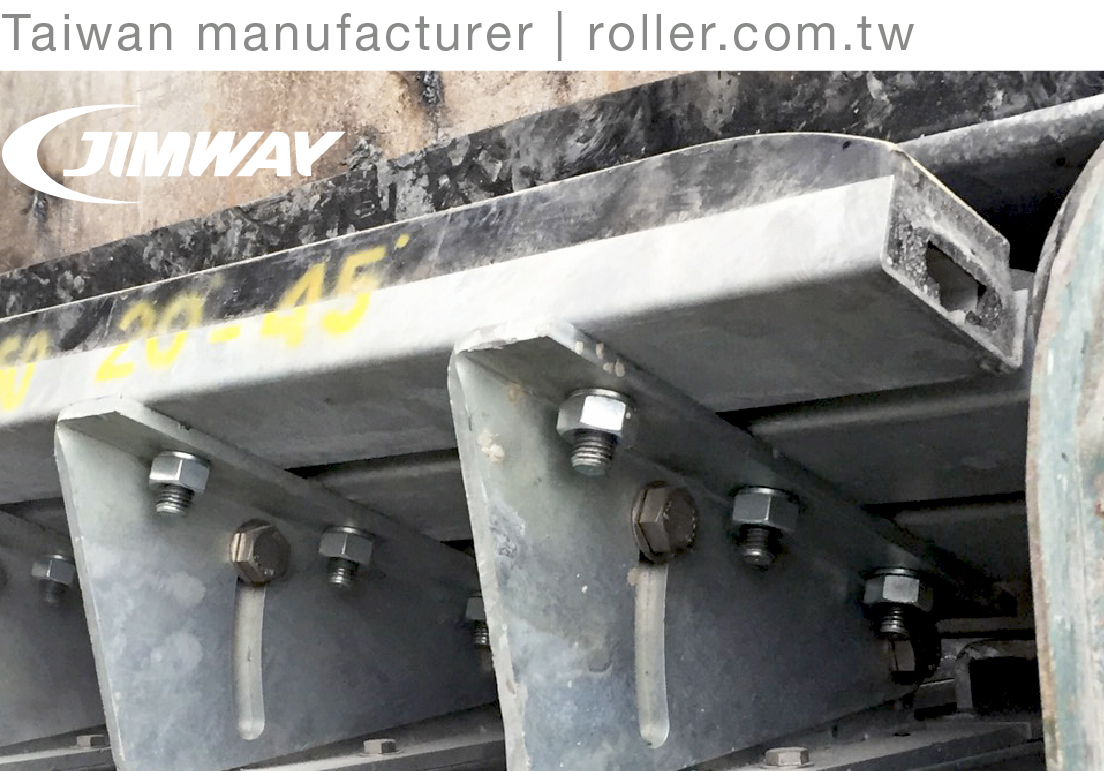

▪ Extremely low coefficient of friction UHMW
▪ No belt mistracking and sagging
▪ Long wear life extension
▪ Improvement of spills and leaks
▪ Less belt vibration
▪ Low impact energy
▪ Belt-friendly
▪ Fast and easy installation/maintenance

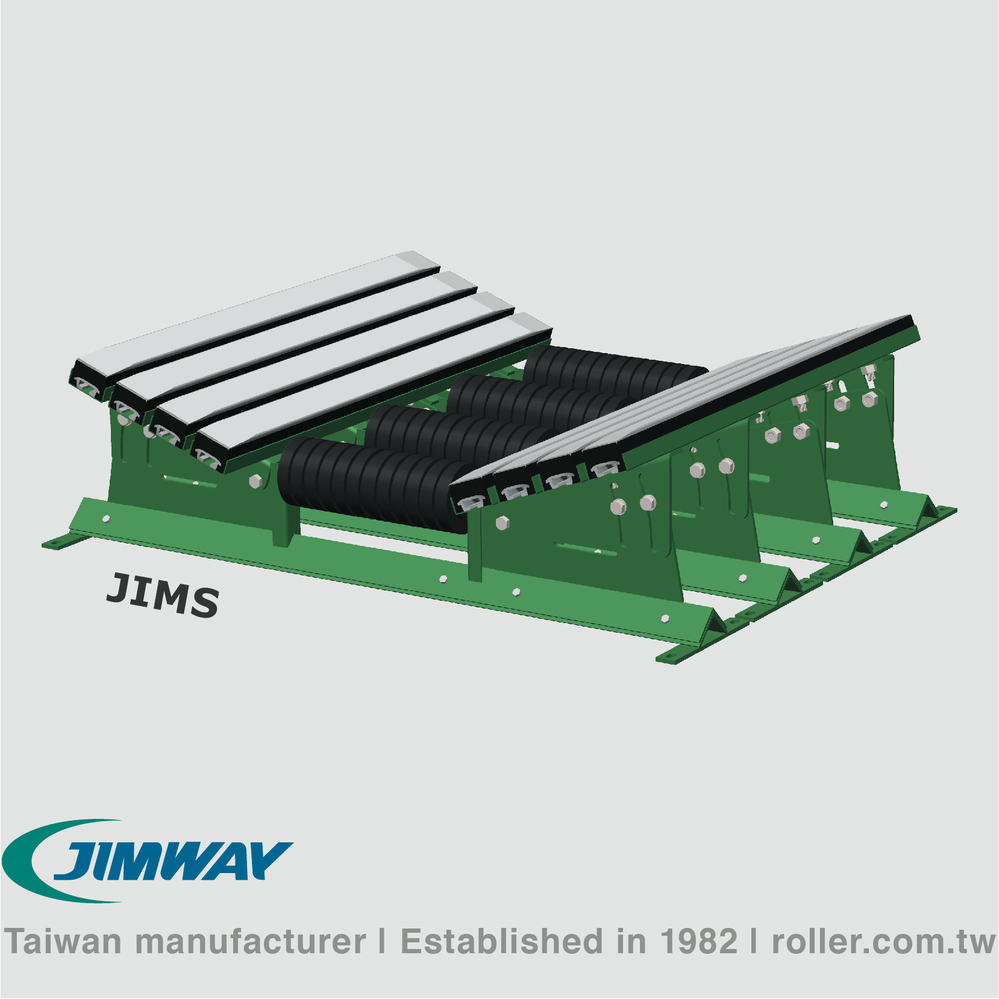

Model : JIMS

JIMWAY'S SLIDER IMPACT BED ABSORBS THE FORCE OF FALLING MATERIAL TO PREVENT DAMAGE TO THE BELT AND STRUCTURE THAT CAN ELIMINATE THE COST OF IDLER MAINTENANCE AND FAILURE.

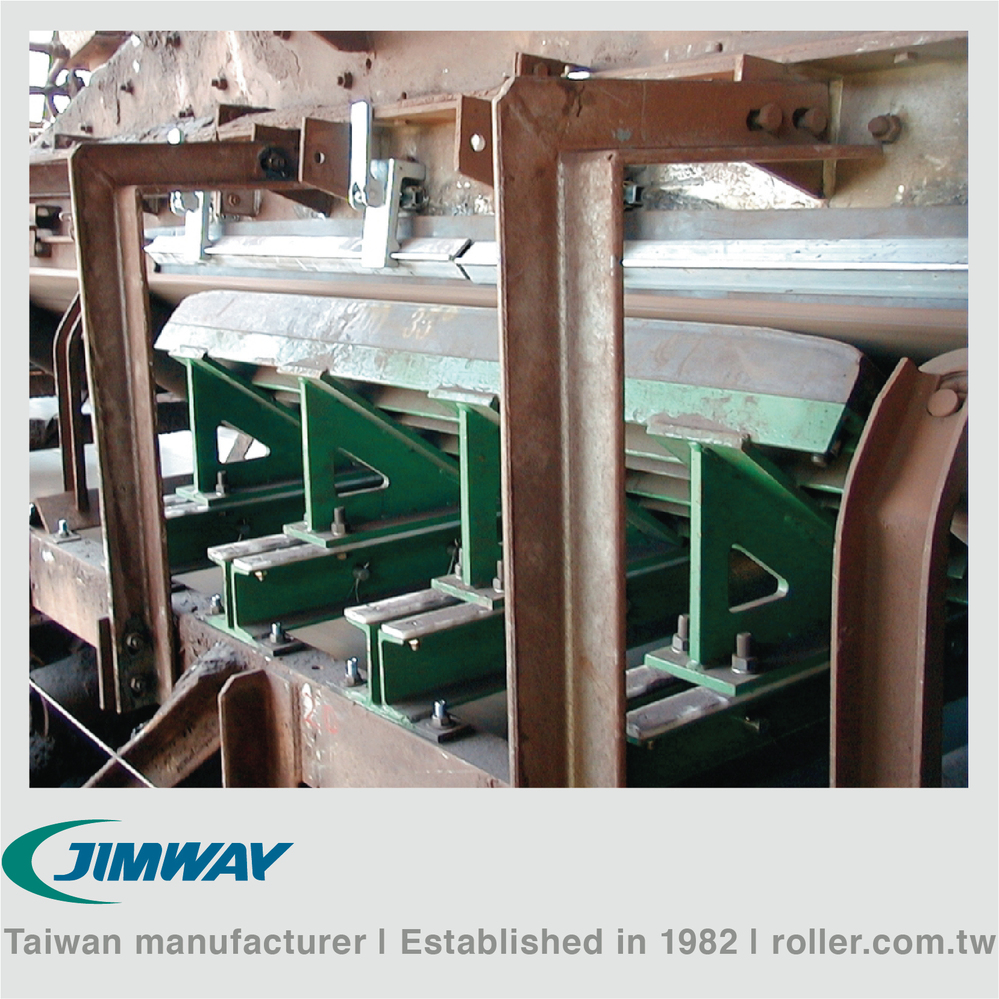

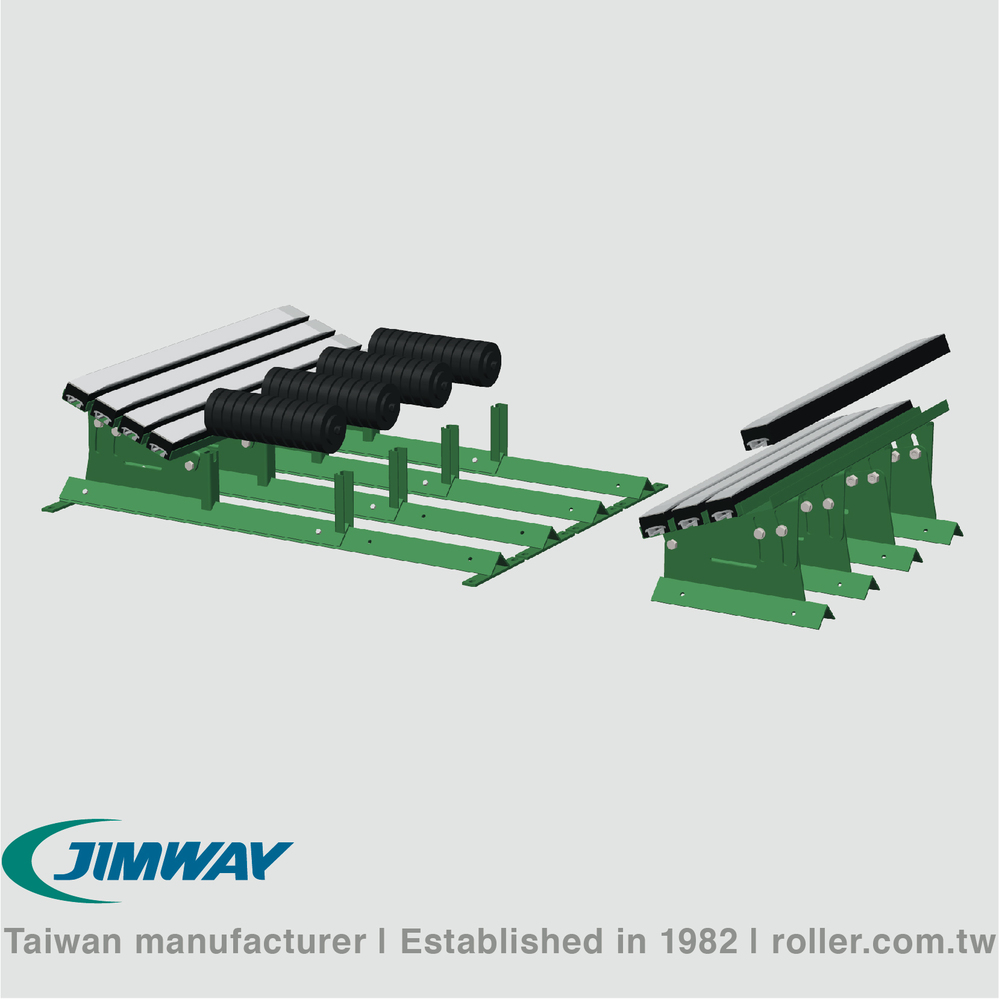

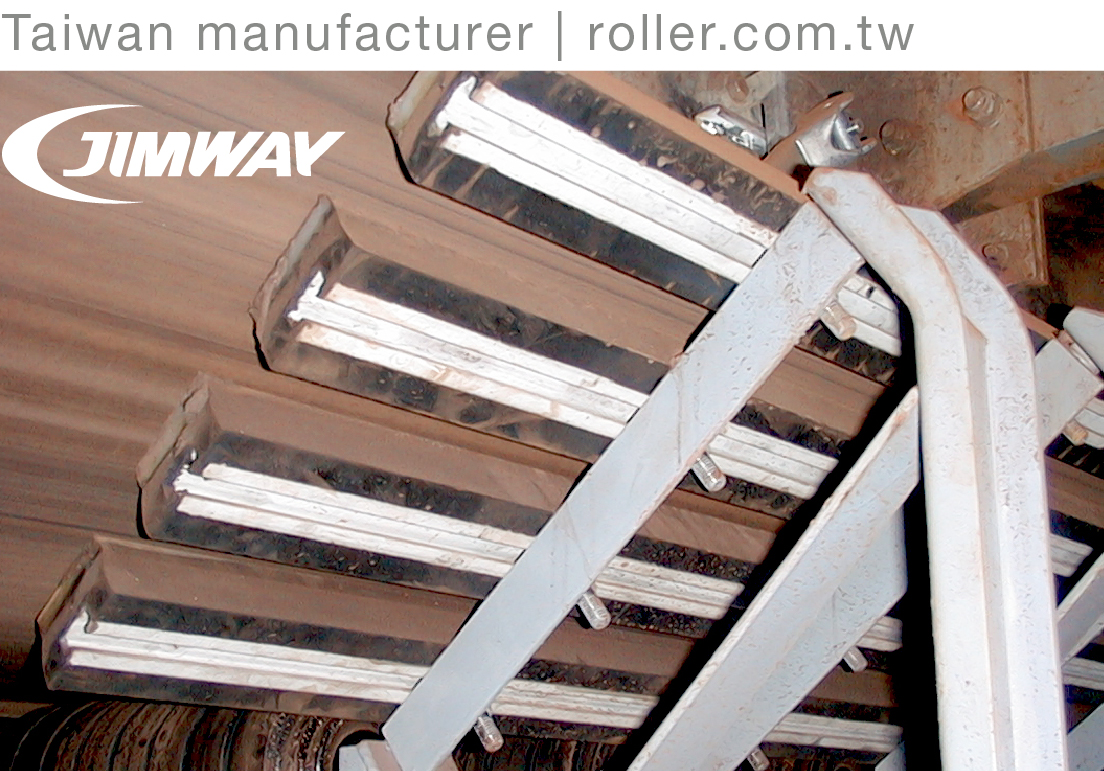

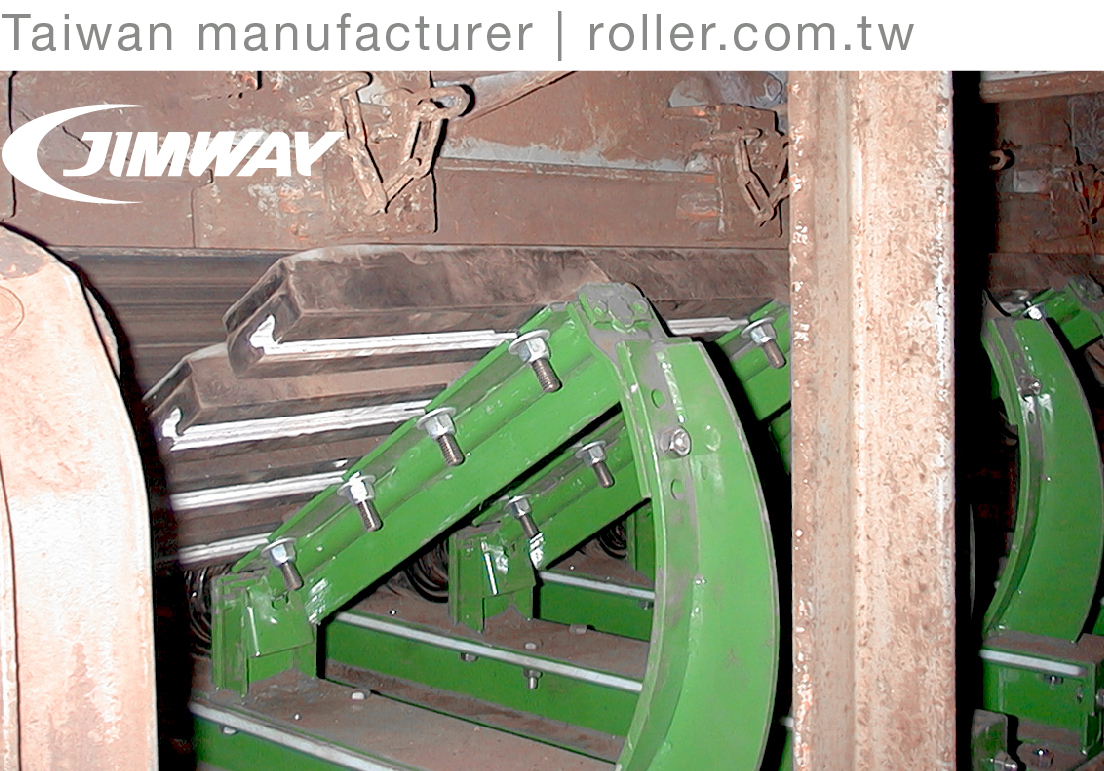

Installed under the loading zone, Jimway's slider impact bed is designed to protect the conveyor belt at key transfer point areas. In addition, no more bent idler shafts and frames, or worn out rollers to replace. An easy and safe slide sideways out of the supporting arms/frames without raising the belt, which ensures simple rollers/bars replacement.

––––––––––––––––––––––––––––––––––––––

Belt Width 600~2000mm [23.6"~78.7"]

Adjustable trough angle 20˚, 30˚, 35˚, 45˚

OPERATION OF BELT CONVEYOR

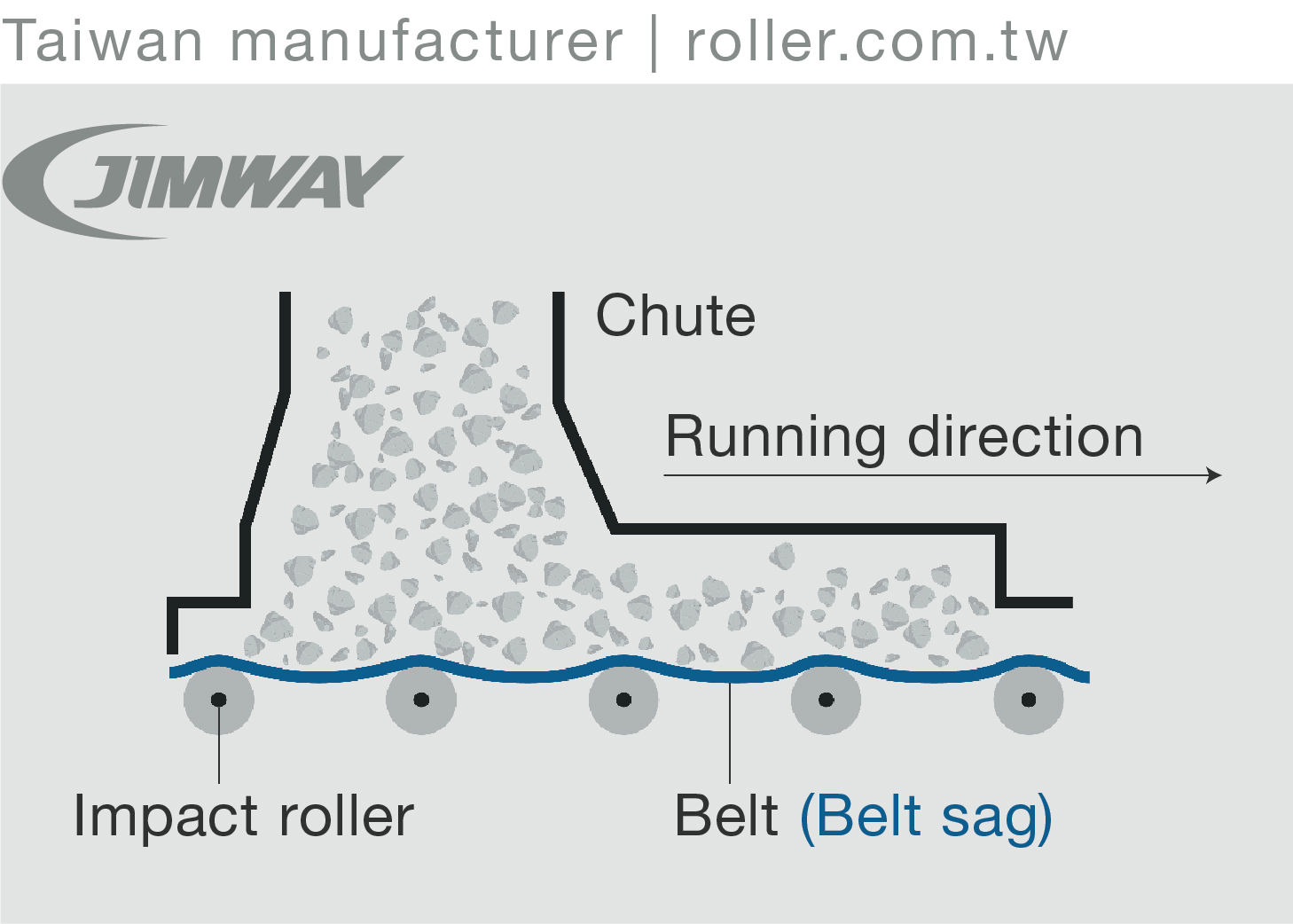

The shock of falling material at loading and transfer points between the idlers will cause the belt to flex downward, spillage, and leakage. The results of the situation are shortened idler life, increased clean-up cost, belt damage, and safety hazards.

X Operation: rotation

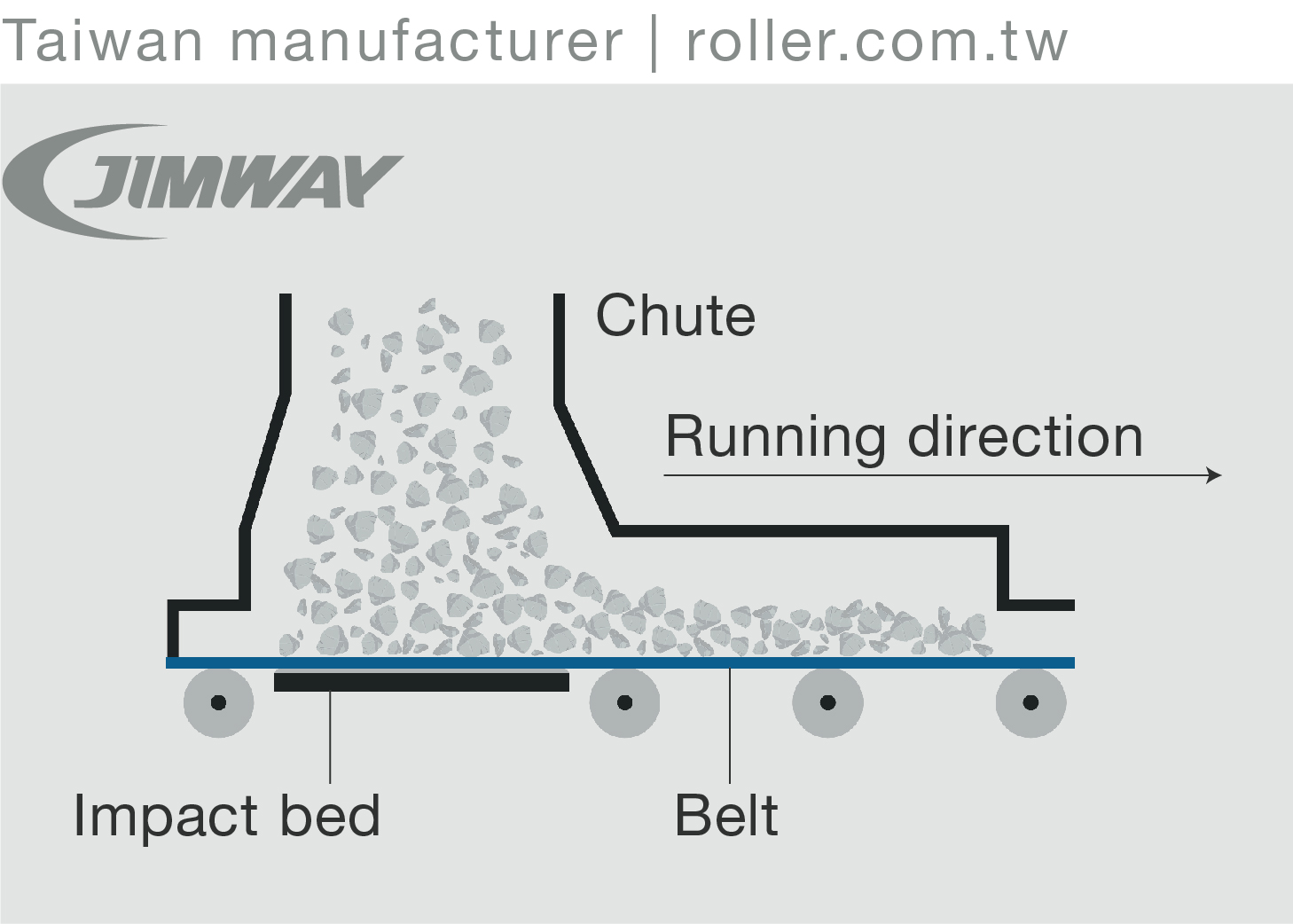

O Operation: slide

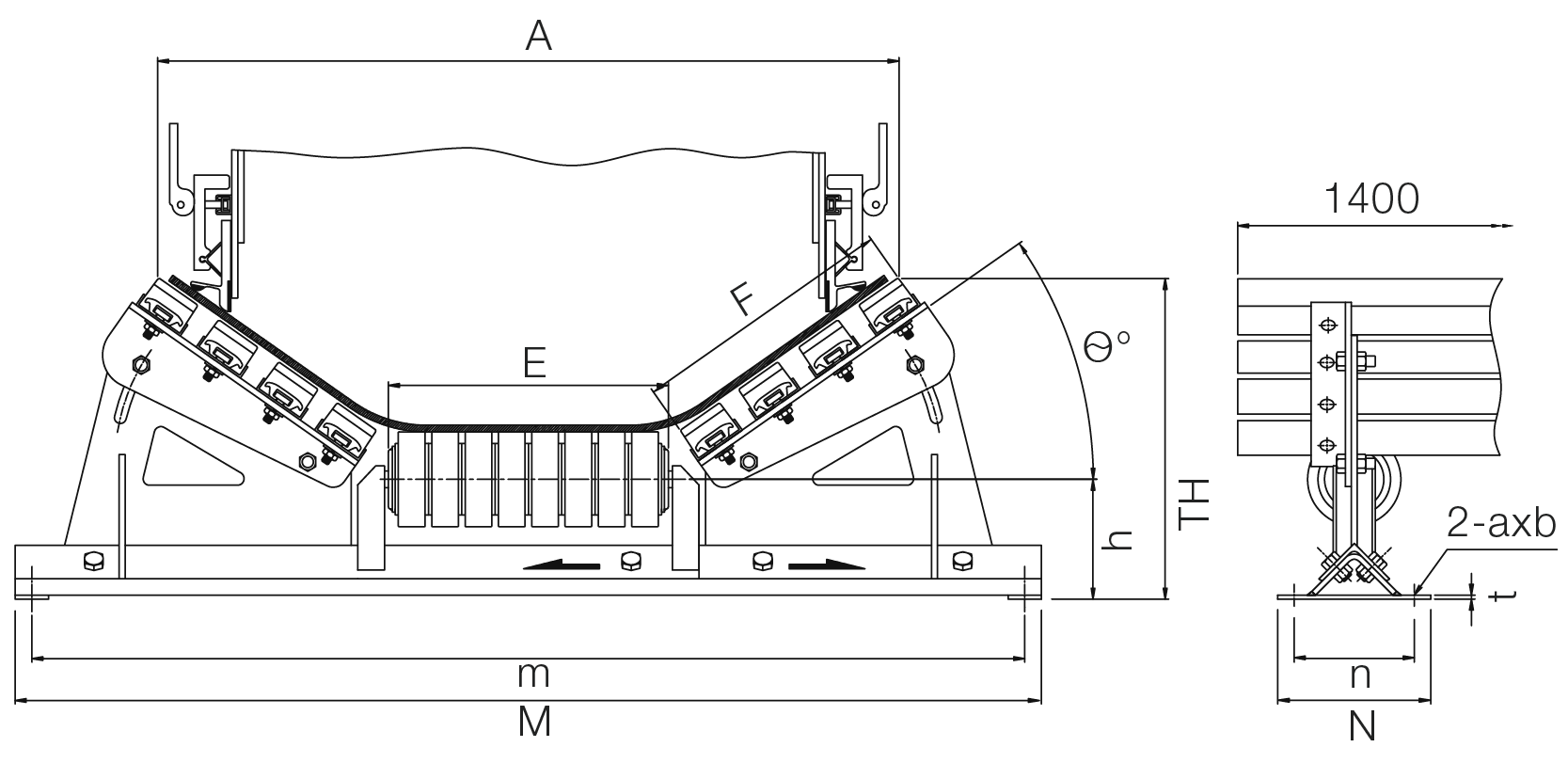

θ=20° θ=30° θ=35° θ=45° Unit:mm [in]

Model BW A TH A TH A TH A TH M m h t N n axb E F Bar Req.

JIMS-060 600 [24] 663 252 621 286 – – – – 890 840 140 6 200 150 14x30 210 190 4

JIMS-075 750 [30] 813 292 759 334 730 354 657 389 1090 1040 140 6 210 160 14x30 265 295 4

JIMS-090 900 [36] 957 309 895 359 862 383 778 424 1240 1190 150 6 210 160 14x30 315 325 6

JIMS-105 1050 [42] 1113 371 1040 429 1008 457 908 505 1390 1340 180 6 230 180 14x30 370 350 6

JIMS-120 1200 [48] 1257 388 1176 454 1140 486 1029 540 1540 1490 180 6 230 180 14x30 420 350 6

JIMS-140 1400 [54] 1478 497 1382 575 1344 613 1224 680 1790 1730 250 9 330 280 18x30 500 490 8

JIMS-160 1600 [63] 1709 524 1601 615 1555 659 1417 736 1990 1930 250 9 330 280 18x30 580 500 8

JIMS-180 1800 [72] 1910 578 1792 680 1735 729 1592 817 2280 2220 280 12 330 290 18x30 650 620 10

JIMS-200 2000 [78] 2124 606 2010 720 1946 828 1785 874 2480 2420 280 12 330 280 18x30 730 620 10

▪ Belt-friendly (low impact energy)

▪ Extremely low coefficient of friction

▪ No belt mistracking and sagging

▪ Less belt vibration

▪ Improvement of spills and leaks

▪ Long wear life extension

		θ=20°		θ=30°		θ=35°		θ=45°											Unit:mm [in]
Model	BW	A	TH	A	TH	A	TH	A	TH	M	m	h	t	N	n	axb	E	F	Bar Req.
JIMS-060	600 [24]	663	252	621	286	–	–	–	–	890	840	140	6	200	150	14x30	210	190	4
JIMS-075	750 [30]	813	292	759	334	730	354	657	389	1090	1040	140	6	210	160	14x30	265	295	4
JIMS-090	900 [36]	957	309	895	359	862	383	778	424	1240	1190	150	6	210	160	14x30	315	325	6
JIMS-105	1050 [42]	1113	371	1040	429	1008	457	908	505	1390	1340	180	6	230	180	14x30	370	350	6
JIMS-120	1200 [48]	1257	388	1176	454	1140	486	1029	540	1540	1490	180	6	230	180	14x30	420	350	6
JIMS-140	1400 [54]	1478	497	1382	575	1344	613	1224	680	1790	1730	250	9	330	280	18x30	500	490	8
JIMS-160	1600 [63]	1709	524	1601	615	1555	659	1417	736	1990	1930	250	9	330	280	18x30	580	500	8
JIMS-180	1800 [72]	1910	578	1792	680	1735	729	1592	817	2280	2220	280	12	330	290	18x30	650	620	10
JIMS-200	2000 [78]	2124	606	2010	720	1946	828	1785	874	2480	2420	280	12	330	280	18x30	730	620	10
