Heavy-Duty Impact Bed

▪ Suitable for heavy-duty

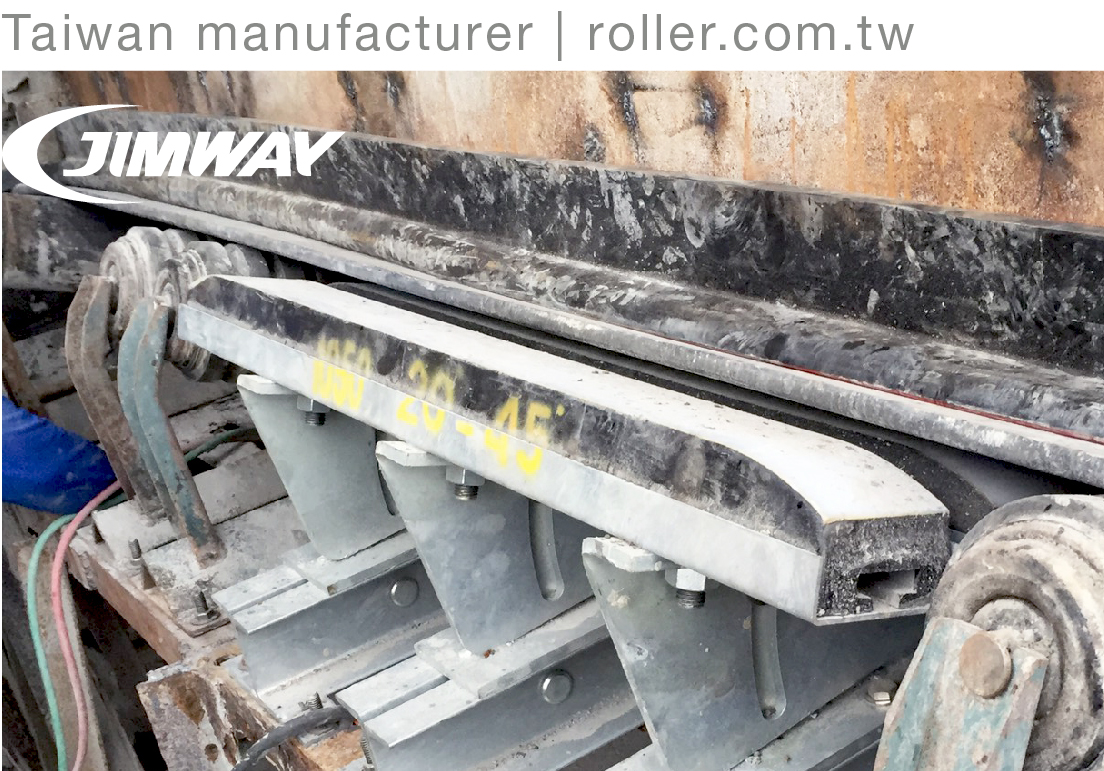

▪ Extremely low coefficient of friction UHMW
▪ No belt mistracking and sagging
▪ Long wear life extension
▪ Improvement of spills and leaks
▪ Less belt vibration
▪ Low impact energy
▪ Belt-friendly
▪ Fast and easy installation/maintenance

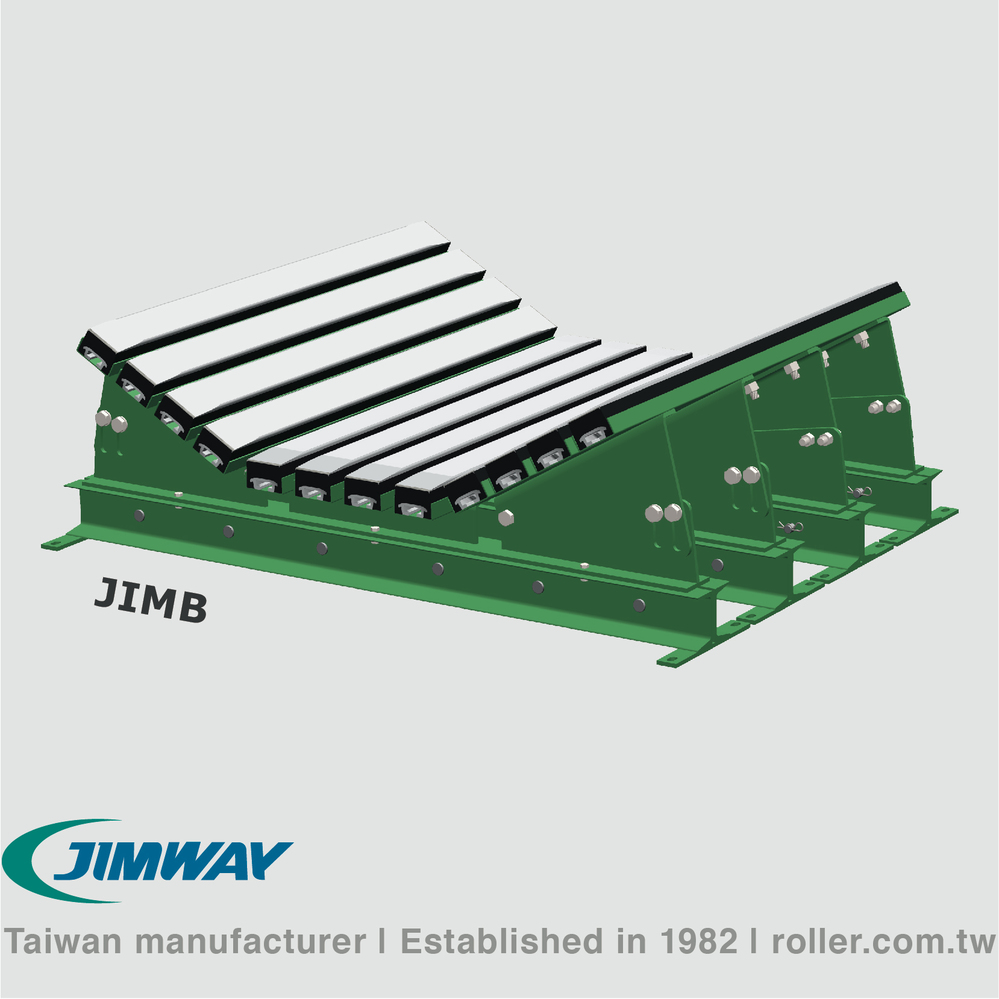

Model : JIMB

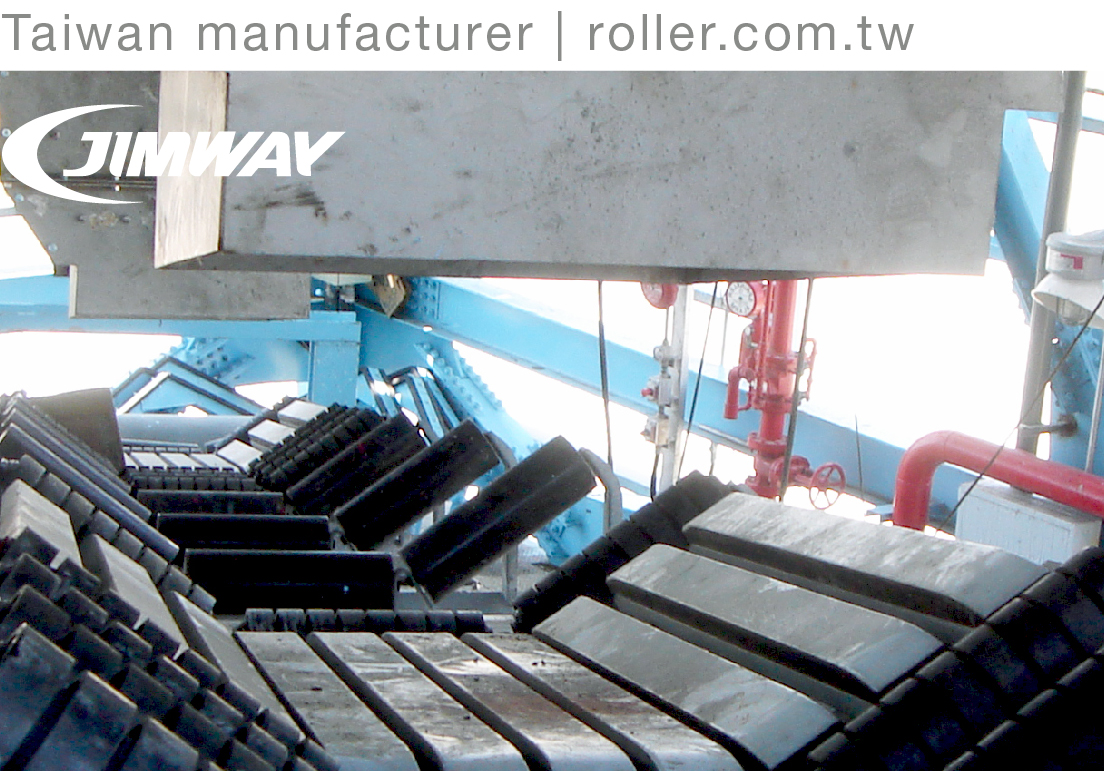

JIMWAY'S HEAVY-DUTY IMPACT BED ABSORBS THE FORCE OF FALLING MATERIAL TO PREVENT DAMAGE TO THE BELT AND STRUCTURE THAT CAN ELIMINATE THE COST OF IDLER MAINTENANCE AND FAILURE.

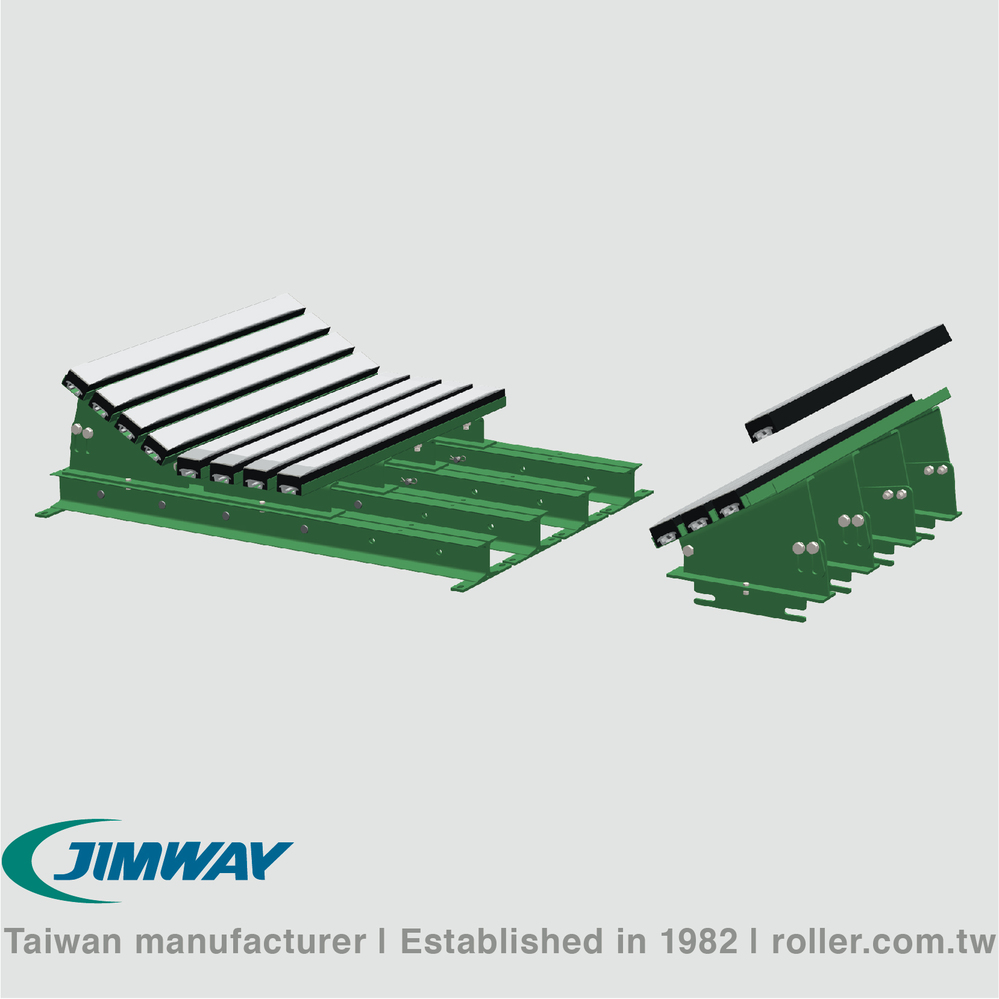

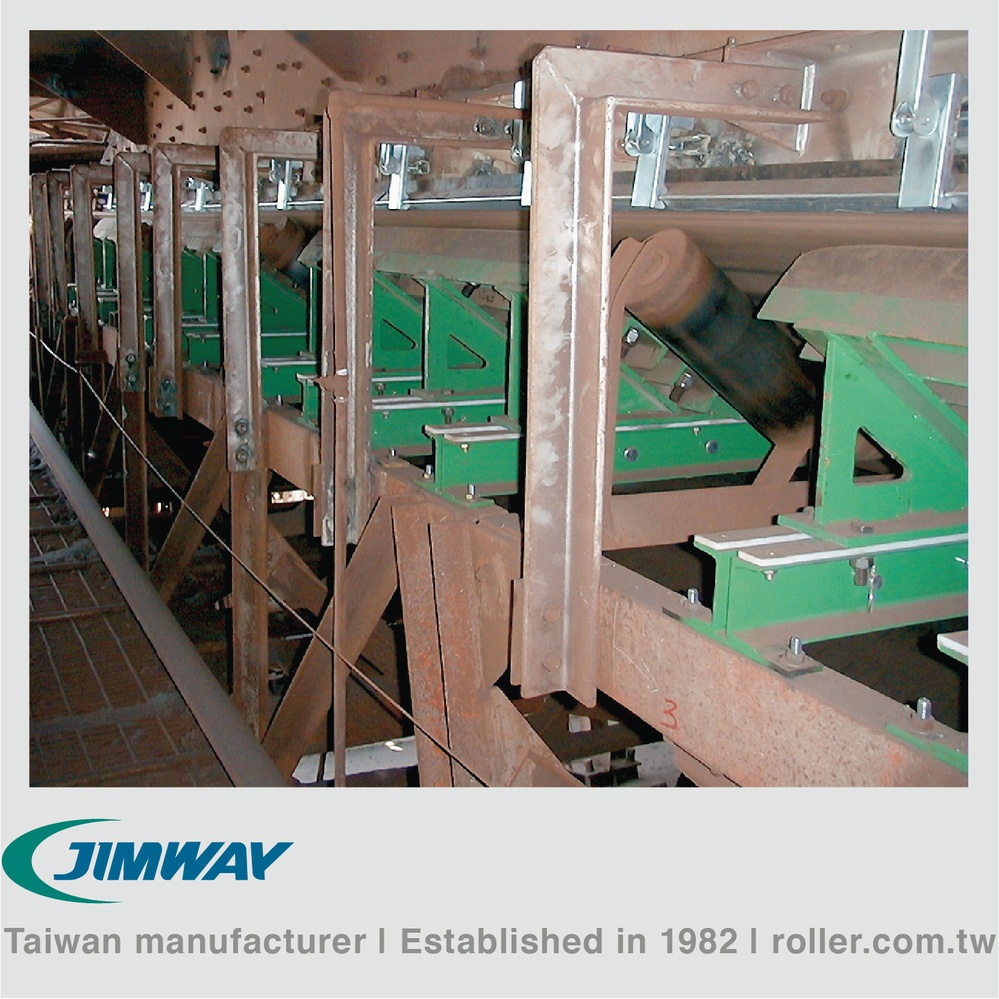

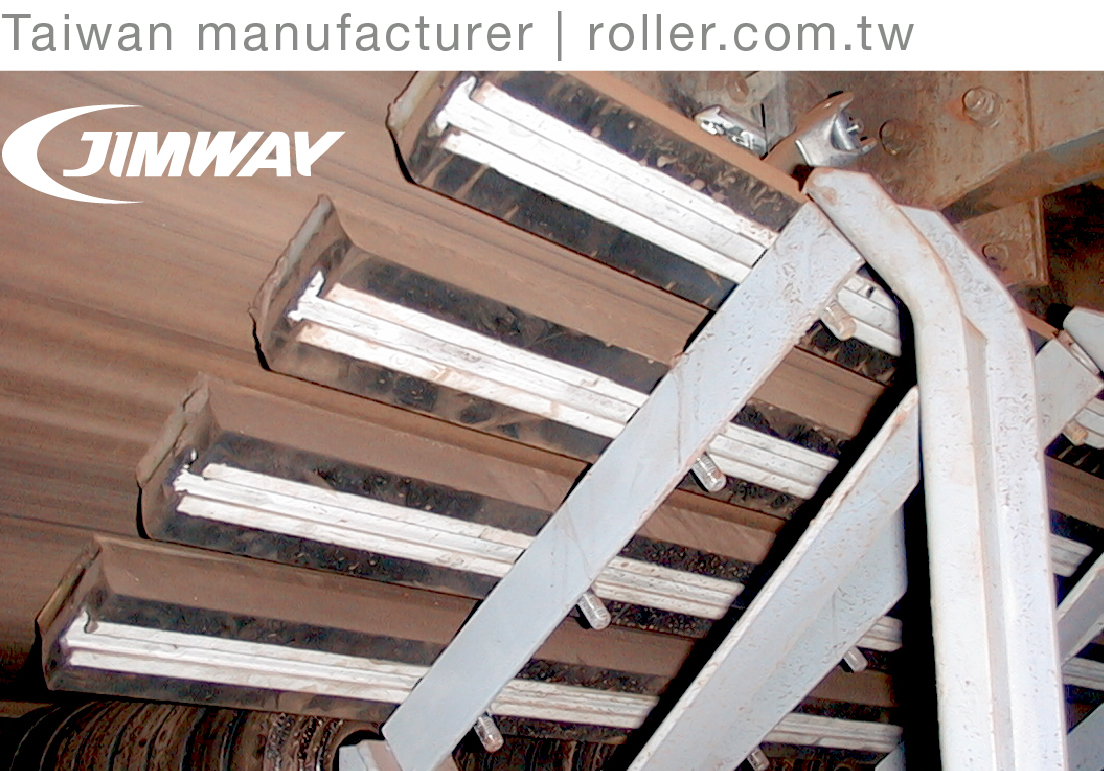

Installed under the loading zone, Jimway's slider impact bed is designed to protect the conveyor belt at key transfer point areas. In addition, no more bent idler shafts and frames, or worn out rollers to replace. An easy and safe slide sideways out of the supporting arms/frames without raising the belt, which ensures simple rollers/bars replacement.

––––––––––––––––––––––––––––––––––––––

Belt Width 600~2000mm [23.6"~78.7"]

Adjustable trough angle 20˚, 30˚, 35˚, 45˚

OPERATION OF BELT CONVEYOR

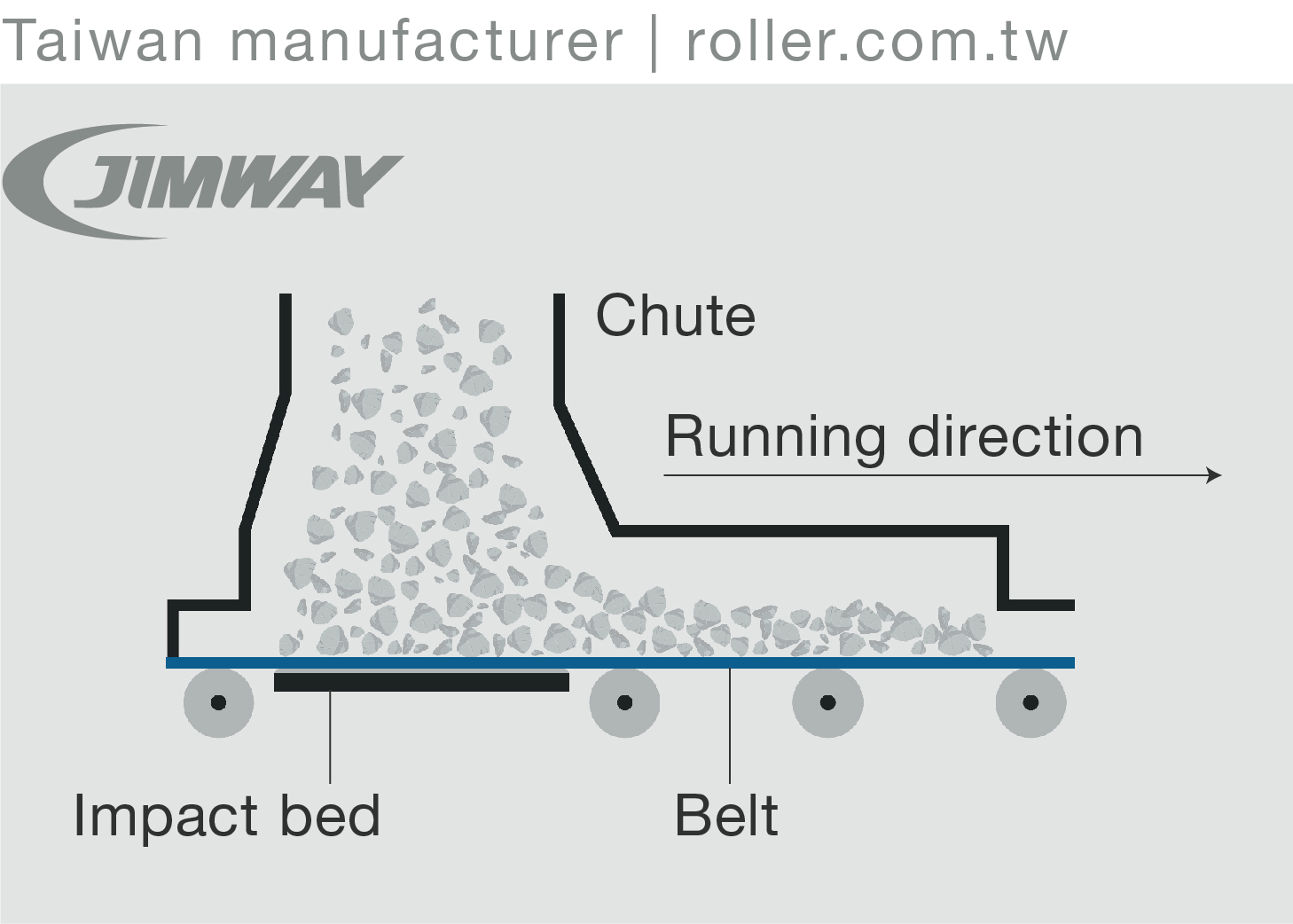

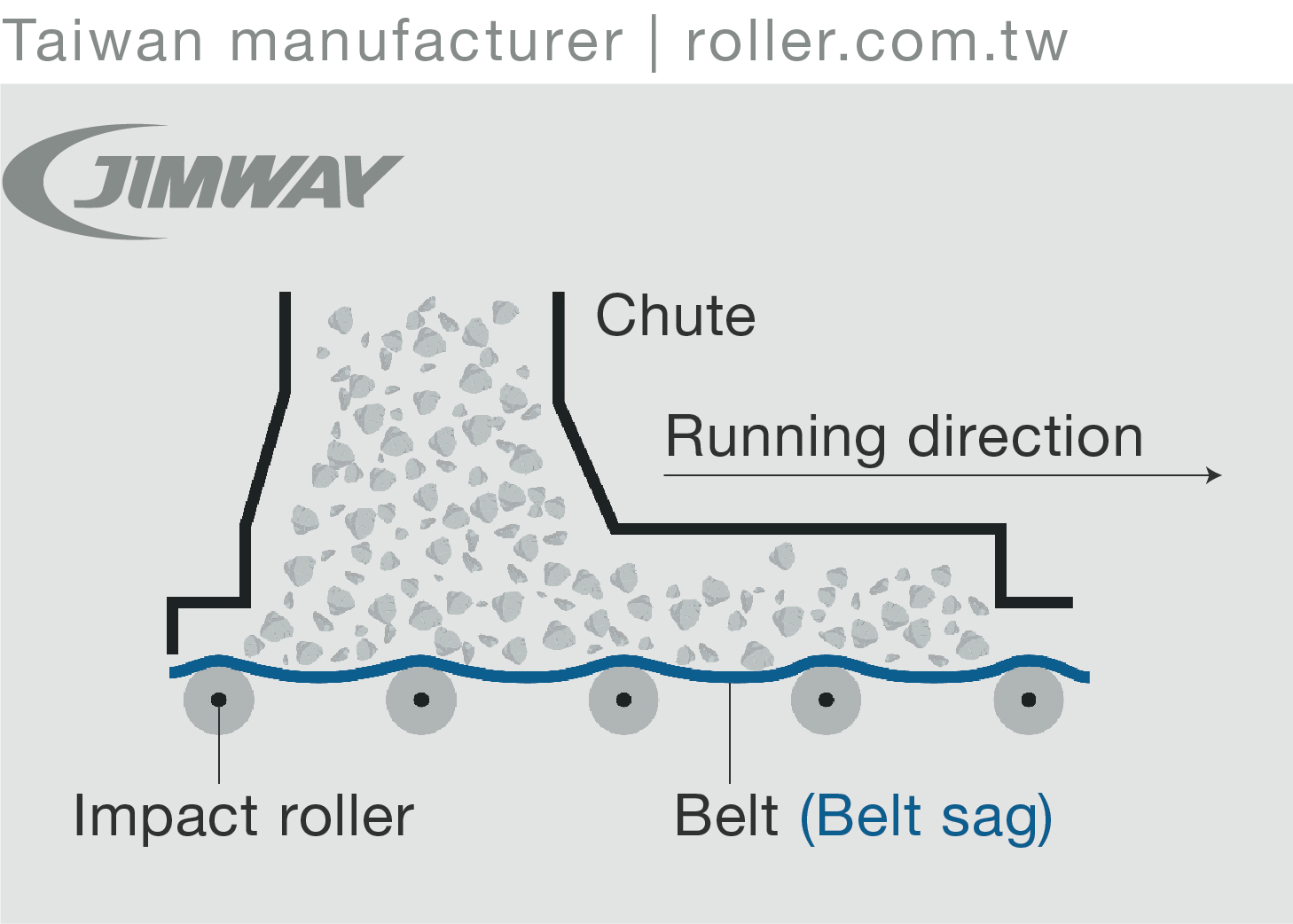

The shock of falling material at loading and transfer points between the idlers will cause the belt to flex downward, spillage, and leakage. The results of the situation are shortened idler life, increased clean-up cost, belt damage, and safety hazards.

X Operation: rotation

O Operation: slide

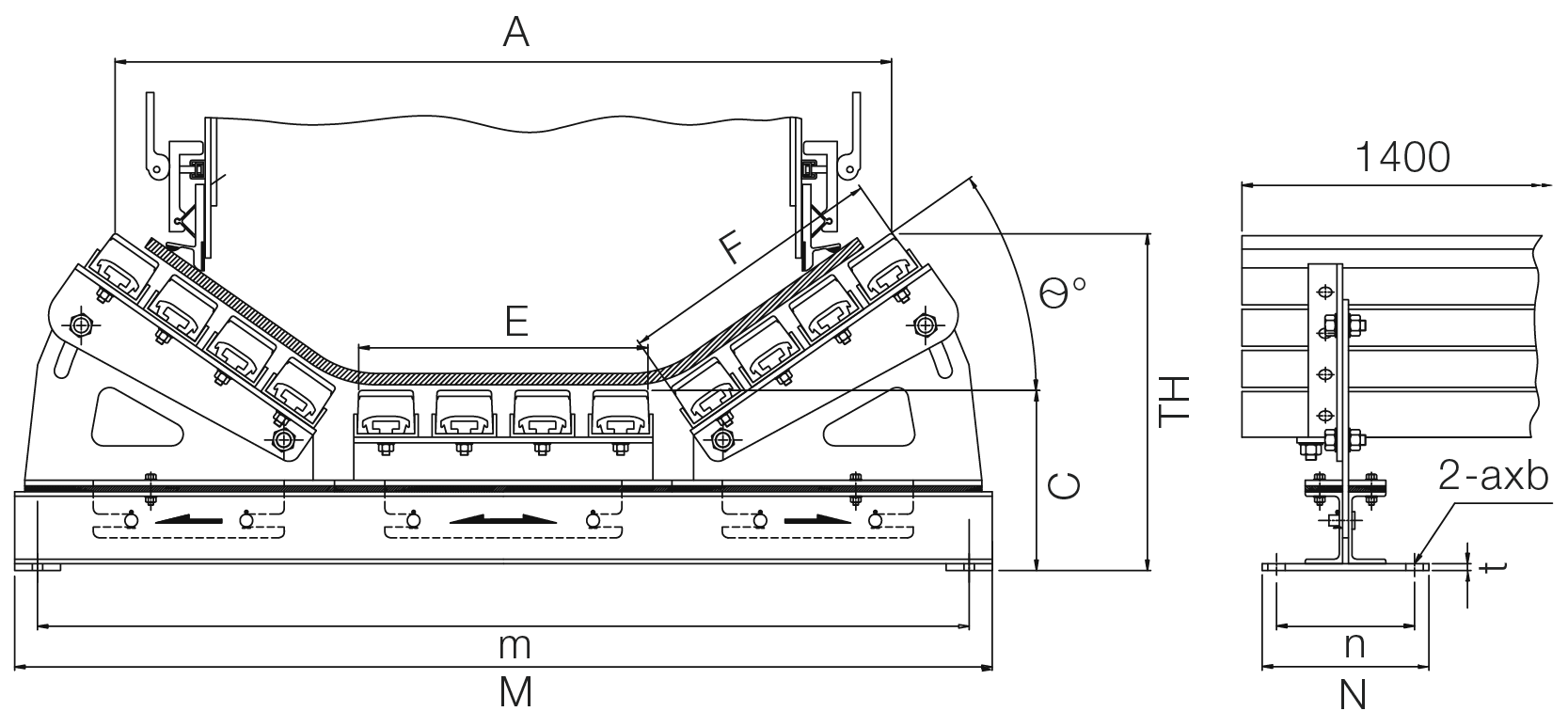

θ=20° θ=30° θ=35° θ=45° Unit:mm [in]

Model BW A TH A TH A TH A TH M m C t N n axb E F Bar Req.

JIMB-060 600 [24] 663 252 621 286 – – – – 890 840 175 6 200 150 14x30 225 225 6

JIMB-075 750 [30] 813 292 759 334 730 354 – – 1090 1040 198 6 210 160 14x30 240 240 6

JIMB-090 900 [36] 957 309 895 359 862 383 – – 1240 1190 198 6 210 160 14x30 350 240 7

JIMB-105 1050 [42] 1113 371 1040 429 1008 457 – – 1390 1340 240 6 230 180 14x30 350 350 9

JIMB-120 1200 [48] 1257 388 1176 454 1140 486 – – 1540 1490 240 6 230 180 14x30 475 350 10

JIMB-140 1400 [54] 1478 497 1382 575 1344 613 1224 680 1790 1730 323 9 230 180 18x30 490 490 12

JIMB-160 1600 [63] 1709 524 1601 615 1555 659 1417 736 1990 1930 323 9 230 180 18x30 600 500 13

JIMB-180 1800 [72] 1910 578 1792 680 1735 729 1592 817 2280 2220 353 12 230 180 18x30 640 620 15

JIMB-200 2000 [78] 2124 606 2010 720 1946 828 1785 874 2480 2420 353 12 230 180 18x30 750 620 16

▪ Belt-friendly (low impact energy)

▪ Extremely low coefficient of friction

▪ No belt mistracking and sagging

▪ Less belt vibration

▪ Improvement of spills and leaks

▪ Long wear life extension

		θ=20°		θ=30°		θ=35°		θ=45°										Unit:mm [in]
Model	BW	A	TH	A	TH	A	TH	A	TH	M	m	C	t	N	n	axb	E	F	Bar Req.
JIMB-060	600 [24]	663	252	621	286	–	–	–	–	890	840	175	6	200	150	14x30	225	225	6
JIMB-075	750 [30]	813	292	759	334	730	354	–	–	1090	1040	198	6	210	160	14x30	240	240	6
JIMB-090	900 [36]	957	309	895	359	862	383	–	–	1240	1190	198	6	210	160	14x30	350	240	7
JIMB-105	1050 [42]	1113	371	1040	429	1008	457	–	–	1390	1340	240	6	230	180	14x30	350	350	9
JIMB-120	1200 [48]	1257	388	1176	454	1140	486	–	–	1540	1490	240	6	230	180	14x30	475	350	10
JIMB-140	1400 [54]	1478	497	1382	575	1344	613	1224	680	1790	1730	323	9	230	180	18x30	490	490	12
JIMB-160	1600 [63]	1709	524	1601	615	1555	659	1417	736	1990	1930	323	9	230	180	18x30	600	500	13
JIMB-180	1800 [72]	1910	578	1792	680	1735	729	1592	817	2280	2220	353	12	230	180	18x30	640	620	15
JIMB-200	2000 [78]	2124	606	2010	720	1946	828	1785	874	2480	2420	353	12	230	180	18x30	750	620	16
