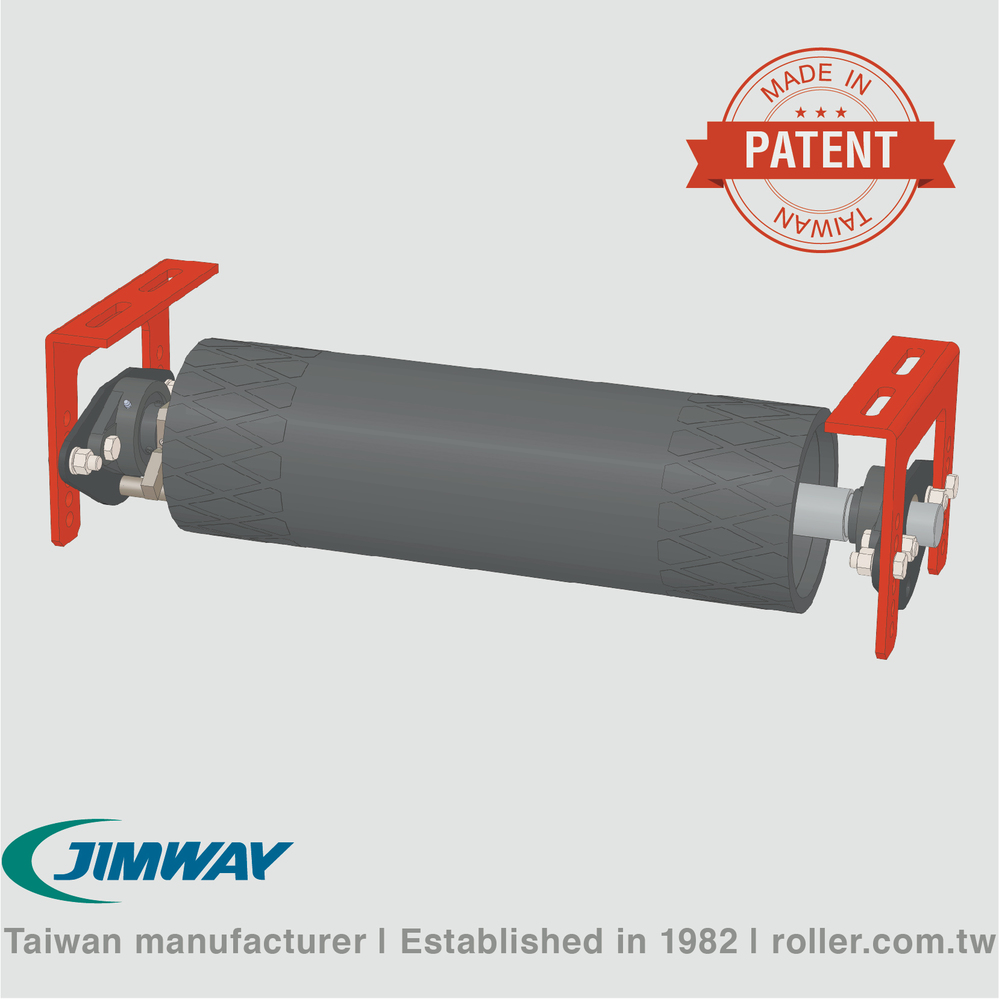

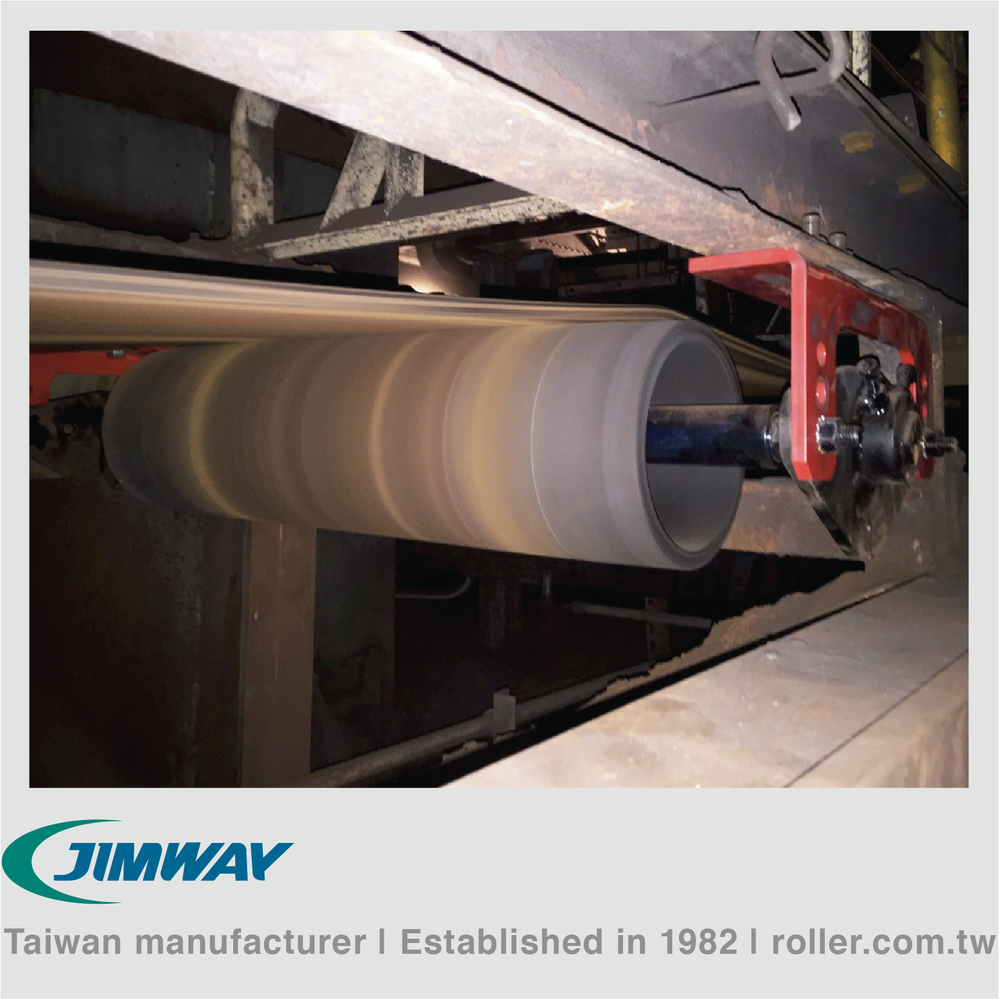

3D Tracker Return Roller

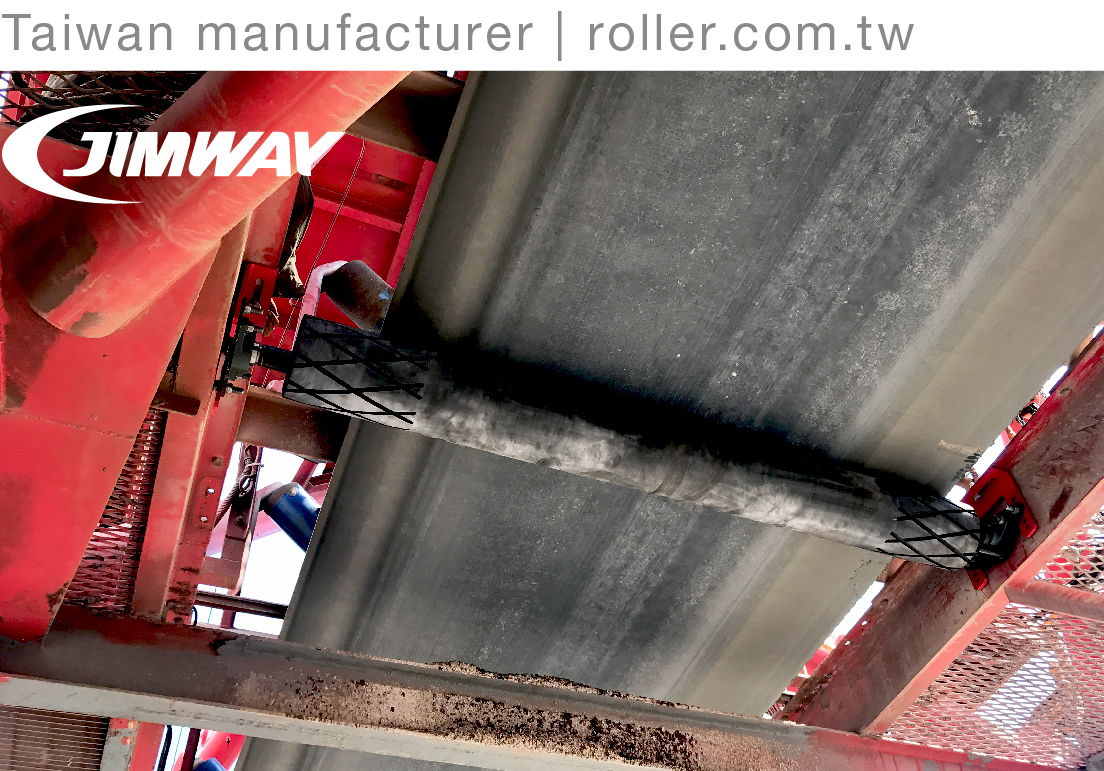

▪ Self-cleaning
▪ Water and residues shedding
▪ Easy installation

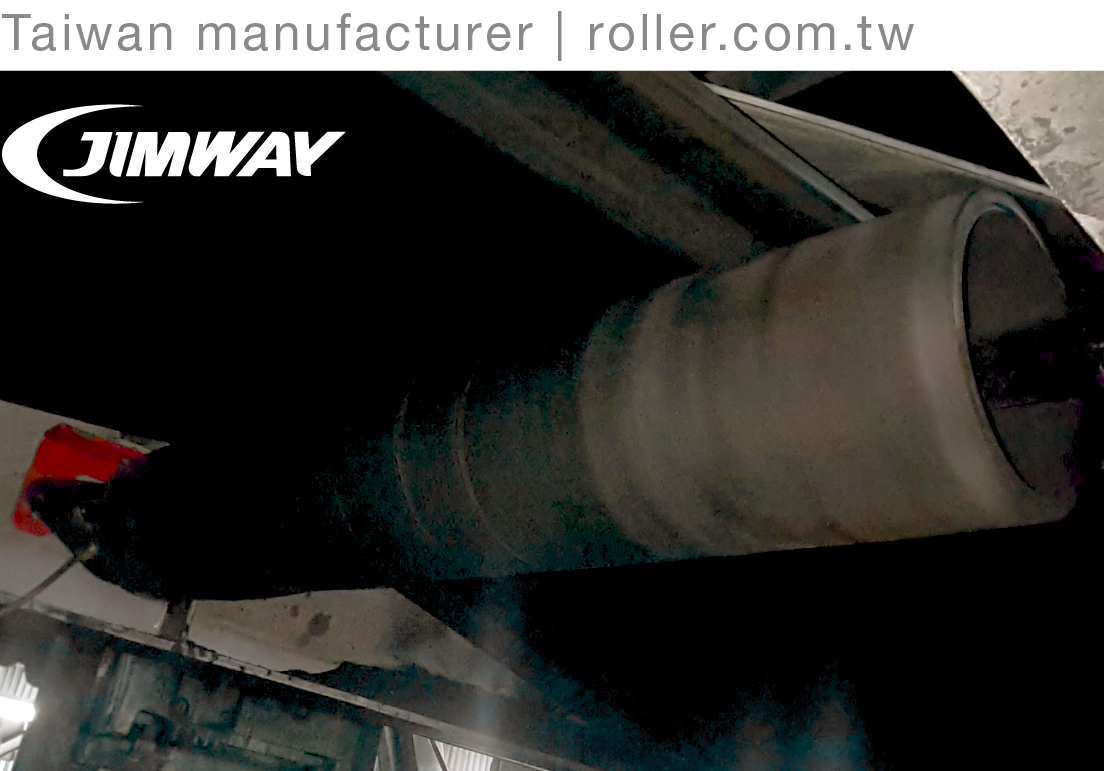

▪ Low maintenance
WITH HIGHLY EFFECTIVE PIVOT PLUS TILT ACTION, JIMWAY'S 3D TRACKER ROLLER IS A RELIABLE, SIMPLE AND AFFORDABLE MAINTENANCE CONVEYOR BELT ALIGNMENT.

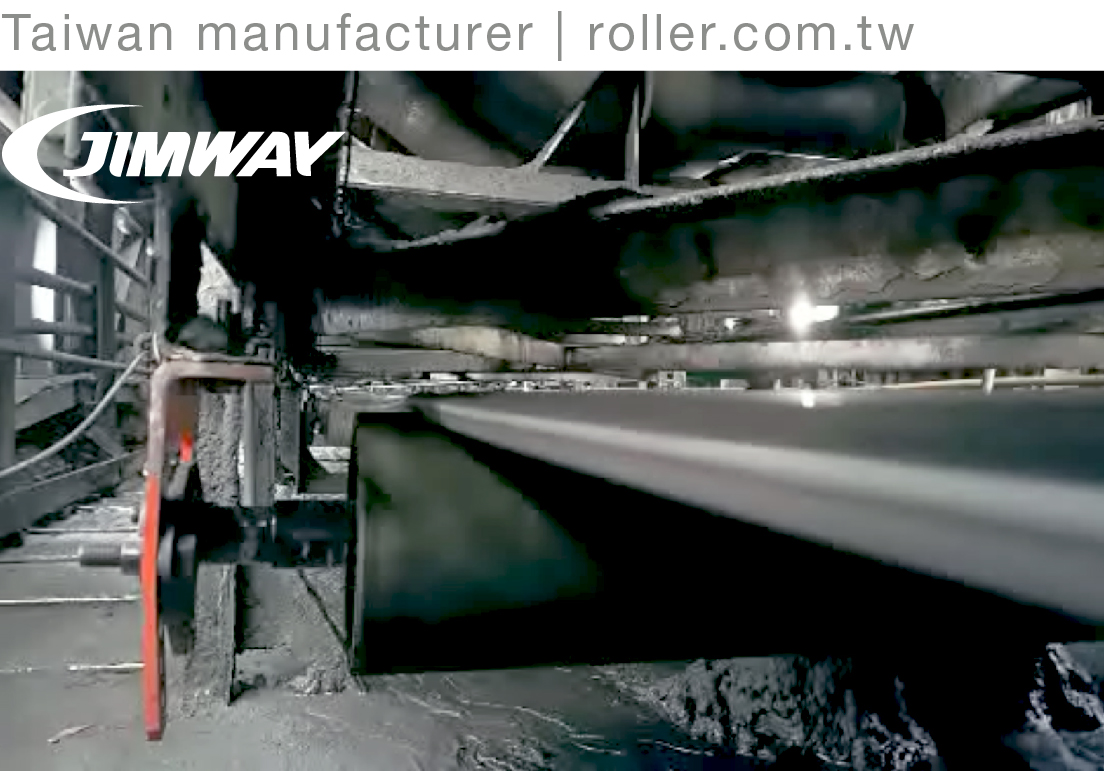

The wet sticky application where the material conveyed sticks to the belt surface causes belt mistracking, which the structure damage or material spillage may happened. In addition, the carryback falls on the return side of the belt to result in unusual belt and pulley wear. Highly effective tracking action and the diamond grooved rubber surface shedding water and residues, Jimway's 3D tracker roller is a reliable and easy maintenance solution to this common conveyor problem.
THE PRINCIPLE OF OPERATION

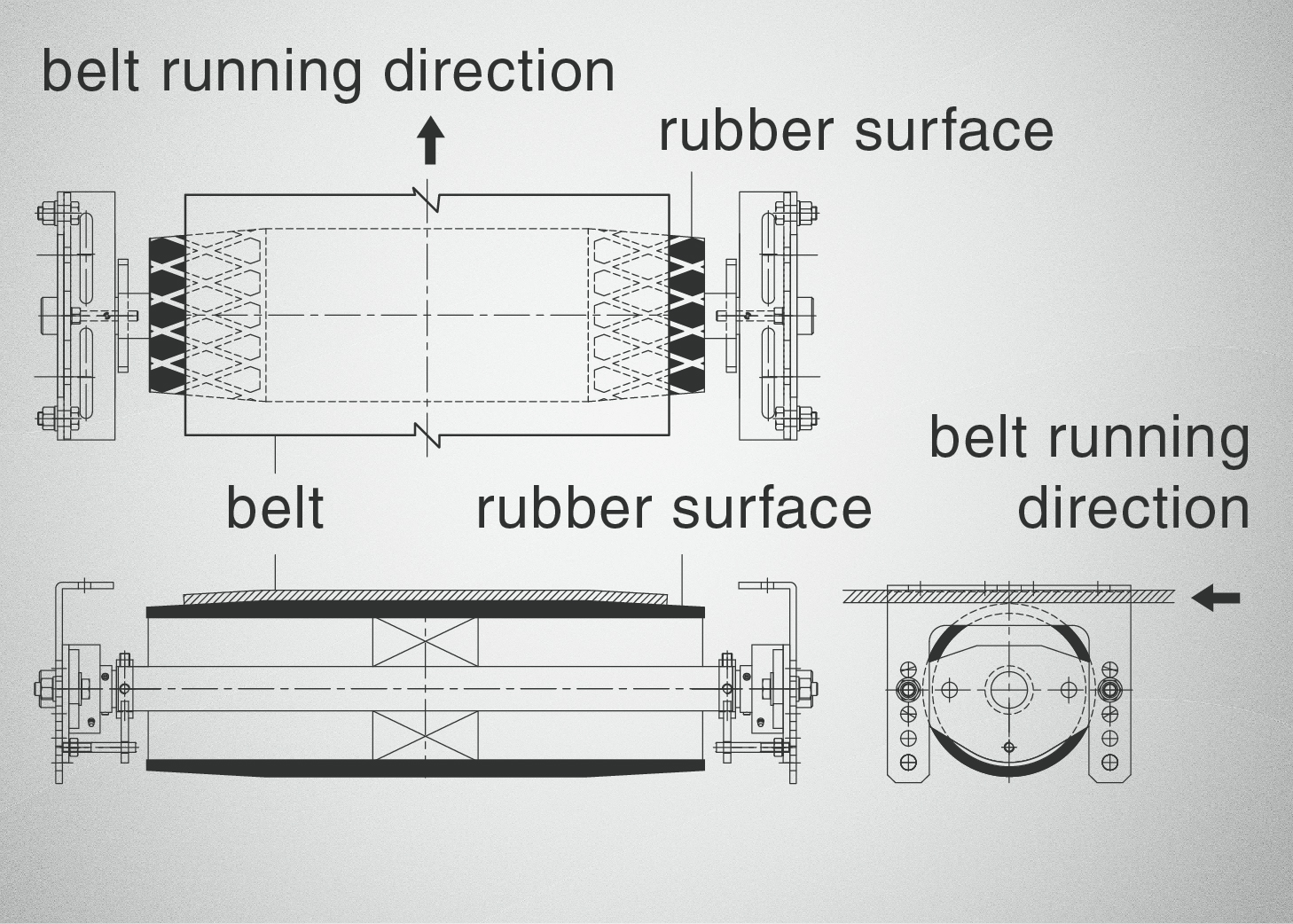

Belt normal operation

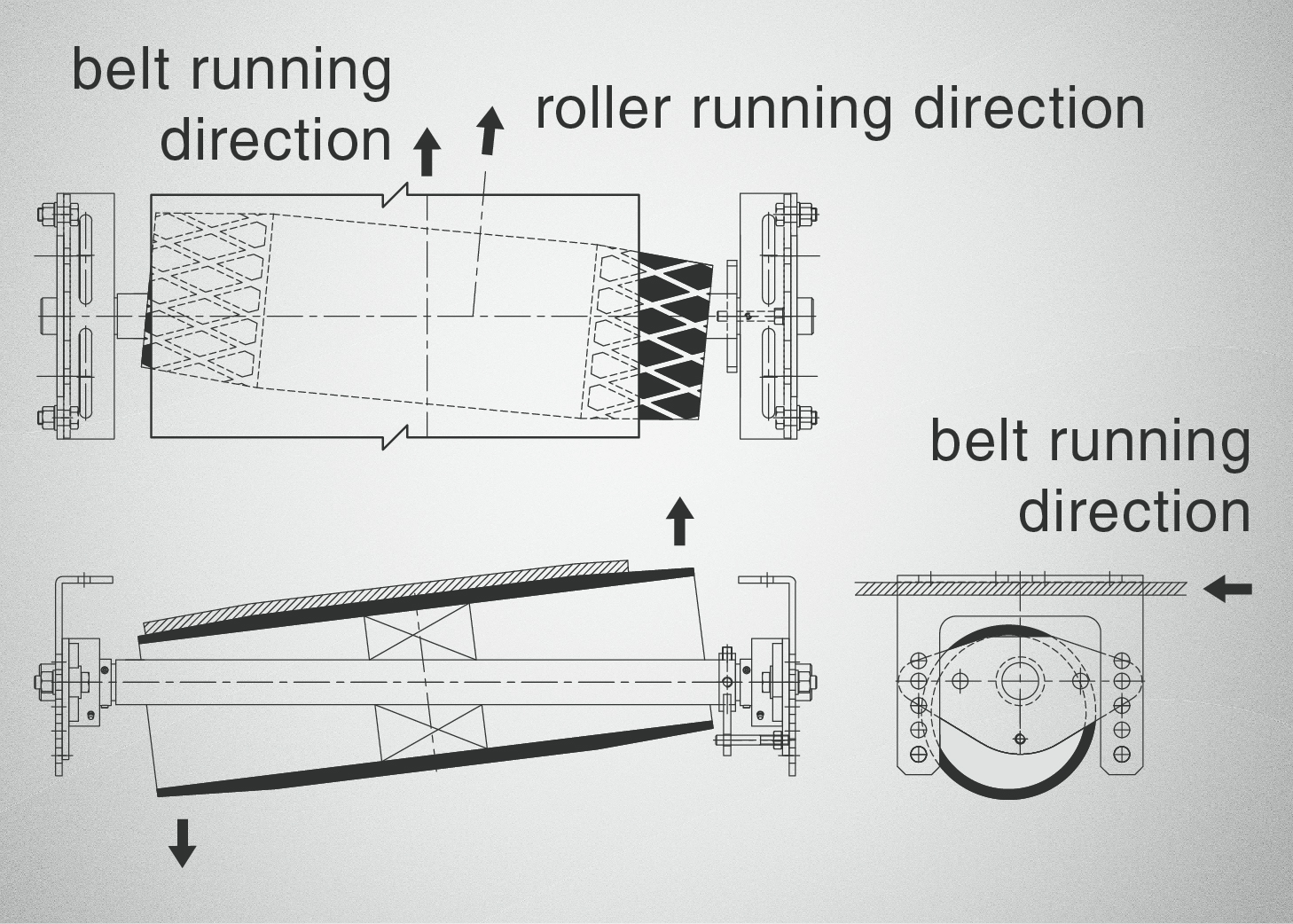

Belt left deviation
The roller pivots to the left side and to guide the belt back to the central position.
Spec. for 3D Tracker Roller:

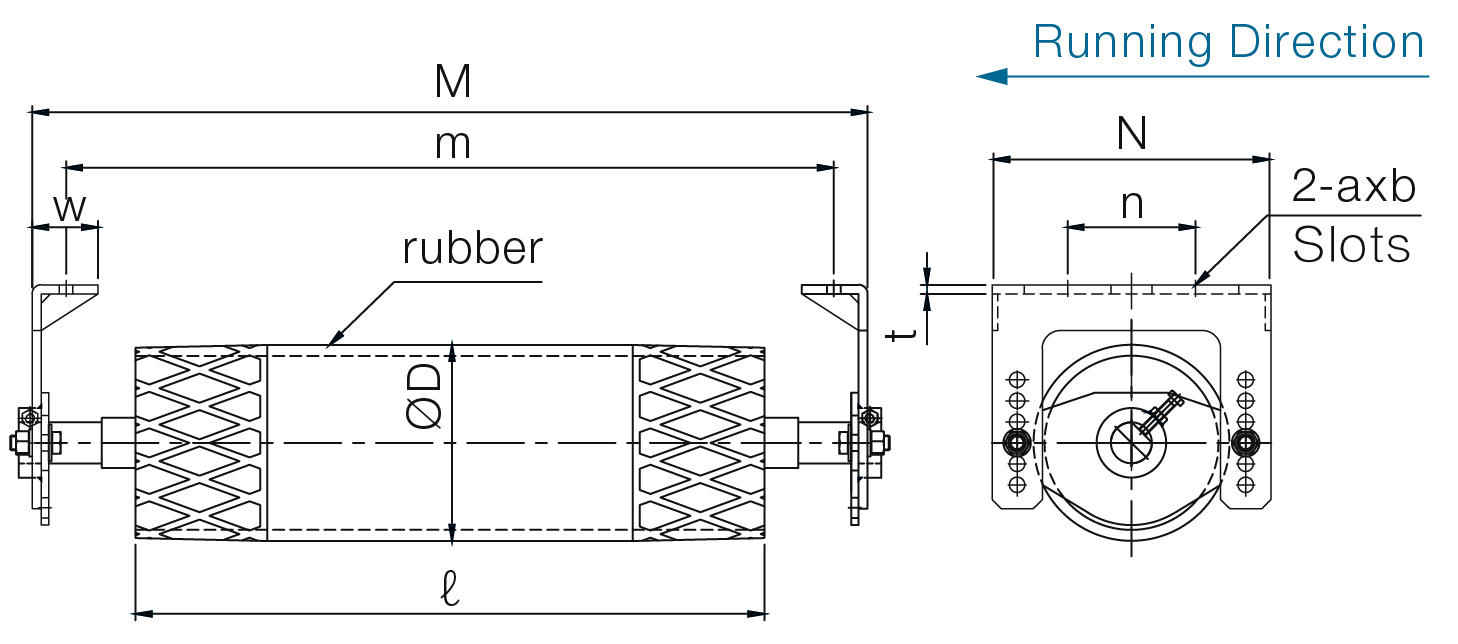

Single Direction (JTRS)

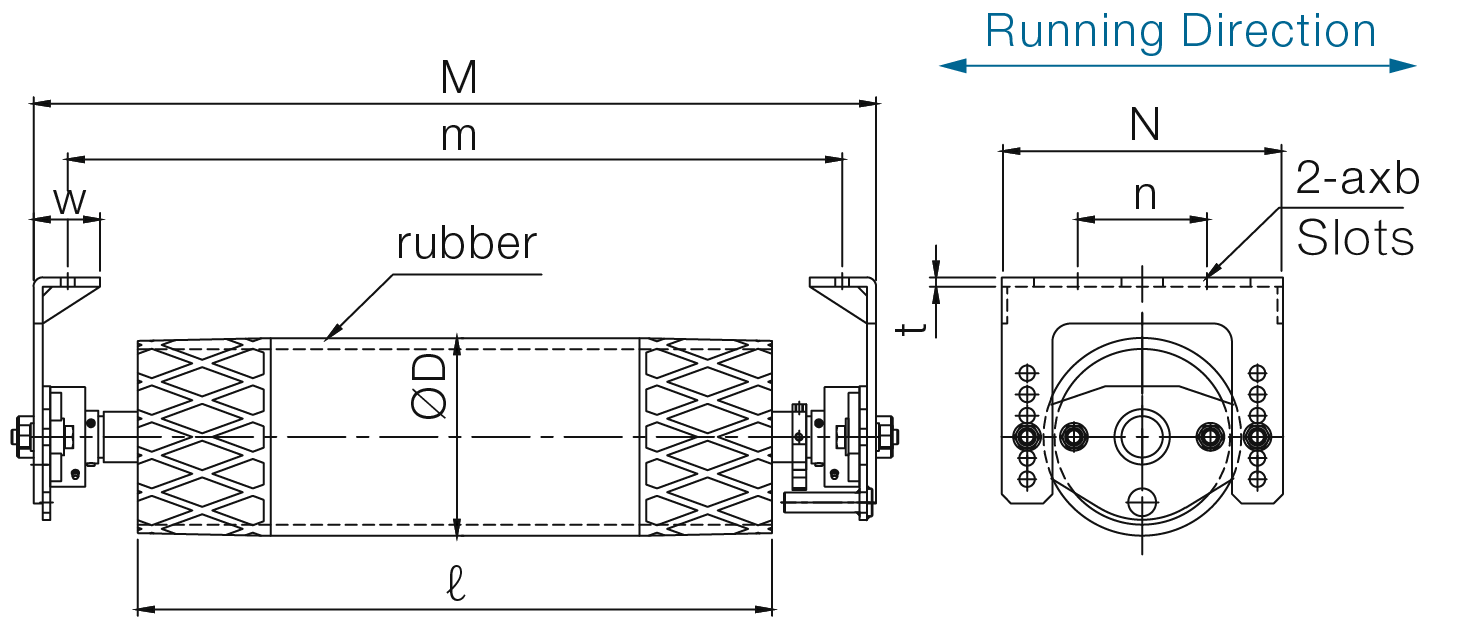

Reversible Direction (JTRR)
Unit:mm [in] | ||||||||||||
Model | BW | ØD | ℓ | m | M | n | N | t | w | axb | Bolt | |
-040 | 400 [16] | 189 | 460 | 640 | 710 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
-045 | 450 [18] | 189 | 510 | 690 | 760 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
-050 | 500 [20] | 189 | 560 | 740 | 810 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
-060 | 600 [24] | 189 | 660 | 840 | 910 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
-075 | 750 [30] | 189 | 850 | 1040 | 1110 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
JTRS | -090 | 900 [36] | 189 | 1000 | 1190 | 1260 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] |
JTRR | -105 | 1050 [42] | 189 | 1150 | 1340 | 1410 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] |
-120 | 1200 [48] | 189 | 1300 | 1490 | 1560 | 130 | 282 | 8 | 70 | 14x95 | M12 [1/2] | |
-140 | 1400 [54] | 214.5 | 1530 | 1730 | 1804 | 140 | 305 | 10 | 72 | 18x95 | M16 [5/8] | |
-160 | 1600 [63] | 214.5 | 1730 | 1930 | 2004 | 140 | 305 | 10 | 72 | 18x95 | M16 [5/8] | |
-180 | 1800 [72] | 214.5 | 2000 | 2220 | 2294 | 140 | 305 | 10 | 72 | 18x95 | M16 [5/8] | |
-200 | 2000 [78] | 214.5 | 2200 | 2420 | 2494 | 140 | 305 | 10 | 72 | 18x95 | M16 [5/8] |
▪ Highly effective tracking action
▪ Quick correction of belt misalignment
▪ Self-cleaning

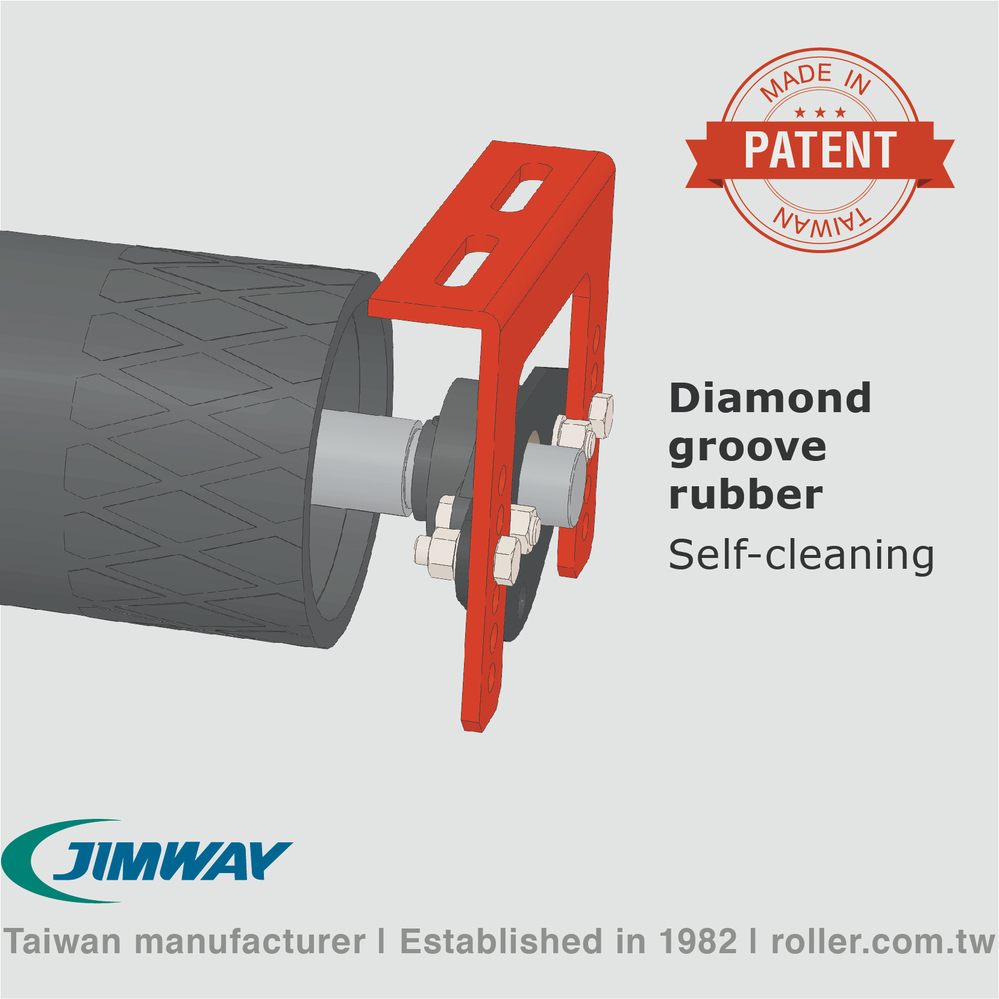

▪ The surface with diamond groove rubber
▪ Water and residues shedding
▪ Easy installation and low maintenance
