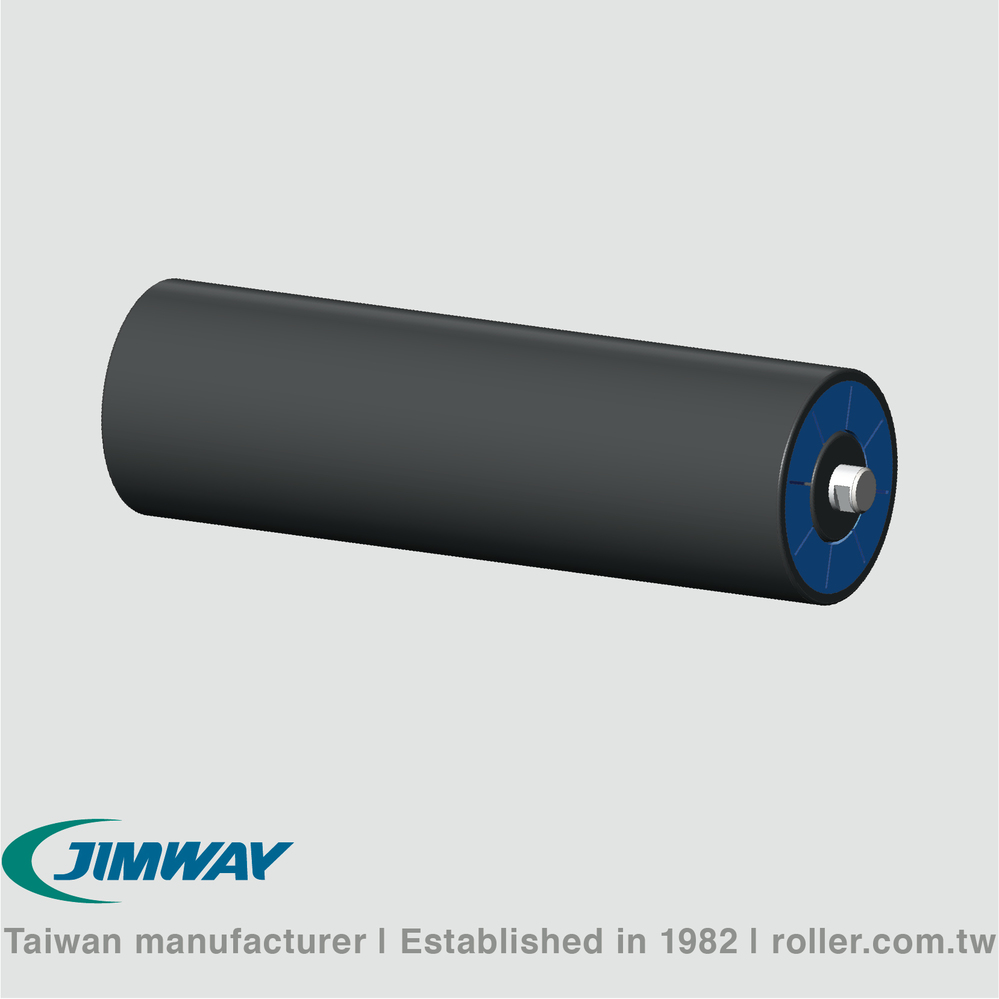

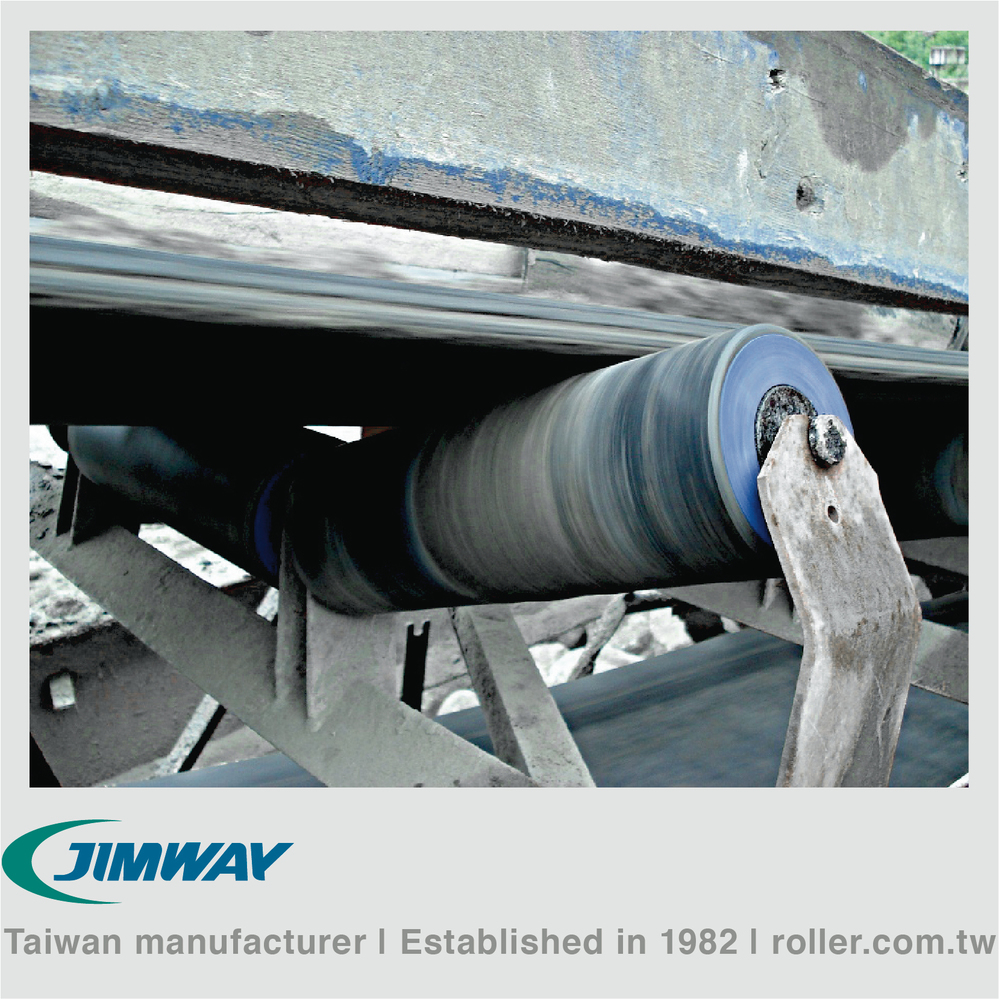

HDPE Conveyor Roller

▪ JIS, CEMA, DIN, ISO standards
▪ 50% lighter than steel idlers
▪ Less power consumption
▪ Low noise emission ≤50dB(A)
▪ Corrosion resistance
▪ Chemical resistance
▪ 100% belt friendly (no belt damage)
▪ Water and dust resistance



JIMWAY'S HDPE ROLLER IS APPROXIMATELY 50% LIGHTER THAN STEEL THAT REDUCES RISK OF BACK INJURY AND EASIER / CHEAPER TRANSPORTATION.

Characteristics of HDPE offers the better and affordable solution in humid and wet conditions due to the non-stick shell surface, which prevents build-up and reduces resultant vibration. In addition, lowest friction coefficients result in lowered energy costs. With excellent chemical resistance, the rollers are widely used in severe corrosive material.

––––––––––––––––––––––––––––––––––––––

Standard JIS / CEMA / DIN / ISO

Bearing 6204~6307 2RS

Roller Dia. Ø89.1~Ø159mm [Ø3.5"~Ø6.25"]

Classes available in CEMA D and E

Size be customized


BEFORE AND AFTER INSTALLING THE HDPE ROLLER:

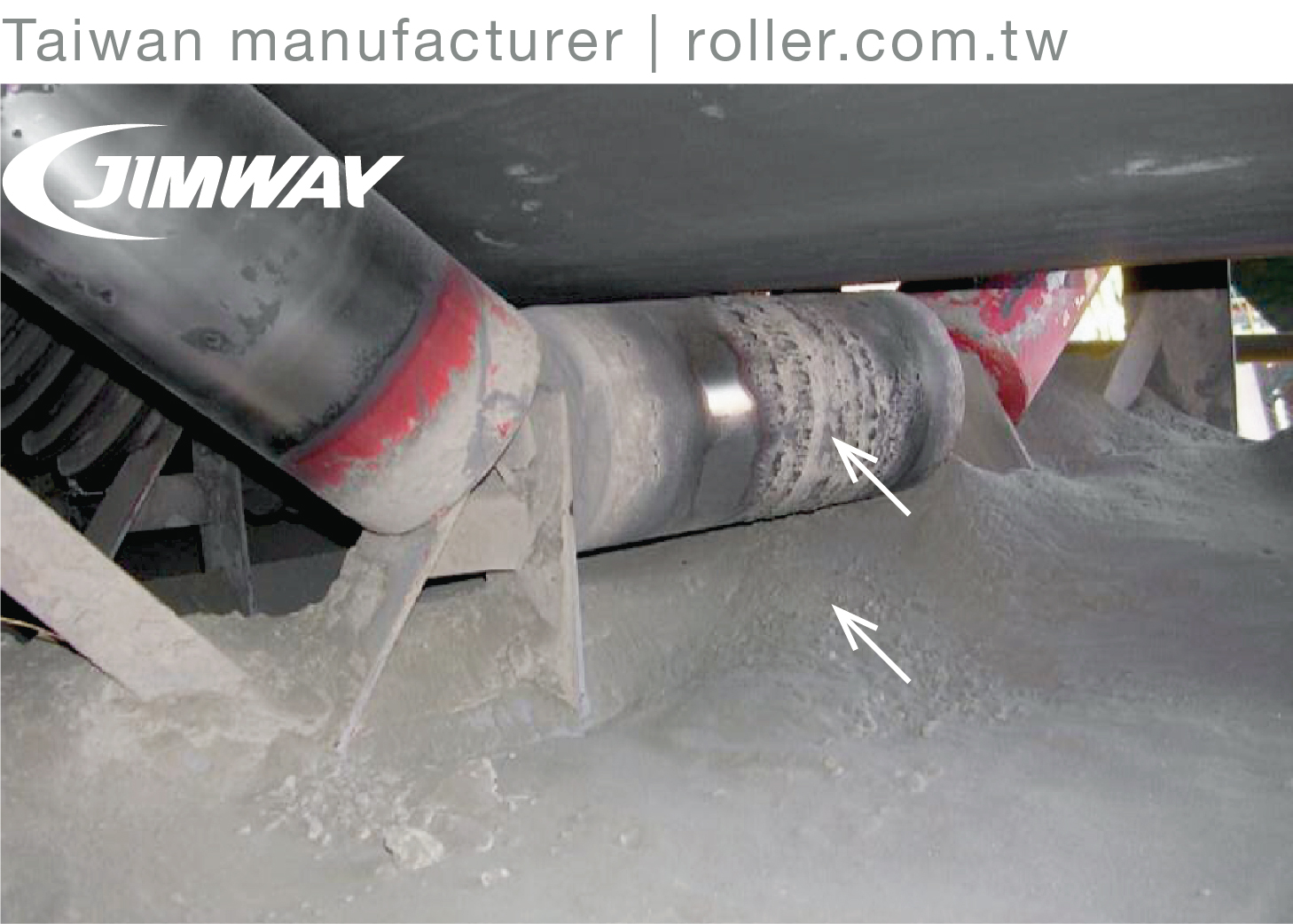

Before Increasing clean-up costs due to material build-up on the steel roller and material accumulation.

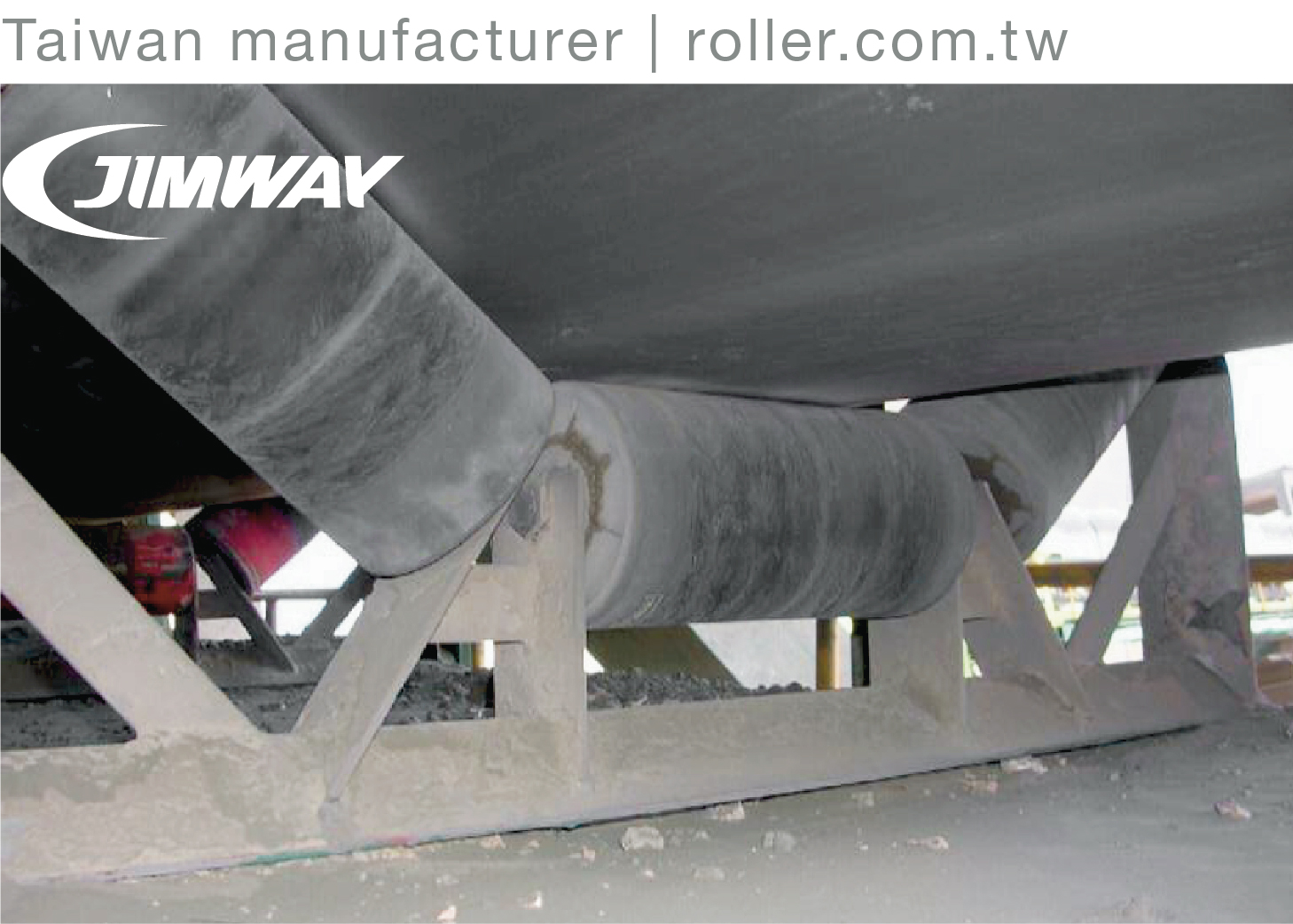

After The HDPE roller reduces material build-up.


COMPARISON SHEET: HDPE AND STEEL

S:superior, E:excellent, G:good (Test Method: JIS/CNS/ASTM)

Test Items HDPE Steel
Service life S E
Dynamic balance S E
Dust/Water resistance S S
Abrasion resistance E E
Power saving S E
Low residue S G
Cold resistance E E
Anti-static G S
Acid/alkaline resistance S G
Chemical resistance S E
UV resistance E E
Corrosion resistance E E
Operating noise S G
Running friction S G



Wall Thickness Unit:mm[inch]
6.4 7 6.8 7 7.8 8.7 10.8 11.2 11.2
[0.25] [0.28] [0.27] [0.28] [0.31] [0.34] [0.43] [0.44] [0.44]
Pipe
Ø89.1 Ø101.6 Ø108 Ø114.3 Ø127 Ø133 Ø139.8 Ø152.4 Ø159
Shaft [4] [5] [6]
Ø20 V V V V V
Ø25 V V V V V V V
Ø30 V V V V V
Ø35 V V

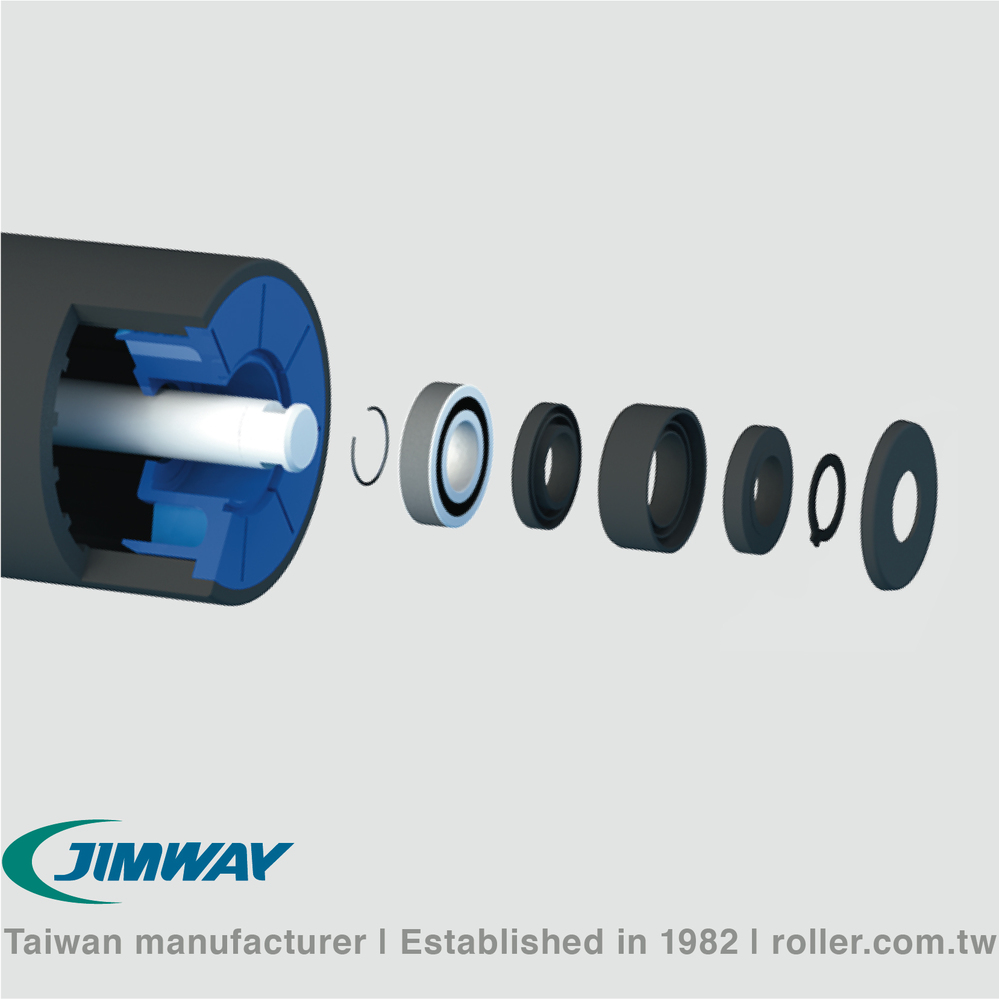

Ball bearings in the 62 and 63 series
Available in JIS, CEMA(C,D), DIN

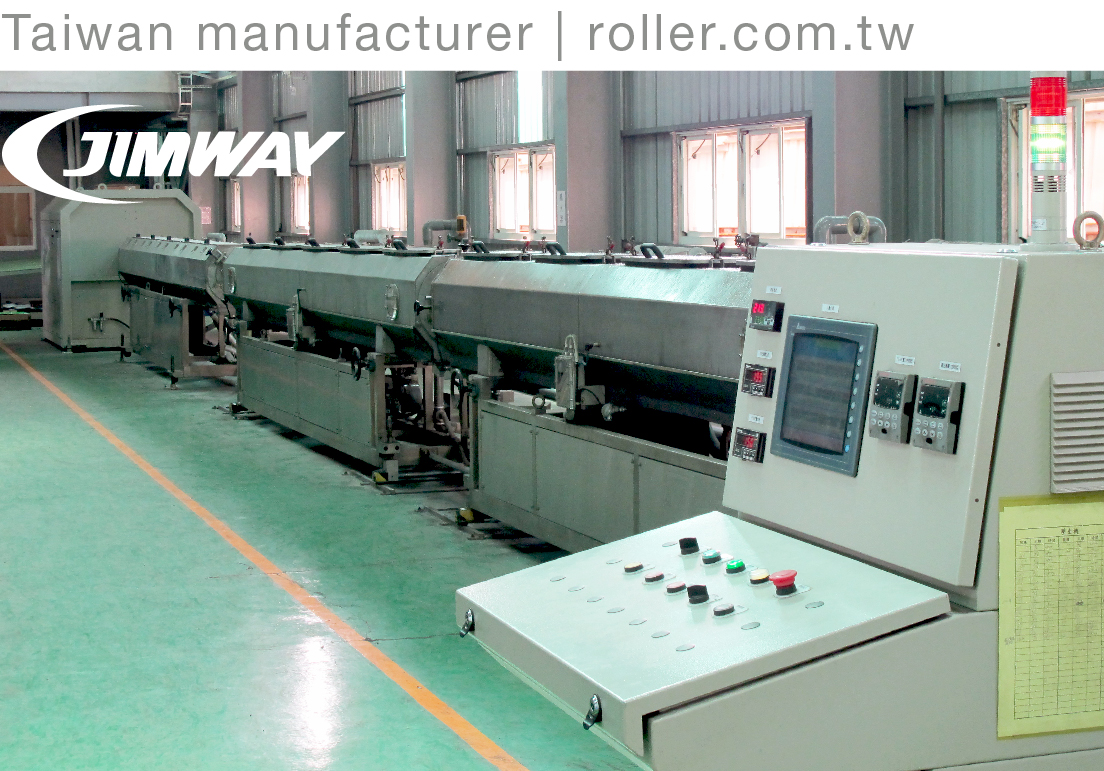

 The on-site extruder

 Non-toxic HDPE pipe

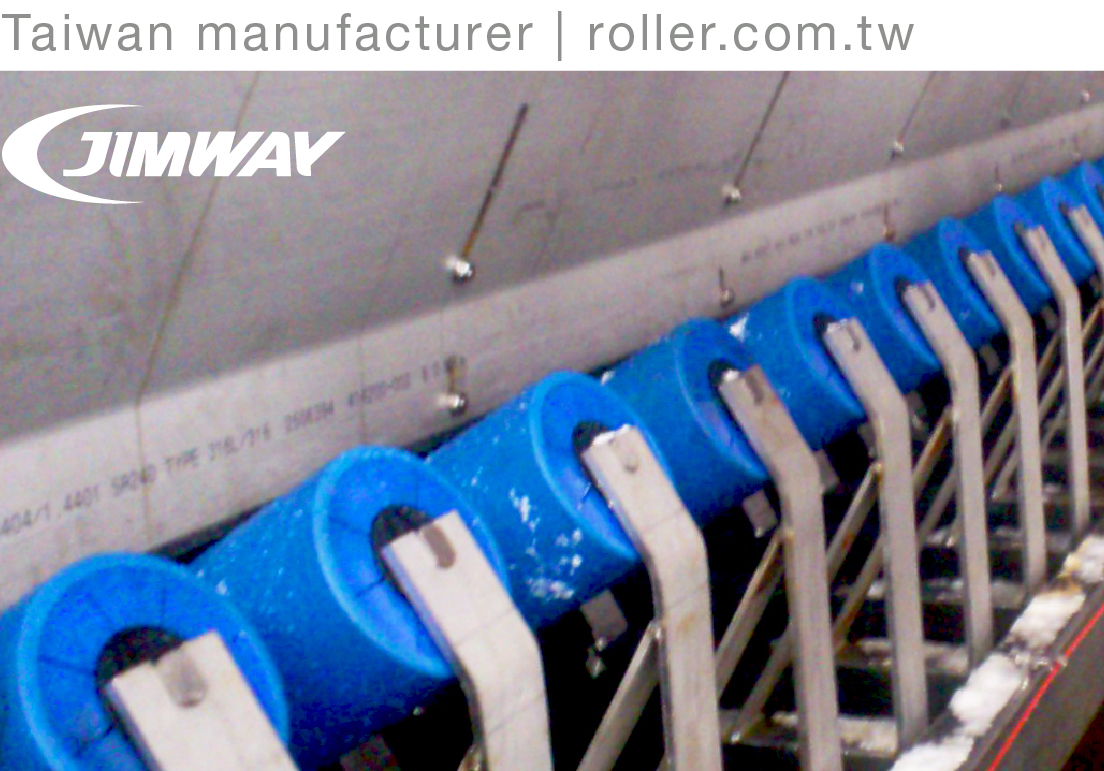

 Chemical resistance

 Belt friendly

 Low running friction

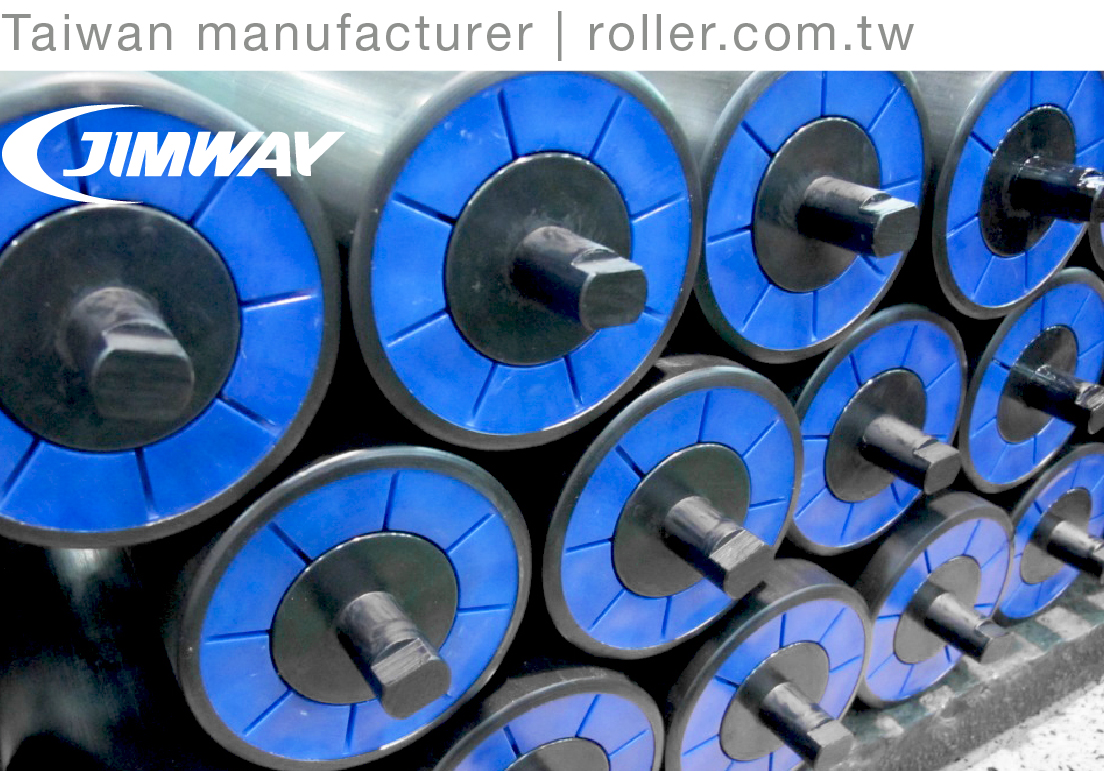

 Water-shedding end disc

 Grooved end disc

 Prevent mistracking

 Sticky material shedding

 Reduce material build up

 50% lighter than steel idlers

 Safety handle

 Less power consumption

 Cheaper transportation

 Low noise emission

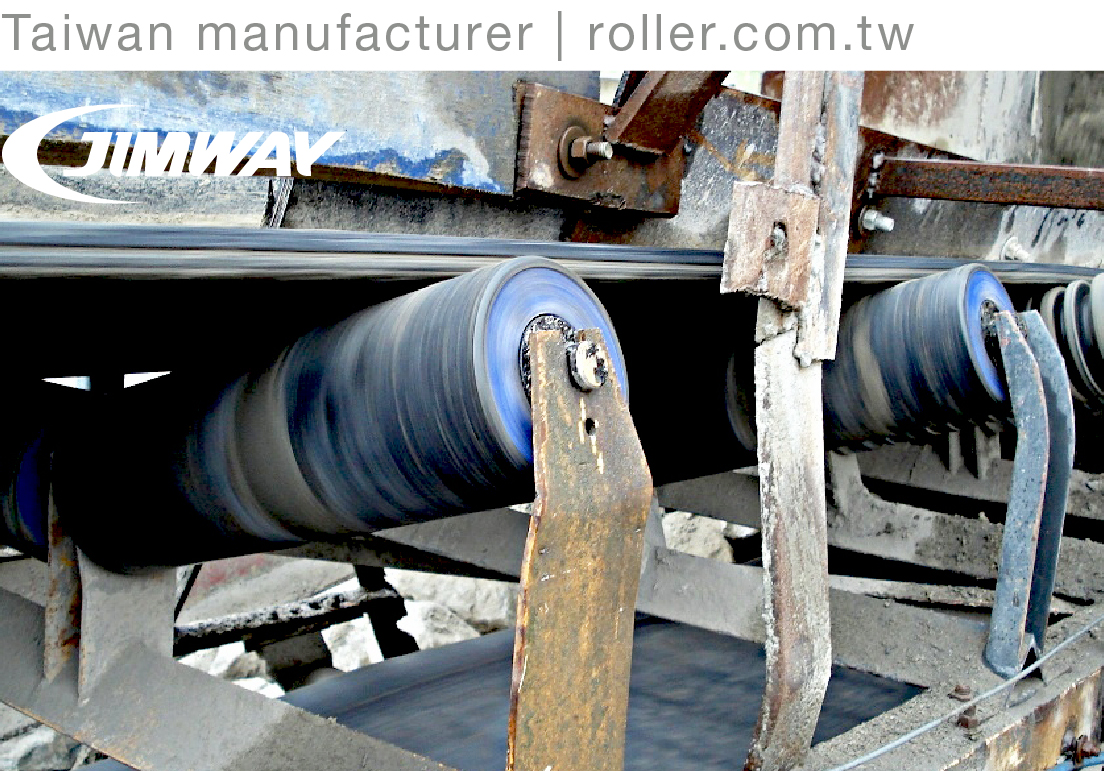

Cement

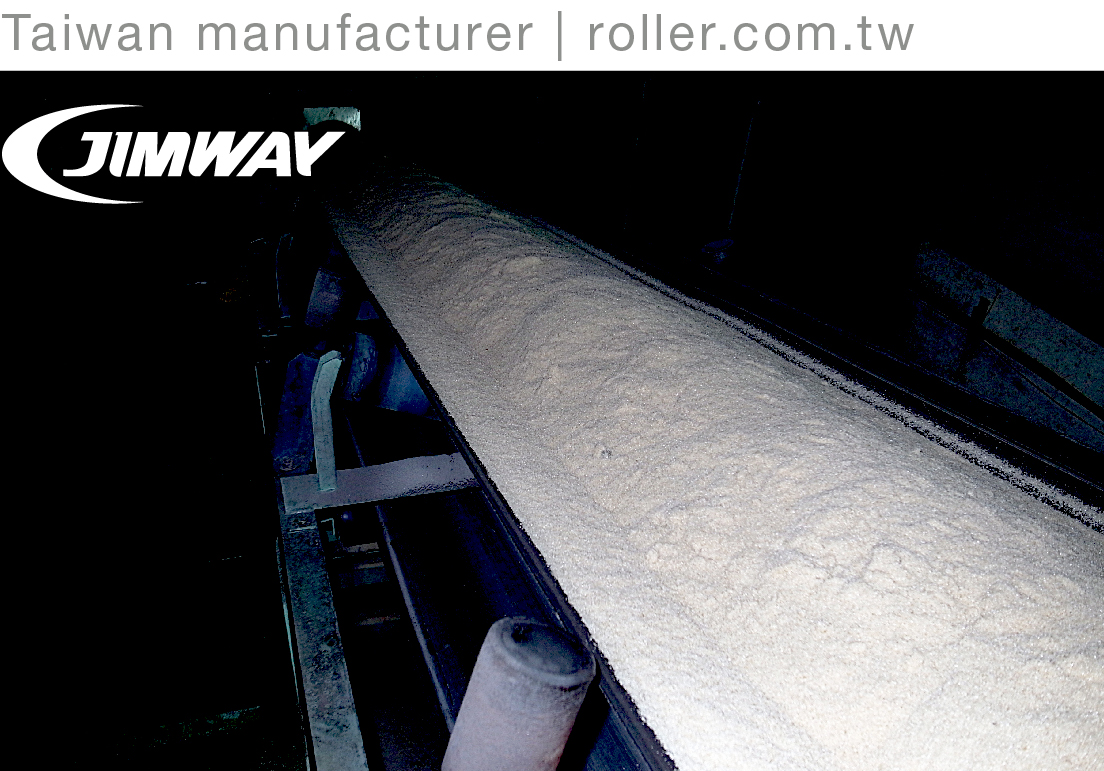

Raw sugar

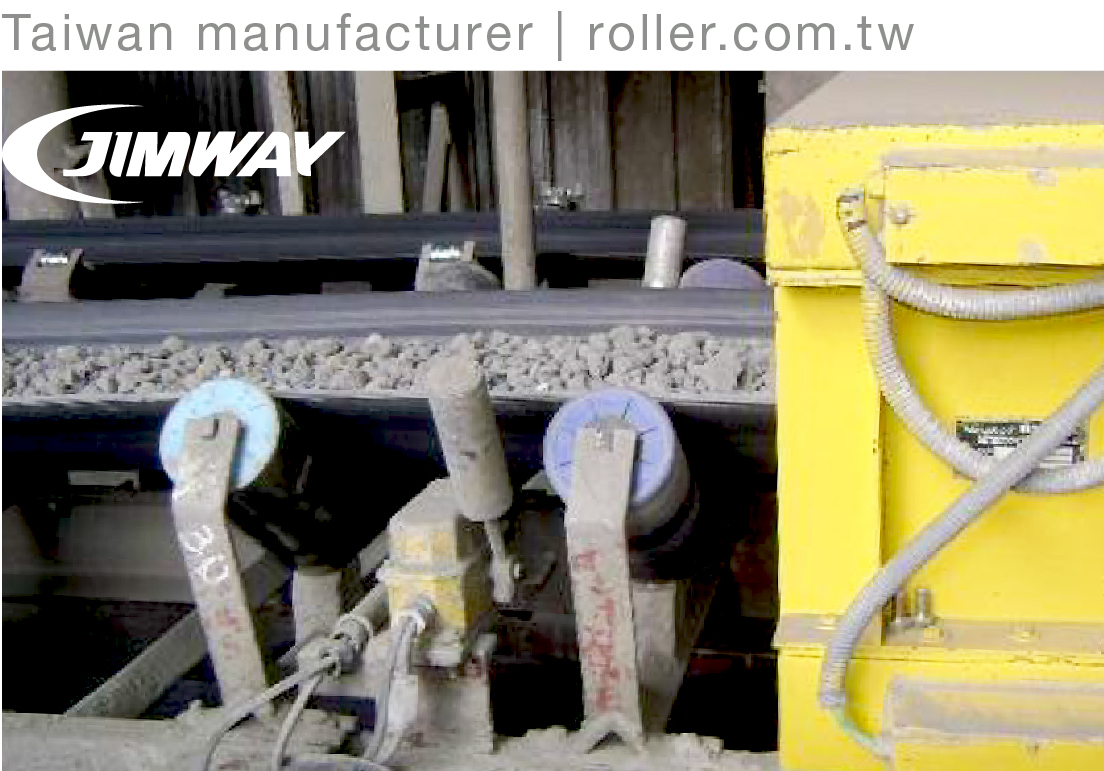

Sandstone


Chemical Industry Fertilizer, salt, sugar, pulp paper, acid, and alkaline etc.

General Industry Coal mining, cement, concrete, limestone, and quarry etc.
