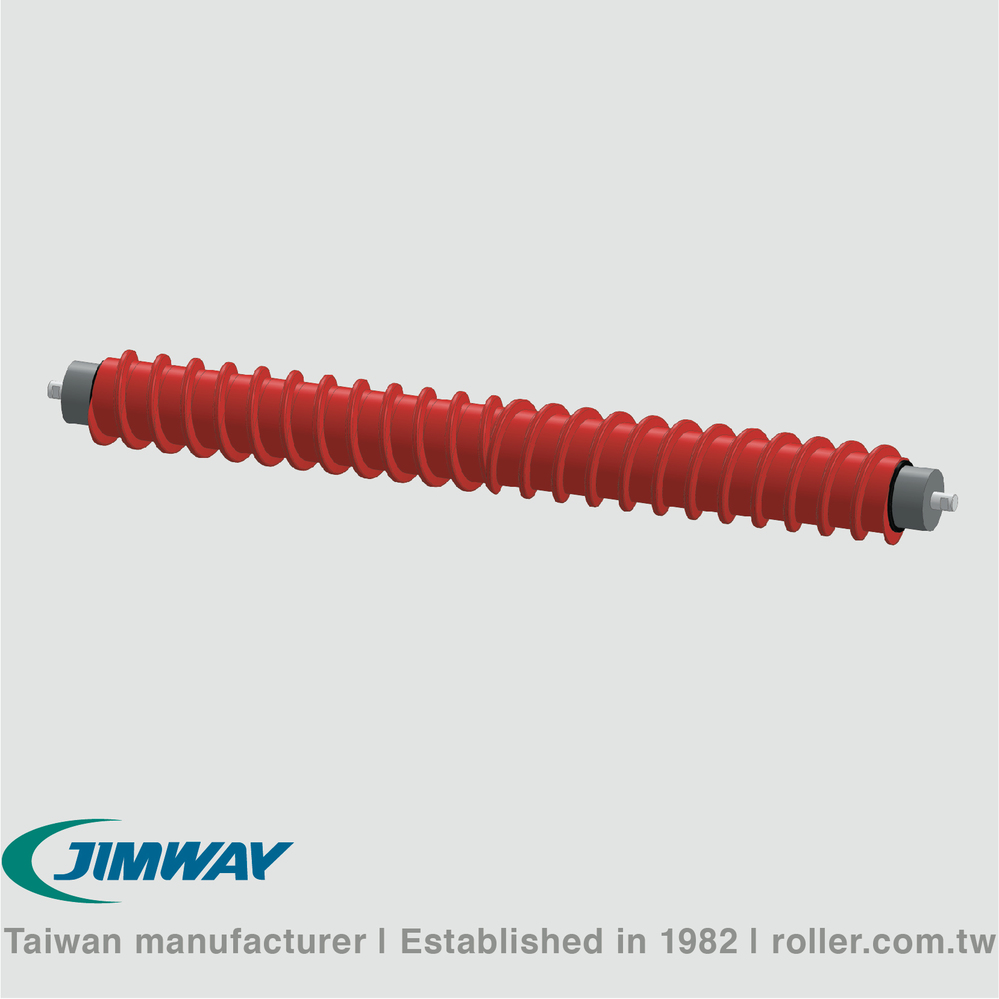

PU Spiral Return Roller

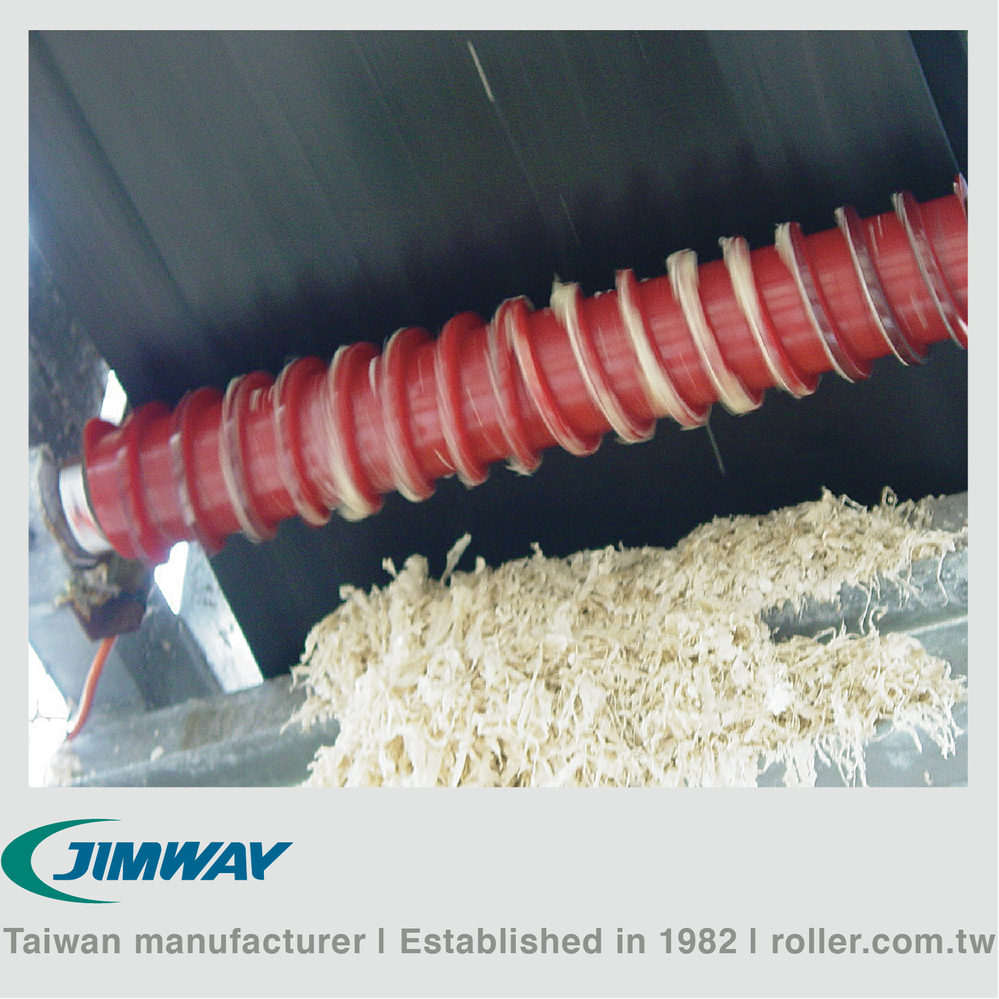

▪ Wet/sticky material shedding
▪ High abrasion resistance
▪ Reduction of clean-up cost
▪ Reduction of extra maintenance
▪ 3X steel roller lifetime

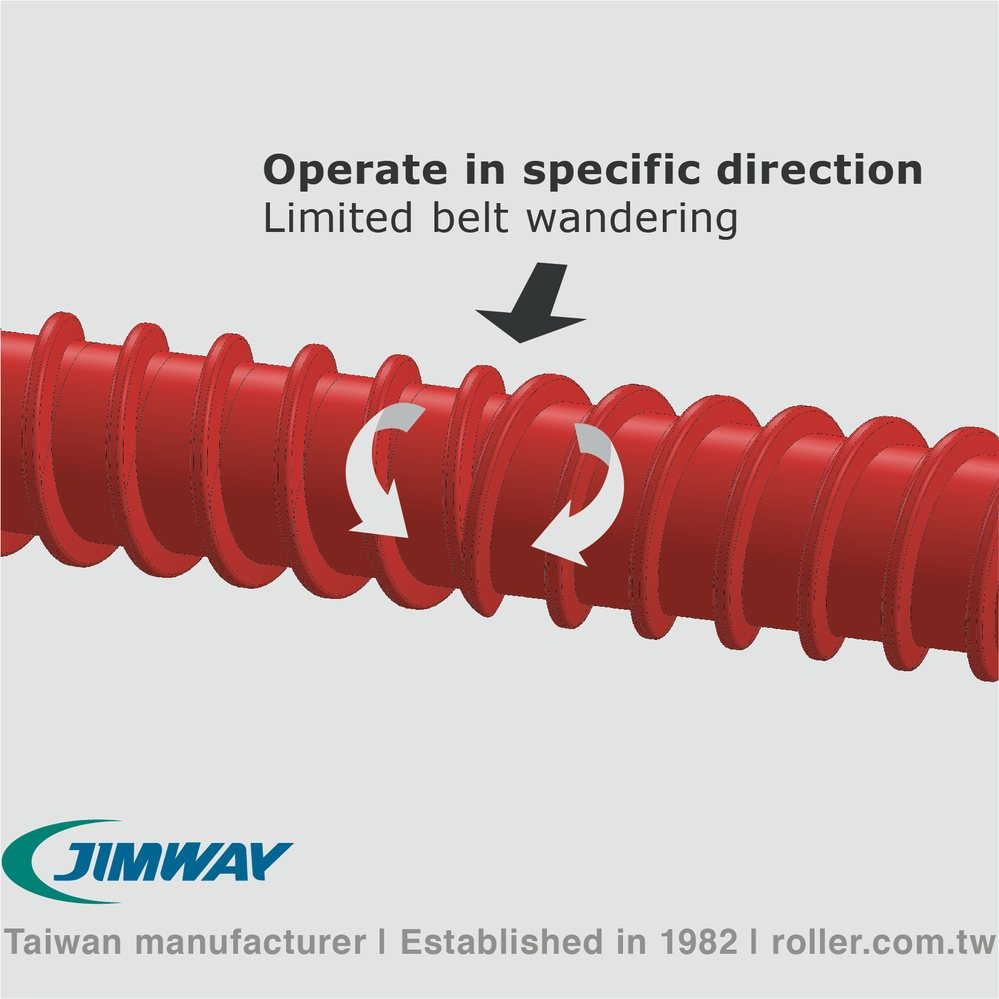

▪ Operating in specific direction to limit belt wandering

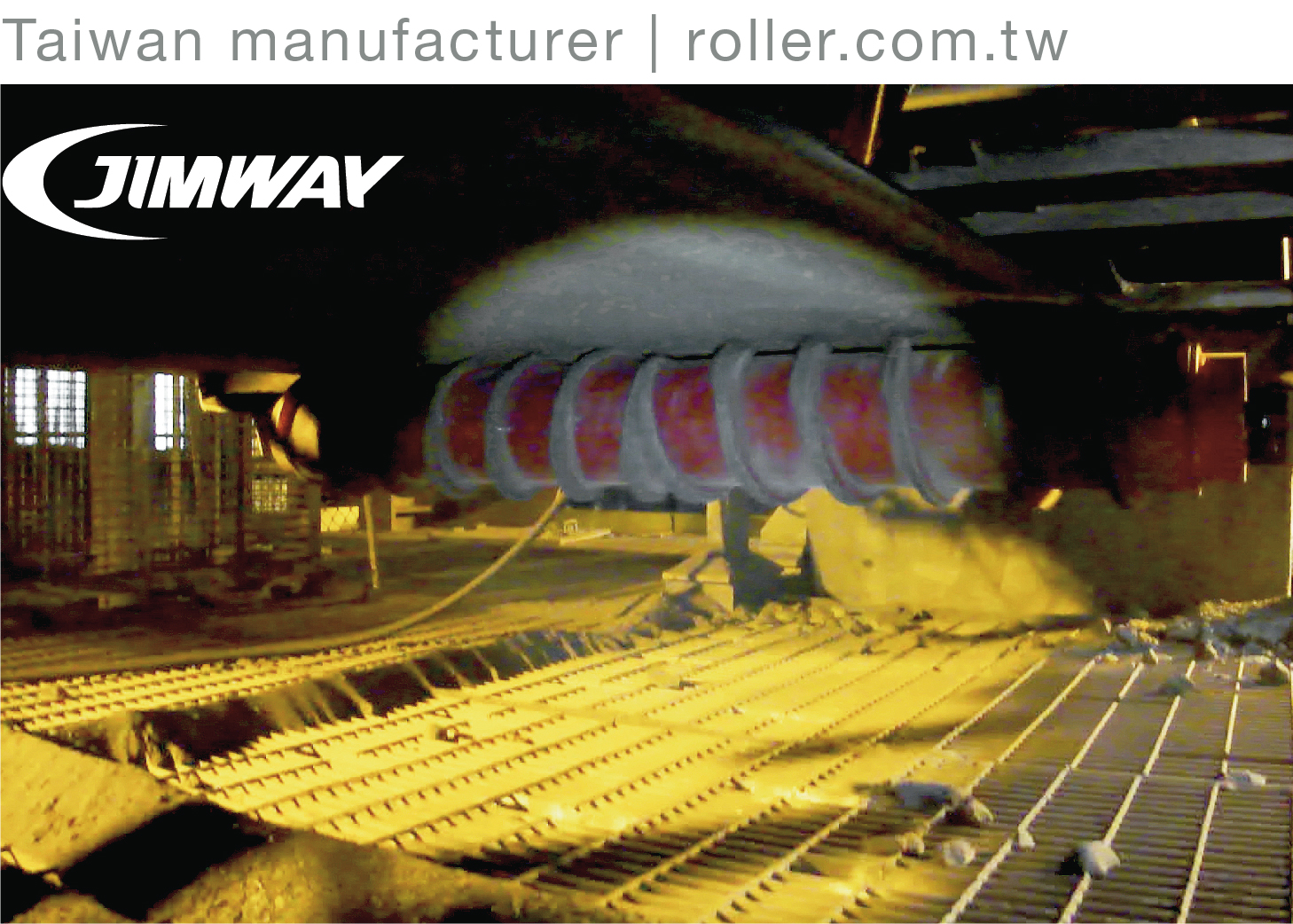

USED WHERE STICKY MATERIALS ADHERE TO THE BELT, JIMWAY'S SPRIAL RETURN ROLLER IS A SOLUTION FOR SHEDDING STICKY MATERIAL AND MAINTAINING PROPER BELT TRACKING.
This self-cleaning roller has utilizing durable PU discs and operates in specific direction to limit belt wandering. Materials build-up on the rollers, which causing the belt to mistrack/flap and material spillage that the rollers fails prematurely. Jimway's maintenance-free spiral return roller reduces downtime due to less carryback or less belt mistracking. The non-stick properties of the PU material ensures that unwanted wet sticky material won't adhere the roller and extends the roller service life.
––––––––––––––––––––––––––––––––––––––
Bearing 6205~6306 2RS
Roller Dia. Ø140, Ø166mm [Ø5.5", Ø6.5"]
Seals triple labyrinth
Disc Material PU
Size be customized
MATERIAL IS NOT ALLOWED TO BUILD-UP

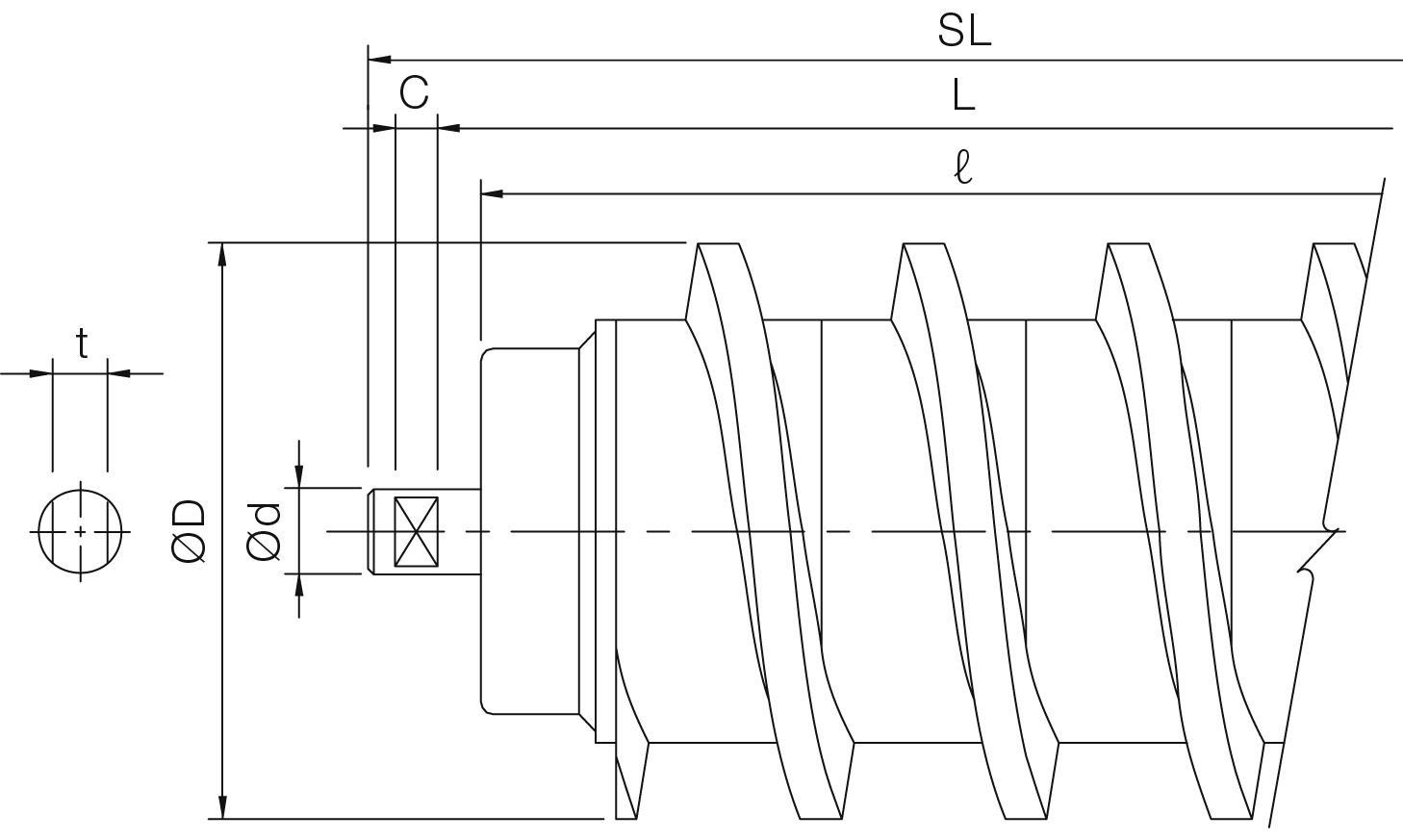

| Unit:mm [in] | |||||||||
| Model | BW | ØD | ℓ | L | SL | C | t | Ød | Bearing No. |
| SRR-060 | 600 [24] | 140 | 660 | 680 | 705 | 8.0 | 14.0 | 25/20 | 6205 2RS |
| SRR-075 | 750 [30] | 140 | 850 | 880 | 905 | 8.0 | 14.0 | 25/20 | 6205 2RS |
| SRR-090 | 900 [36] | 140 | 1000 | 1030 | 1055 | 8.0 | 14.0 | 25/20 | 6205 2RS |
| SRR-105 | 1050 [42] | 140 | 1150 | 1180 | 1215 | 11.2 | 18.0 | 25 | 6305 2RS |
| SRR-120 | 1200 [48] | 140 | 1300 | 1330 | 1365 | 11.2 | 18.0 | 25 | 6305 2RS |
| SRR-140 | 1400 [54] | 166 | 1530 | 1550 | 1585 | 11.2 | 22.4 | 30 | 6306 2RS |
| SRR-160 | 1600 [63] | 166 | 1730 | 1750 | 1785 | 11.2 | 22.4 | 30 | 6306 2RS |
| SRR-180 | 1800 [72] | 166 | 2000 | 2040 | 2075 | 11.2 | 25.0 | 35 | 6307 2RS |
| SRR-200 | 2000 [78] | 166 | 2200 | 2240 | 2275 | 11.2 | 25.0 | 35 | 6307 2RS |

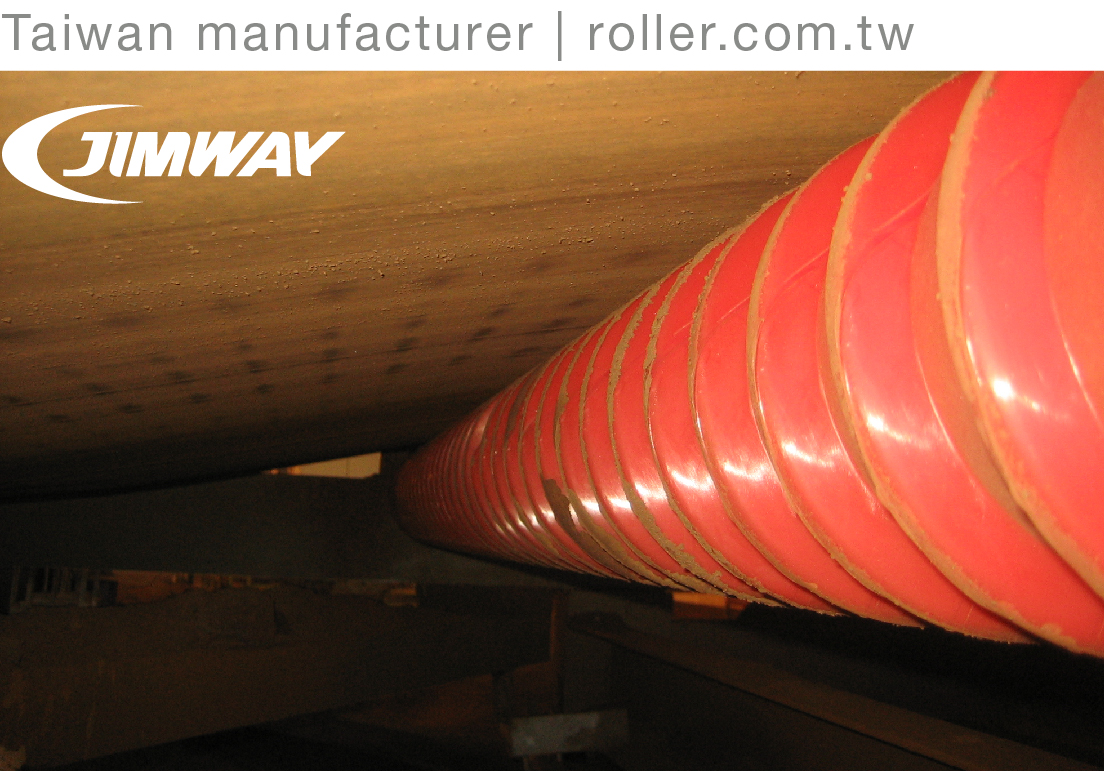

▪ Wet/sticky material shedding
▪ Limited belt wandering

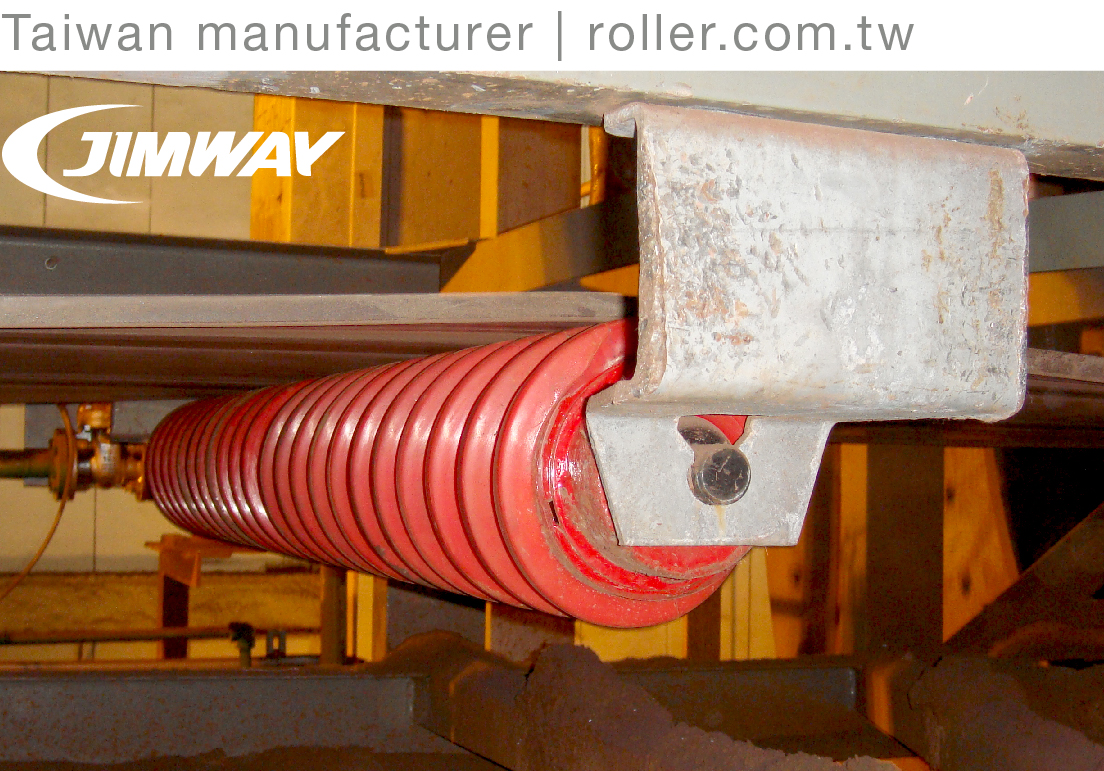

▪ 3X steel roller lifetime

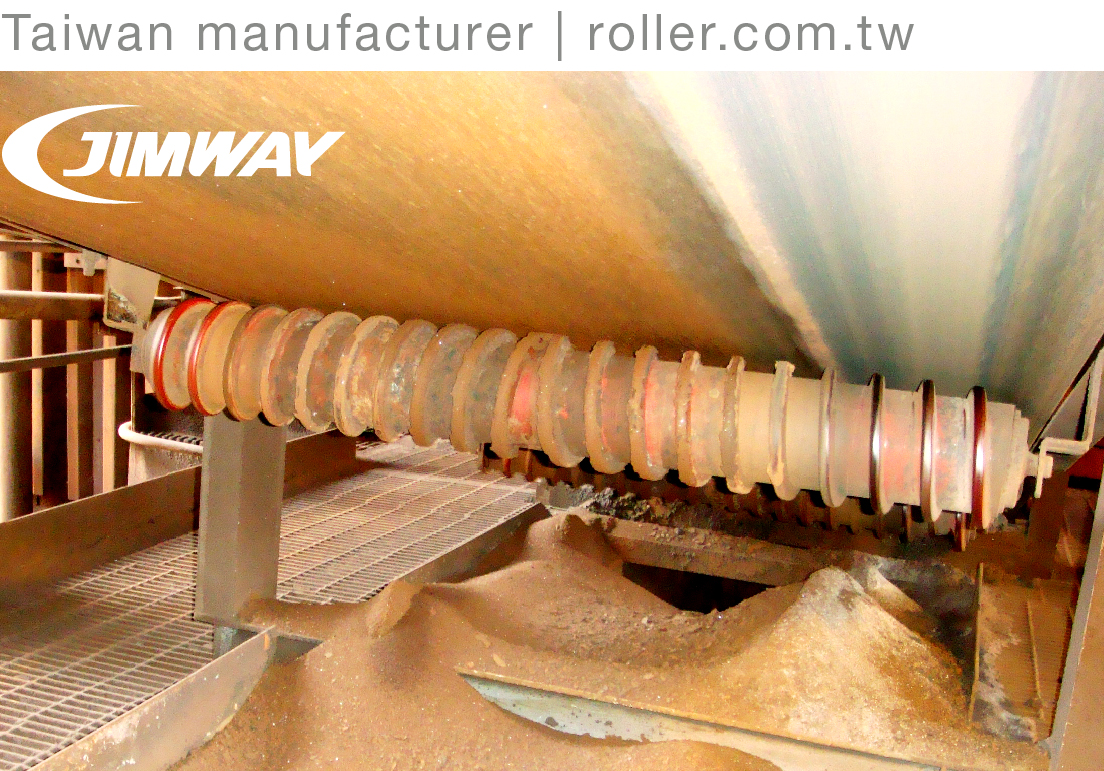

▪ Self-cleaning
▪ Stable in wide temperature range
▪ High abrasion resistance
▪ Eliminating any build-up on rollers
▪ Reduction of clean-up
▪ Reduction of extra maintenance
With Jimway's belt cleaners, spiral return rollers can prevent material build-up and decrease the material accumulation more efficiently, especially on wet/sticky material application.
Industry Power plant, steel plant, wharf, inter plant, and raw material storage etc.
Material Fine grained, powdery, sticky, or abrasive material.
