Drum Pulley Types
Welded bosses

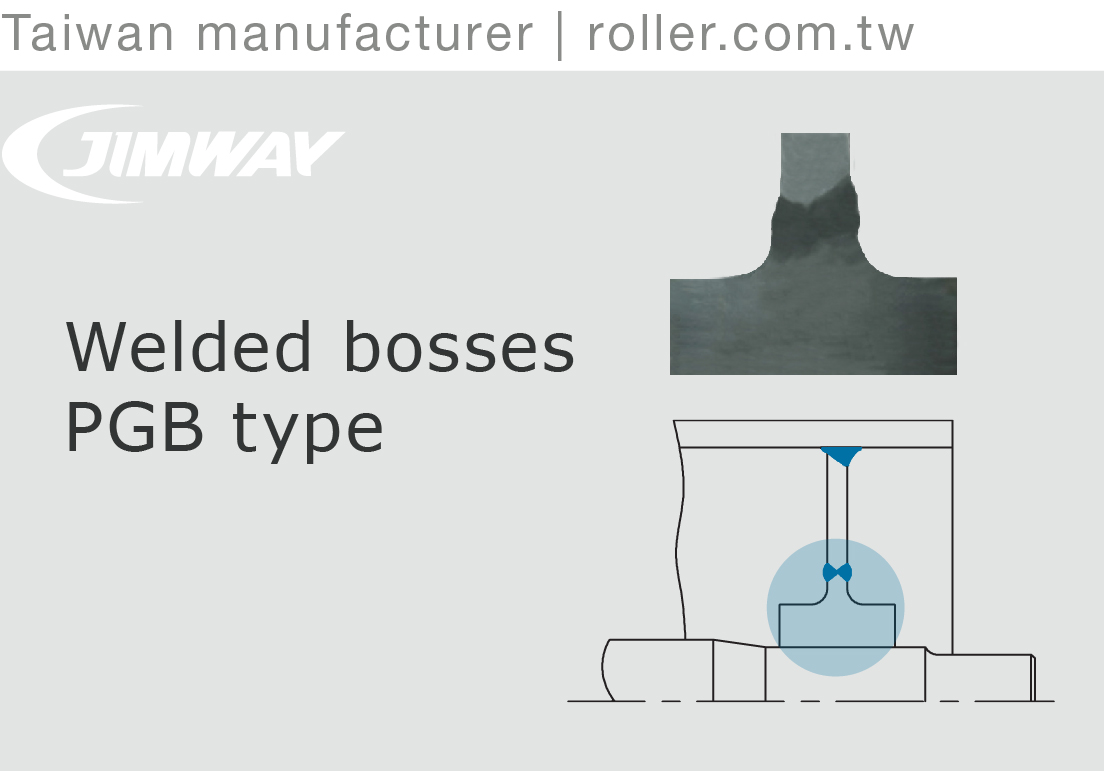

▪ PGB type: butt disc to boss
–––––––––––––––––––––––––––––––––
Contoured integral ends
▪ PH type: disc and boss are integrated

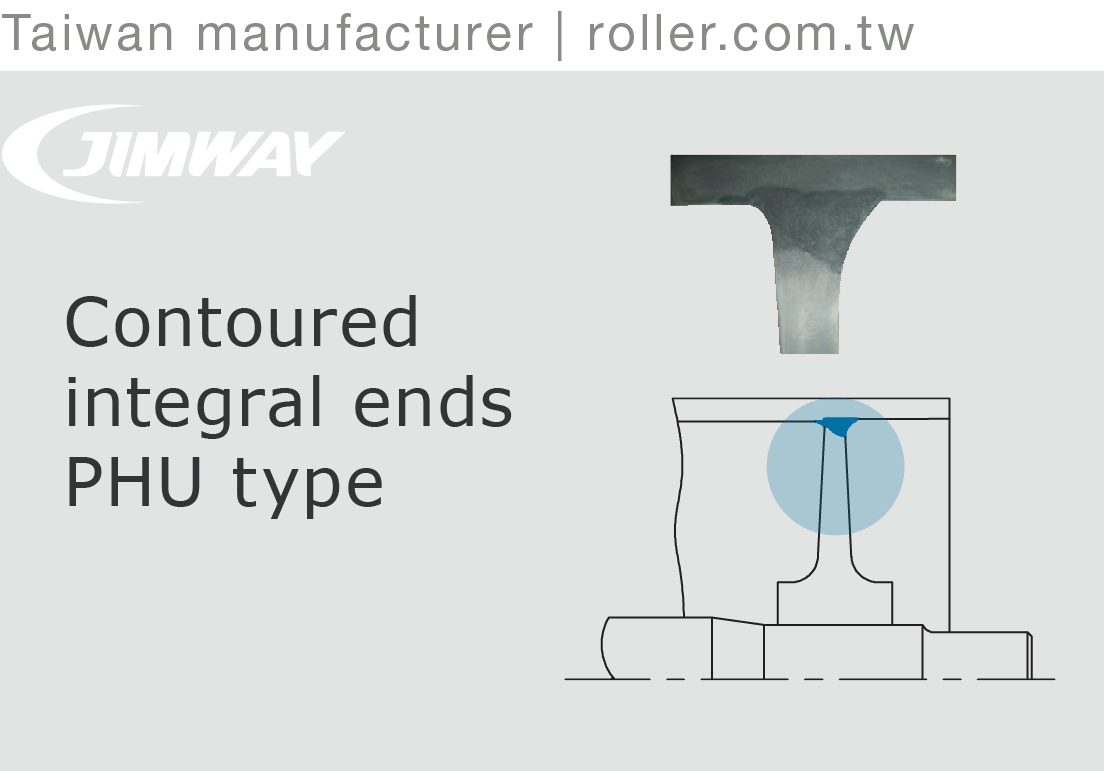

▪ PHU type: disc and boss are integrated

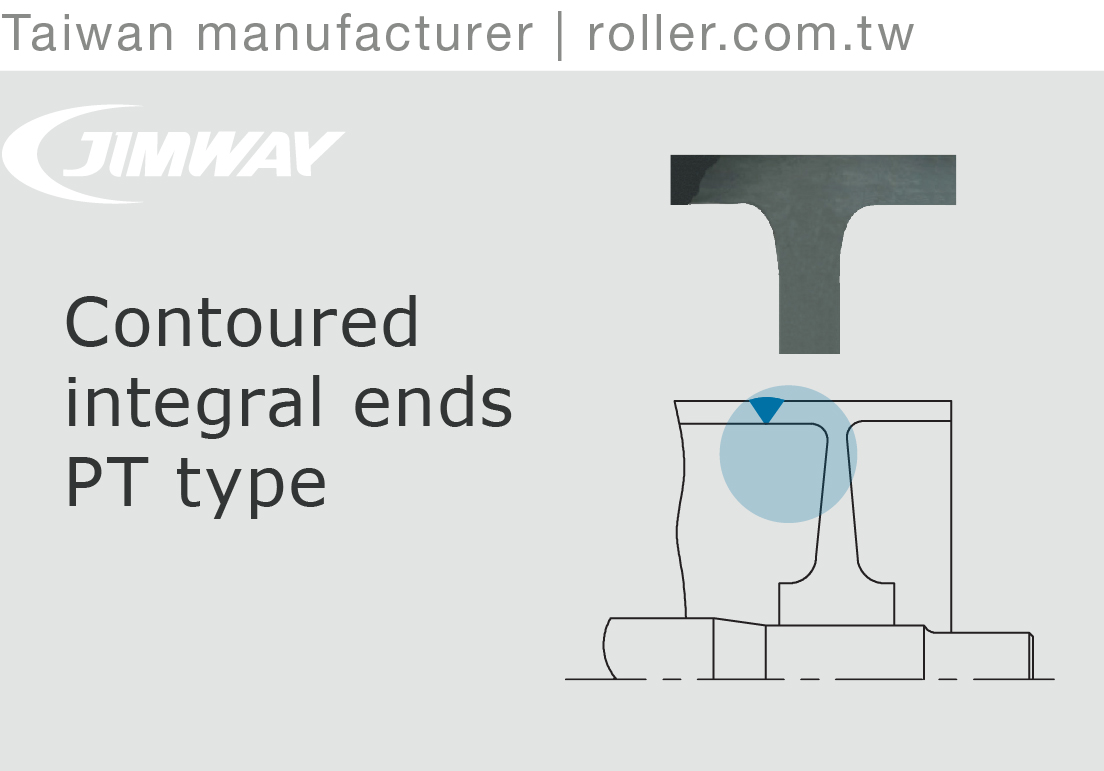

▪ PT type: butt weld shell to boss
–––––––––––––––––––––––––––––––––
▪ Providing Keyless shaft-boss connections (easily replace)
▪ PGB type: butt disc to boss
–––––––––––––––––––––––––––––––––
Contoured integral ends
▪ PH type: disc and boss are integrated
▪ PHU type: disc and boss are integrated
▪ PT type: butt weld shell to boss
–––––––––––––––––––––––––––––––––
▪ Providing Keyless shaft-boss connections (easily replace)

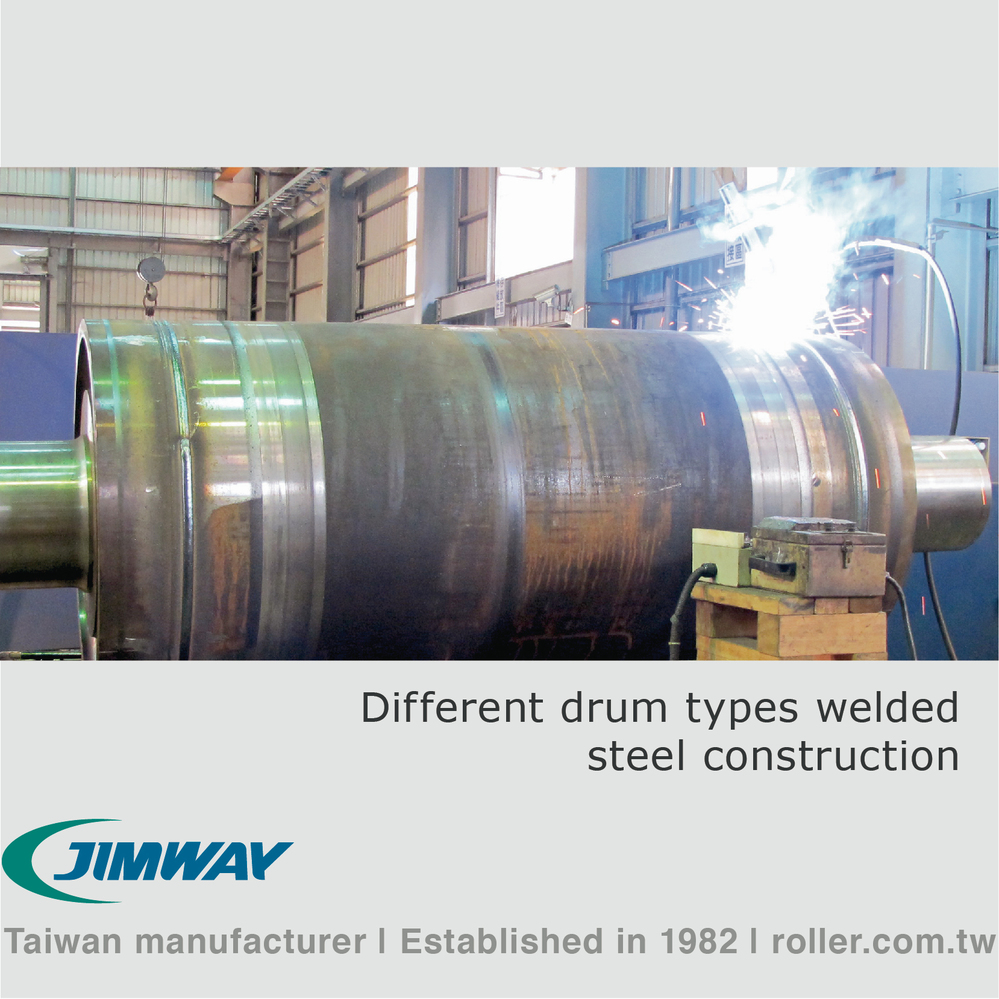

FOLLOWING W.P.S. ON THE TEMPERATURE CONTROL BETWEEN WELDING, JIMWAY EXTEND THE SERVICE LIFE OF PULLEYS WITH WELD BEAD'S STRESS ELIMINATION AND THE QUALITY CONTROL OF THE WELD BEAD BY NDT.

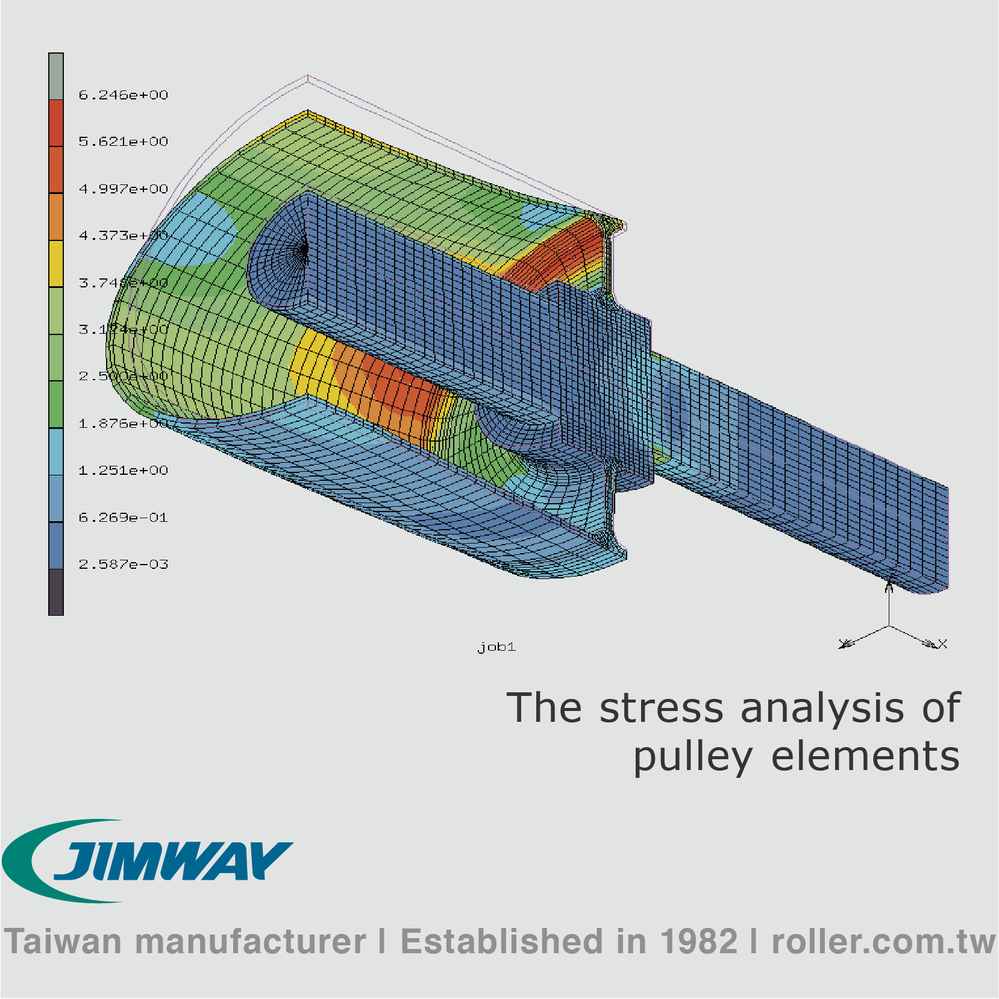

Belt conveyor combine with motors, pulleys, belt and rollers. The function of the drive pulley is to transfer the drive force from the pulley surface to the belt; in consequence, the quality of pulleys is the major part of the conveyor running smoothly. Jimway focus on the structural design and production process, also develop our own stress analysis of the program counter to maintain the production process. A smooth angle “R”, made by processing in the shell to end disc welds, influences stress-bearing and the service life. Jimway corresponds ISO standard and can be customized.
|

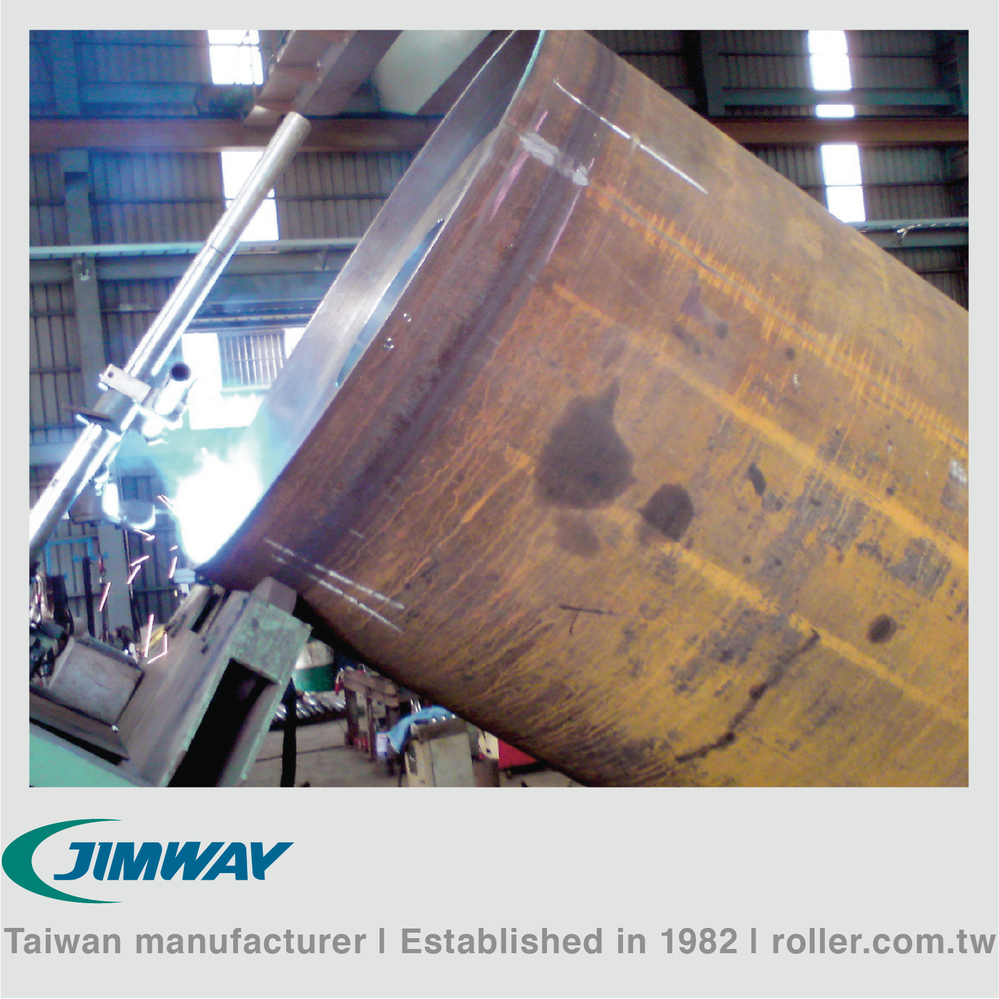

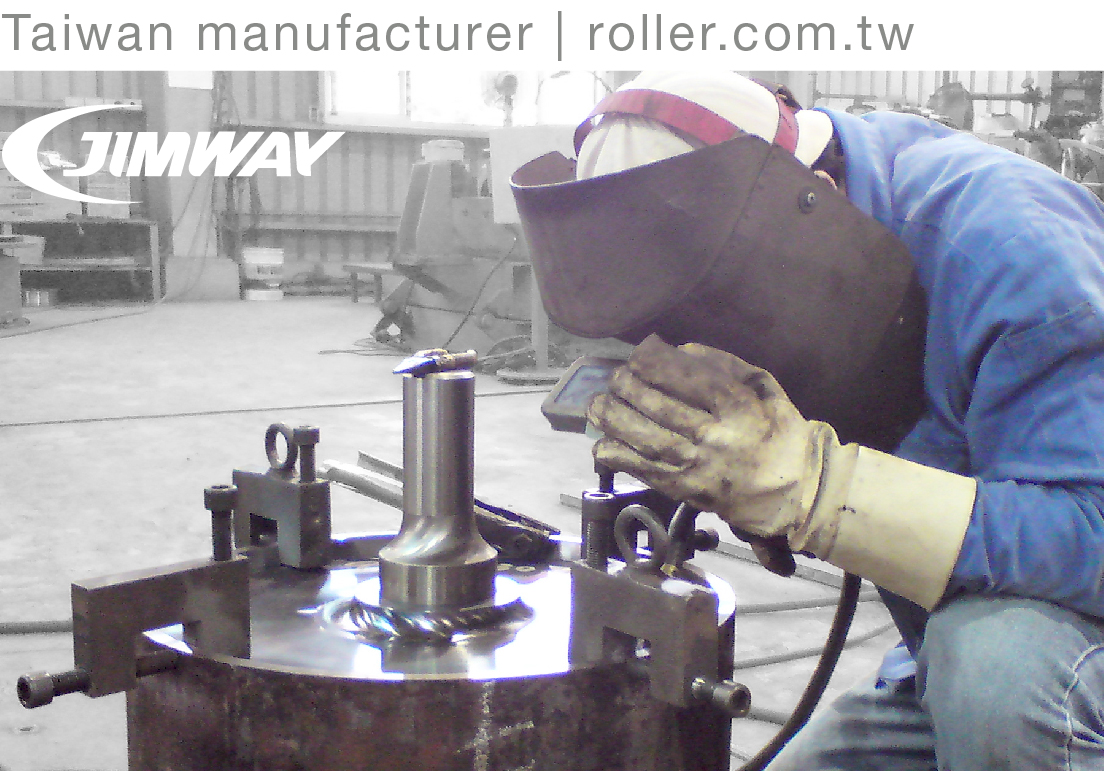

Before full welding |

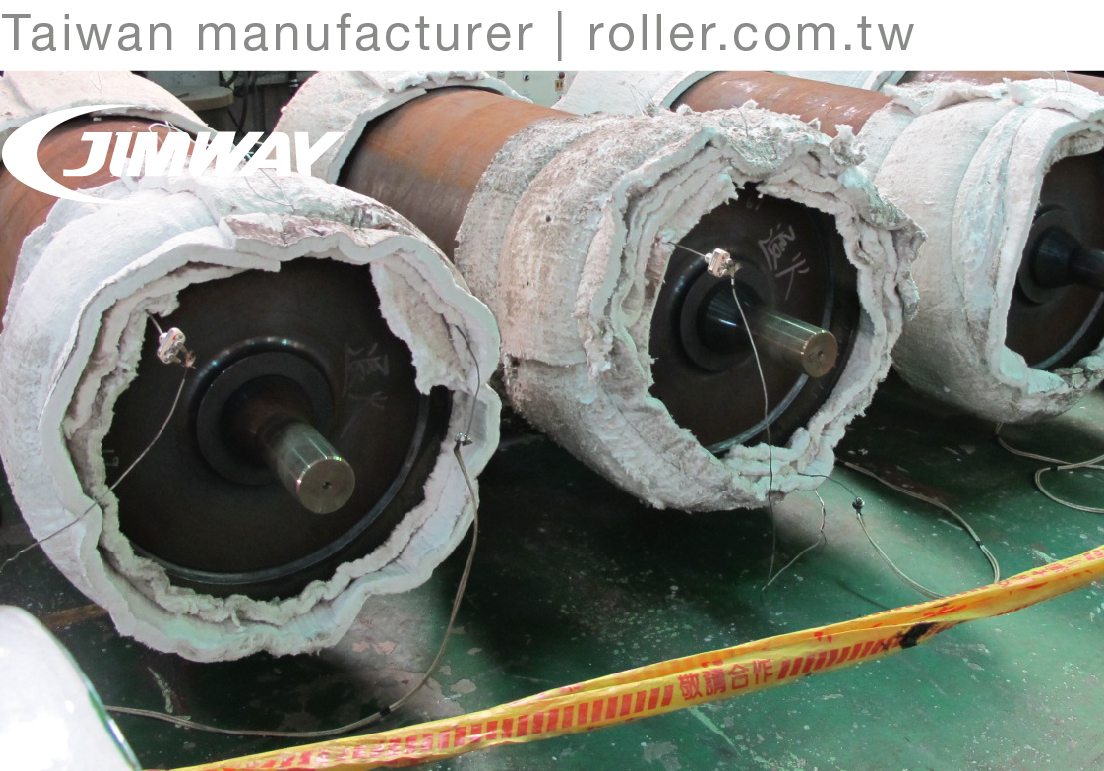

Thermally stress relieving
|

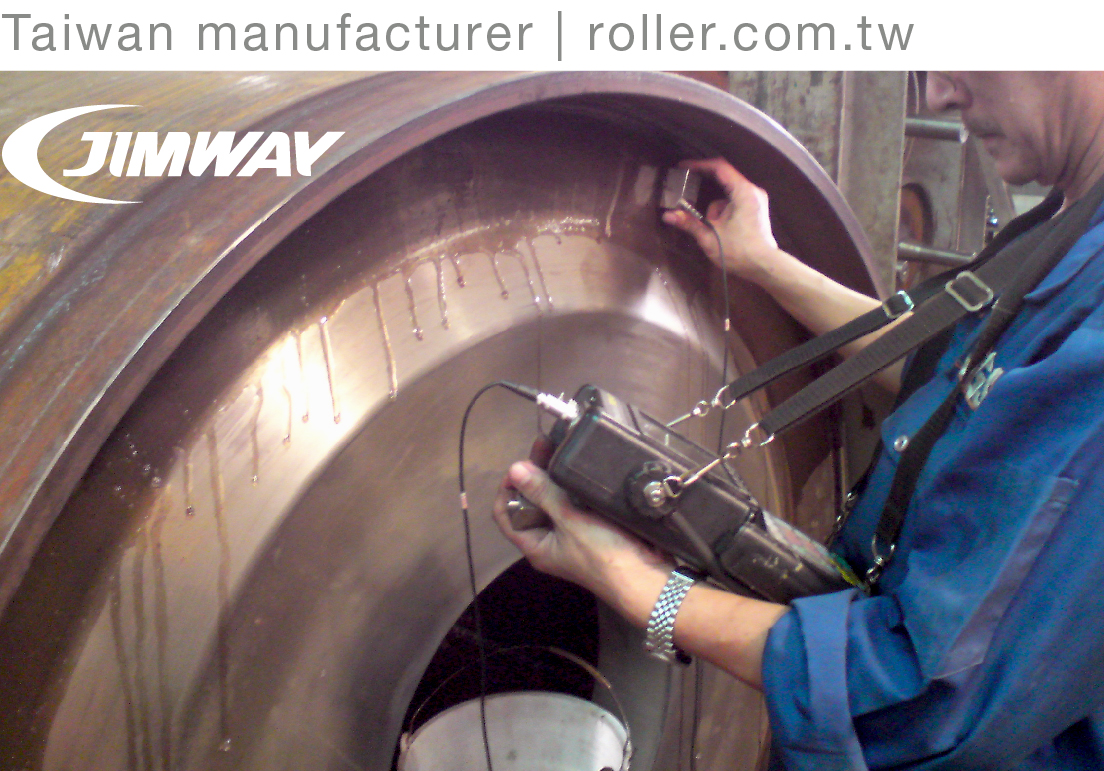

UT testing |
|
Butt disc to boss |
Disc and boss are integrated |
Butt weld shell to boss |
The strength of welding joint: PGB < PHU < PT
