Skirtboard Sealing System

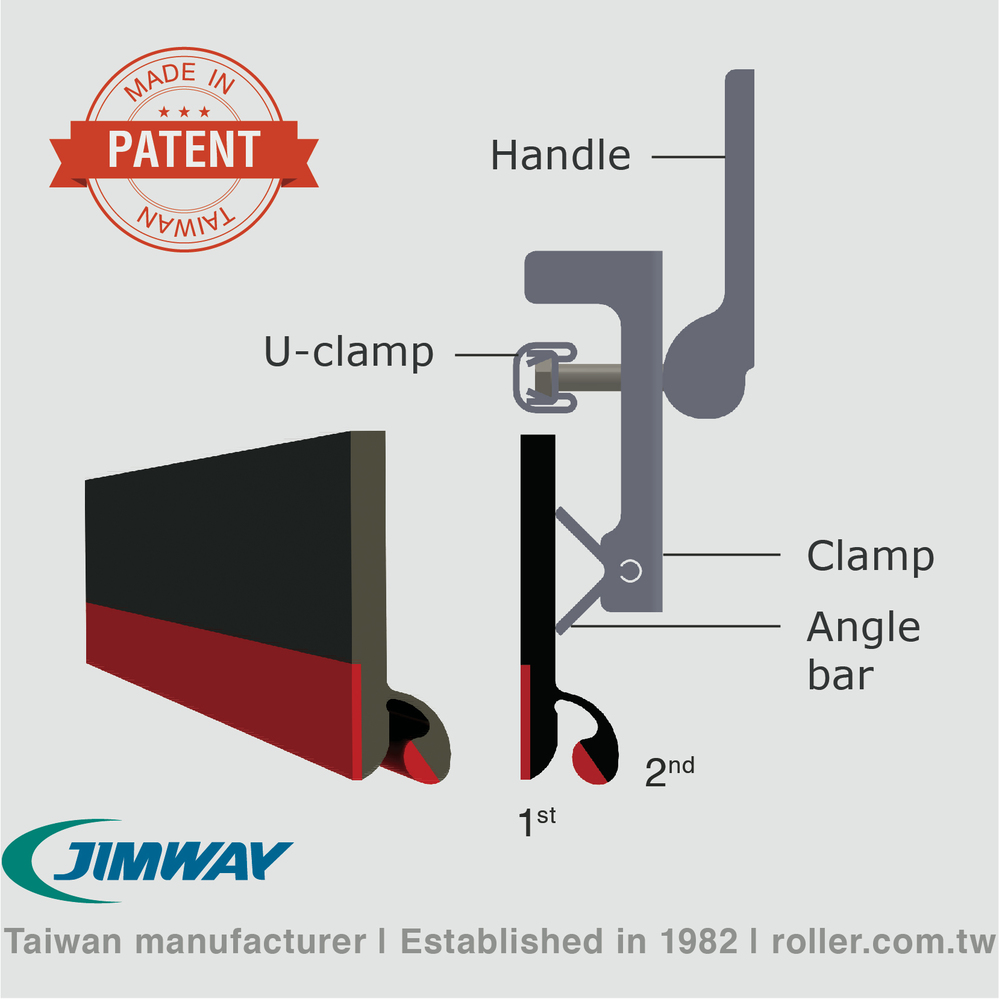

▪ Patented two layer bi-material design
▪ The 1st layer: prevent material spillage
▪ The 2nd layer: prevent dust leakage
▪ Belt-friendly
▪ Held in place by clamps
▪ No tools needed for install
Model : HSR



WITH PATENTED DUAL-SEALING DESIGN FOR SKIRTING, JIMWAY'S SKIRTBOARD SEALING SYSTEM PROVIDES AN AFFORDABLE WAY TO SOLVE POLLUTION WITHOUT DAMAGE THE BELT.

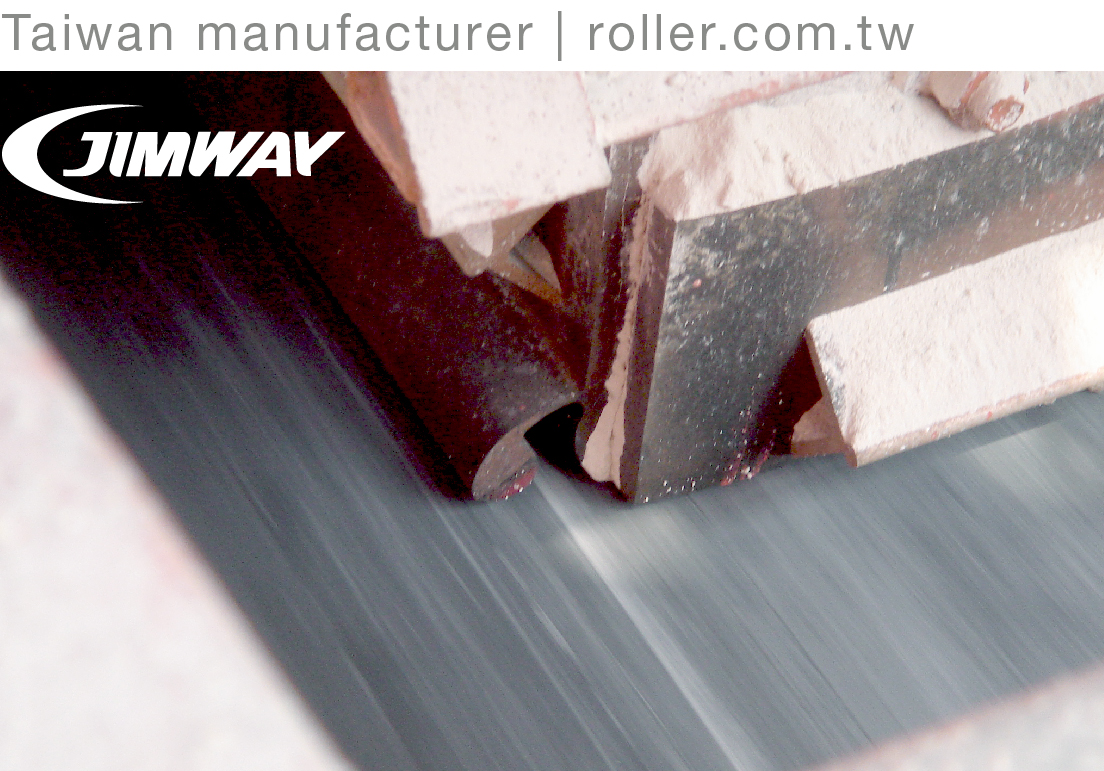

Material spillage is a common problems in the transfer point that causes environmental pollution and high maintenance fees. Jimway's patented dual-sealing design offers a simple and effective way to protect the belt in the load zone. Meanwhile, it prevents the escape of fines and dust.

––––––––––––––––––––––––––––––––––––––

The Angle of the 2nd Layer 20°~45°

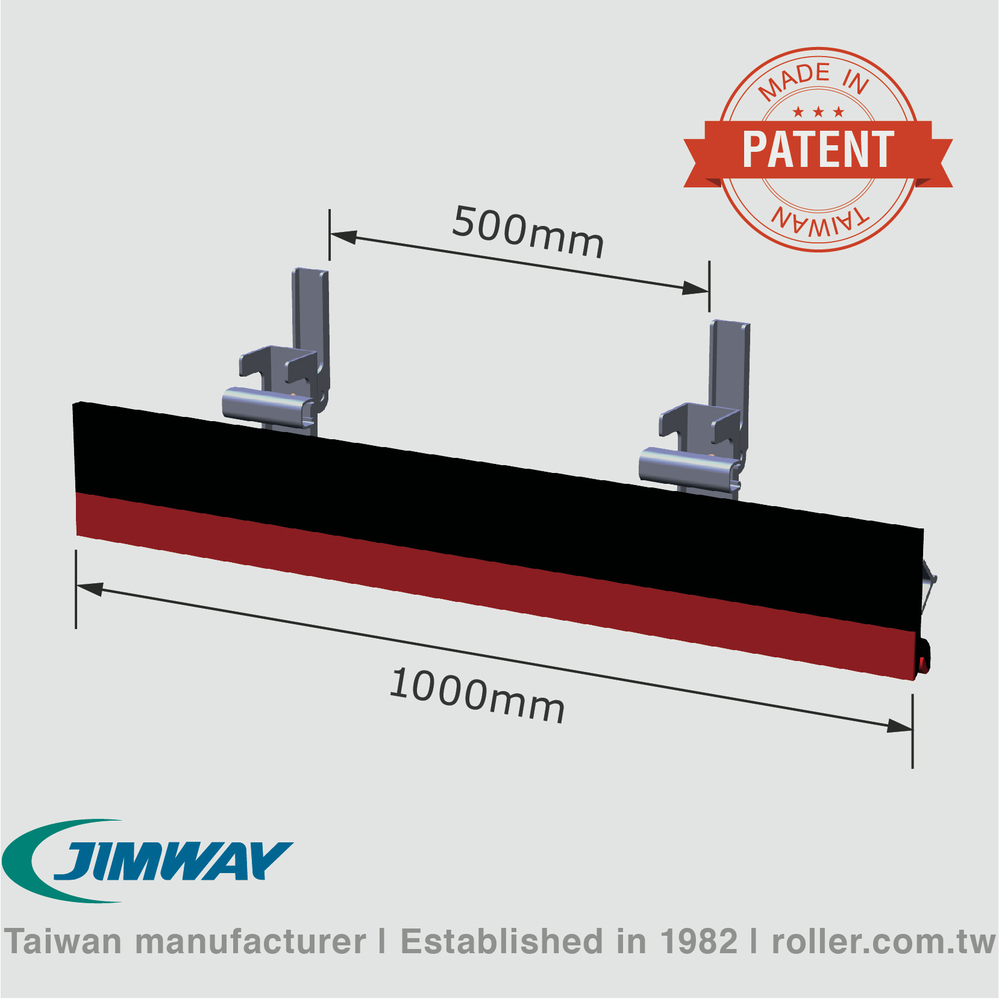

Standard Specifications H: 120/150/200mm, t: 12/15mm

Non-Standard Specifications H: 100/180/250/300mm, t: 10/20mm


COMPARISON SHEET: CONVENTIONAL SINGLE AND JIMWAY'S TWO LAYER SKIRTING

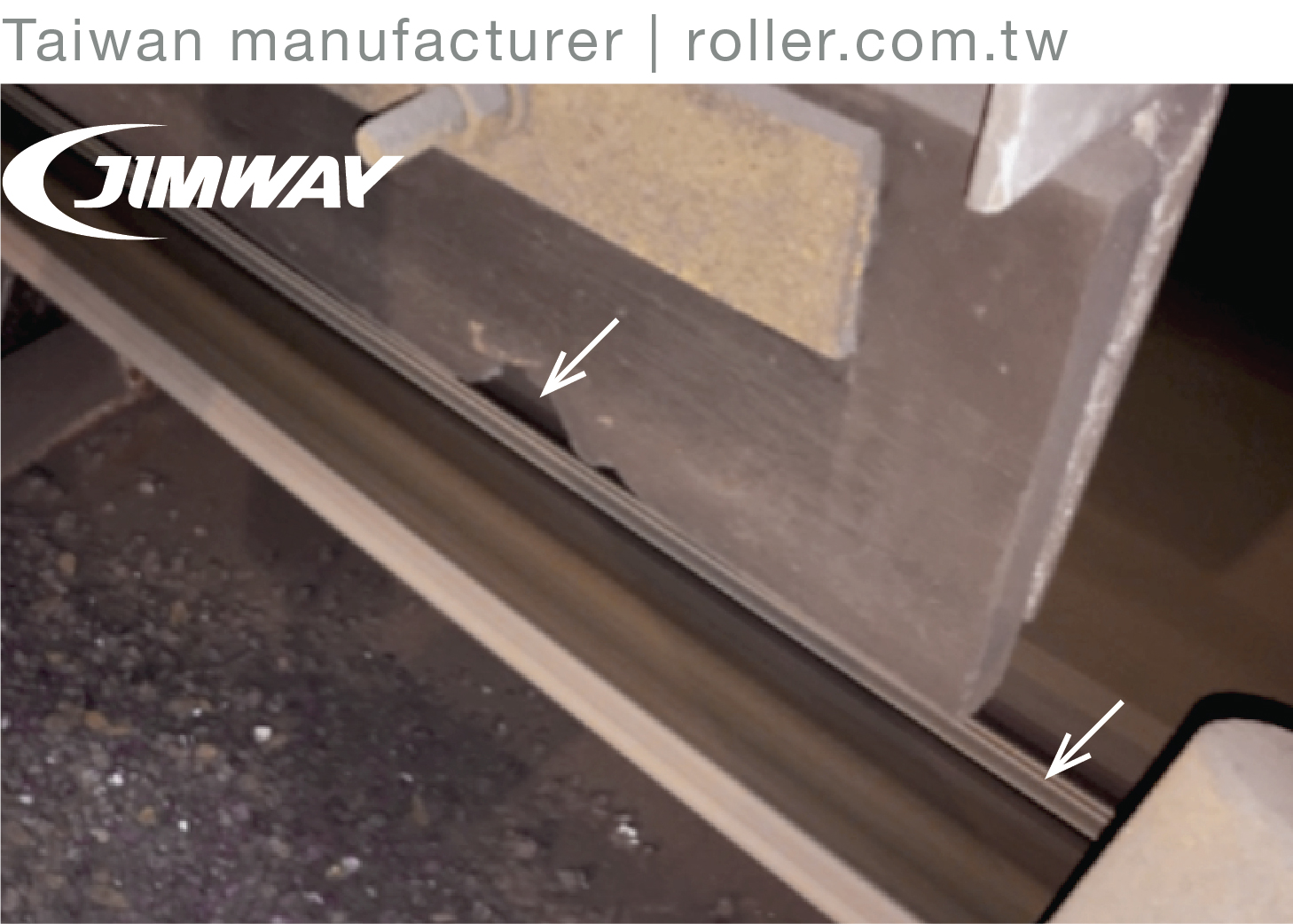

Conventional Single Skirting completely direct contacts the belt cover, which causes premature failure of the skirting and material spillage; in addition, material may get stuck between the skirting and the belt to cause belt damage.

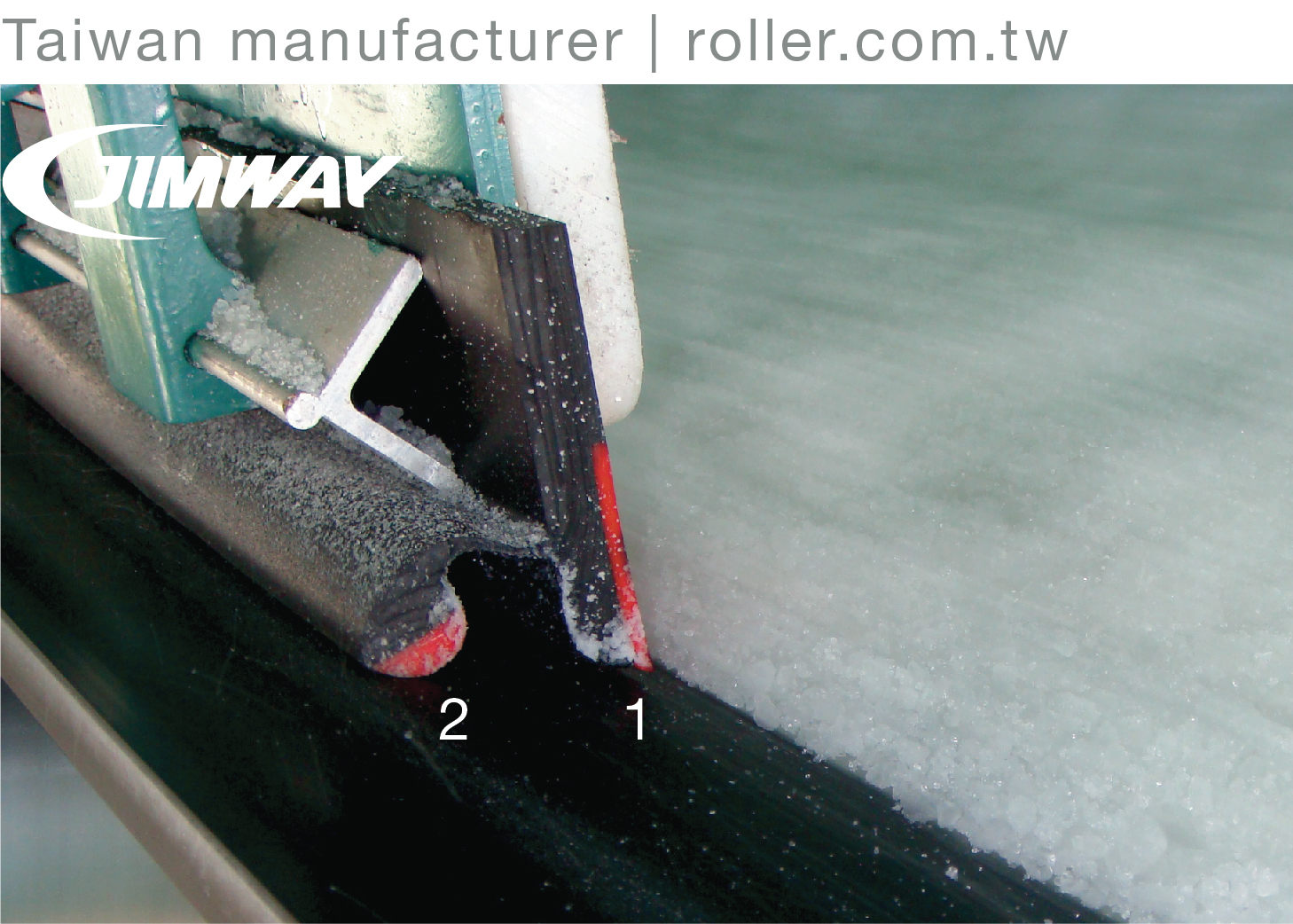

Jimway's Patented Skirt Rubber provides service lifetime expansion and an effective solution by preventing material spillage, dust leakage, and belt damage. The 1st layer keeps the 3~5mm distance from the belt preventing material spillage. The 2nd layer keeps proper contact pressure with the belt preventing dust leakage.


Items Conventional JIMWAY's
Service life ⬇︎ ⬆︎
Belt-friendly ⬇︎ ⬆︎
Clean-up costs ⬆︎ ⬇︎
Maintenance ⬆︎ ⬇︎



 Improvement of working conditions

▪ Low labor costs

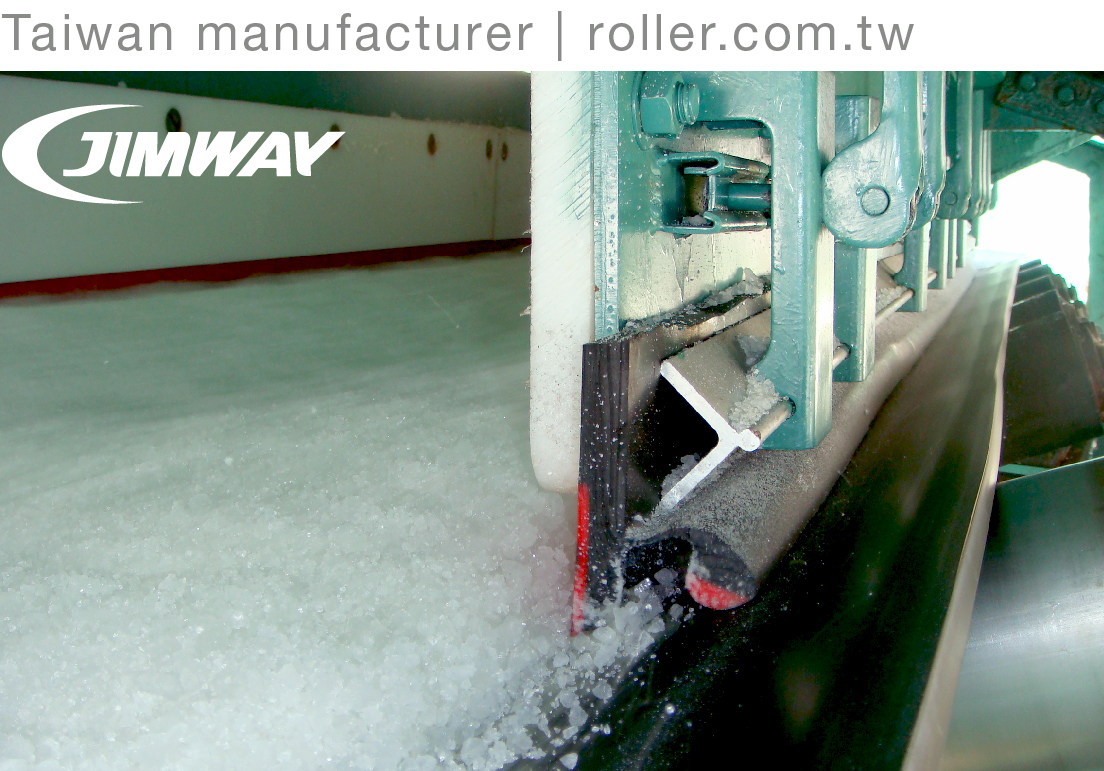

 No tools needed for installing

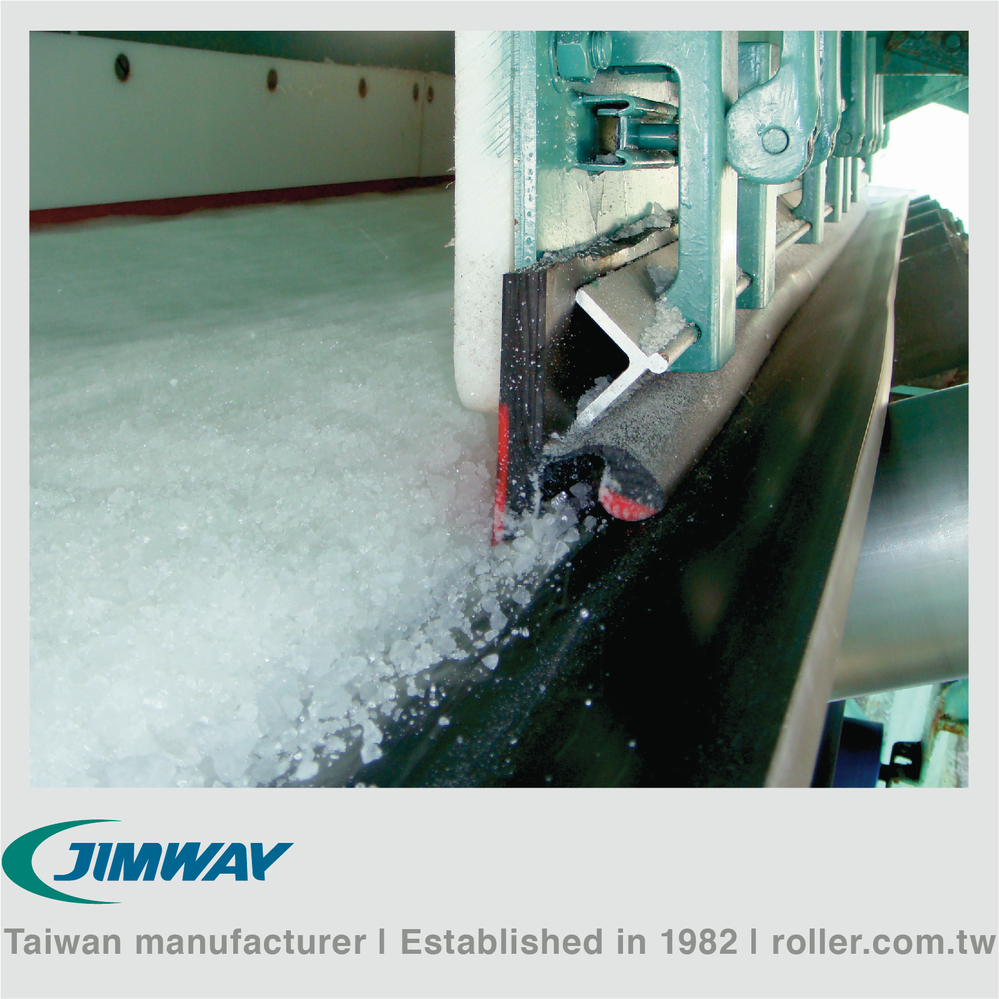

 Held in place by clamps

Welded U-clamp without dislodging

 Simple to install

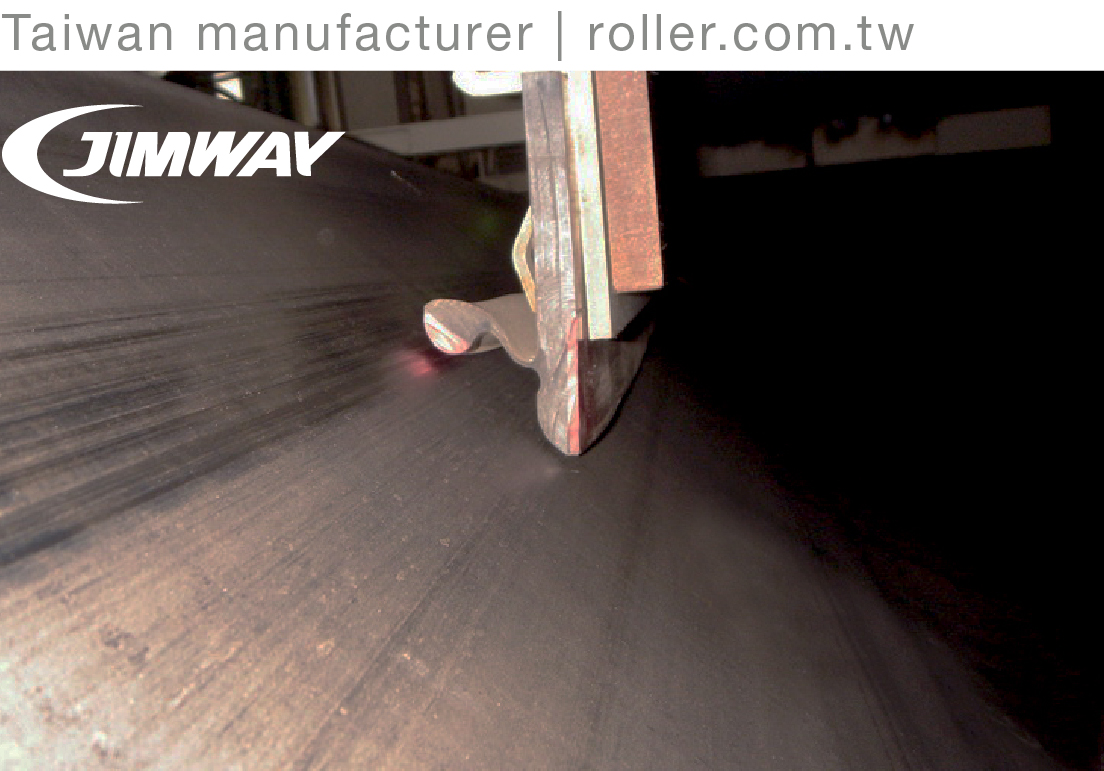

 Belt-friendly

▪ Low maintenance

 One-person installation and adjustment




Chemical material

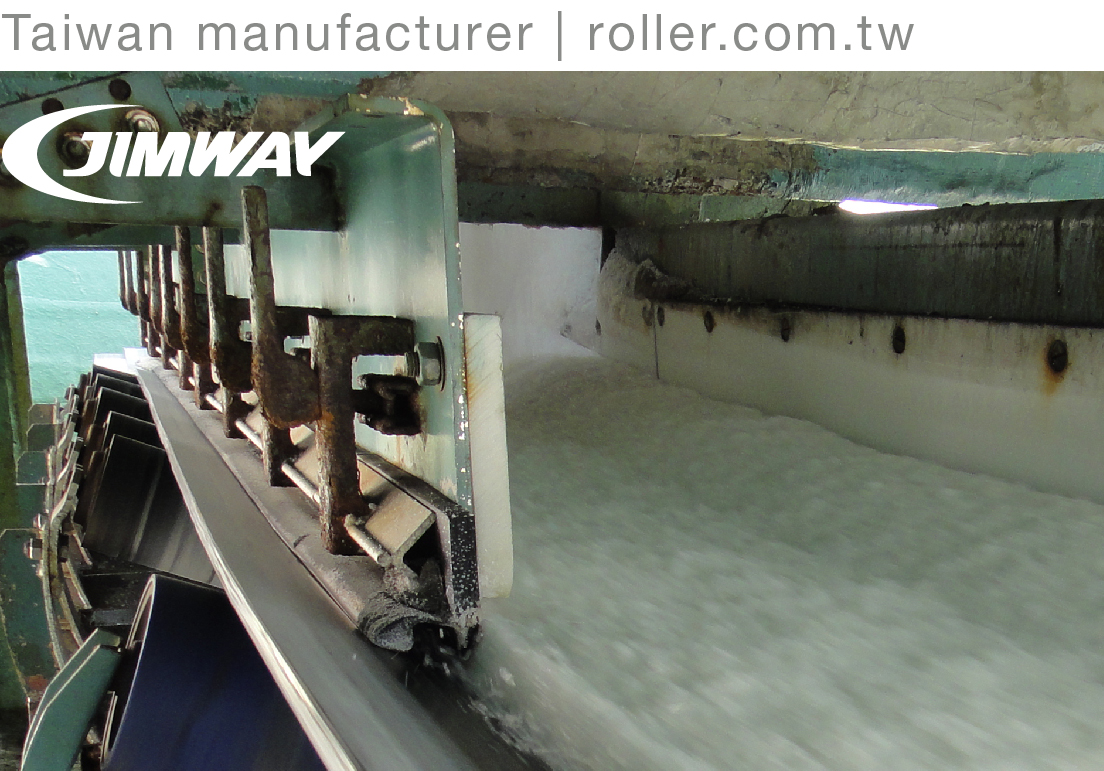

 Fertilizer, salt, sugar, and sulfur etc.

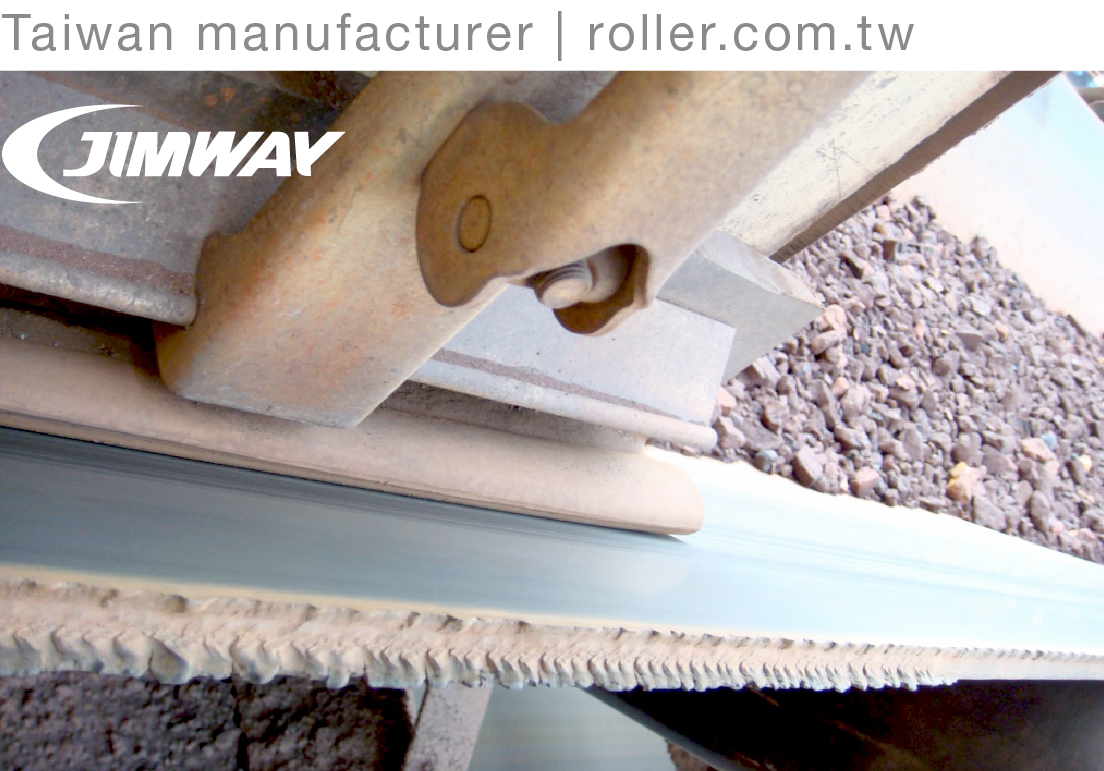

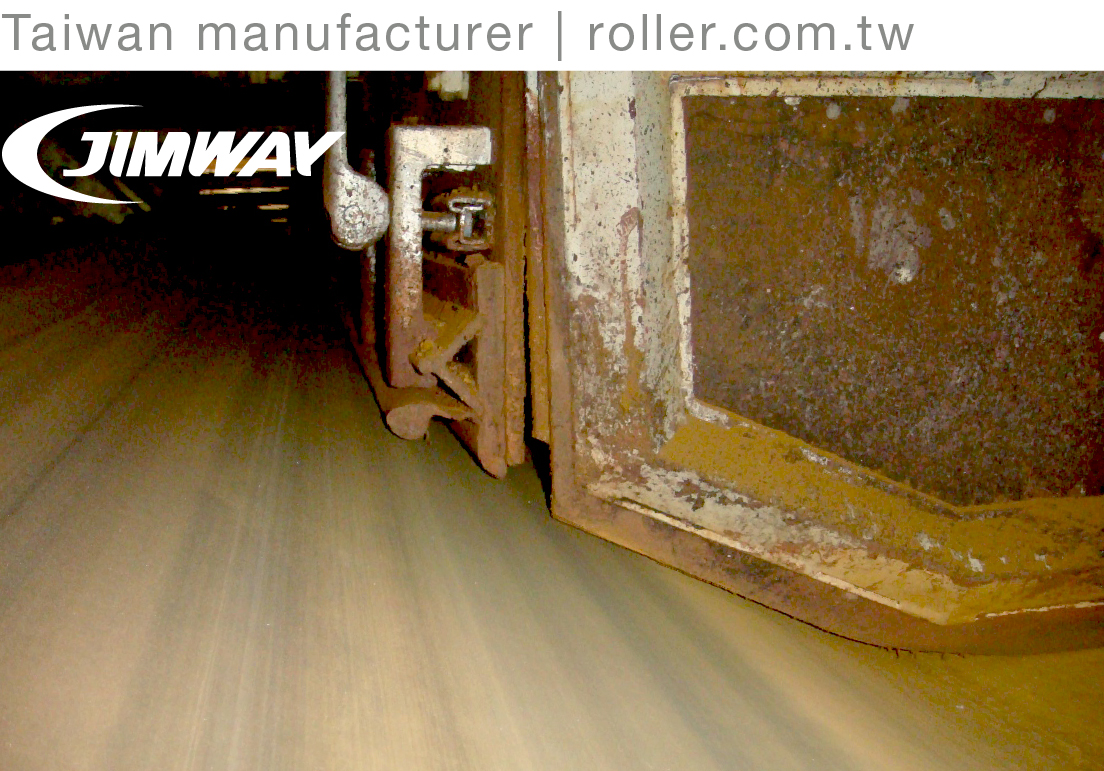

Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
