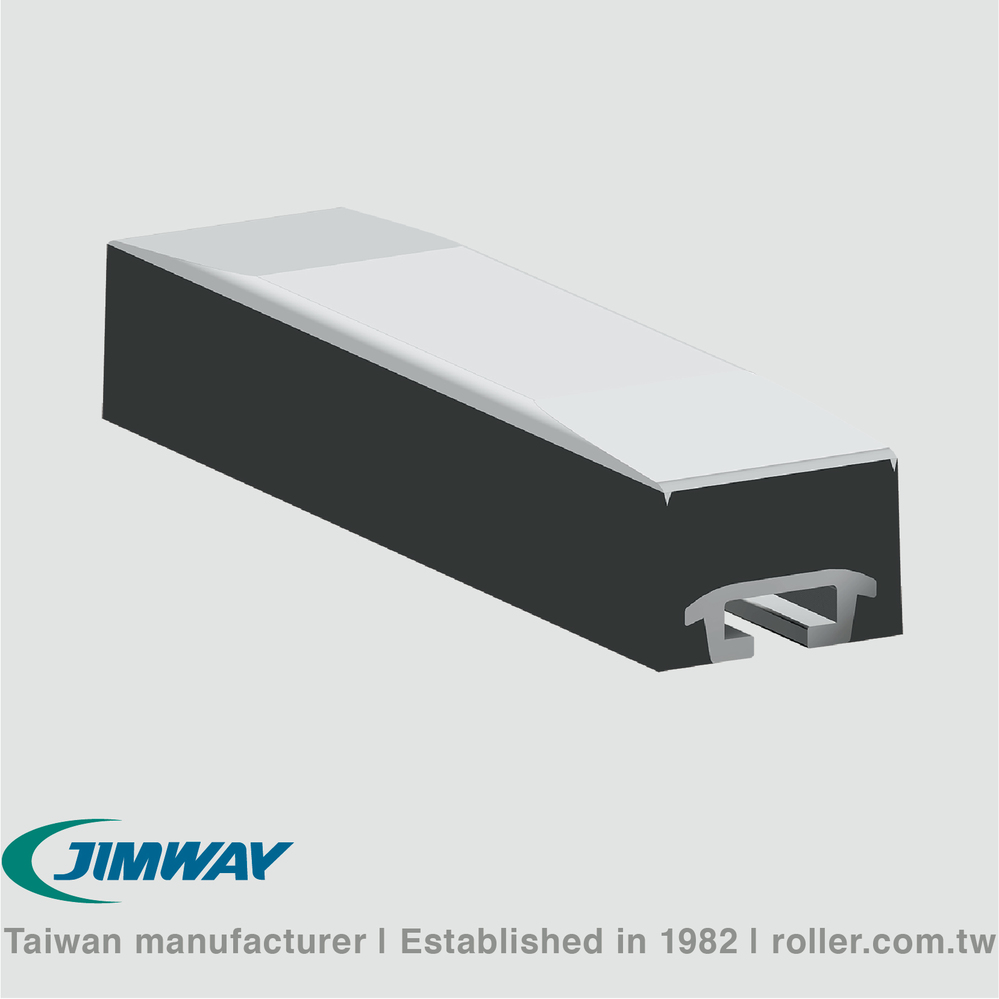

Impact Bar

▪ Extremely low coefficient of friction UHMW
▪ No belt mistracking and sagging
▪ Long wear life extension
▪ Quick installation with T-fixing bolts
▪ Improvement of spills and leaks
▪ Less belt vibration

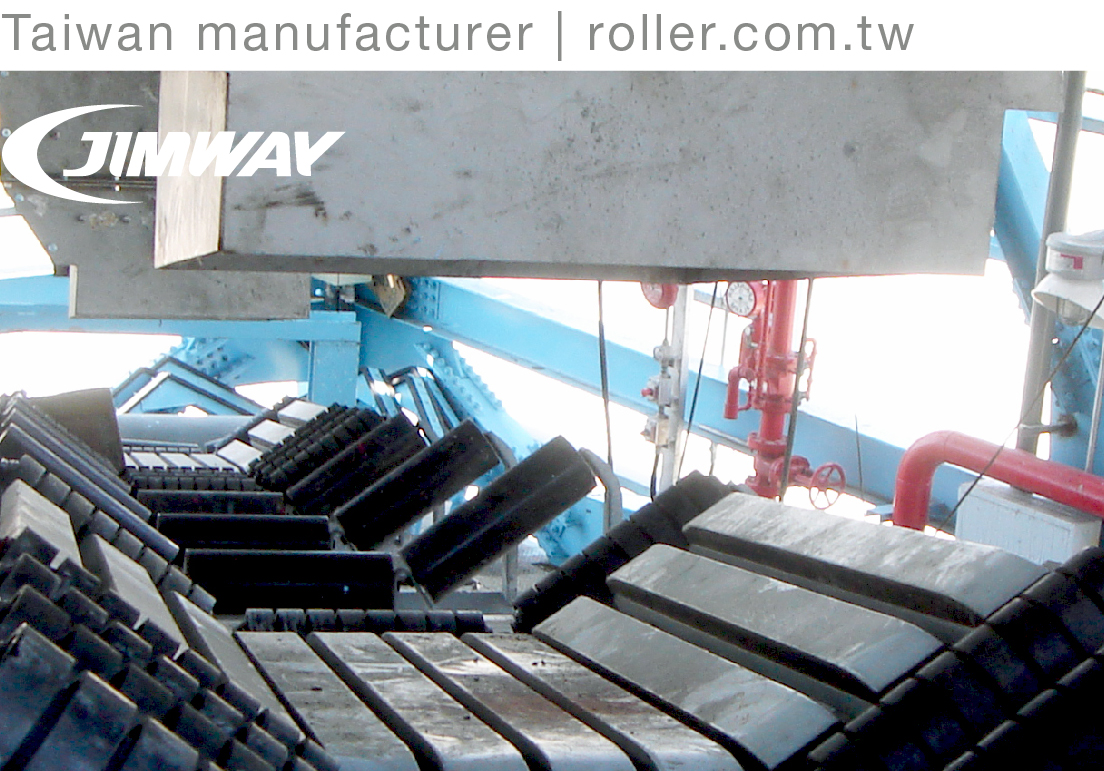

▪ Low impact energy
▪ Belt-friendly



JIMWAY'S LOW-FRICTION UHMW BARS COMBINED SBR ABSORB THE FORCE OF FALLING MATERIAL TO PREVENT DAMAGE TO THE BELT AND SUPPORT BELT EDGES TO STABILIZE THE BELT LINE, ELIMINATING BELT SAG AND BOUNCE.

––––––––––––––––––––––––––––––––––––––

Specifications W: 100mm, H: 75mm, L: 1250/1400/1500/1600mm

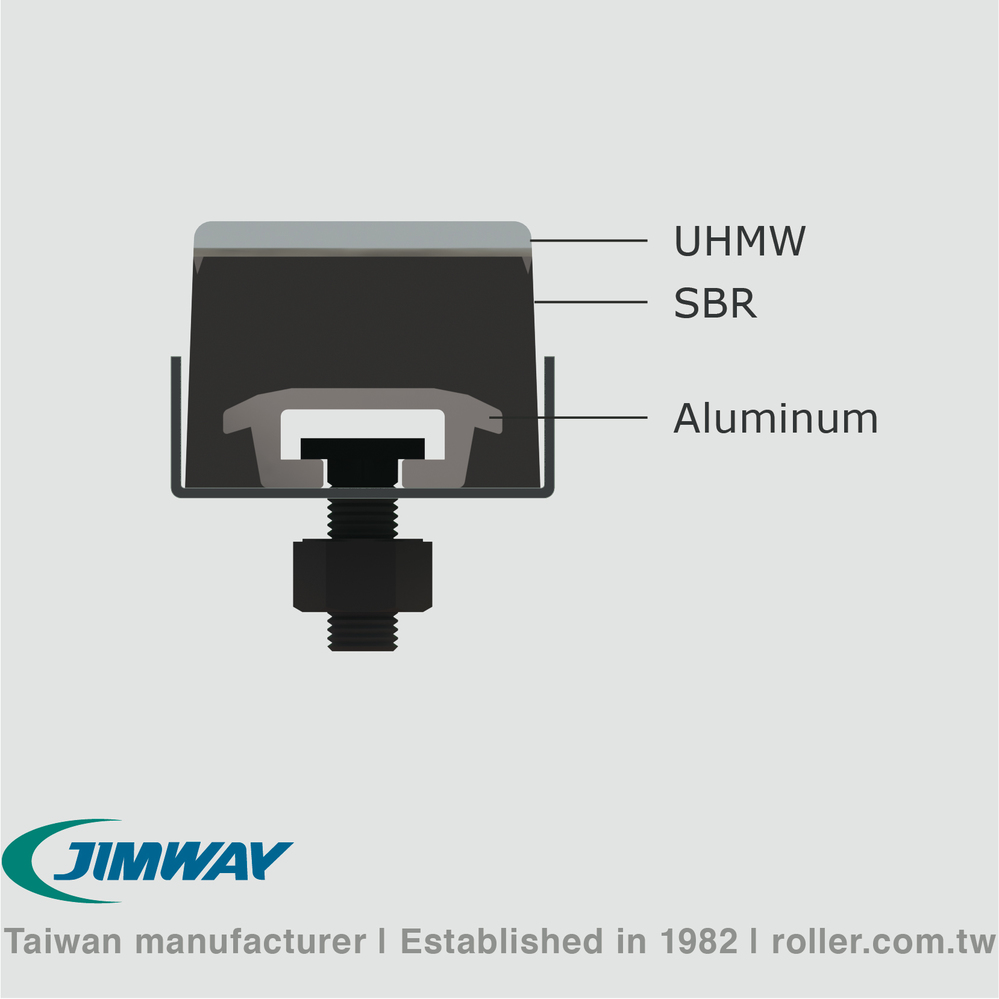

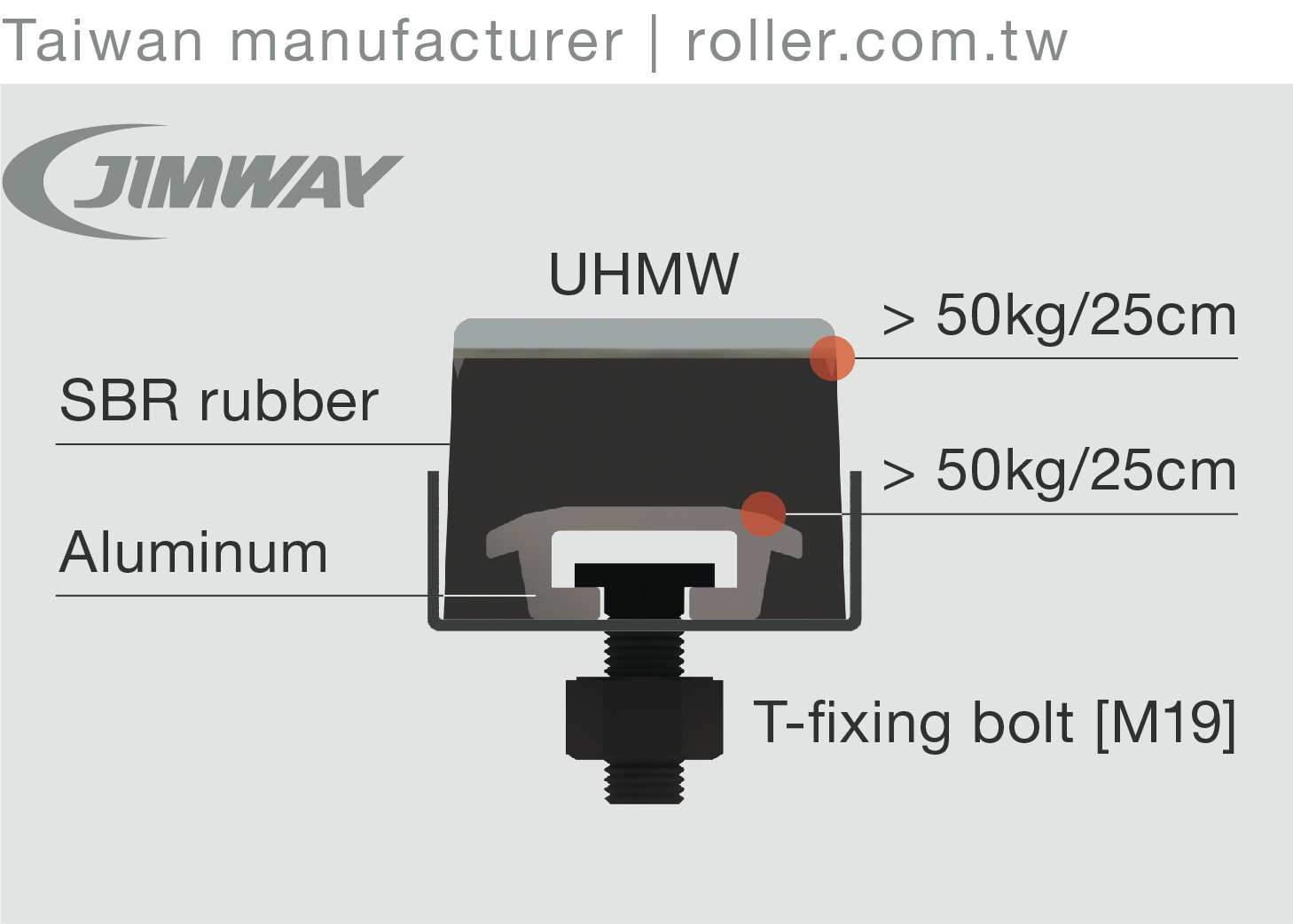

UHMW very low friction surface

SBR rubber cushioning the impact load

Aluminum absorbing repetitive/drop-shocks

T-fixing bolt quick installation

Adhesives Test ASTM D903

Rubber hardness 60±5 Shore A



 Belt-friendly (low impact energy)

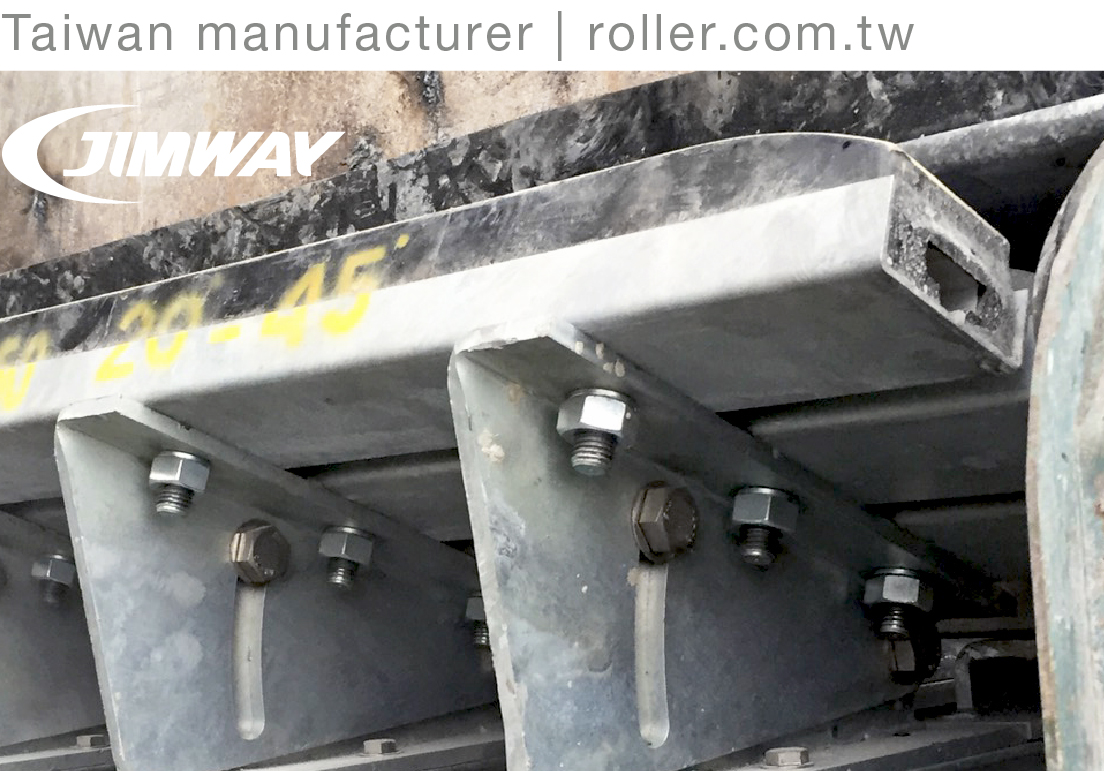

▪ Extremely low coefficient of friction

▪ No belt mistracking and sagging

Less belt vibration

 Improvement of spills and leaks

Long wear life extension
