Brush Belt Cleaner
▪ Suitable for chevron or rib belts
▪ Less belt wear
▪ Long service in tough conditions
▪ Easy blade change

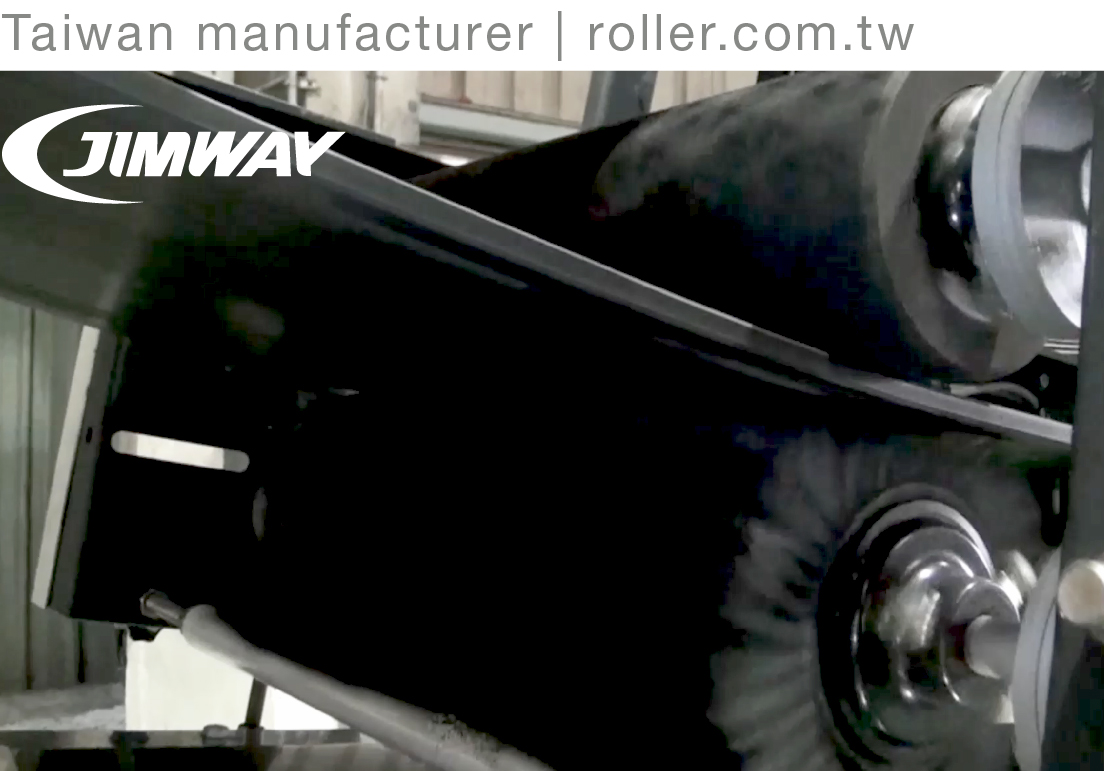

JIMWAY'S PATENTED BRUSH BELT CLEANER WITH HUNDREDS OF SBR FINGERTIPS PROVIDES EFFECTIVE CLEANING PERFORMANCE ON DRY FINES CLINGING TO CLEATED BELTS WITH CHEVRONS OR RIBS.
The conveyor belts are kept clean, reduced carryback, which results in lower clean-up costs and less unplanned downtime. In addition, carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Jimway's brush belt cleaners are designed for difficult applications, fines and fibers, including wood dust, cement dust, salt, sugar, fertilizer, and carbon black.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed N/A
Cleaning Direction reversible direction
Blade Material SBR
APPLICATIONS: TILE THE CAMERA UP ---> DOWN
|

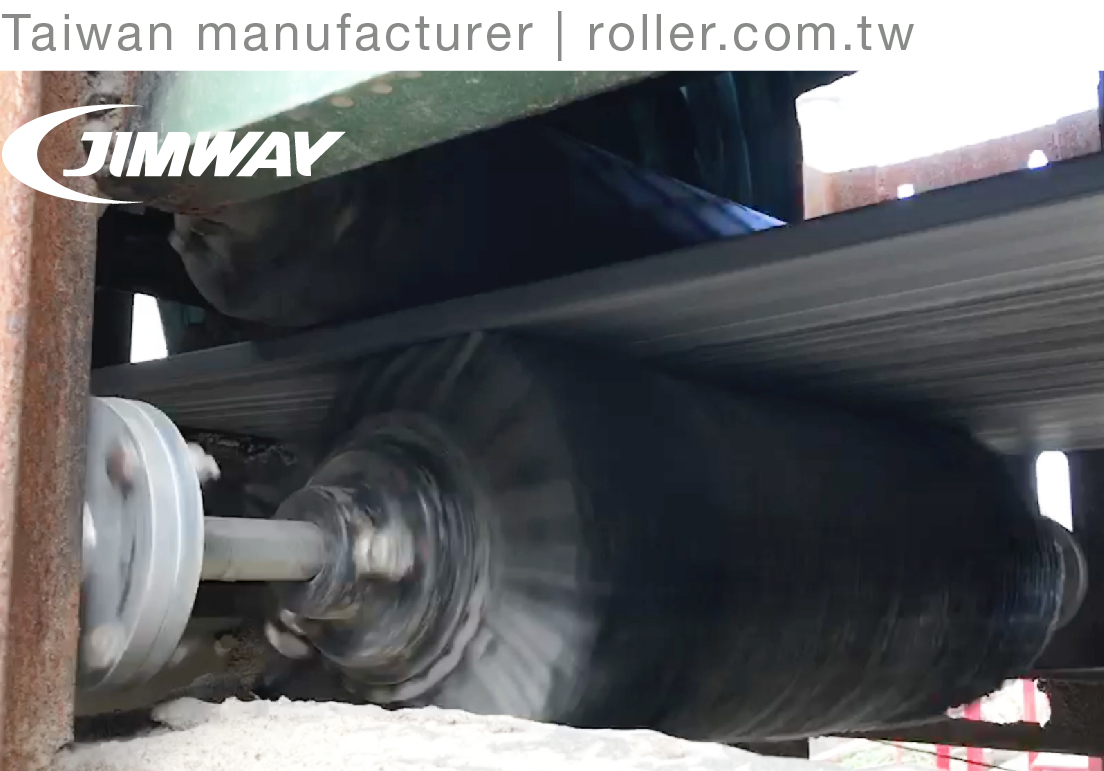

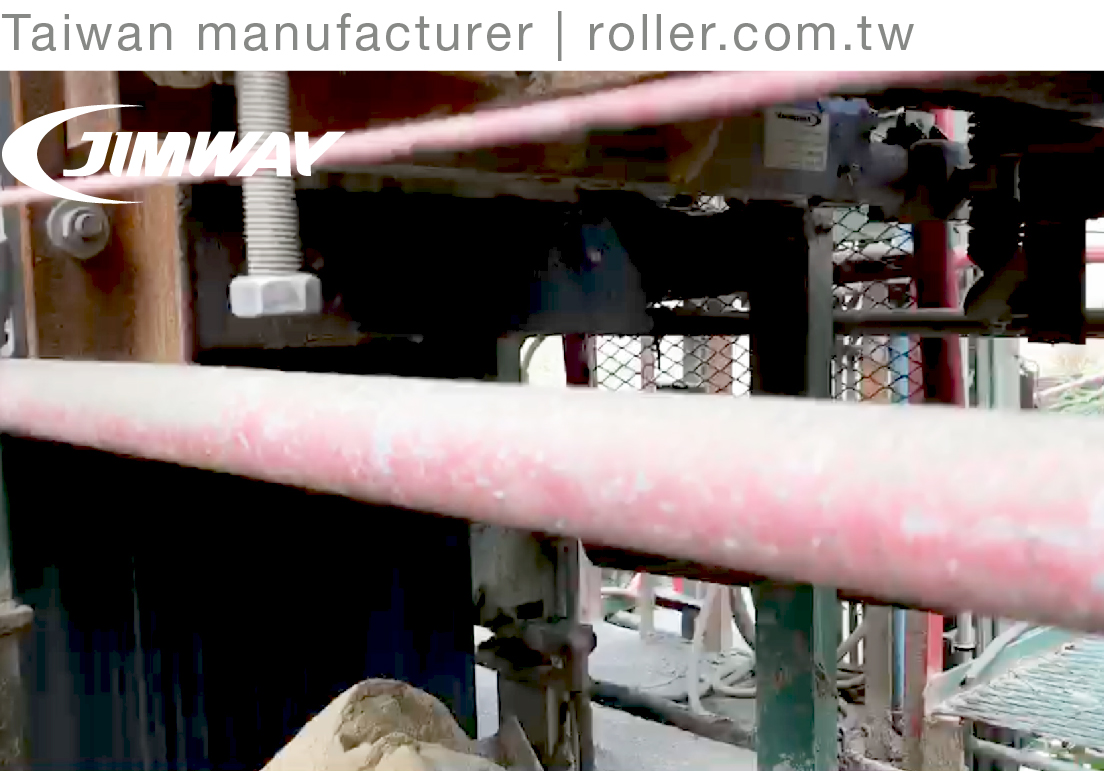

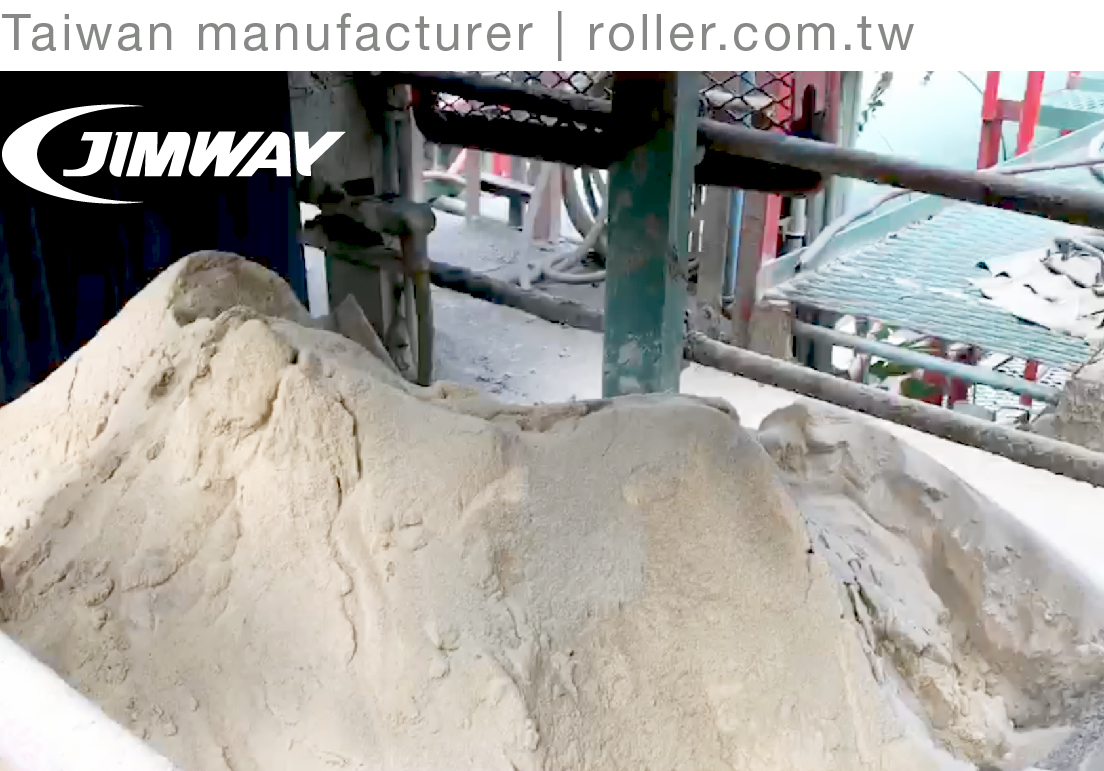

Removes cement dust |
---> |

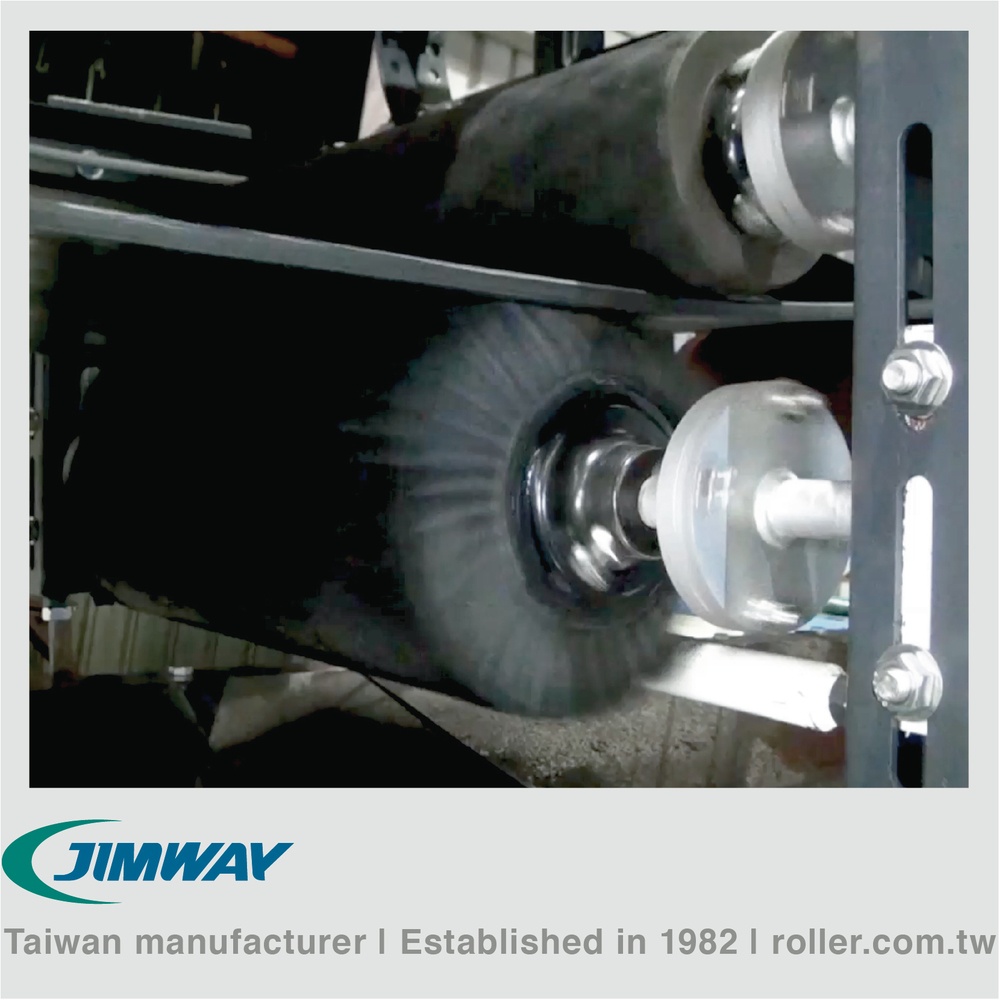

Effectively cleans carryback |

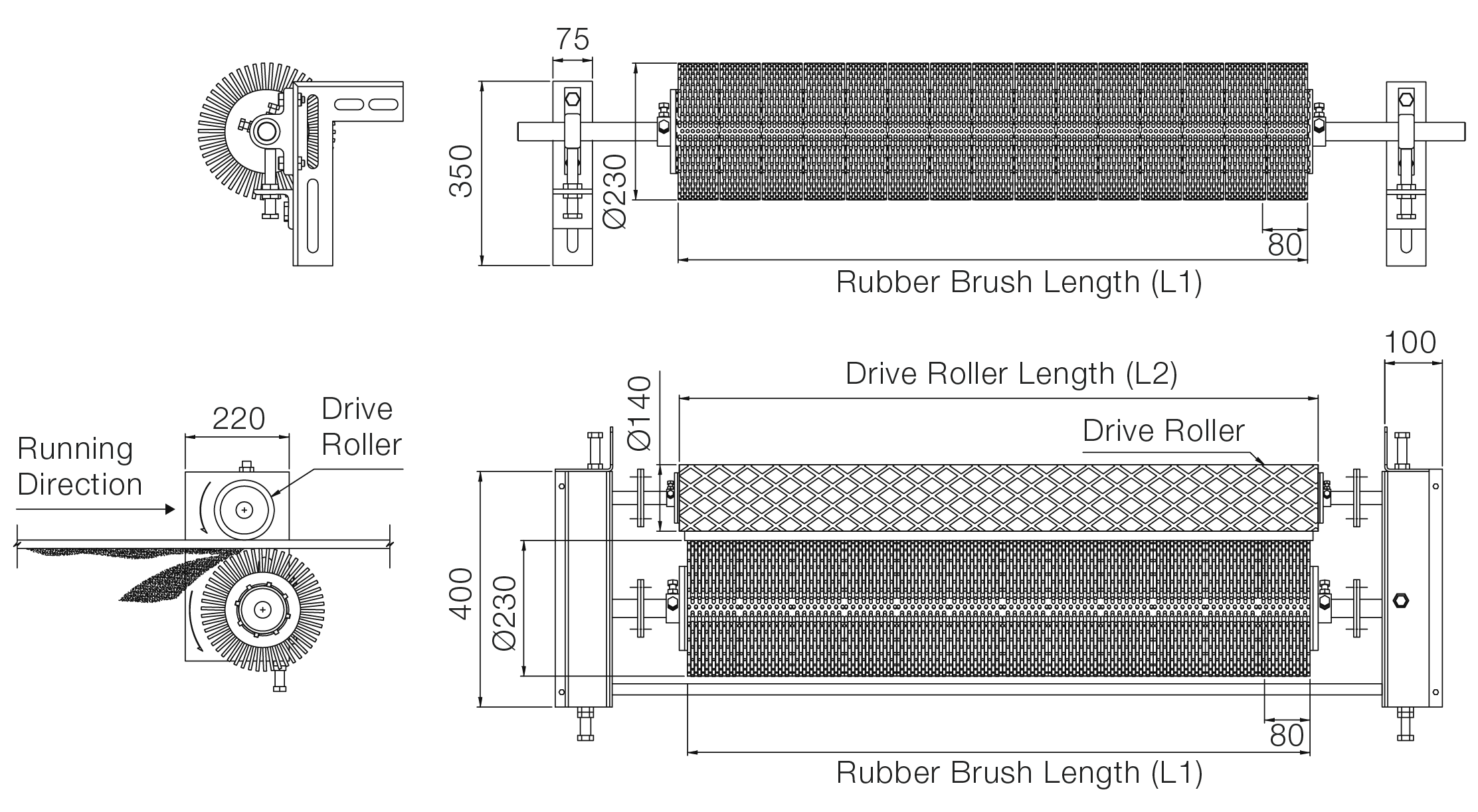

| Unit:mm [in] | ||||
| Model | BW | L1 | L2 | Blades Req. |
| RBC-060 | 600 [24] | 530 | 650 | 7 |
| RBC-065 | 650 [26] | 610 | 700 | 8 |
| RBC-075 | 750 [30] | 690 | 800 | 9 |
| RBC-080 | 800 [31] | 760 | 850 | 10 |
| RBC-090 | 900 [36] | 840 | 950 | 11 |
| RBC-100 | 1000 [40] | 920 | 1050 | 12 |
| RBC-105 | 1050 [42] | 990 | 1100 | 13 |
| RBC-120 | 1200 [48] | 1140 | 1250 | 15 |
| RBC-140 | 1400 [54] | 1300 | 1450 | 17 |
| RBC-150 | 1500 [60] | 1450 | 1550 | 19 |
| RBC-160 | 1600 [63] | 1520 | 1650 | 20 |
| RBC-180 | 1800 [72] | 1600 | 1850 | 21 |
| RBC-200 | 2000 [78] | 1830 | 2050 | 24 |
|
▪ High abrasion resistance ▪ Suitable for chevron or rib belts ▪ Belt-friendly |

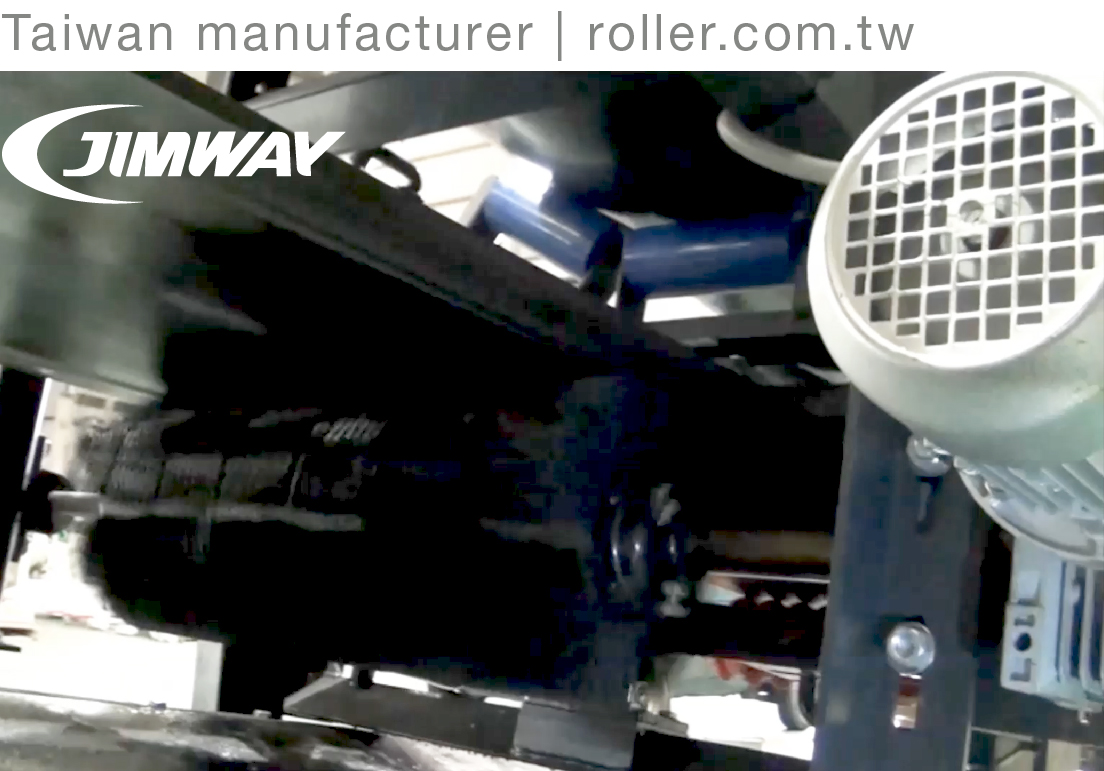

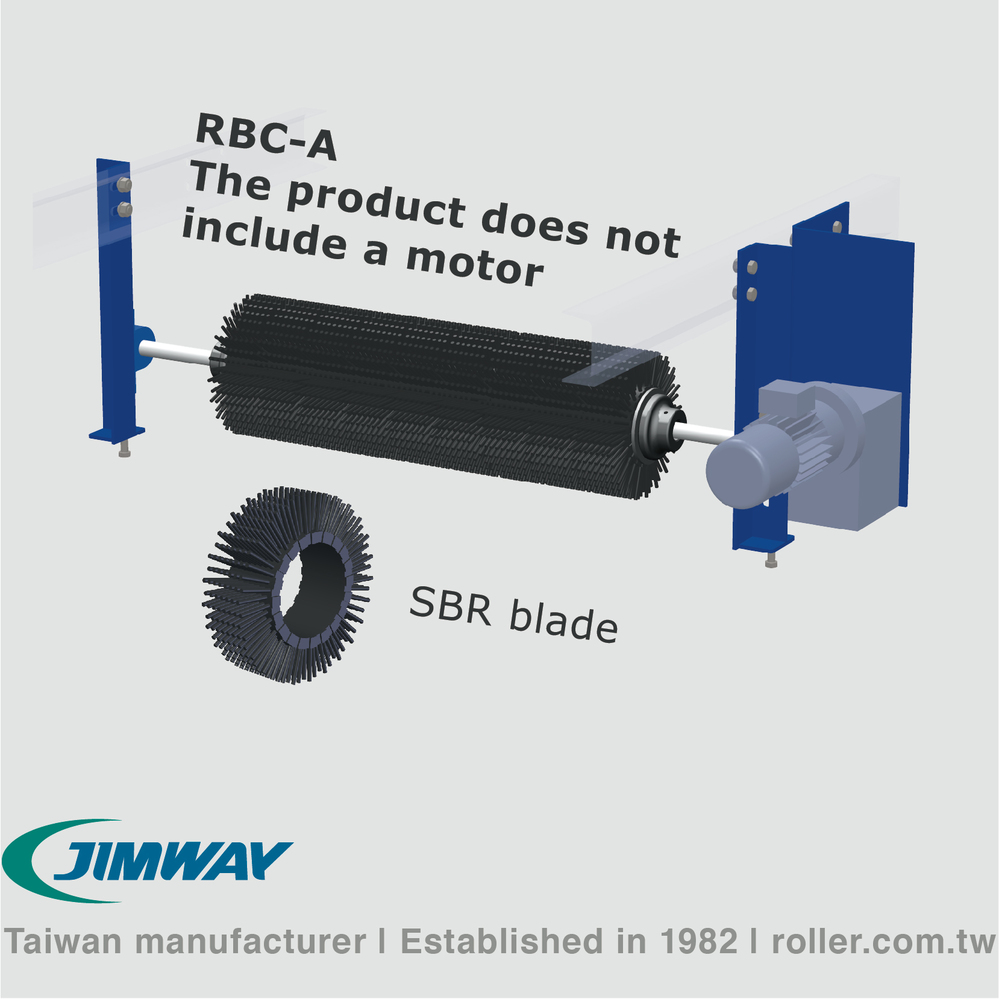

▪ RBC-A: effective cleaning without excessive power consumption
▪ Easy blade change |

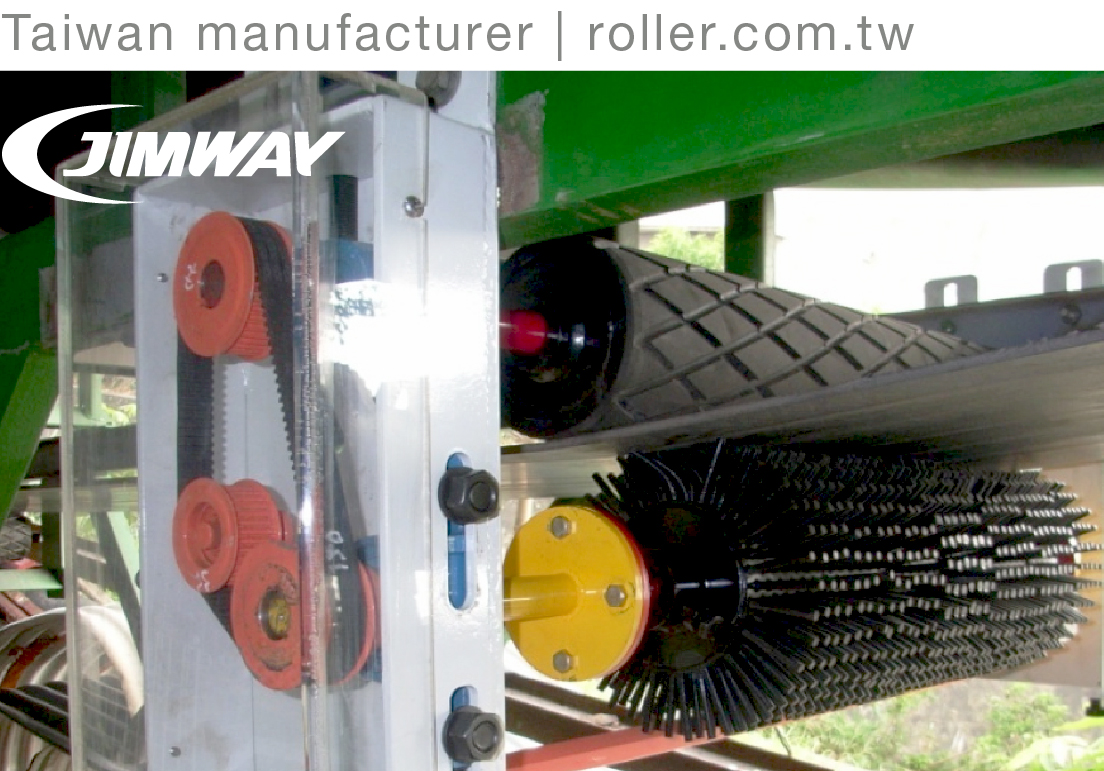

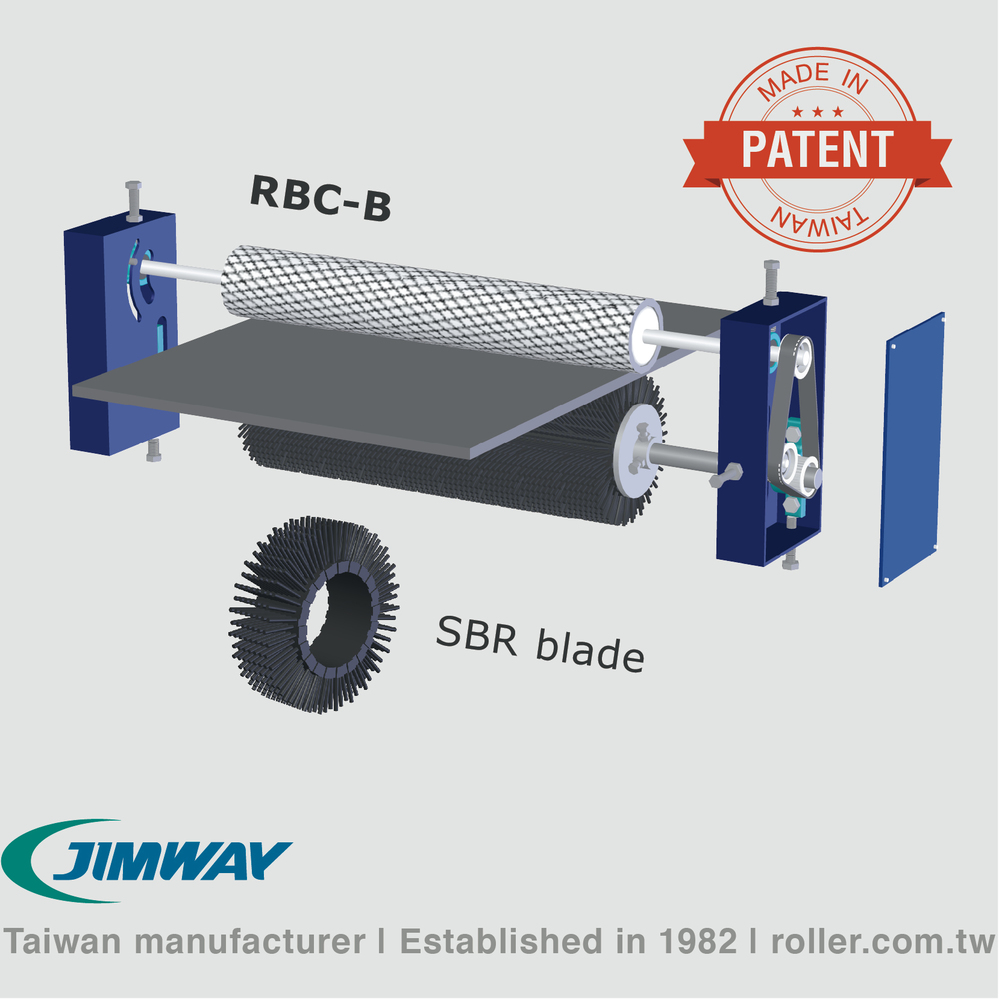

▪ RBC-B: effective cleaning without power consumption ▪ Long service in tough conditions |
Fine material Wood dust, cement dust, salt, sugar, fertilizer, and carbon black.
