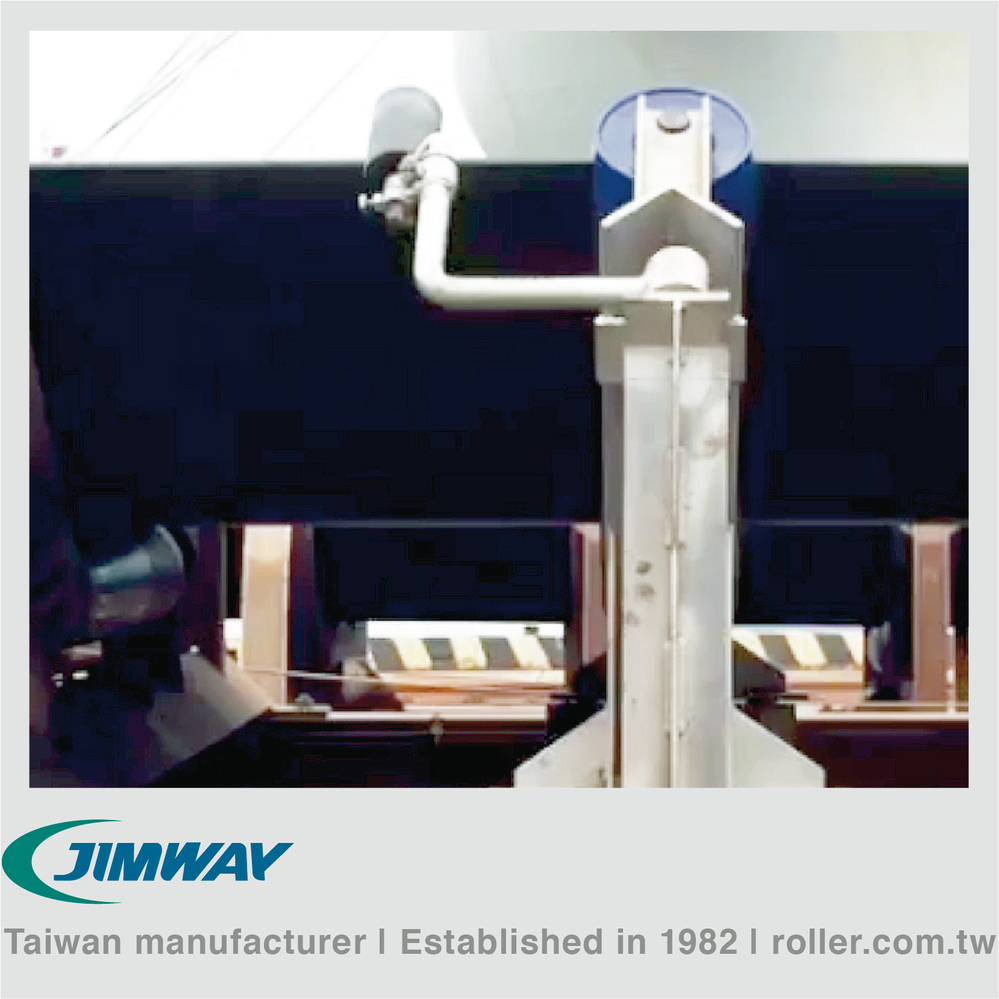

Self-Training Carrying Idler

▪ Operating in one direction only
▪ Highly sensitive tracking
▪ Used on high-loading belt
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 400~2000mm [15.75"~78.74"]

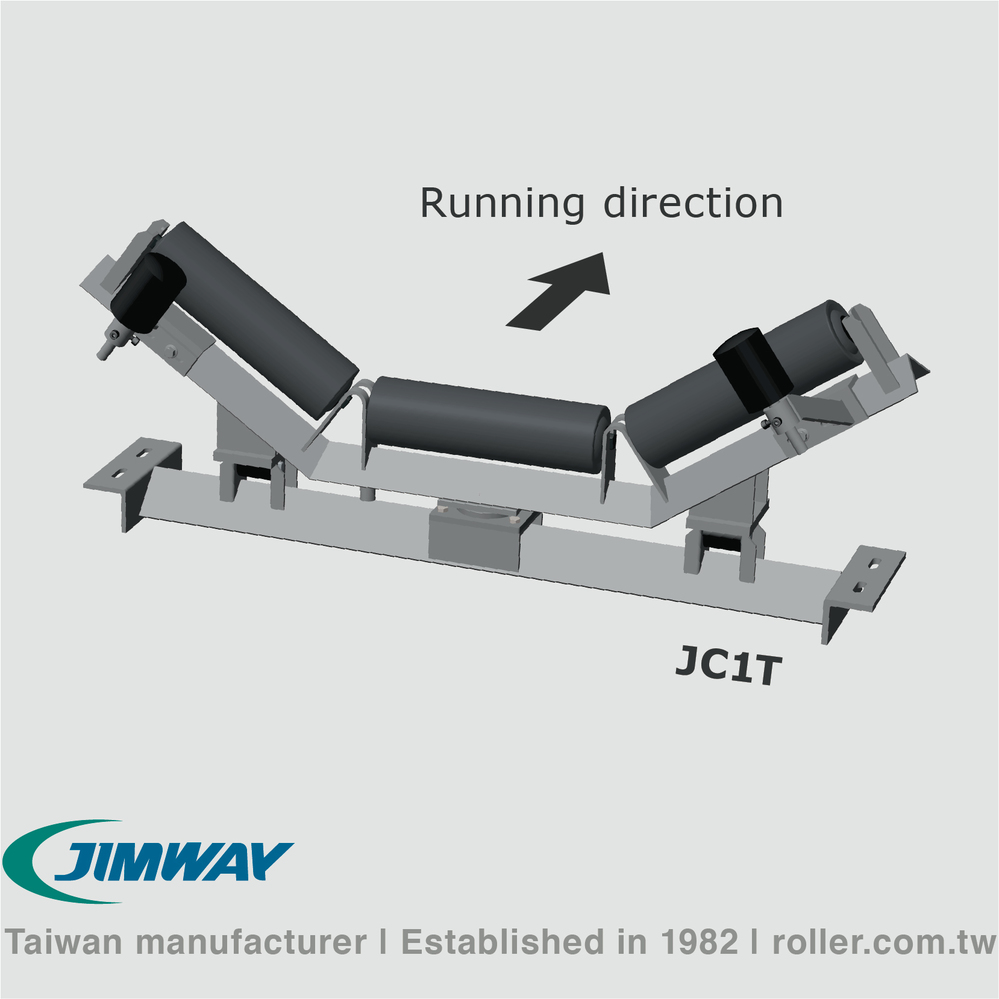

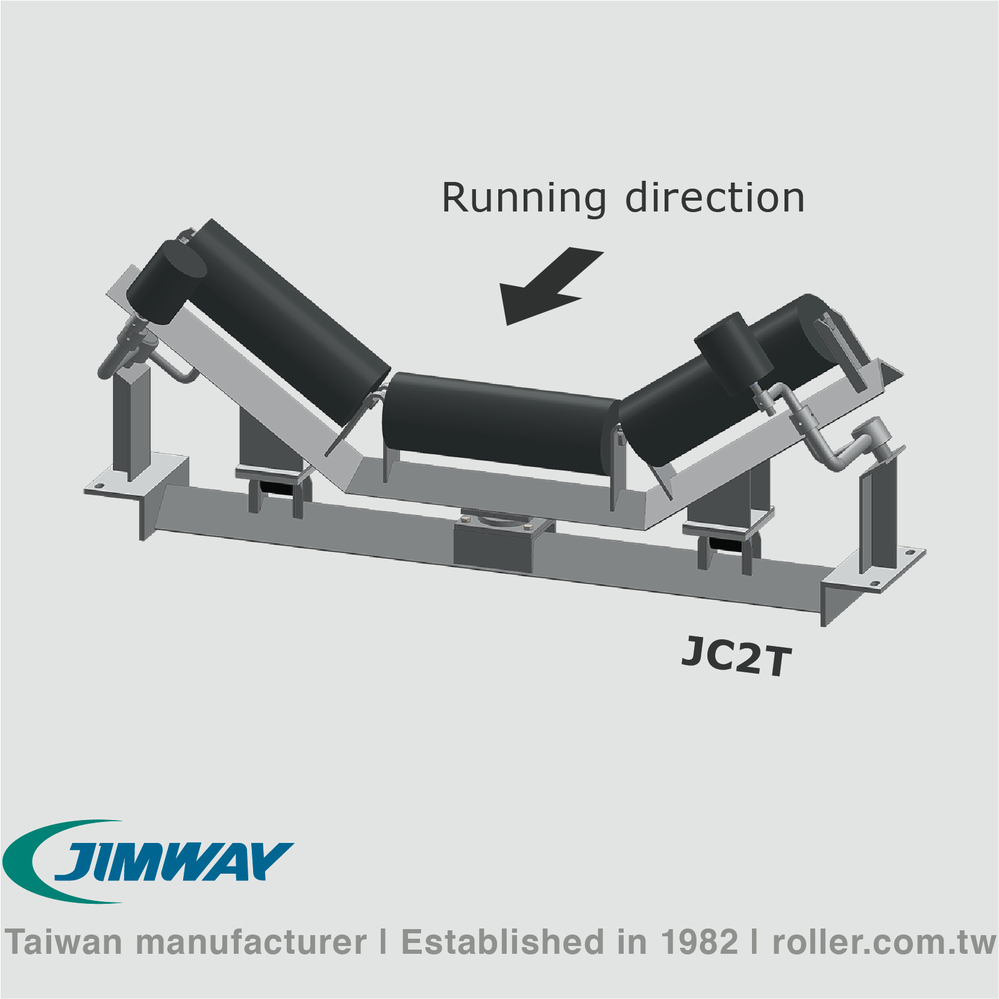

Model : JC1T/JC2T

Specifications

Troughing angle θ°: 25°~45° (JC1T)

θ=30° θ=35° θ=40° θ=45° Unit:mm [in]

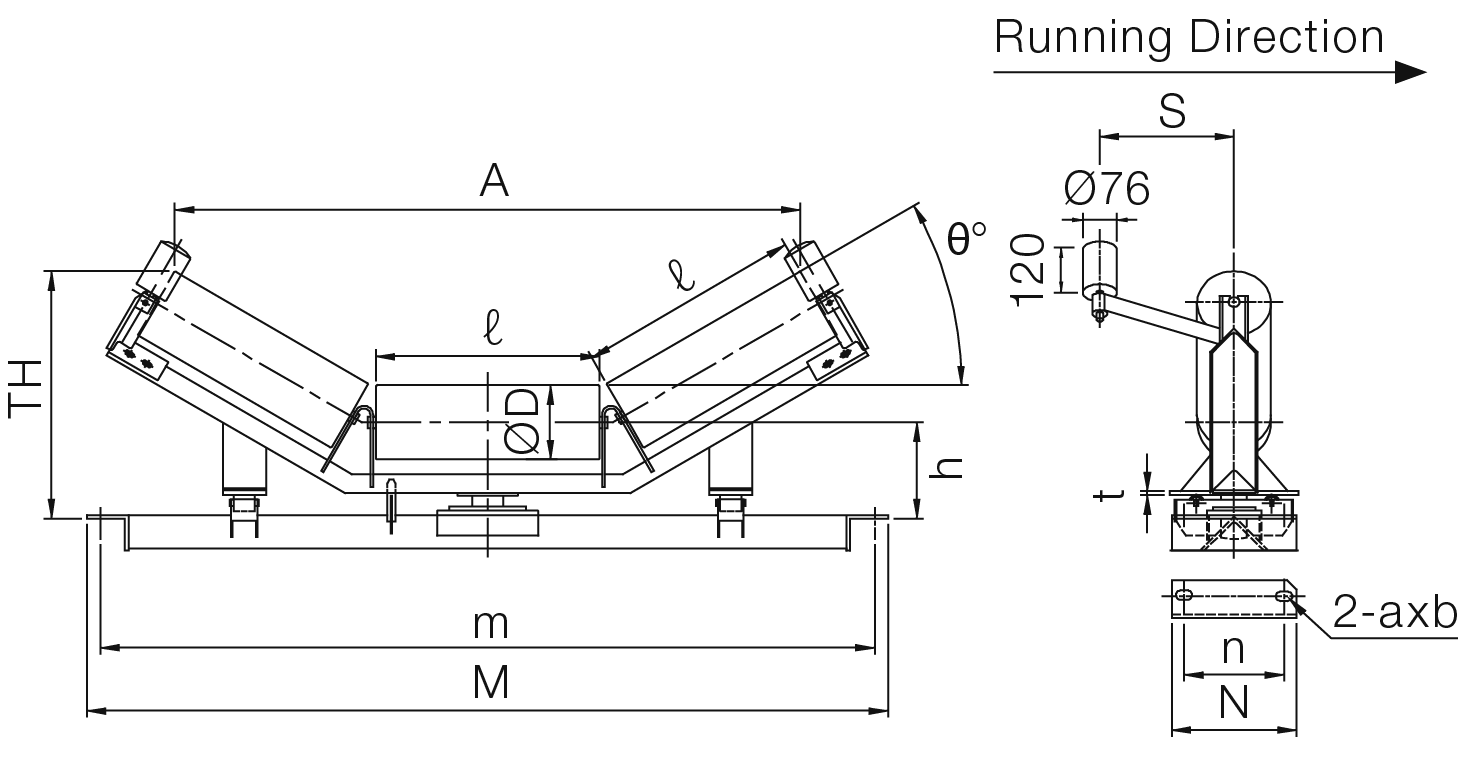

Model BW A TH A TH A TH A TH S ØD ℓ m M n N h t axb

JC1T-040·θ 400 [16] 444 258 420 269 406 271 376 288 200 89.1 145 640 690 140 190 135 6 15x25

JC1T-045·θ 450 [18] 499 268 473 280 457 284 425 302 200 89.1 165 690 740 140 190 135 6 15x25

JC1T-050·θ 500 [20] 539 276 512 289 494 294 461 312 200 89.1 180 740 790 140 190 135 6 15x25

JC1T-060·θ 600 [24] 621 306 599 322 553 336 543 351 200 89.1 210 840 890 150 200 150 6 15x25

JC1T-075·θ 750 [30] 759 354 729 374 695 392 657 408 250 114.3 265 1040 1090 160 210 160 6 15x25

JC1T-090·θ 900 [36] 896 379 862 403 821 424 778 444 250 114.3 315 1190 1240 160 210 160 6 15x25

JC1T-105·θ 1050 [42] 1040 449 1008 477 960 500 908 525 250 139.8 370 1340 1390 180 230 190 9 15x25

JC1T-120·θ 1200 [48] 1176 474 1140 506 1086 534 1029 560 250 139.8 420 1490 1540 180 230 190 9 15x25

JC1T-140·θ 1400 [54] 1382 600 1344 638 1281 671 1224 704 300 165.2 500 1730 1795 280 350 265 9 19x29

JC1T-160·θ 1600 [63] 1601 640 1555 684 1483 723 1417 761 300 165.2 580 1930 1995 280 350 265 9 19x29

JC1T-180·θ 1800 [72] 1792 705 1747 756 1678 798 1592 842 300 165.2 650 2220 2285 330 400 265 9 19x29

JC1T-200·θ 2000 [78] 2011 745 1959 801 1880 848 1785 898 300 165.2 730 2420 2485 330 400 265 9 19x29

Troughing angle θ°: 25°~45° (JC2T)

θ=30° θ=35° θ=40° θ=45° Unit:mm [in]

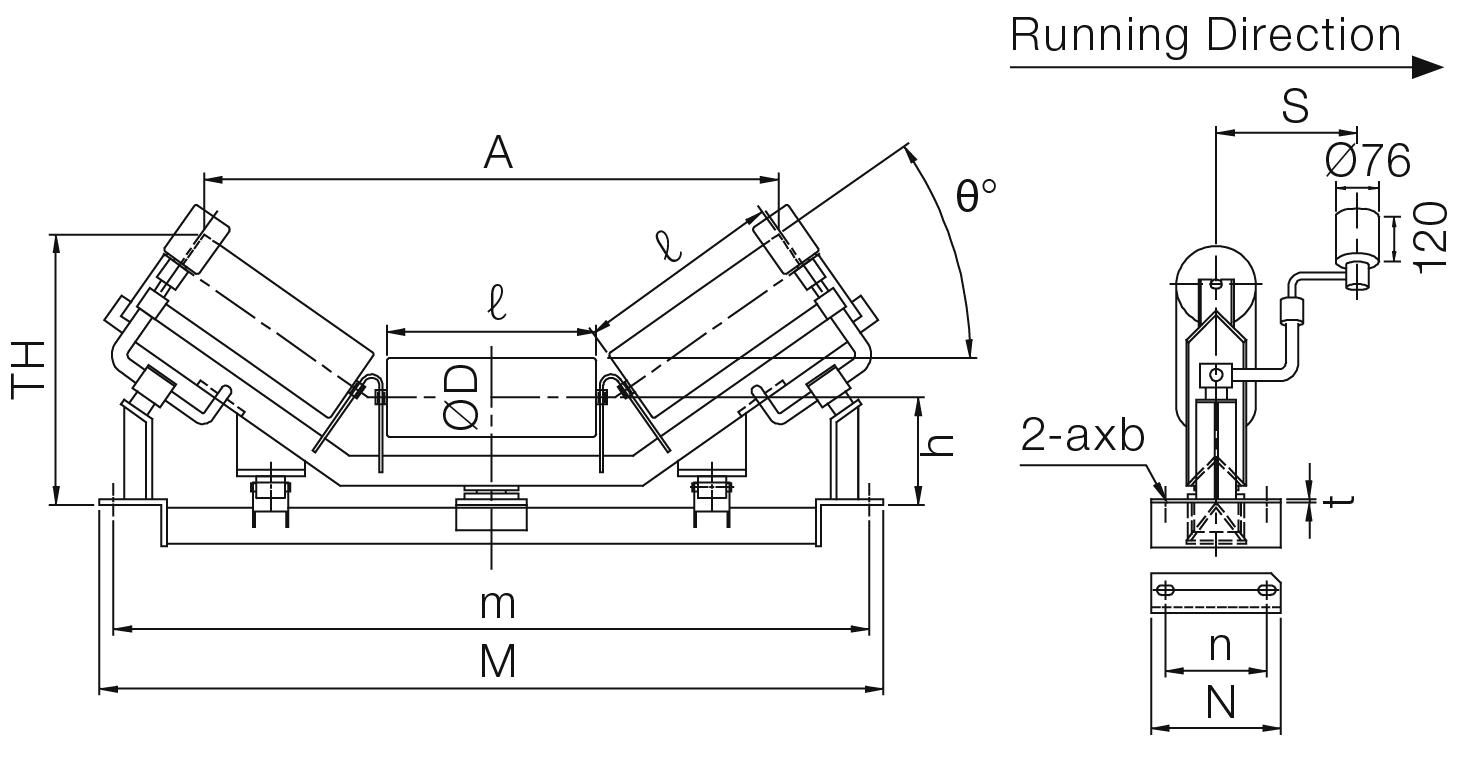

Model BW A TH A TH A TH A TH S ØD ℓ m M n N h t axb

JC2T-040·θ 400 [16] 444 258 420 269 406 271 376 288 200 89.1 145 640 690 140 190 135 6 15x25

JC2T-045·θ 450 [18] 499 268 473 280 457 284 425 302 200 89.1 165 690 740 140 190 135 6 15x25

JC2T-050·θ 500 [20] 539 276 512 289 494 294 461 312 200 89.1 180 740 790 140 190 135 6 15x25

JC2T-060·θ 600 [24] 621 306 599 322 553 336 543 351 200 89.1 210 840 890 150 200 150 6 15x25

JC2T-075·θ 750 [30] 759 354 729 374 695 392 657 408 250 114.3 265 1040 1090 160 210 160 6 15x25

JC2T-090·θ 900 [36] 896 379 862 403 821 424 778 444 250 114.3 315 1190 1240 160 210 160 6 15x25

JC2T-105·θ 1050 [42] 1040 449 1008 477 960 500 908 525 250 139.8 370 1340 1390 180 230 190 9 15x25

JC2T-120·θ 1200 [48] 1176 474 1140 506 1086 534 1029 560 250 139.8 420 1490 1540 180 230 190 9 15x25

JC2T-140·θ 1400 [54] 1382 600 1344 638 1281 671 1224 704 300 165.2 500 1730 1795 280 350 265 9 19x29

JC2T-160·θ 1600 [63] 1601 640 1555 684 1483 723 1417 761 300 165.2 580 1930 1995 280 350 265 9 19x29

JC2T-180·θ 1800 [72] 1792 705 1747 756 1678 798 1592 842 300 165.2 650 2220 2285 330 400 265 9 19x29

JC2T-200·θ 2000 [78] 2011 745 1959 801 1880 848 1785 898 300 165.2 730 2420 2485 330 400 265 9 19x29

		θ=30°		θ=35°		θ=40°		θ=45°										Unit:mm [in]
Model	BW	A	TH	A	TH	A	TH	A	TH	S	ØD	ℓ	m	M	n	N	h	t	axb
JC1T-040·θ	400 [16]	444	258	420	269	406	271	376	288	200	89.1	145	640	690	140	190	135	6	15x25
JC1T-045·θ	450 [18]	499	268	473	280	457	284	425	302	200	89.1	165	690	740	140	190	135	6	15x25
JC1T-050·θ	500 [20]	539	276	512	289	494	294	461	312	200	89.1	180	740	790	140	190	135	6	15x25
JC1T-060·θ	600 [24]	621	306	599	322	553	336	543	351	200	89.1	210	840	890	150	200	150	6	15x25
JC1T-075·θ	750 [30]	759	354	729	374	695	392	657	408	250	114.3	265	1040	1090	160	210	160	6	15x25
JC1T-090·θ	900 [36]	896	379	862	403	821	424	778	444	250	114.3	315	1190	1240	160	210	160	6	15x25
JC1T-105·θ	1050 [42]	1040	449	1008	477	960	500	908	525	250	139.8	370	1340	1390	180	230	190	9	15x25
JC1T-120·θ	1200 [48]	1176	474	1140	506	1086	534	1029	560	250	139.8	420	1490	1540	180	230	190	9	15x25
JC1T-140·θ	1400 [54]	1382	600	1344	638	1281	671	1224	704	300	165.2	500	1730	1795	280	350	265	9	19x29
JC1T-160·θ	1600 [63]	1601	640	1555	684	1483	723	1417	761	300	165.2	580	1930	1995	280	350	265	9	19x29
JC1T-180·θ	1800 [72]	1792	705	1747	756	1678	798	1592	842	300	165.2	650	2220	2285	330	400	265	9	19x29
JC1T-200·θ	2000 [78]	2011	745	1959	801	1880	848	1785	898	300	165.2	730	2420	2485	330	400	265	9	19x29
