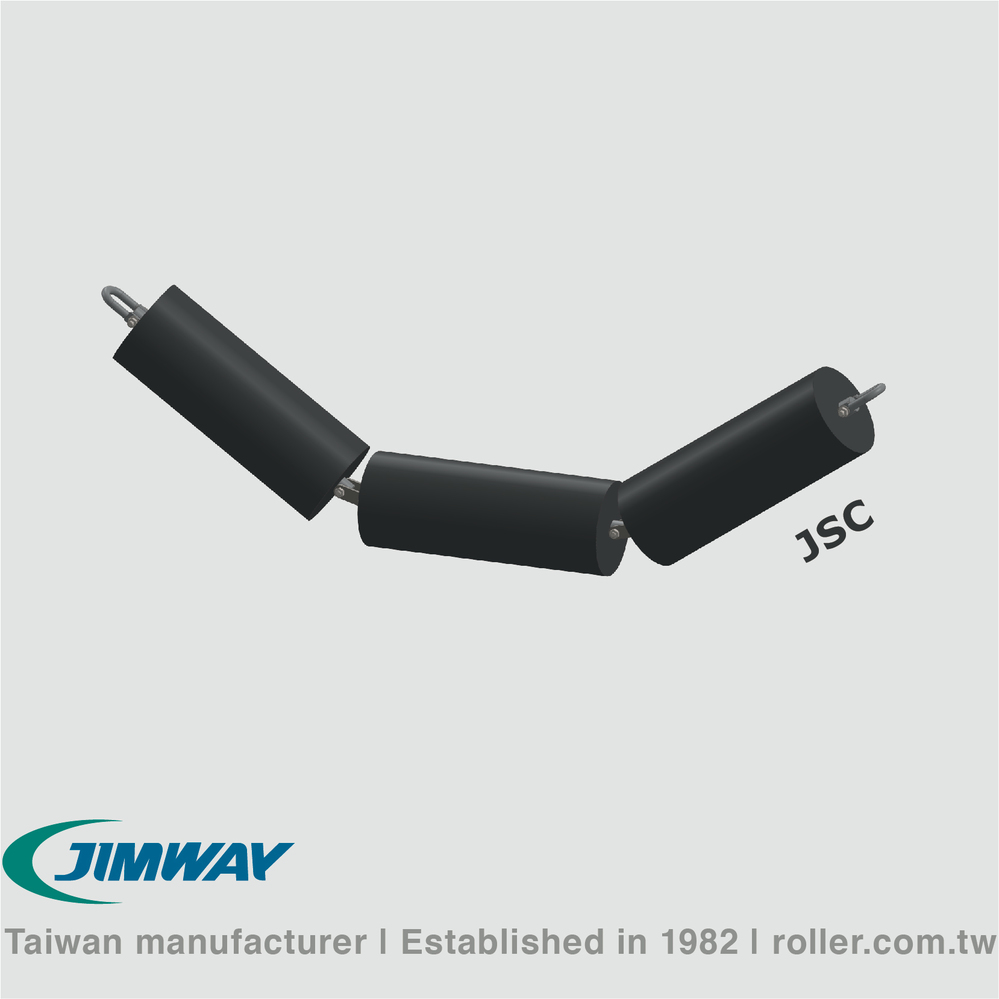

Suspended Carrying Idler

▪ Absorbing high impact
▪ Less dynamic loads on the rollers
▪ Operating at a high belt speed
▪ Supporting the upper belt
▪ Position: the conveyor side
▪ Belt width: 750~2000mm [29.53"~78.74"]

Model : JSC

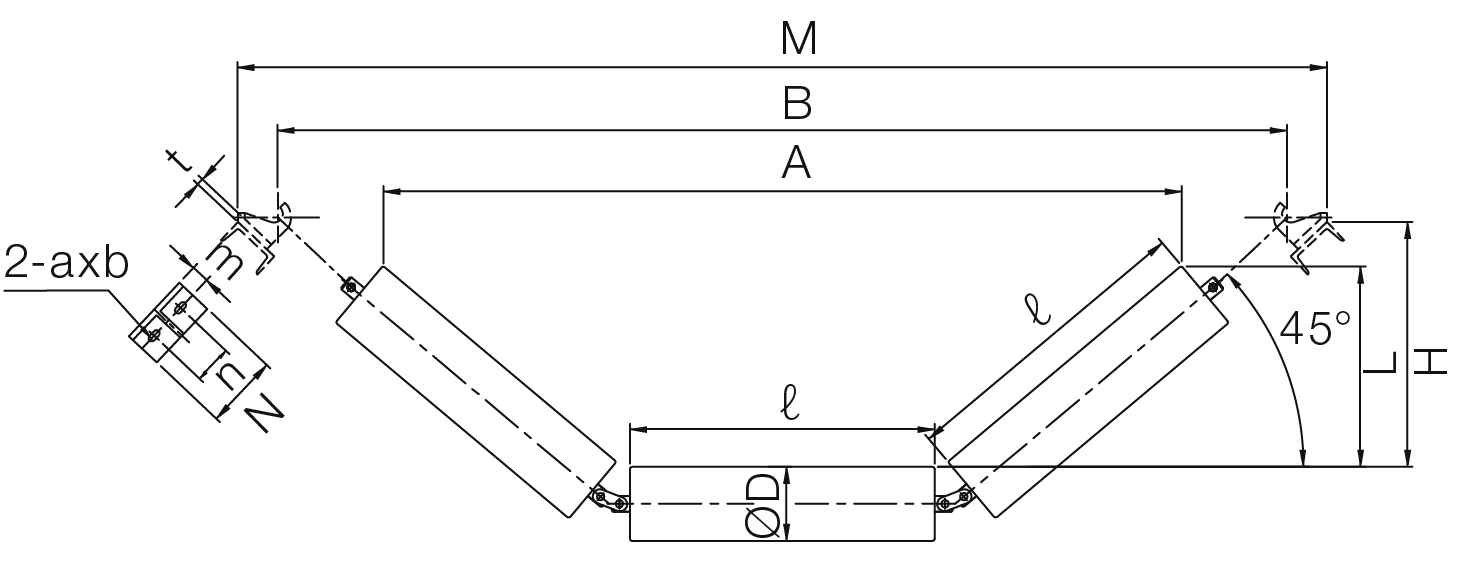

Specifications

Unit:mm [in]

Model BW ØD ℓ m M n N L H t axb

JSC-075 750 [30] 114.3 265 40 1192 100 160 177 265 6 15x25

JSC-090 900 [36] 114.3 315 40 1318 100 160 209 297 6 15x25

JSC-105 1050 [42] 139.8 370 45 1511 100 160 246 324 6 15x25

JSC-120 1200 [48] 139.8 420 45 1638 100 160 279 356 6 15x25

JSC-140 1400 [54] 165.2 500 60 1910 120 190 331 408 9 19x29

JSC-160 1600 [63] 165.2 580 60 2112 120 190 383 459 9 19x29

JSC-180 1800 [72] 165.2 650 60 2394 120 190 432 549 9 19x29

JSC-200 2000 [78] 165.2 730 60 2597 120 190 483 600 9 19x29

										Unit:mm [in]
Model	BW	ØD	ℓ	m	M	n	N	L	H	t	axb
JSC-075	750 [30]	114.3	265	40	1192	100	160	177	265	6	15x25
JSC-090	900 [36]	114.3	315	40	1318	100	160	209	297	6	15x25
JSC-105	1050 [42]	139.8	370	45	1511	100	160	246	324	6	15x25
JSC-120	1200 [48]	139.8	420	45	1638	100	160	279	356	6	15x25
JSC-140	1400 [54]	165.2	500	60	1910	120	190	331	408	9	19x29
JSC-160	1600 [63]	165.2	580	60	2112	120	190	383	459	9	19x29
JSC-180	1800 [72]	165.2	650	60	2394	120	190	432	549	9	19x29
JSC-200	2000 [78]	165.2	730	60	2597	120	190	483	600	9	19x29
