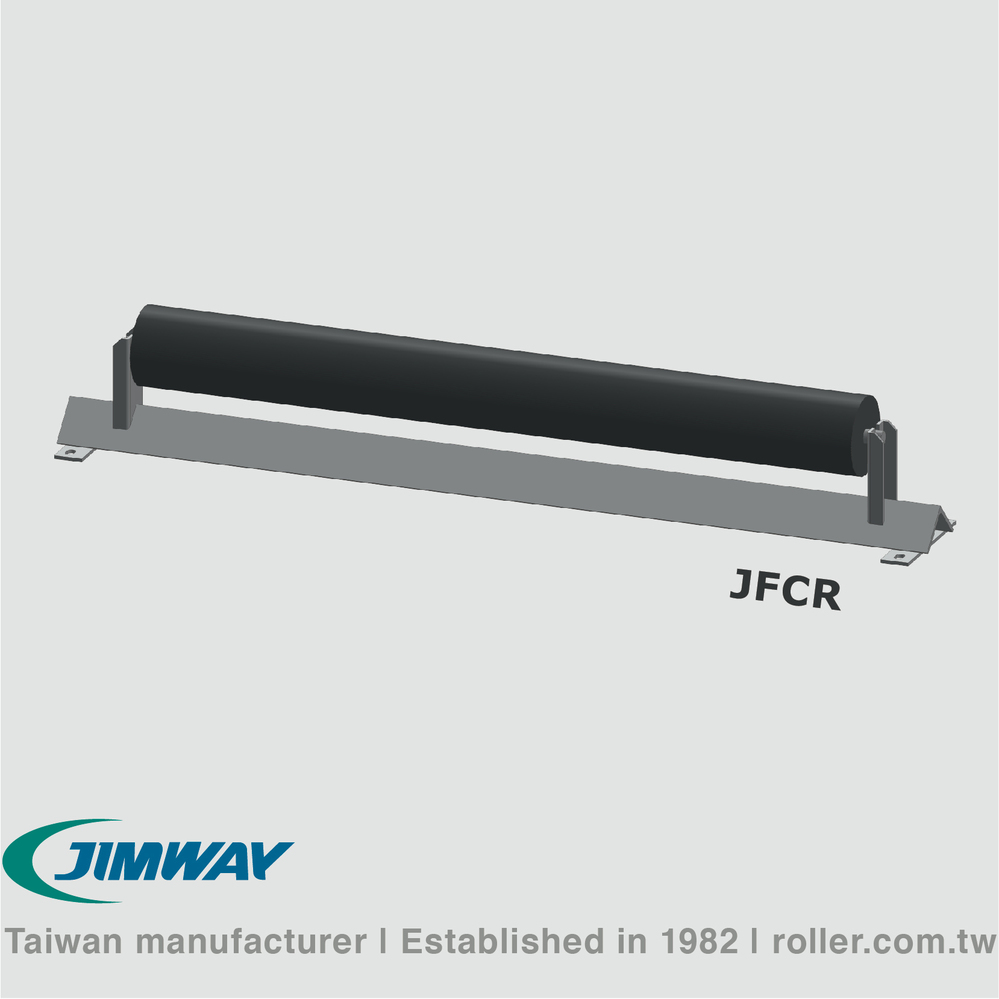

Flat Carrying Idler

▪ Moving box/bag for finished product
▪ Position: the conveyor side
▪ Belt width: 400~2000mm [15.75"~78.74"]

Model : JFCR

Specifications

Unit:mm [in]

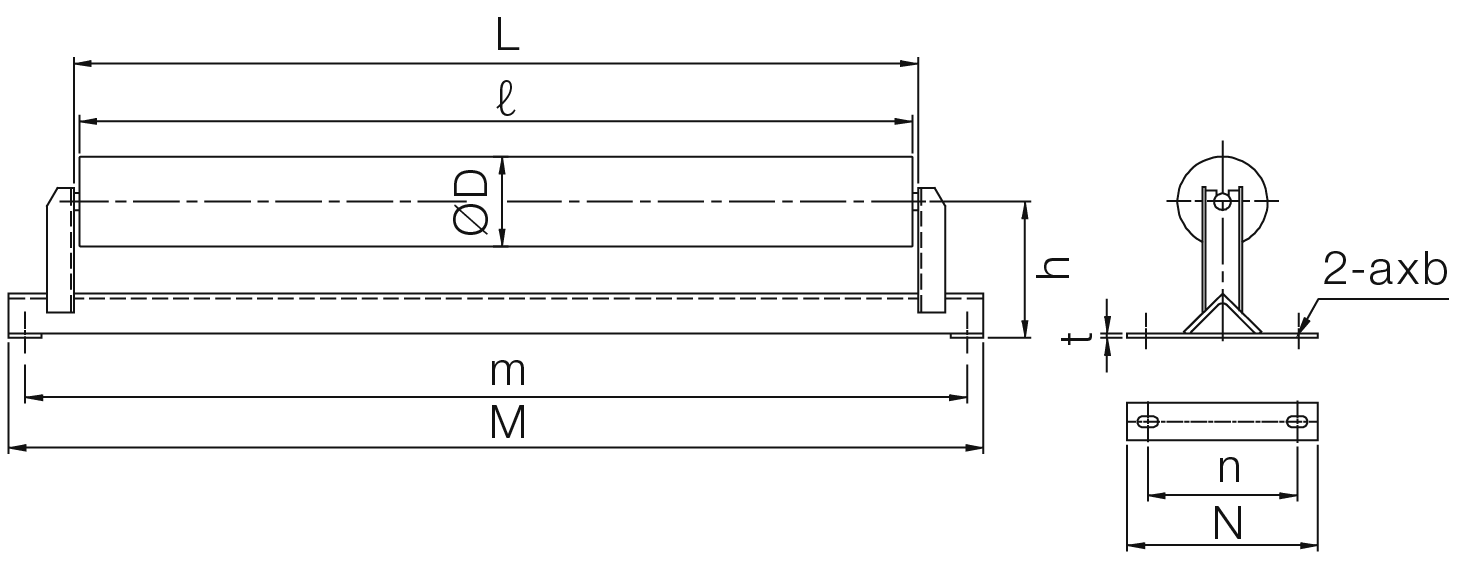

Model BW ØD ℓ L m M n N h t axb

JFCR-040·θ 400 [16] 89.1 460 480 640 720 140 190 125 4.5 15x25

JFCR-045·θ 450 [18] 89.1 510 530 690 770 140 190 125 4.5 15x25

JFCR-050·θ 500 [20] 89.1 560 580 740 820 140 190 125 4.5 15x25

JFCR-060·θ 600 [24] 89.1 660 680 840 920 150 200 140 6.0 15x25

JFCR-075·θ 750 [30] 114.3 850 880 1040 1120 160 210 150 6.0 15x25

JFCR-090·θ 900 [36] 114.3 1000 1030 1190 1270 160 210 150 6.0 15x25

JFCR-105·θ 1050 [42] 139.8 1150 1180 1340 1420 180 230 180 6.0 15x25

JFCR-120·θ 1200 [48] 139.8 1300 1330 1490 1570 180 230 180 6.0 15x25

JFCR-140·θ 1400 [54] 165.2 1530 1550 1730 1810 280 350 250 9.0 19x29

JFCR-160·θ 1600 [63] 165.2 1730 1750 1930 2010 280 350 250 9.0 19x29

JFCR-180·θ 1800 [72] 165.2 2000 2040 2220 2300 330 400 280 12.0 19x29

JFCR-200·θ 2000 [78] 165.2 2200 2240 2420 2500 330 400 280 12.0 19x29

										Unit:mm [in]
Model	BW	ØD	ℓ	L	m	M	n	N	h	t	axb
JFCR-040·θ	400 [16]	89.1	460	480	640	720	140	190	125	4.5	15x25
JFCR-045·θ	450 [18]	89.1	510	530	690	770	140	190	125	4.5	15x25
JFCR-050·θ	500 [20]	89.1	560	580	740	820	140	190	125	4.5	15x25
JFCR-060·θ	600 [24]	89.1	660	680	840	920	150	200	140	6.0	15x25
JFCR-075·θ	750 [30]	114.3	850	880	1040	1120	160	210	150	6.0	15x25
JFCR-090·θ	900 [36]	114.3	1000	1030	1190	1270	160	210	150	6.0	15x25
JFCR-105·θ	1050 [42]	139.8	1150	1180	1340	1420	180	230	180	6.0	15x25
JFCR-120·θ	1200 [48]	139.8	1300	1330	1490	1570	180	230	180	6.0	15x25
JFCR-140·θ	1400 [54]	165.2	1530	1550	1730	1810	280	350	250	9.0	19x29
JFCR-160·θ	1600 [63]	165.2	1730	1750	1930	2010	280	350	250	9.0	19x29
JFCR-180·θ	1800 [72]	165.2	2000	2040	2220	2300	330	400	280	12.0	19x29
JFCR-200·θ	2000 [78]	165.2	2200	2240	2420	2500	330	400	280	12.0	19x29
