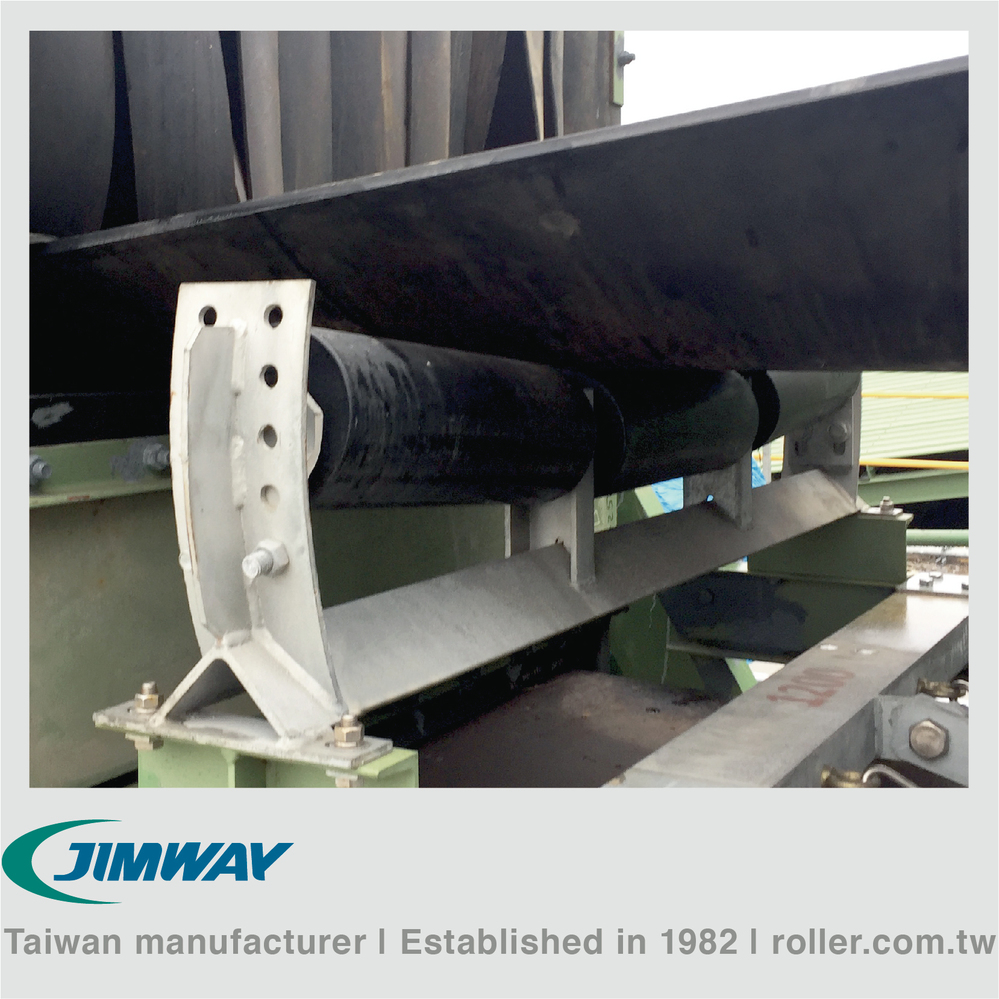

Transition Carrying Idler

▪ Bracket angle adjustment
▪ Position: Install near head and tail pulleys
▪ Trough angles: 5°~45°
▪ Belt width: 600~2000mm [23.62"~78.74"]

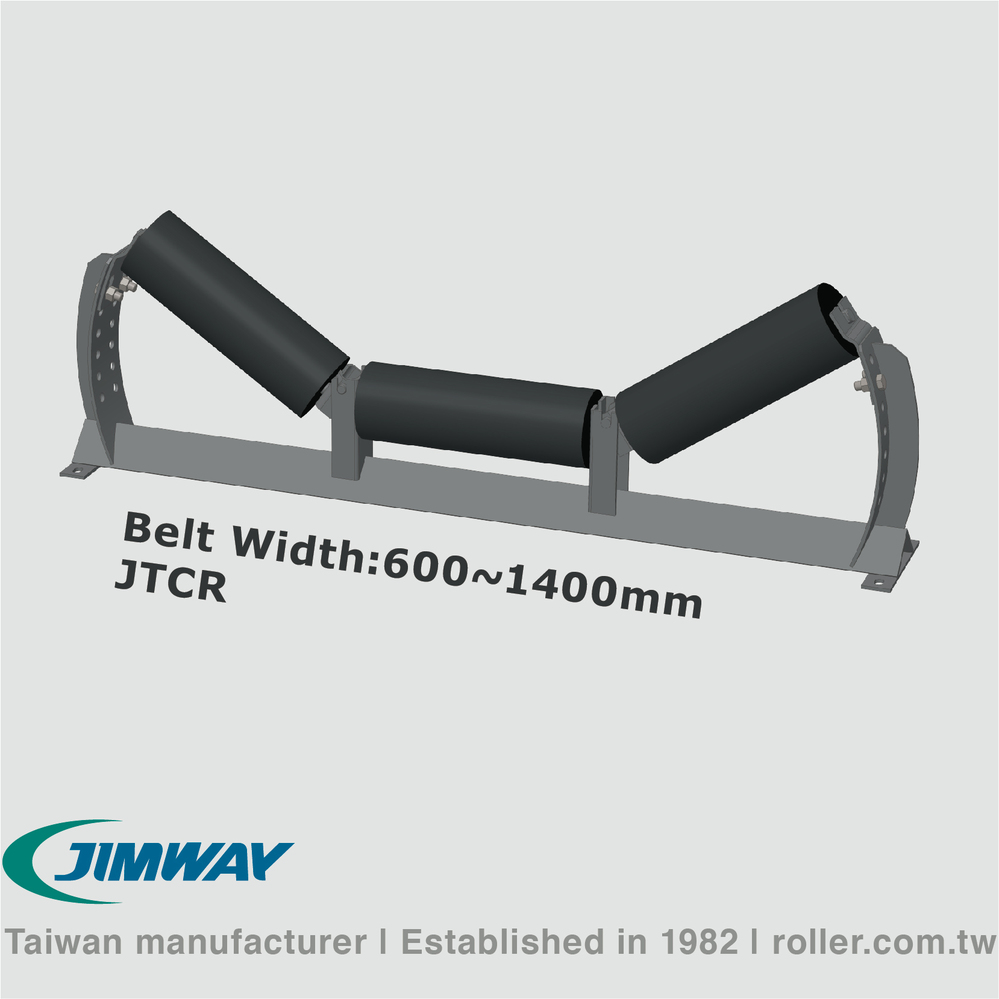

Model : JTCR

Specifications

BW600~1400mm [24"~54"]

Unit:mm [in]

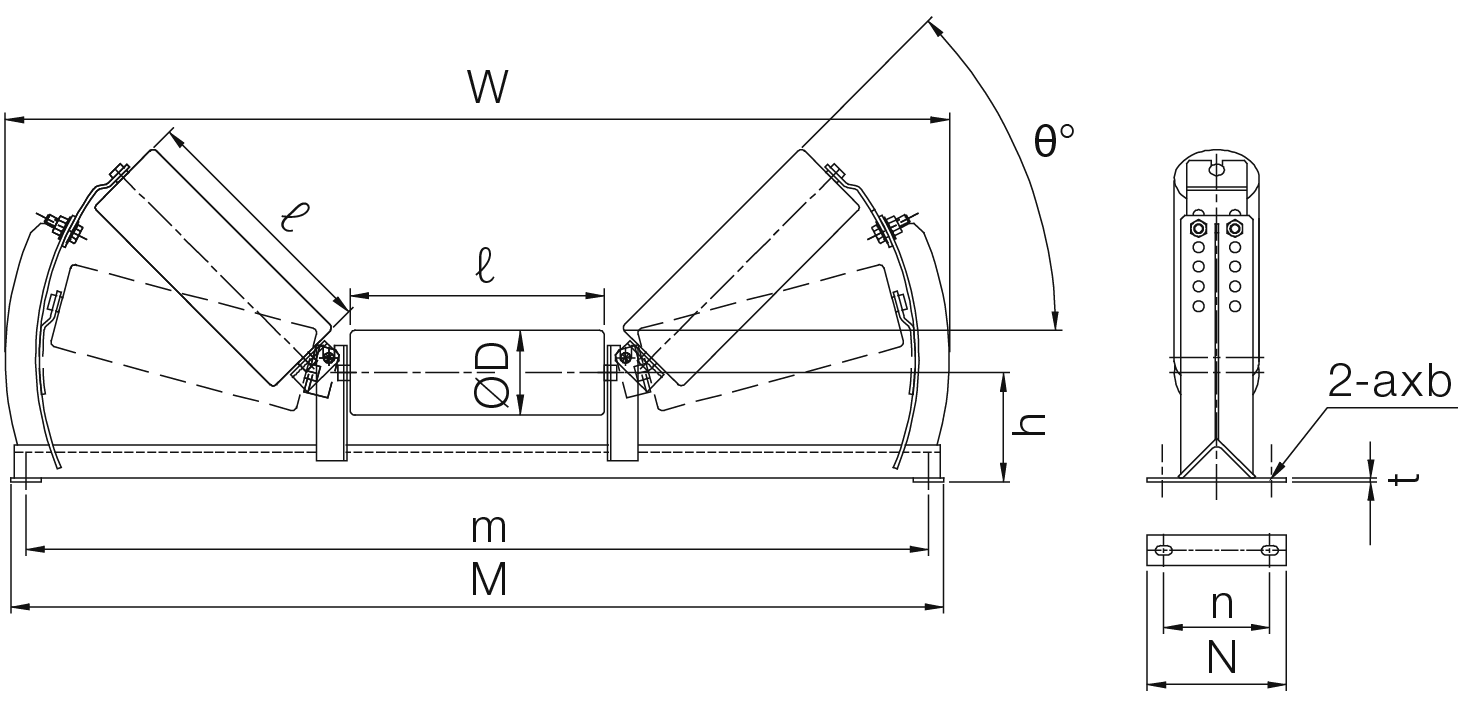

Model θ° BW W ØD ℓ m M n N h t axb

JTCR-060A 5~25 600 [24] 870 89.1 210 840 890 150 200 140 6 15x25

JTCR-060B 26~45 600 [24] 870 89.1 210 840 890 150 200 140 6 15x25

JTCR-075A 5~25 750 [30] 1033 114.3 265 1040 1090 160 210 150 6 15x25

JTCR-075B 26~45 750 [30] 1033 114.3 265 1040 1090 160 210 150 6 15x25

JTCR-090A 5~25 900 [36] 1181 114.3 315 1190 1240 160 210 150 6 15x25

JTCR-090B 26~45 900 [36] 1181 114.3 315 1190 1240 160 210 150 6 15x25

JTCR-105A 5~25 1050 [42] 1410 139.8 370 1340 1390 180 230 180 6 15x25

JTCR-105B 26~45 1050 [42] 1410 139.8 370 1340 1390 180 230 180 6 15x25

JTCR-120A 5~25 1200 [48] 1560 139.8 420 1490 1540 180 230 180 6 15x25

JTCR-120B 26~45 1200 [48] 1560 139.8 420 1490 1540 180 230 180 6 15x25

JTCR-140A 5~25 1400 [54] 1822 165.2 500 1730 1795 280 350 250 9 19x29

JTCR-140B 26~45 1400 [54] 1822 165.2 500 1730 1795 280 350 250 9 19x29

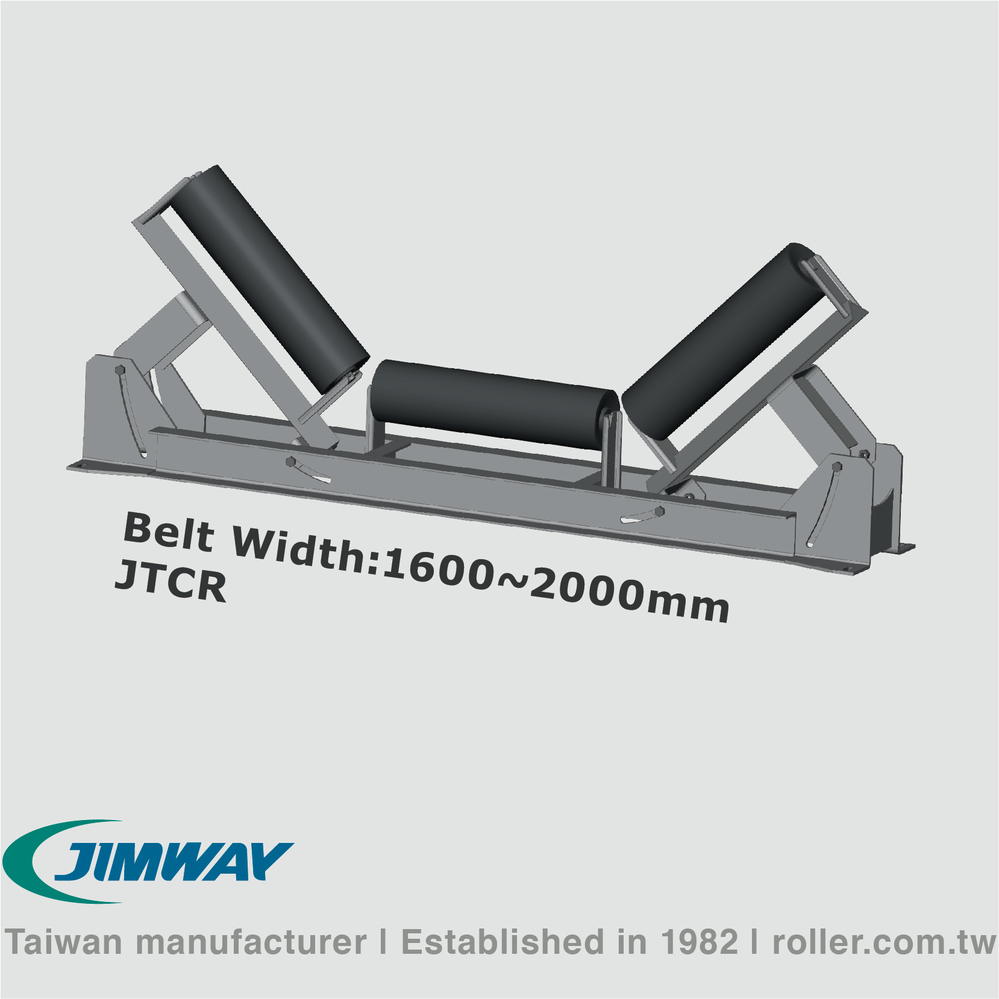

BW1600~2000mm [63"~78"]

Unit:mm [in]

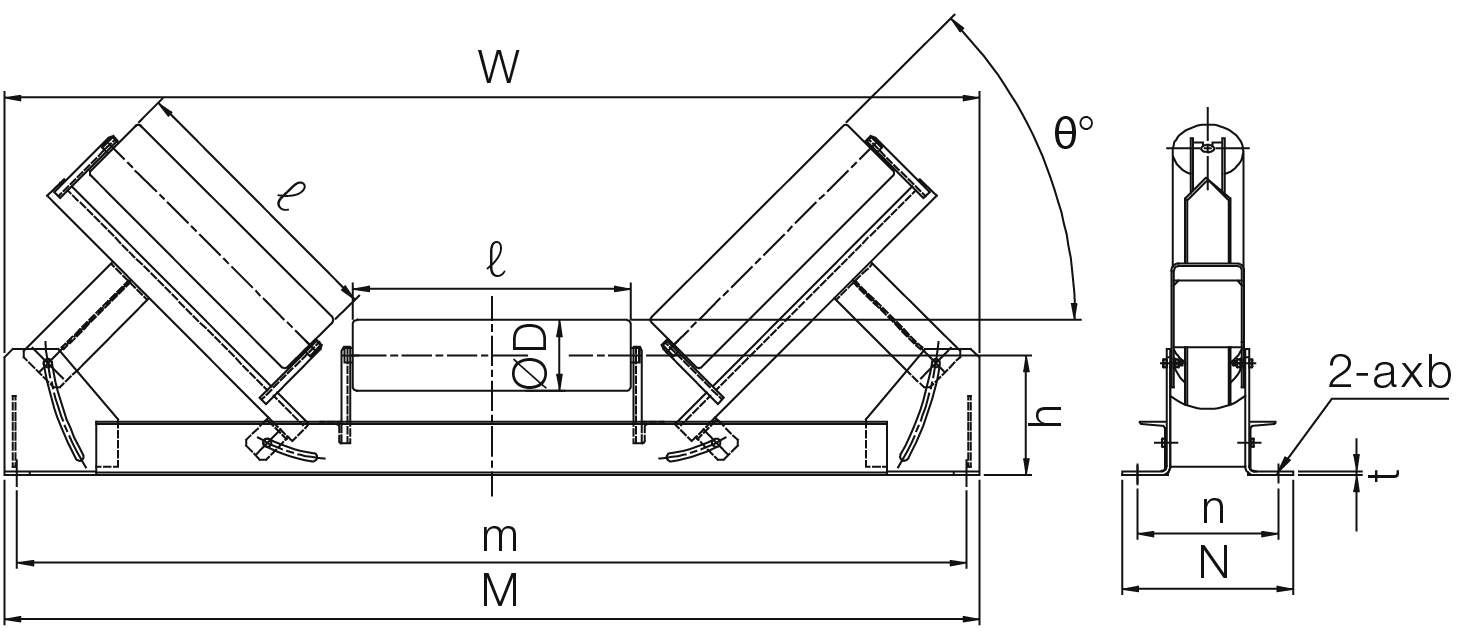

Model θ° BW W ØD ℓ m M n N h t axb

JTCR-160A 5~25 1600 [63] 1990 165.2 580 1930 1995 280 350 250 9 19x29

JTCR-160B 26~45 1600 [63] 1990 165.2 580 1930 1995 280 350 250 9 19x29

JTCR-180A 5~25 1800 [72] 2280 165.2 650 2220 2285 330 400 280 9 19x29

JTCR-180B 26~45 1800 [72] 2280 165.2 650 2220 2285 330 400 280 9 19x29

JTCR-200A 5~25 2000 [78] 2480 165.2 730 2420 2485 330 400 280 9 19x29

JTCR-200B 26~45 2000 [78] 2480 165.2 730 2420 2485 330 400 280 9 19x29

											Unit:mm [in]
Model	θ°	BW	W	ØD	ℓ	m	M	n	N	h	t	axb
JTCR-060A	5~25	600 [24]	870	89.1	210	840	890	150	200	140	6	15x25
JTCR-060B	26~45	600 [24]	870	89.1	210	840	890	150	200	140	6	15x25
JTCR-075A	5~25	750 [30]	1033	114.3	265	1040	1090	160	210	150	6	15x25
JTCR-075B	26~45	750 [30]	1033	114.3	265	1040	1090	160	210	150	6	15x25
JTCR-090A	5~25	900 [36]	1181	114.3	315	1190	1240	160	210	150	6	15x25
JTCR-090B	26~45	900 [36]	1181	114.3	315	1190	1240	160	210	150	6	15x25
JTCR-105A	5~25	1050 [42]	1410	139.8	370	1340	1390	180	230	180	6	15x25
JTCR-105B	26~45	1050 [42]	1410	139.8	370	1340	1390	180	230	180	6	15x25
JTCR-120A	5~25	1200 [48]	1560	139.8	420	1490	1540	180	230	180	6	15x25
JTCR-120B	26~45	1200 [48]	1560	139.8	420	1490	1540	180	230	180	6	15x25
JTCR-140A	5~25	1400 [54]	1822	165.2	500	1730	1795	280	350	250	9	19x29
JTCR-140B	26~45	1400 [54]	1822	165.2	500	1730	1795	280	350	250	9	19x29
