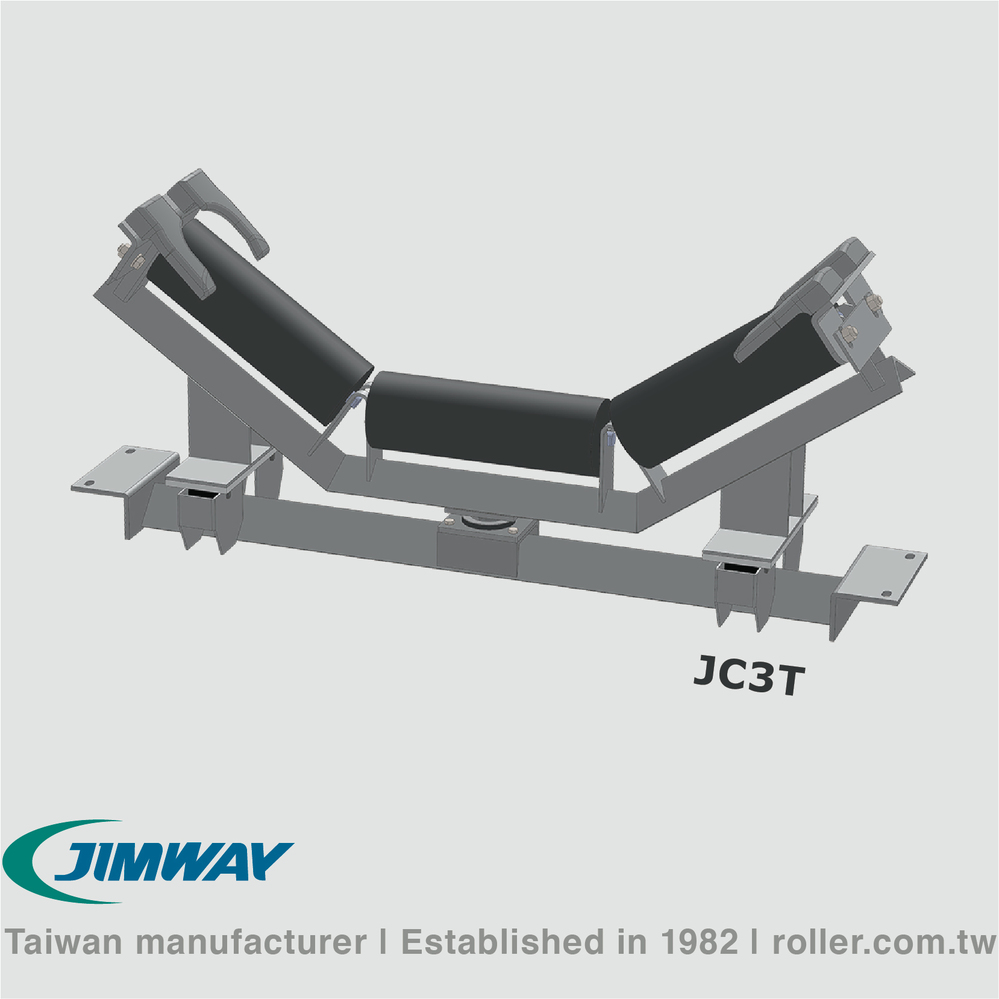

Reversible Self-Training Carrying Idler

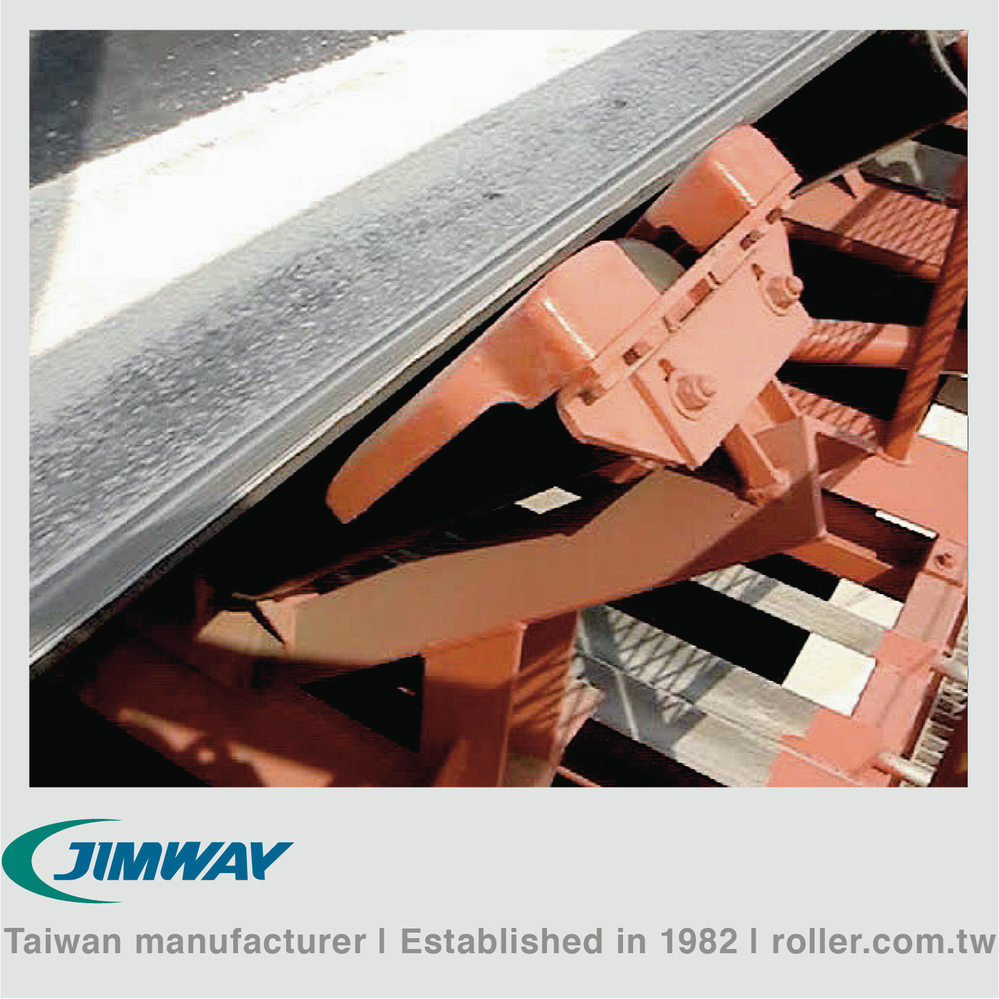

▪ Operating in reversible direction
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 5m close to the head/tail pulley or 15m in other locations.
▪ Trough angles: 25°~45°
▪ Belt width: 1050~2000mm [41.34"~78.74"]

Model : JC3T

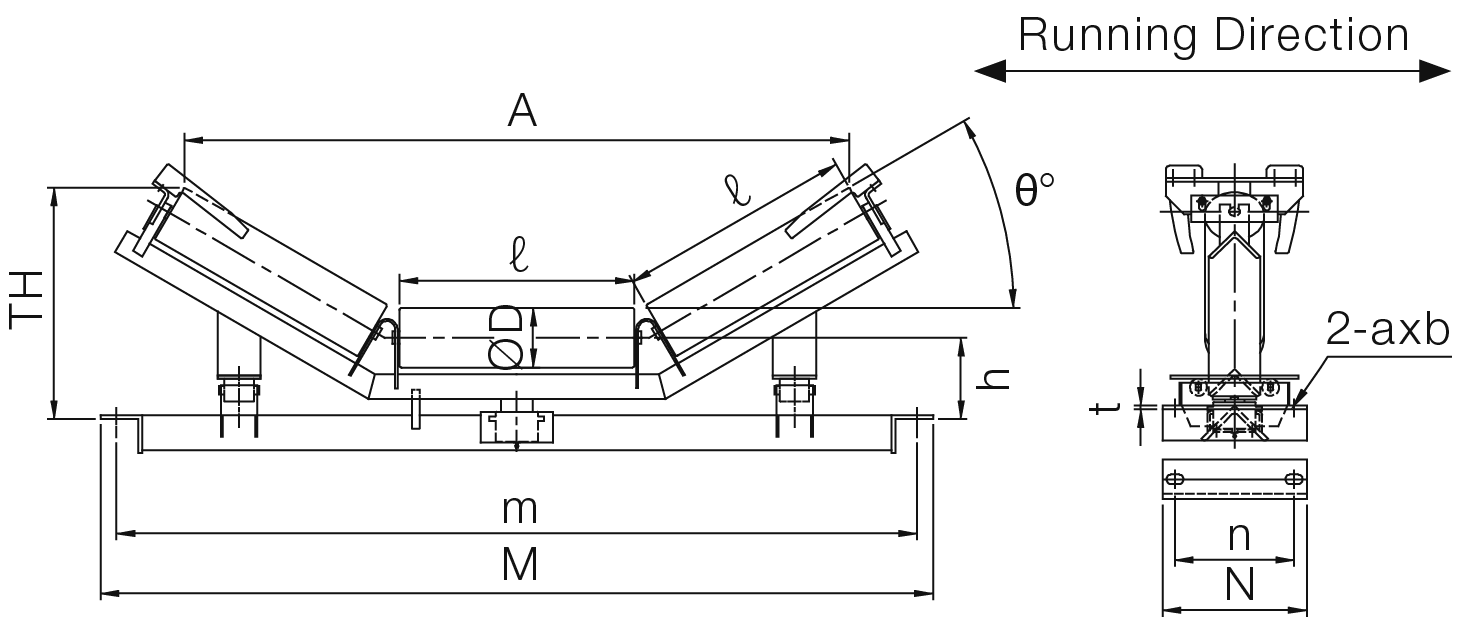

Specifications

Troughing angle θ°: 25°~45°

θ=30° θ=35° θ=40° θ=45° Unit:mm [in]

Model BW A TH A TH A TH A TH ØD ℓ m M n N h t axb

JC3T-105·θ 1050 [42] 1040 464 1008 492 960 517 908 540 139.8 370 1340 1390 180 230 190 9 15x25

JC3T-120·θ 1200 [48] 1176 489 1140 521 1086 549 1029 575 139.8 420 1490 1540 180 230 190 9 15x25

JC3T-140·θ 1400 [54] 1382 610 1344 648 1281 682 1224 715 165.2 500 1730 1795 280 350 265 9 19x29

JC3T-160·θ 1600 [63] 1601 650 1555 694 1483 733 1417 771 165.2 580 1930 1995 280 350 265 9 19x29

JC3T-180·θ 1800 [72] 1792 715 1747 756 1678 811 1592 852 165.2 650 2220 2285 330 400 265 9 19x29

JC3T-200·θ 2000 [78] 2011 755 1959 801 1880 863 1785 909 165.2 730 2420 2485 330 400 265 9 19x29

		θ=30°		θ=35°		θ=40°		θ=45°									Unit:mm [in]
Model	BW	A	TH	A	TH	A	TH	A	TH	ØD	ℓ	m	M	n	N	h	t	axb
JC3T-105·θ	1050 [42]	1040	464	1008	492	960	517	908	540	139.8	370	1340	1390	180	230	190	9	15x25
JC3T-120·θ	1200 [48]	1176	489	1140	521	1086	549	1029	575	139.8	420	1490	1540	180	230	190	9	15x25
JC3T-140·θ	1400 [54]	1382	610	1344	648	1281	682	1224	715	165.2	500	1730	1795	280	350	265	9	19x29
JC3T-160·θ	1600 [63]	1601	650	1555	694	1483	733	1417	771	165.2	580	1930	1995	280	350	265	9	19x29
JC3T-180·θ	1800 [72]	1792	715	1747	756	1678	811	1592	852	165.2	650	2220	2285	330	400	265	9	19x29
JC3T-200·θ	2000 [78]	2011	755	1959	801	1880	863	1785	909	165.2	730	2420	2485	330	400	265	9	19x29
