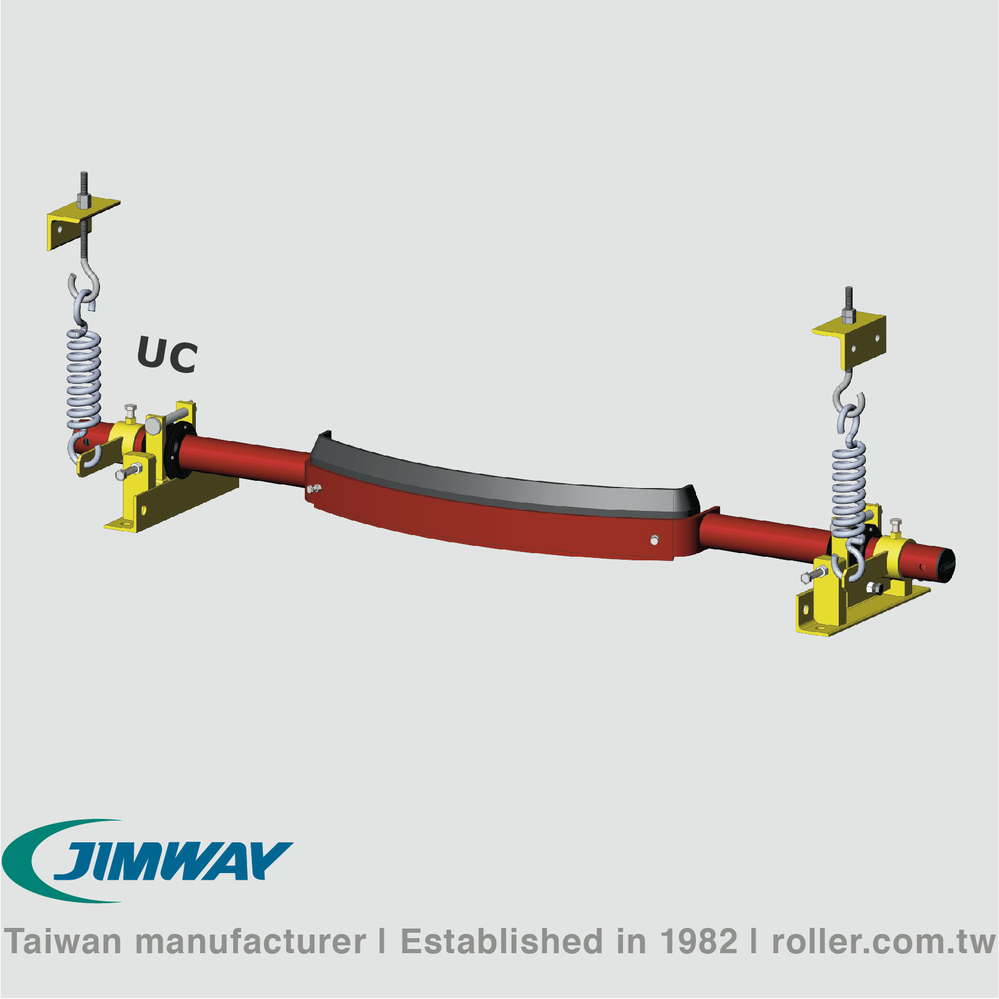

U-Type Secondary Cleaner
▪ Used on spliced belts
▪ Correct blade to belt contact pressure
▪ Low maintenance
▪ Fast and easy adjustment
WITH THE U-SHAPED CLEANER BLADE, JIMWAY'S UC SECONDARY BELT CLEANER ABSOLUTELY MAINTAINS CORRECT BLADE-TO-BELT CONTACT PRESSURE.
The U-shaped belt cleaner effectively removes carryback and maintains performance to protect the belt and its splices. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. The tungsten carbide vulcanized into rubber mount absorbs impact energy and minimizes transmission back to the belt. Also, the UC belt cleaner thoroughly scrapes conveyor belts clean and eliminates problems with carryback and spillage.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤4m/s
Cleaning Direction one direction only

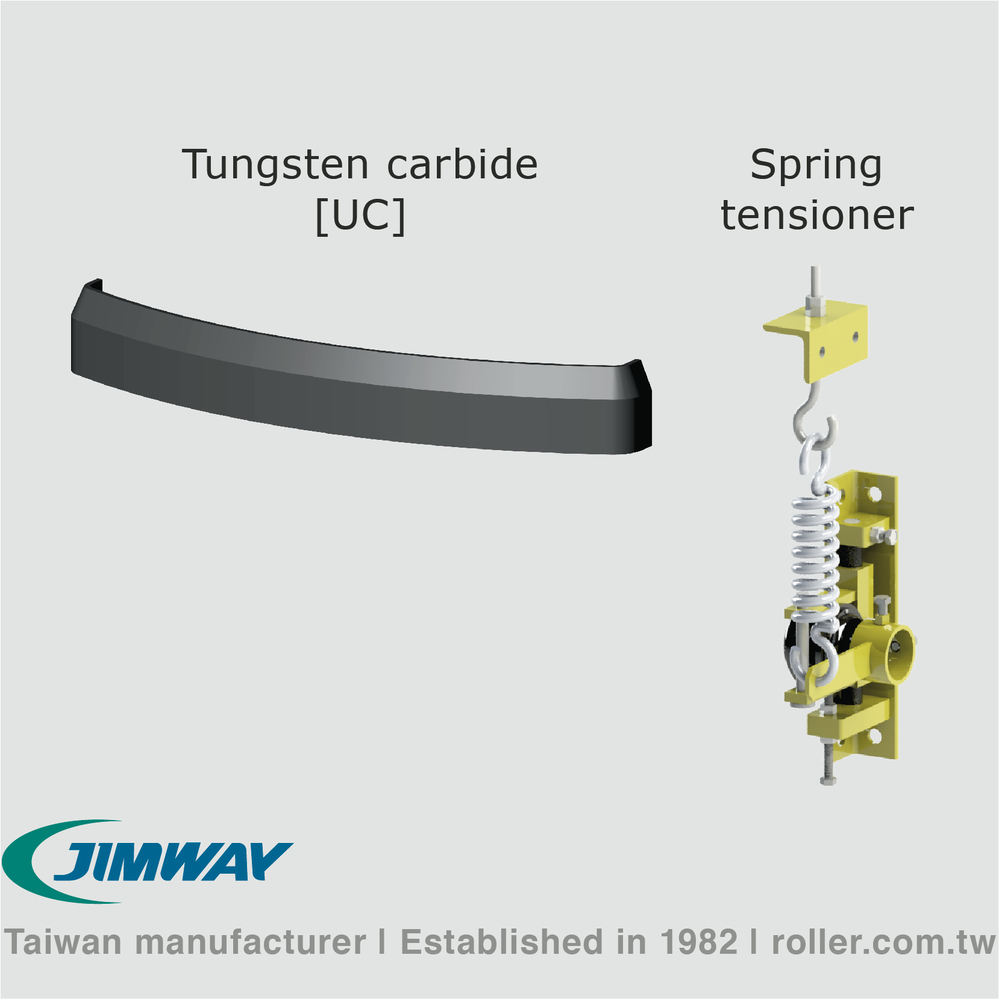

Blade Material tungsten carbide

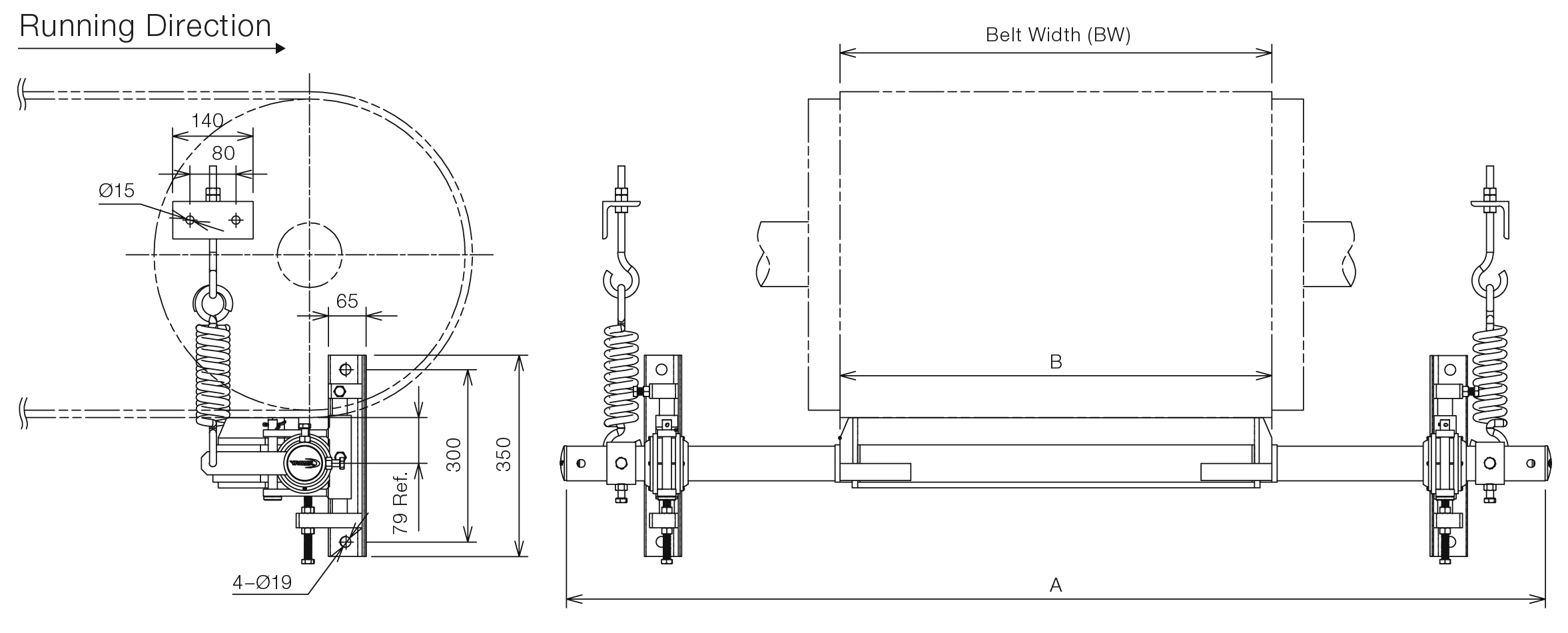

| Unit:mm [in] | |||
| Model | BW | A | B |
| UC-060 | 600 [24] | 1650 | 600 |
| UC-065 | 650 [26] | 1750 | 650 |
| UC-075 | 750 [30] | 1800 | 750 |
| UC-080 | 800 [31] | 1900 | 800 |
| UC-090 | 900 [36] | 1950 | 900 |
| UC-100 | 1000 [40] | 2100 | 1000 |
| UC-105 | 1050 [42] | 2150 | 1050 |
| UC-120 | 1200 [48] | 2250 | 1200 |
| UC-140 | 1400 [54] | 2450 | 1400 |
| UC-160 | 1600 [63] | 2750 | 1600 |
| UC-180 | 1800 [72] | 2950 | 1800 |
| UC-200 | 2000 [78] | 3150 | 2000 |
|

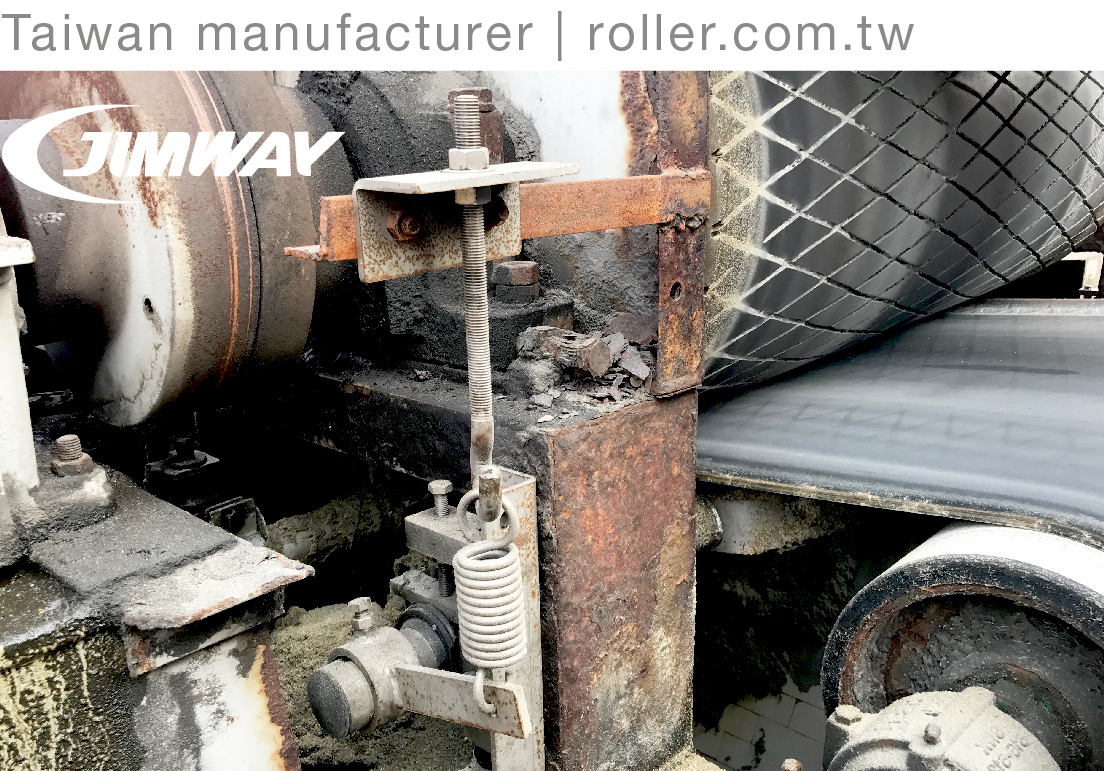

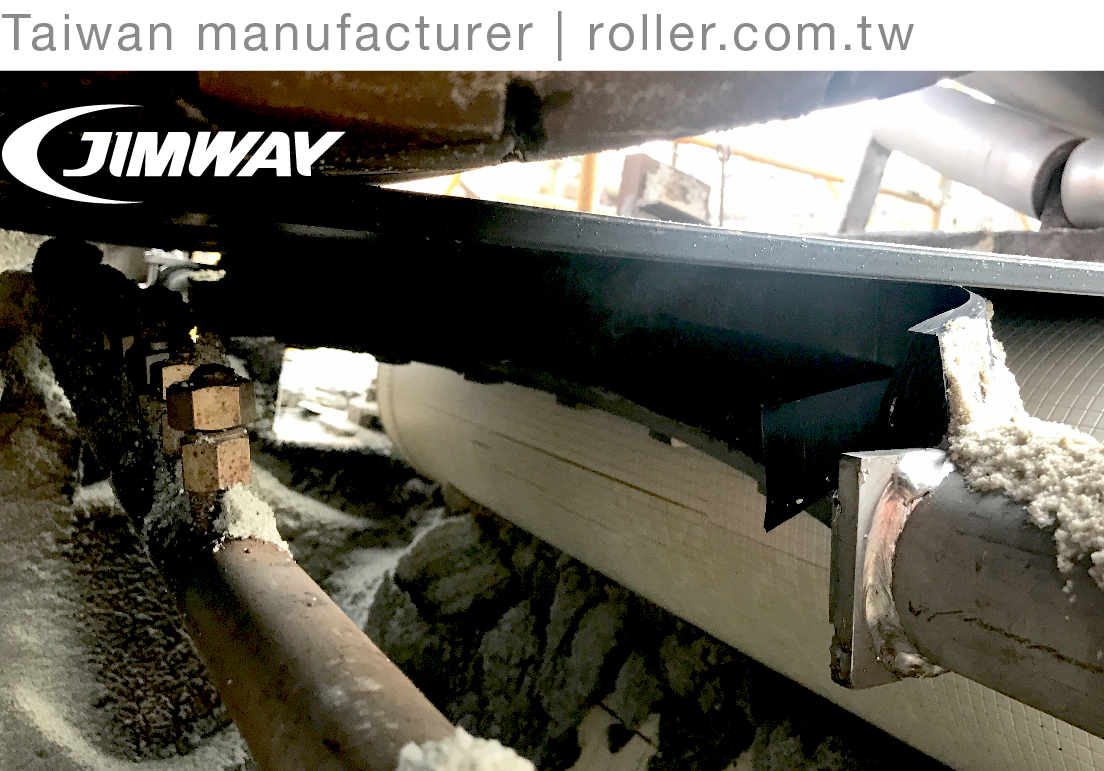

▪ Excellent elasticity ▪ Correct blade-to-belt contact pressure |

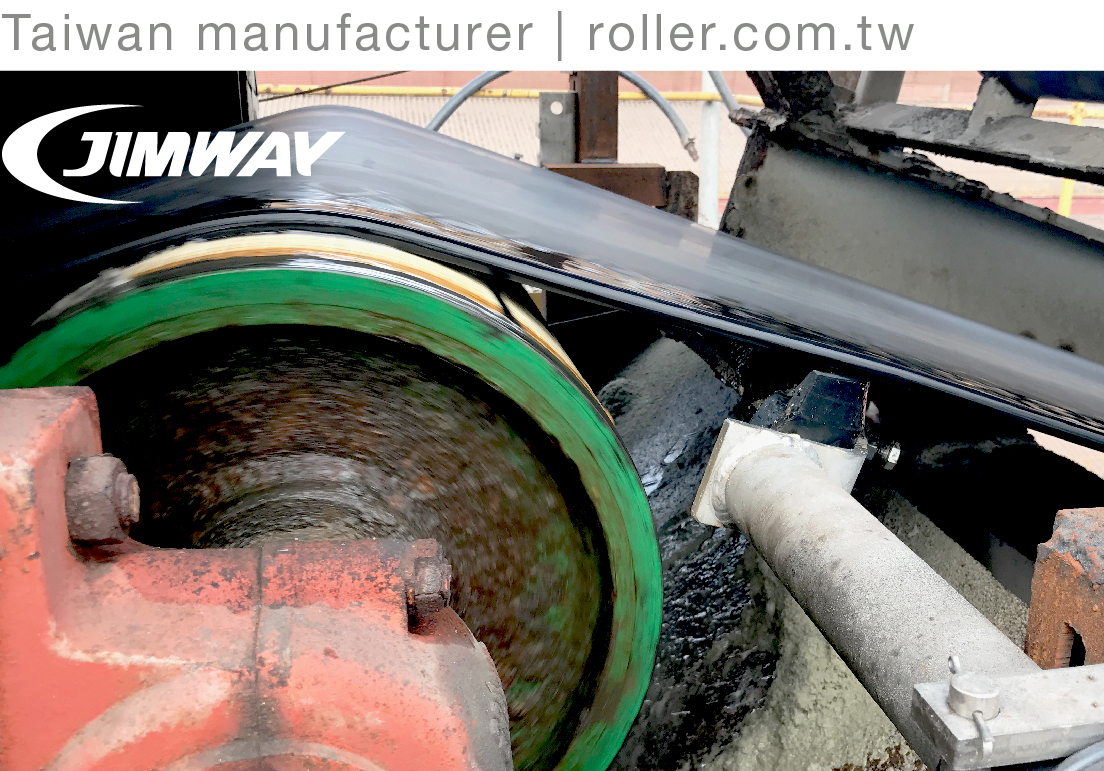

▪ Used on spliced belts ▪ Low maintenance |
▪ Fast and easy adjustment ▪ Blade vulcanized into a rubber mount |
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
