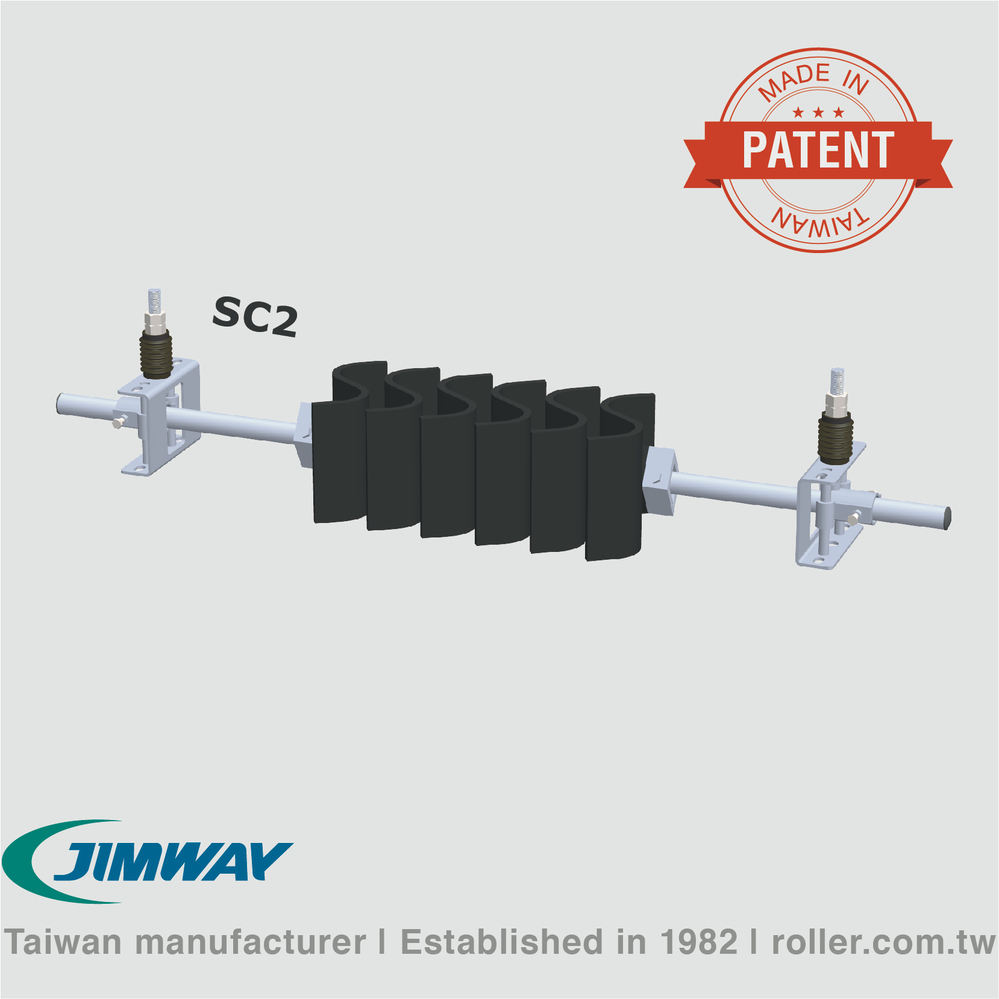

S-Type Secondary Cleaner

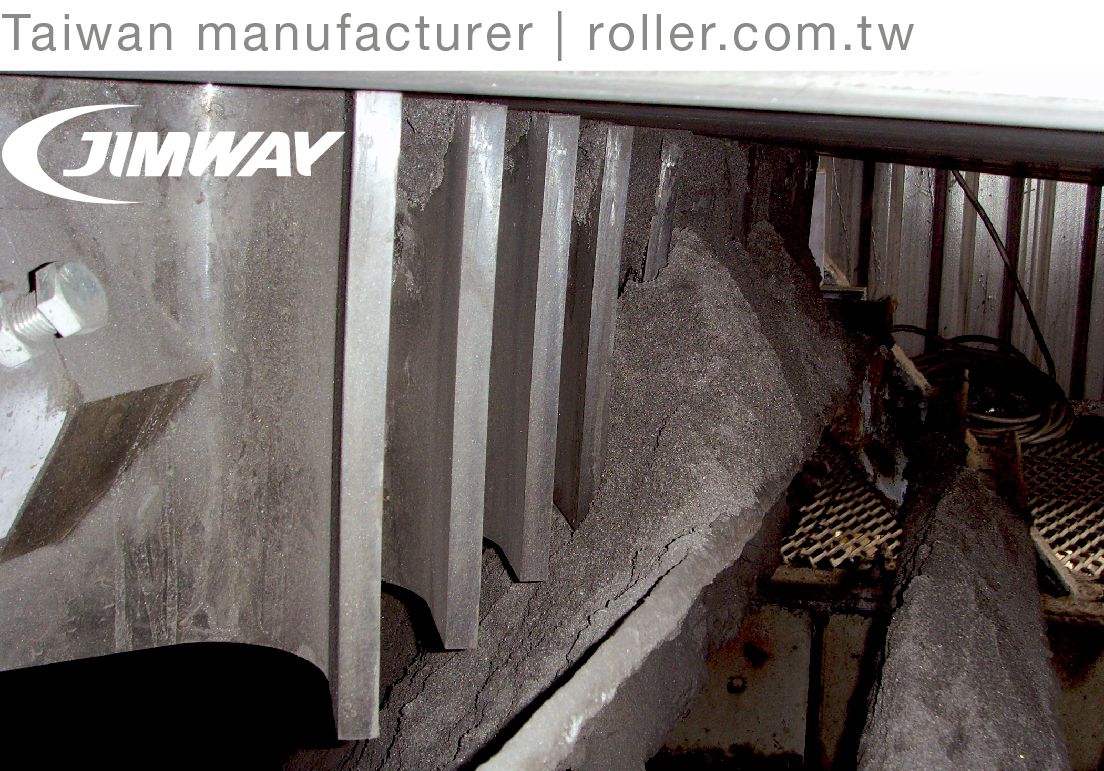

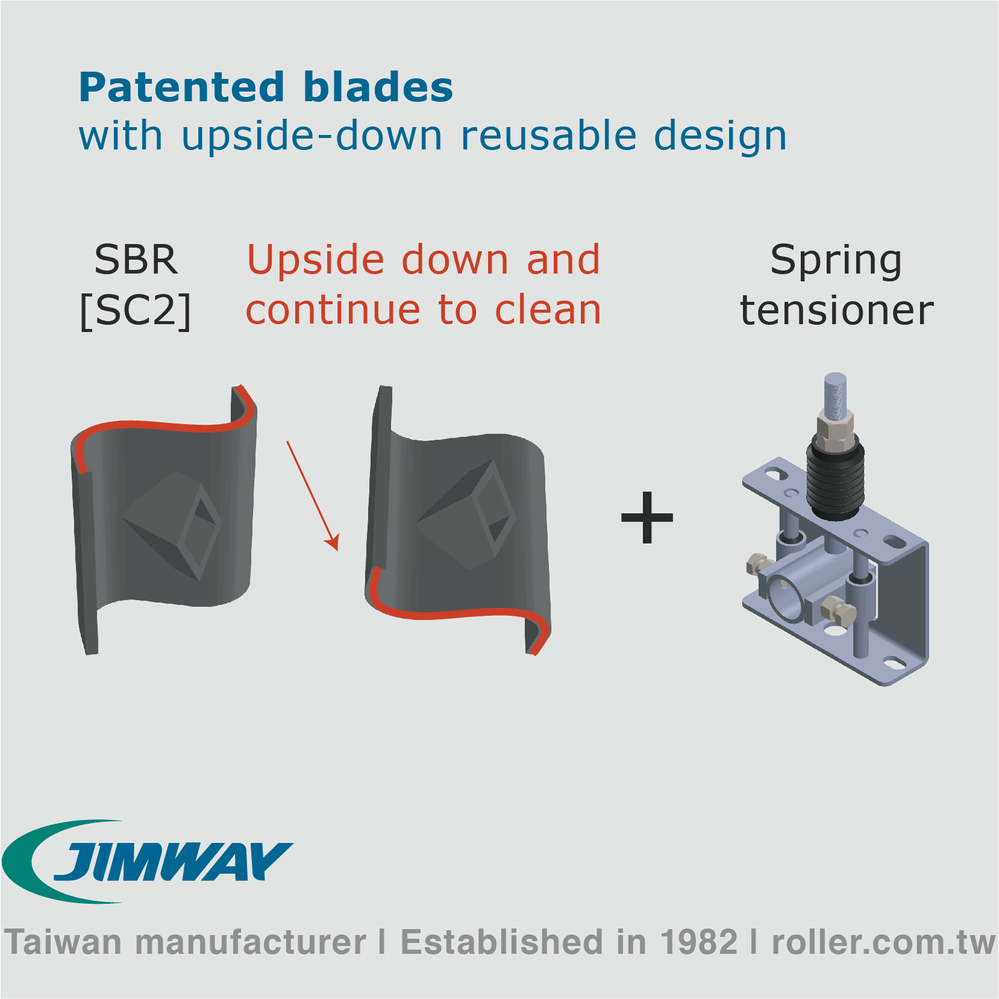

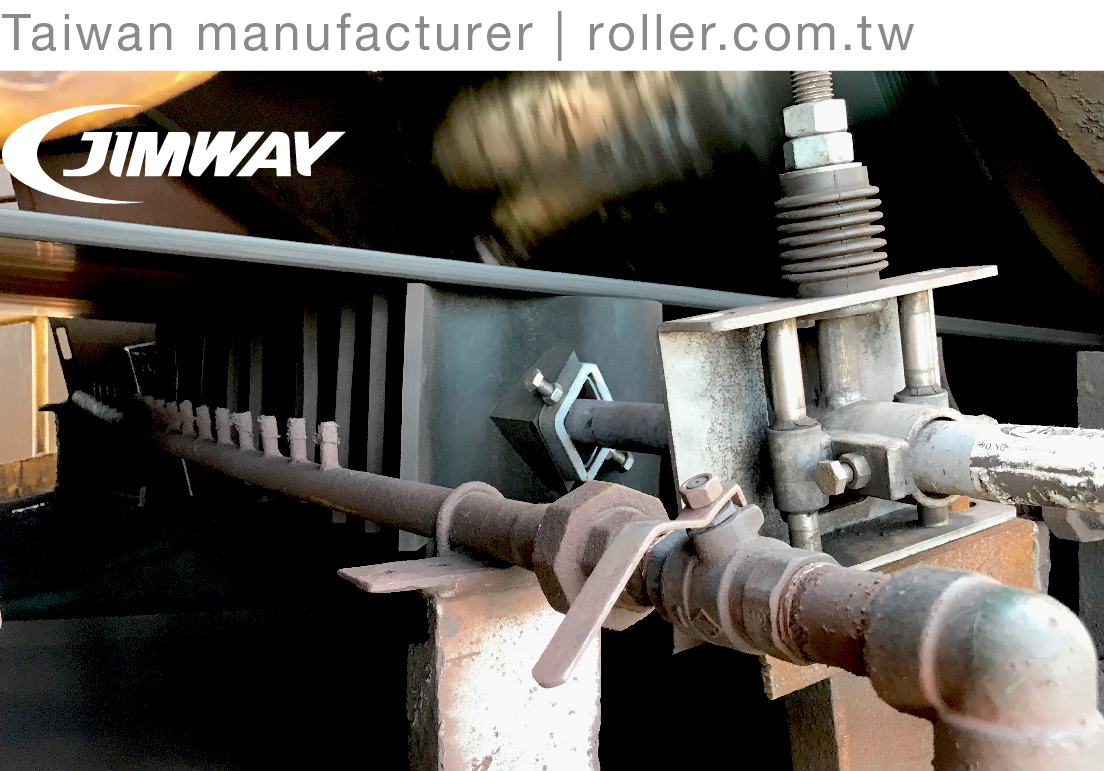

JIMWAY'S PATENTED S-TYPE BELT CLEANER WITH TRIPLE CLEAN DESIGN INCREASES THE CONTACT AREA, EFFECTIVELY SCRAP RESIDUES. IN ADDITION, THE COST-SAVING REUSABLE BLADE IS SUITABLE FOR REVERSIBLE BELTS.

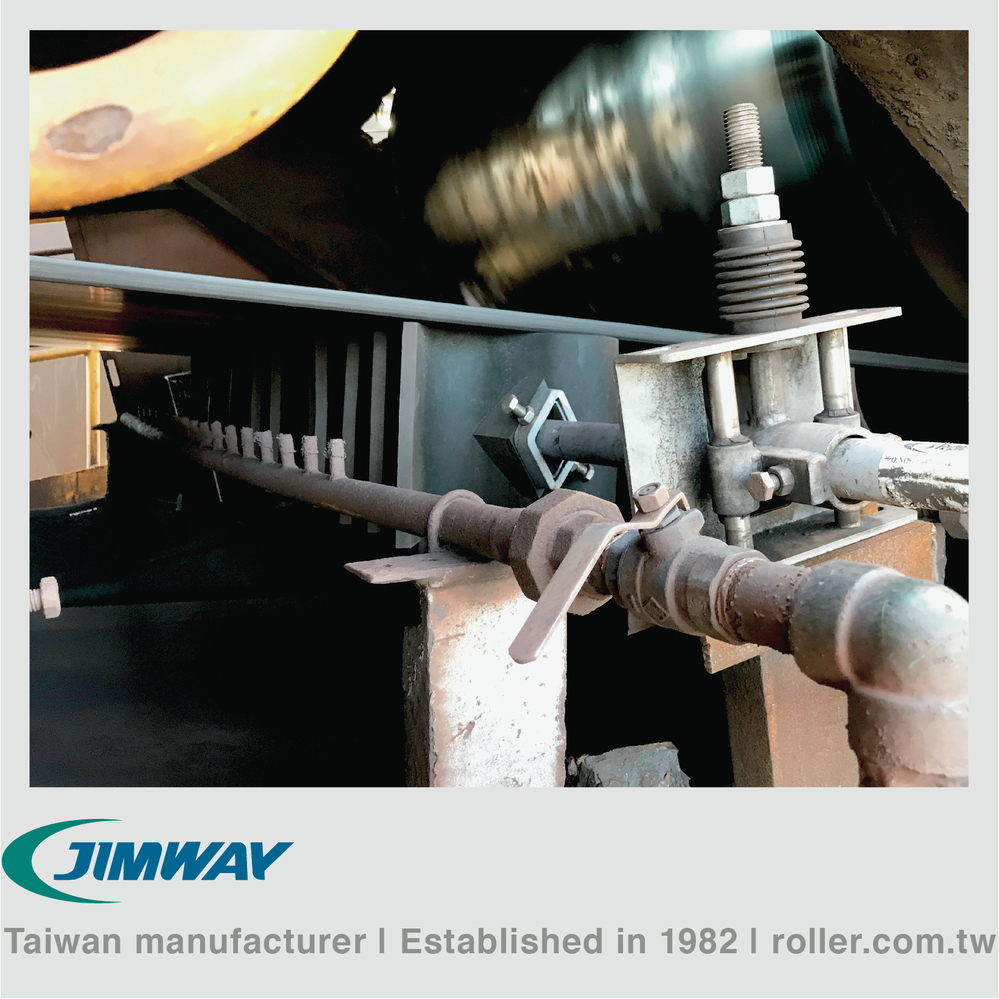

Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Jimway's SC2 reversible SBR belt cleaner blades thoroughly scrape conveyor belts clean, prevent belt damage, and eliminate problems with carryback and spillage.

––––––––––––––––––––––––––––––––––––––

Belt Width 600~2000mm [23.6"~78.7"]

Belt Speed ≤6.5m/s

Cleaning Direction reversible direction

Blade Material SBR

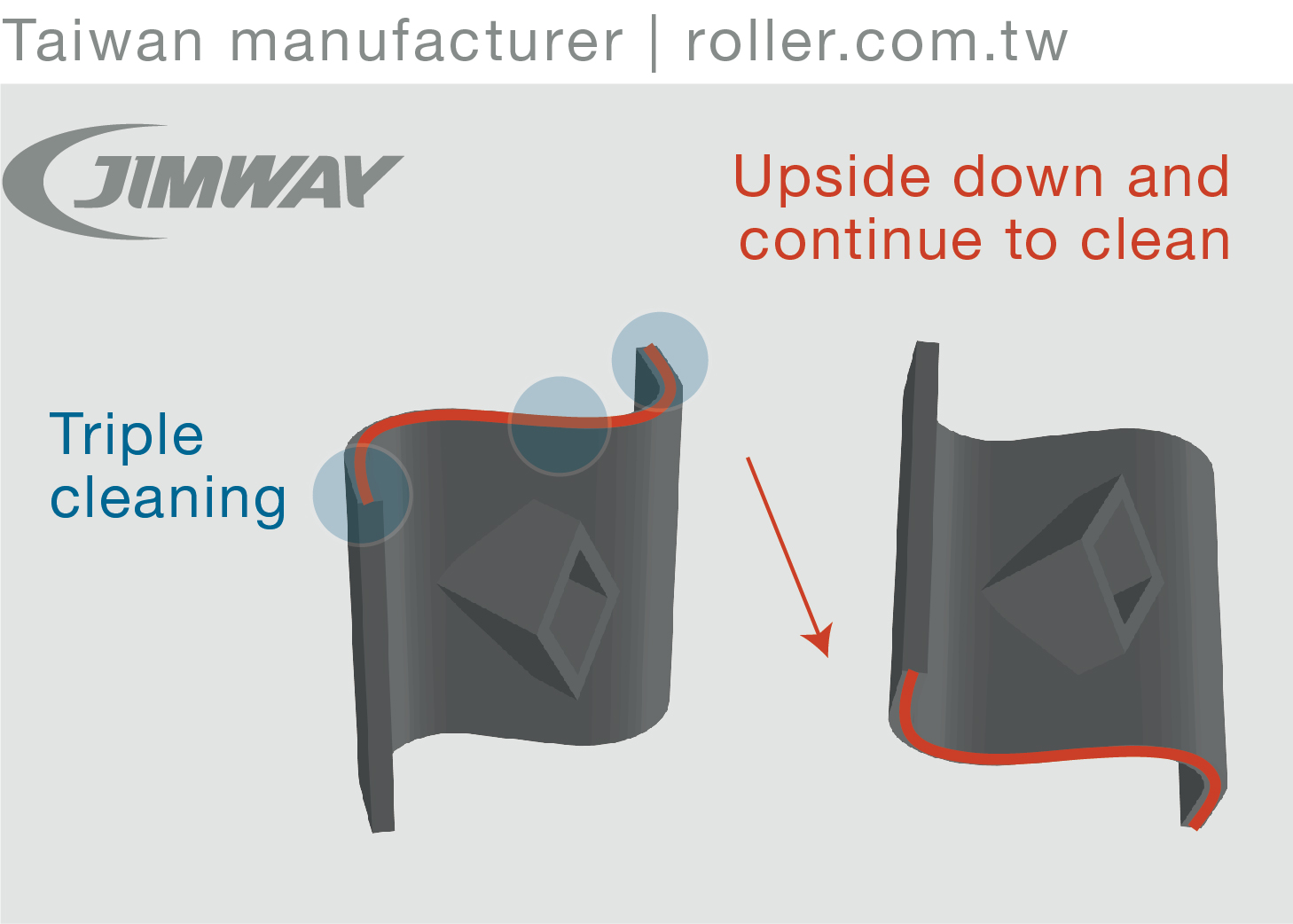

TWO FEATURES OF S-SHAPED BLADE

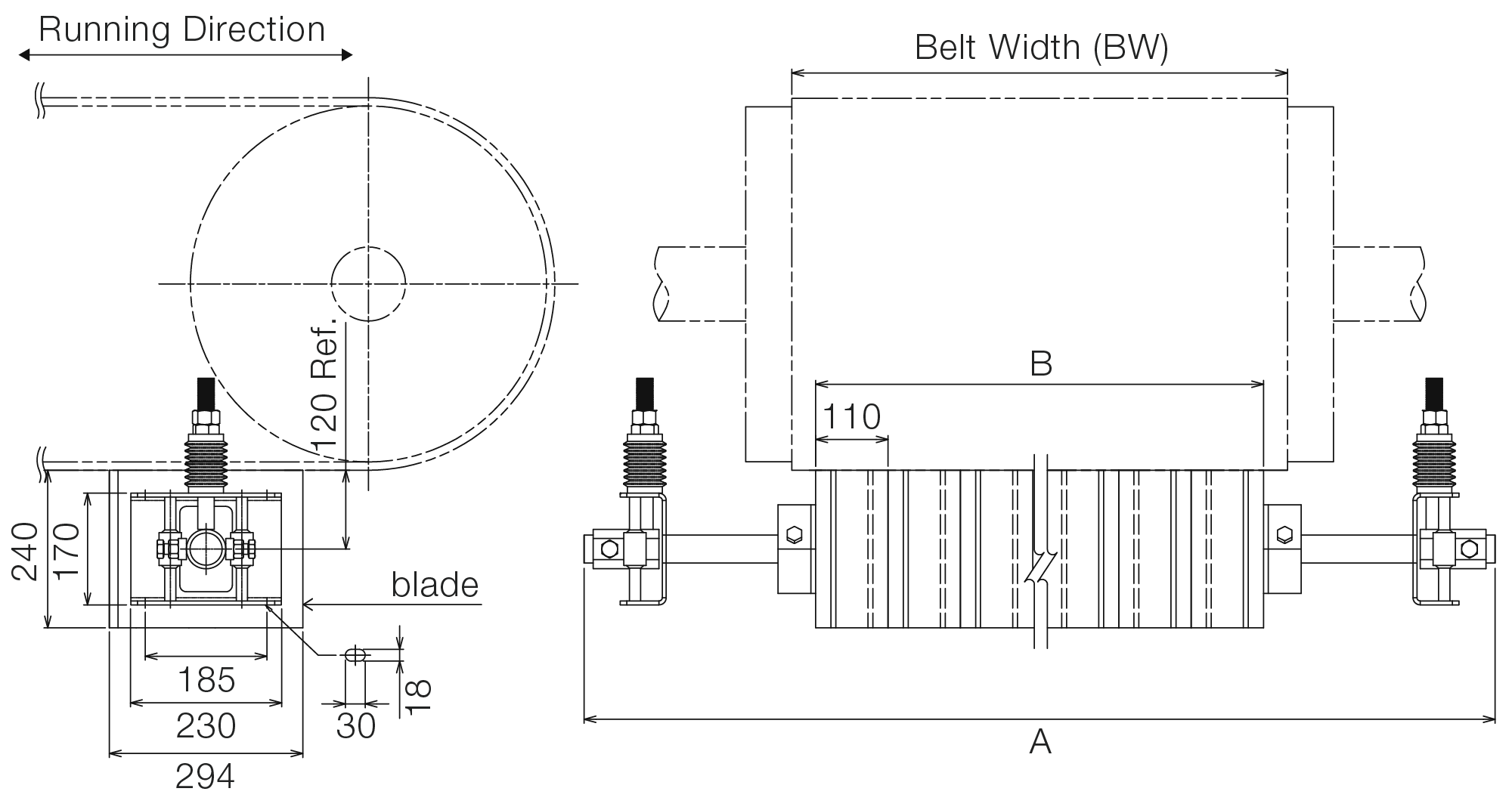

			Unit:mm [in]
Model	BW	A	B	Blades Req.
SC2-060	600 [24]	1650	550	5
SC2-065	650 [26]	1750	550	5
SC2-075	750 [30]	1800	660	6
SC2-080	800 [31]	1900	770	7
SC2-090	900 [36]	1950	880	8
SC2-100	1000 [40]	2100	990	9
SC2-105	1050 [42]	2150	990	9
SC2-120	1200 [48]	2250	1100	10
SC2-140	1400 [54]	2450	1320	12
SC2-150	1500 [60]	2650	1430	13
SC2-160	1600 [63]	2750	1540	14
SC2-180	1800 [72]	2950	1760	16
SC2-200	2000 [78]	3150	1870	17

Dry Material Coke, sinter, and iron ore etc.
