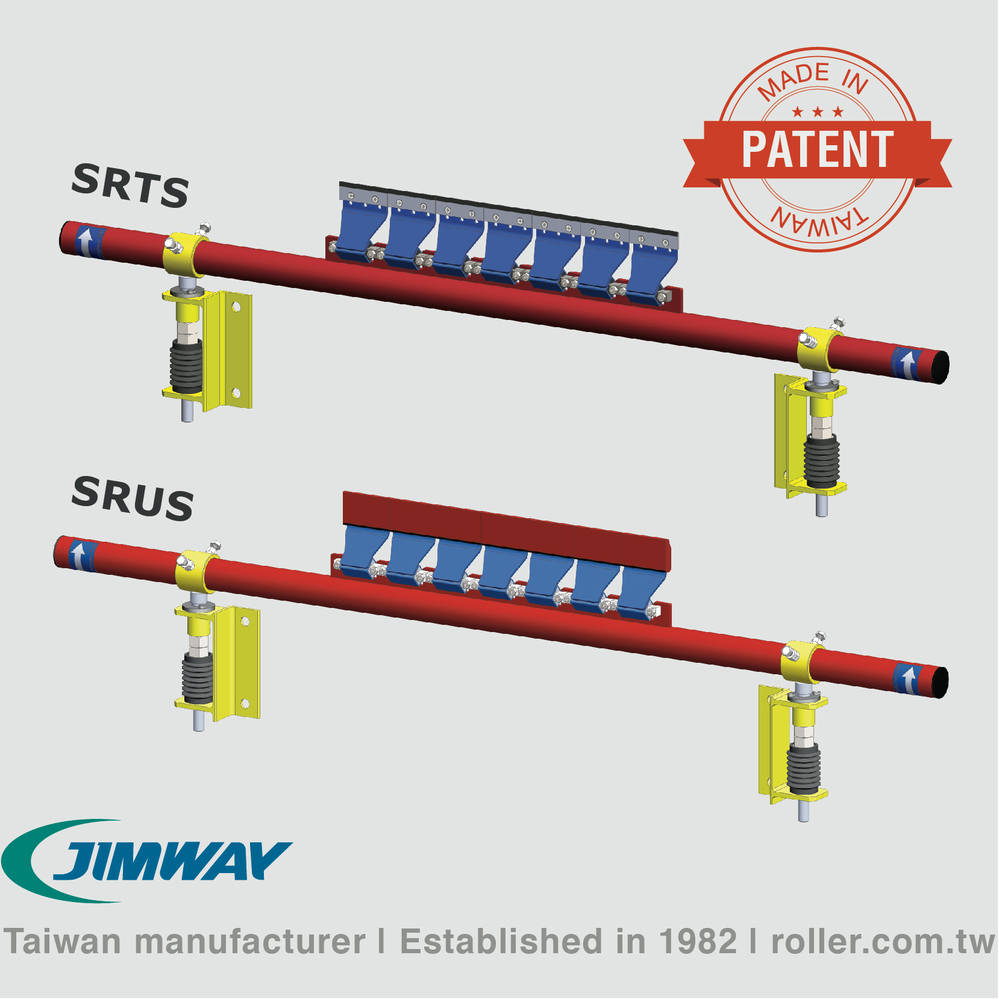

Torsion-Spring Secondary Cleaner

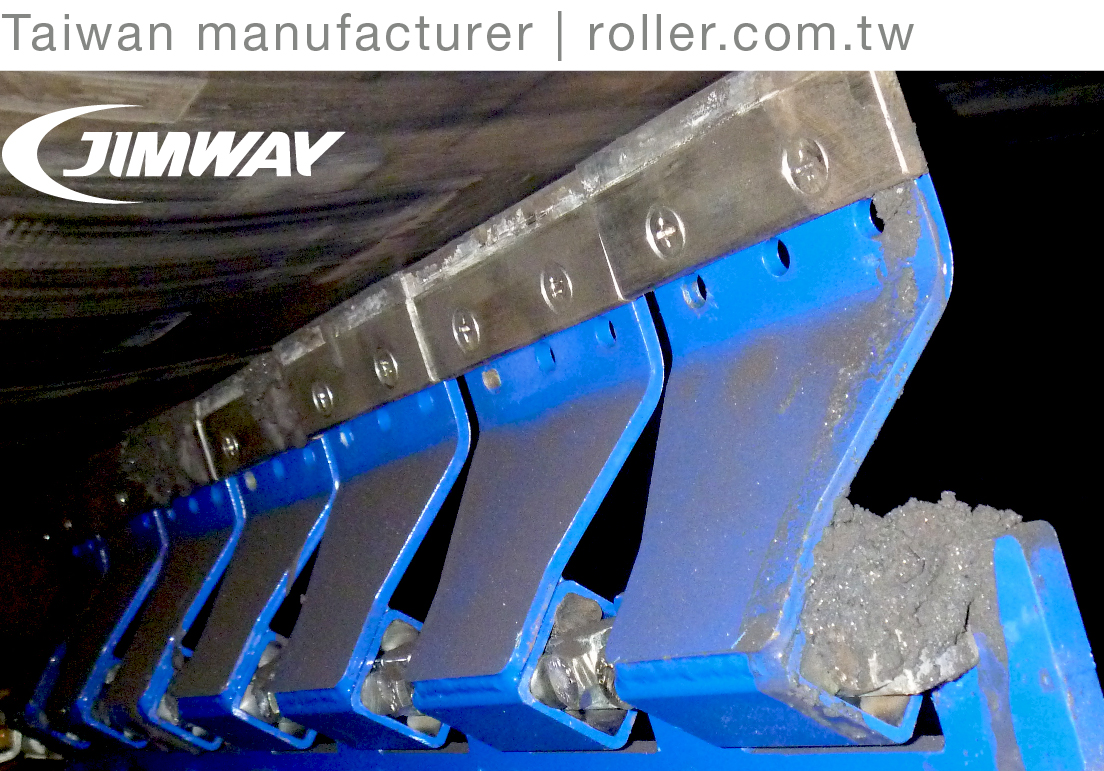

▪ Torsion element + spring design
▪ Used on spliced belts
▪ Belt-friendly
▪ Simplicity and economy of use

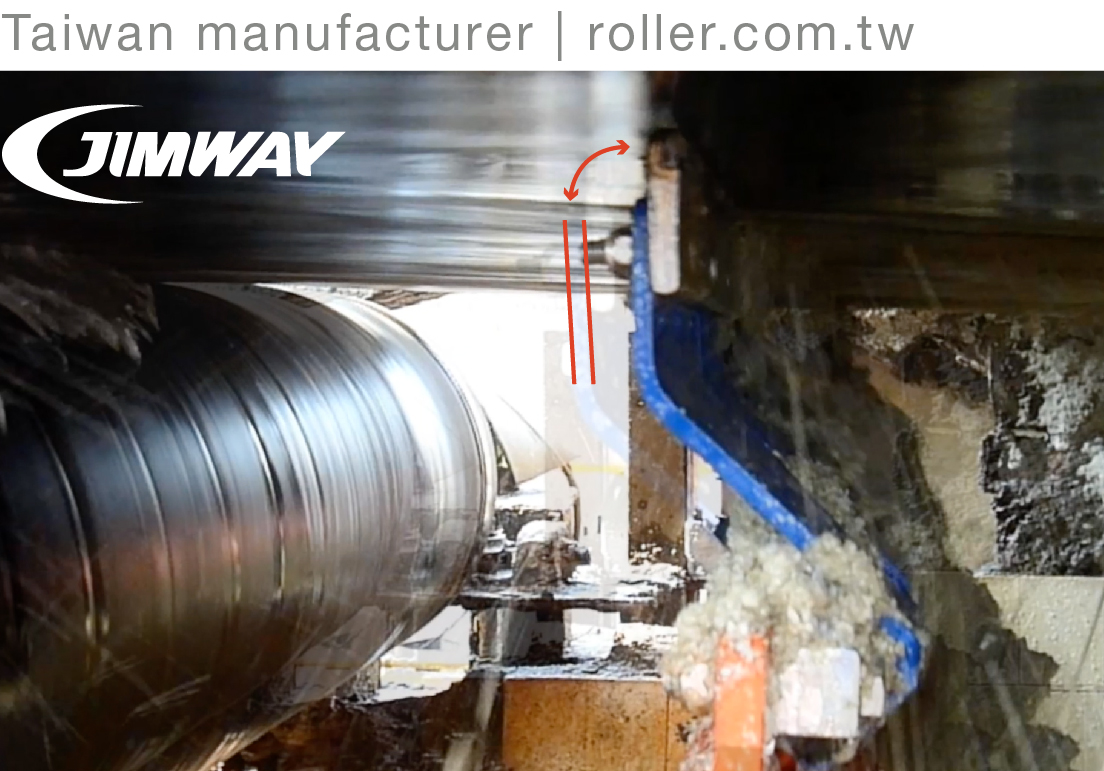

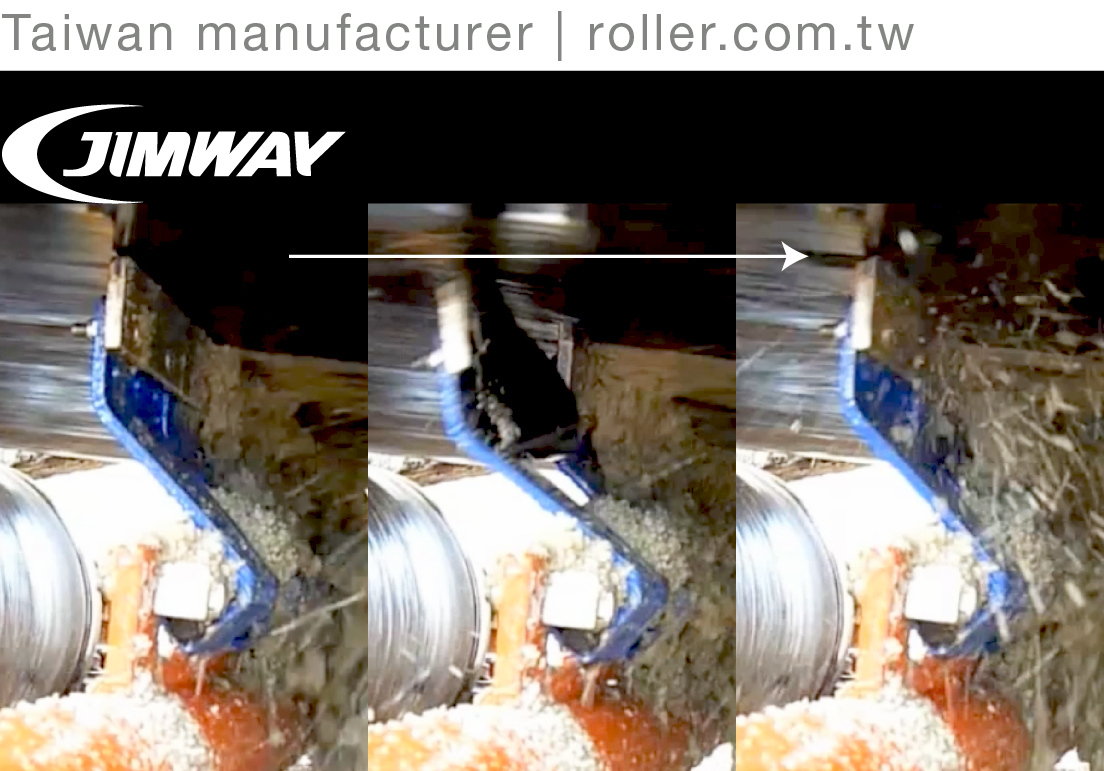

JIMWAY'S PATENTED TORSION-SPRING SECONDARY CLEANER, WHICH EACH BLADE BOUNCES AWAY FROM THE BELT FOR SPLICE PASSAGE AND QUICKLY RETURNS TO THE CLEANING POSITION.
Jimway patented and highly flexible SRTS belt cleaner blade design, which can self-adjust and maintain blade-to-belt contact via a torsion element, provides effectively remove carryback and maintain performance to protect the belt and its splices. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Depending on application, two materials of blades are available, tungsten carbide and PU, which thoroughly scrape conveyor belts clean and eliminate problems with carryback and spillage.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤4m/s
Cleaning Direction one direction only

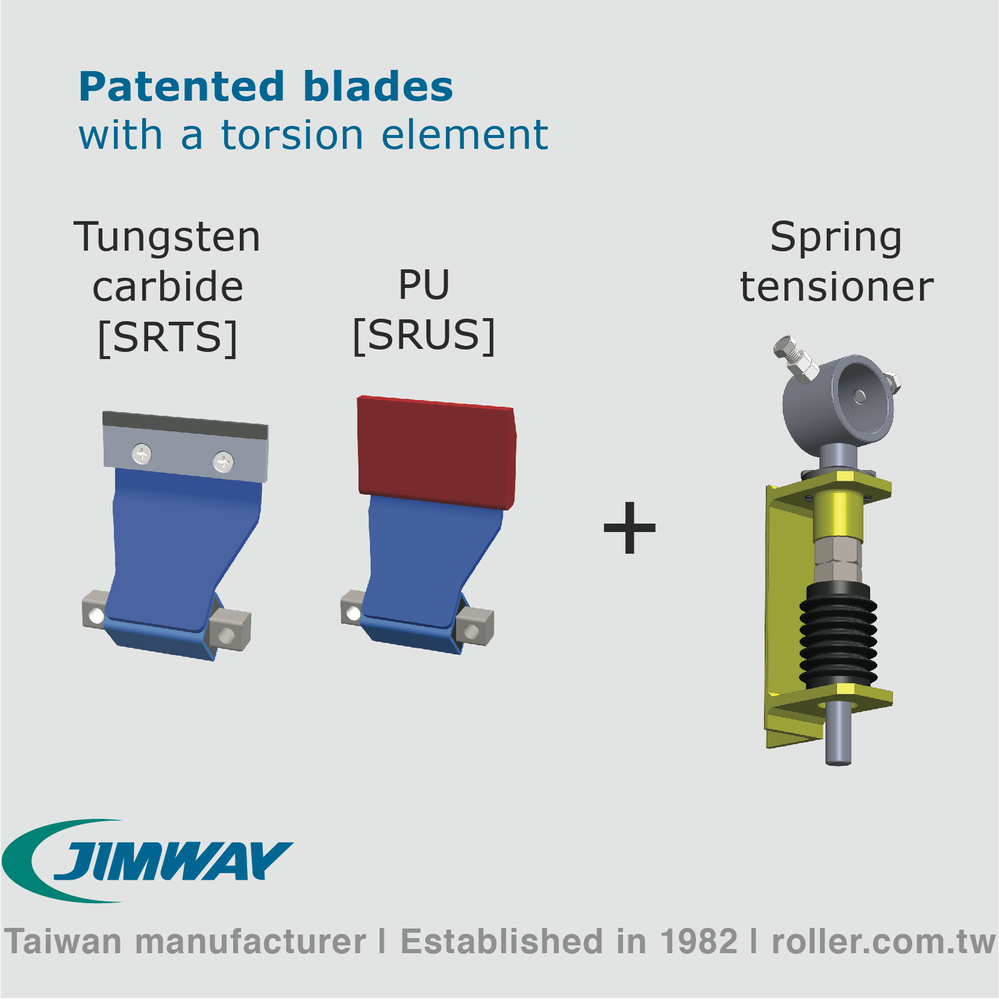

Material Selection of Blades tungsten carbide[SRTS], PU[SRUS]

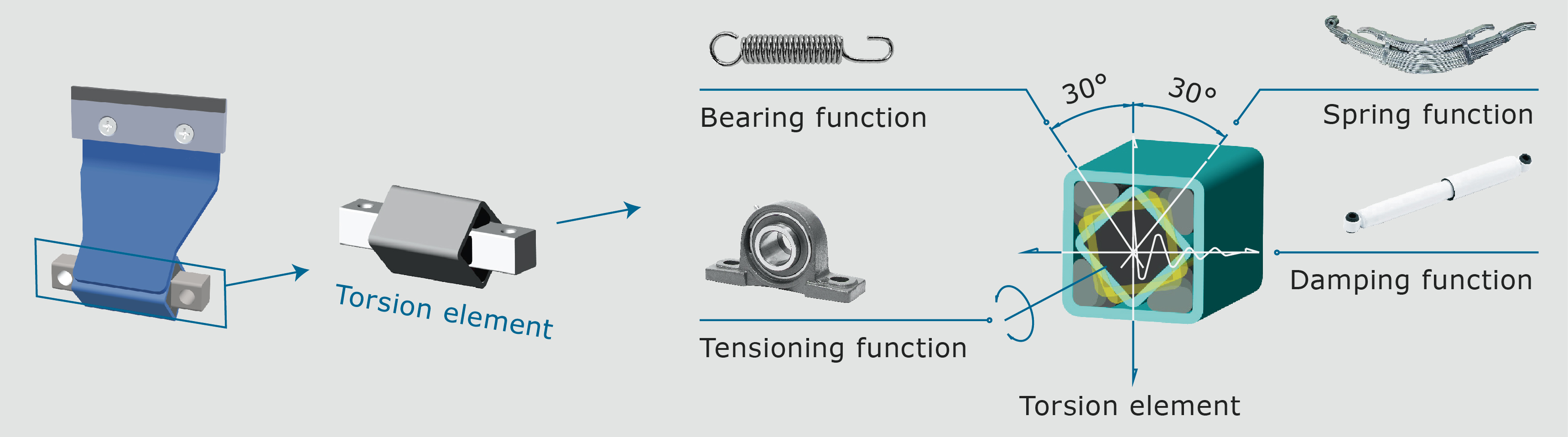

TORSION ELEMENT
Absorb and external force
- Simultaneously absorbing vibration and noise
- Maintenance-free
- No abrasion and wear problems

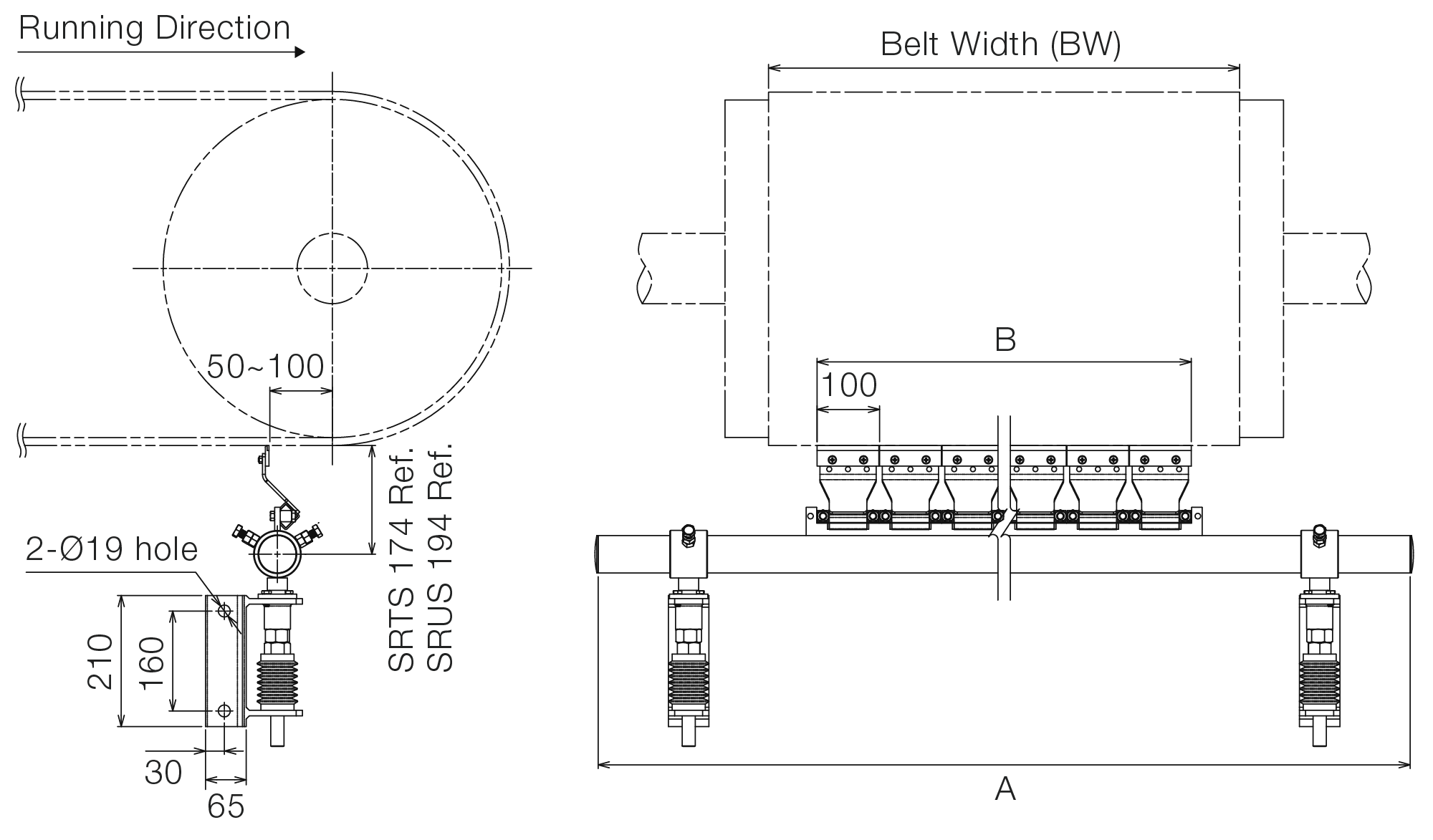

| Unit:mm [in] | ||||
| Model | BW | A | B | Blades Req. |
| SRTS-060 | 600 [24] | 1650 | 500 | 5 |
| SRTS-065 | 650 [26] | 1750 | 600 | 6 |
| SRTS-075 | 750 [30] | 1800 | 700 | 7 |
| SRTS-080 | 800 [31] | 1900 | 700 | 7 |
| SRTS-090 | 900 [36] | 1950 | 800 | 8 |
| SRTS-100 | 1000 [40] | 2100 | 900 | 9 |
| SRTS-105 | 1050 [42] | 2150 | 1000 | 10 |
| SRTS-120 | 1200 [48] | 2250 | 1100 | 11 |
| SRTS-140 | 1400 [54] | 2450 | 1300 | 13 |
| SRTS-160 | 1600 [63] | 2750 | 1500 | 15 |
| SRTS-180 | 1800 [72] | 2950 | 1700 | 17 |
| SRTS-200 | 2000 [78] | 3150 | 1900 | 19 |
SRTS/SRUS with the same specifications

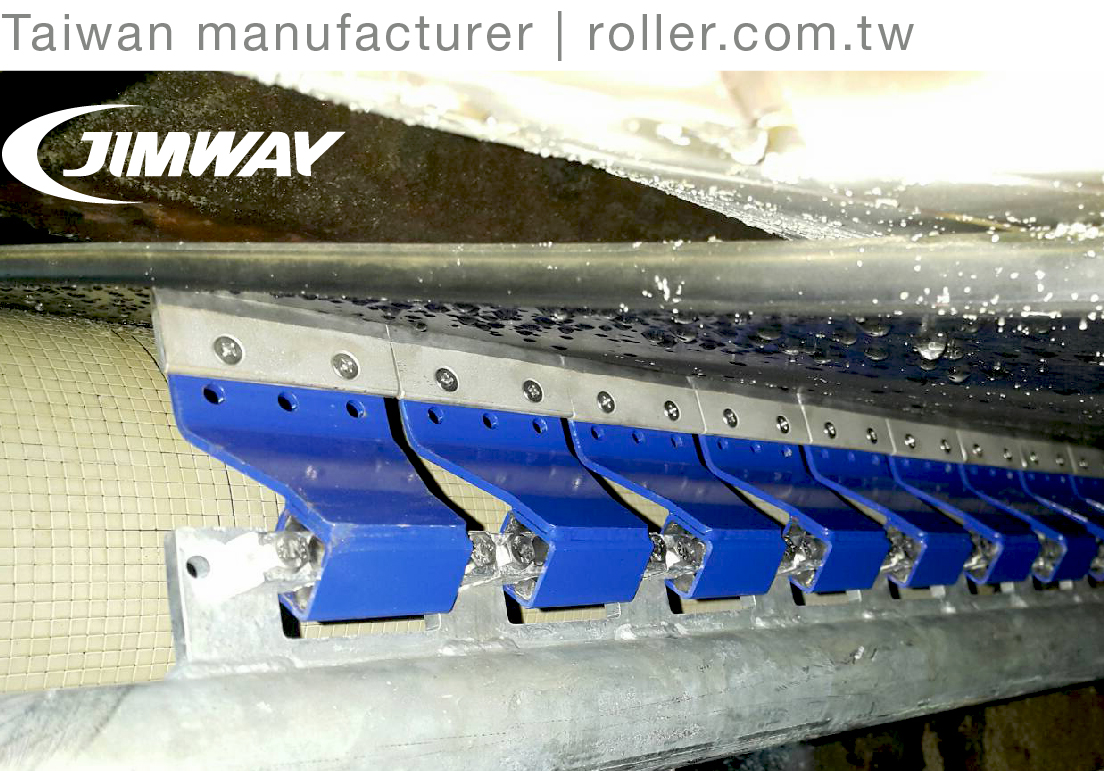

▪ Excellent elasticity
▪ Self-adjust blade via torsion element
for maintaining blade-to-belt contact
▪ Simplicity and economy of use
▪ High-performance tension blade
combined with spring tensioner
▪ Easy and fast installation and
maintenance
▪ Easy visual tension check
|
|
|
|

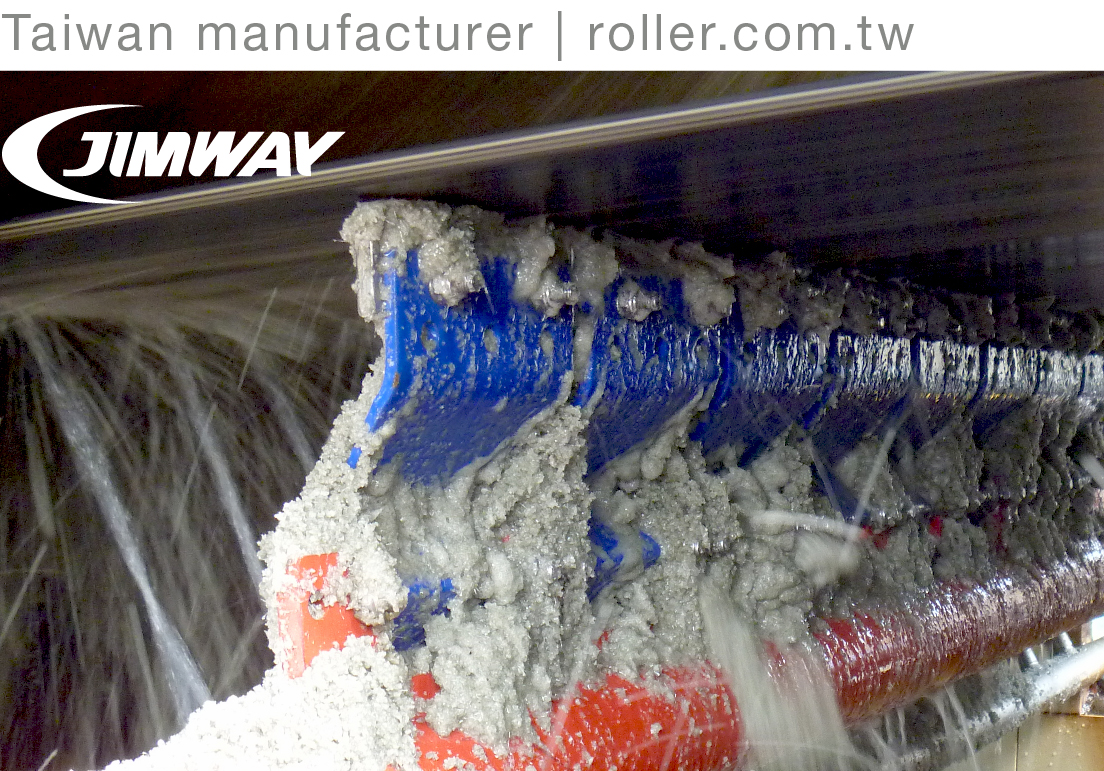

Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
