Self-Training return Idler

▪ Operating in one direction only
▪ Highly sensitive tracking
▪ Correcting belt misalignment
▪ Preventing structure damage
▪ Position: between general idlers, which distance is 15m
▪ Belt width: 400~2000mm [15.75"~78.74"]

Model : JR1T/JR2T

Specifications

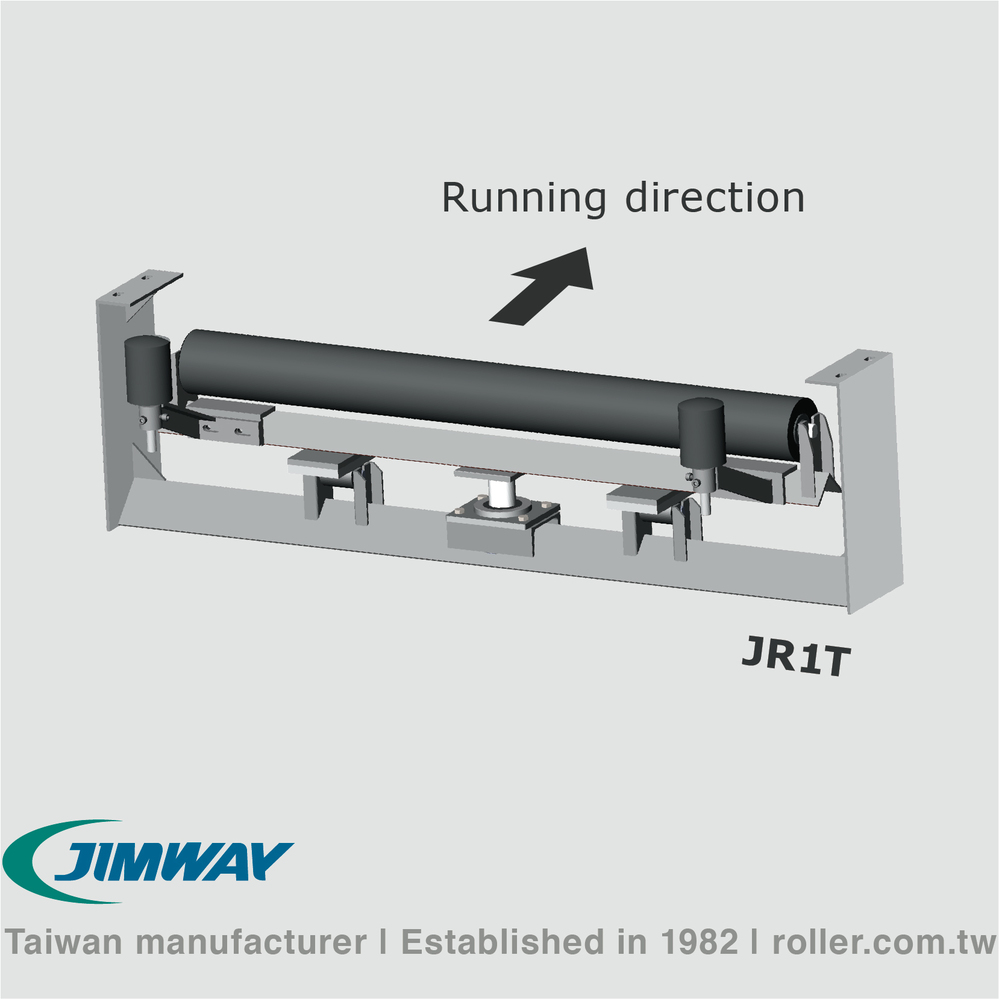

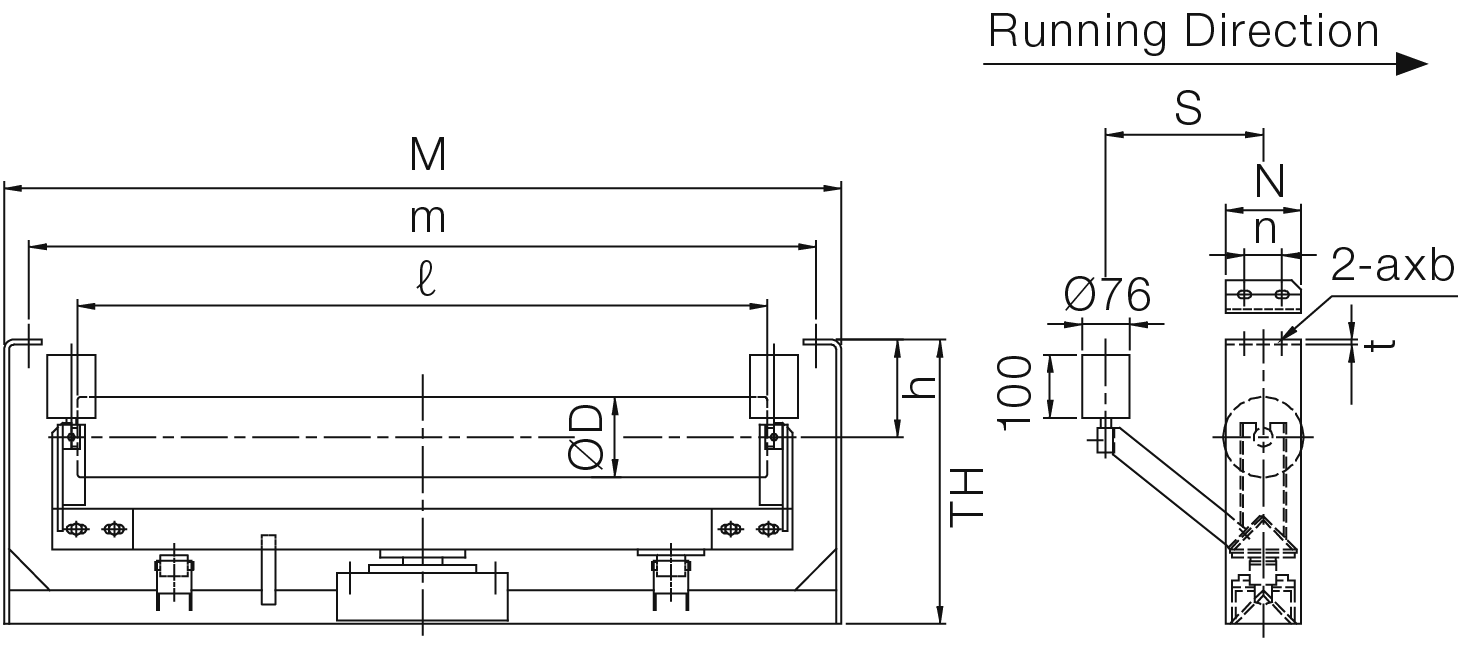

Type: JR1T

Unit:mm [in]

Model BW S ØD ℓ m M n N h TH t axb

JR1T-040 400 [16] 200 89.1 460 640 700 60 105 100 307 6 15x25

JR1T-045 450 [18] 200 89.1 510 690 750 60 105 100 307 6 15x25

JR1T-050 500 [20] 200 89.1 560 740 800 60 105 100 361 6 15x25

JR1T-060 600 [24] 200 89.1 660 840 900 60 105 100 361 6 15x25

JR1T-075 750 [30] 250 114.3 850 1040 1100 60 120 100 335 6 15x25

JR1T-090 900 [36] 250 114.3 1000 1190 1250 60 120 100 335 6 15x25

JR1T-105 1050 [42] 250 139.8 1150 1340 1400 100 185 120 415 6 15x25

JR1T-120 1200 [48] 250 139.8 1300 1490 1550 100 185 120 415 6 15x25

JR1T-140 1400 [54] 300 165.2 1530 1730 1800 120 220 150 490 9 19x29

JR1T-160 1600 [63] 300 165.2 1730 1930 2000 120 220 150 510 9 19x29

JR1T-180 1800 [72] 300 165.2 2000 2220 2290 120 220 150 541 9 19x29

JR1T-200 2000 [78] 300 165.2 2200 2420 2490 120 220 150 546 9 19x29

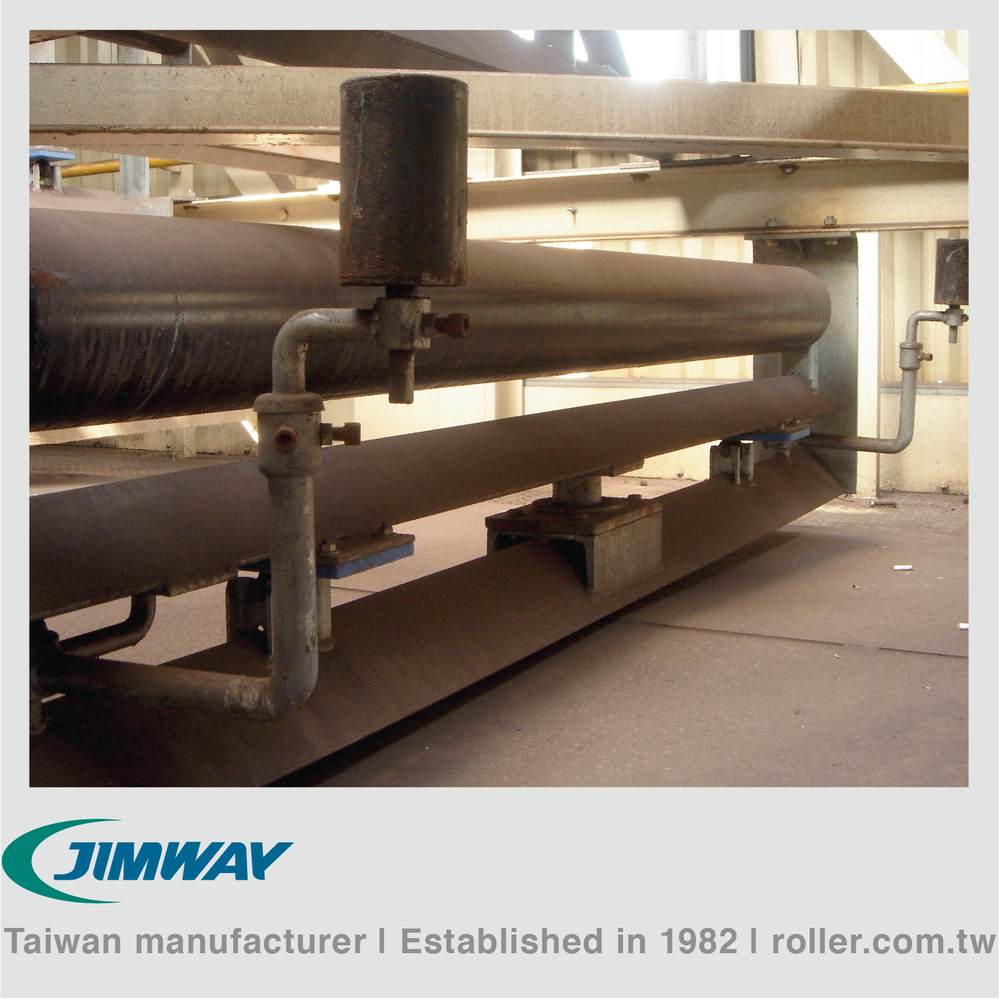

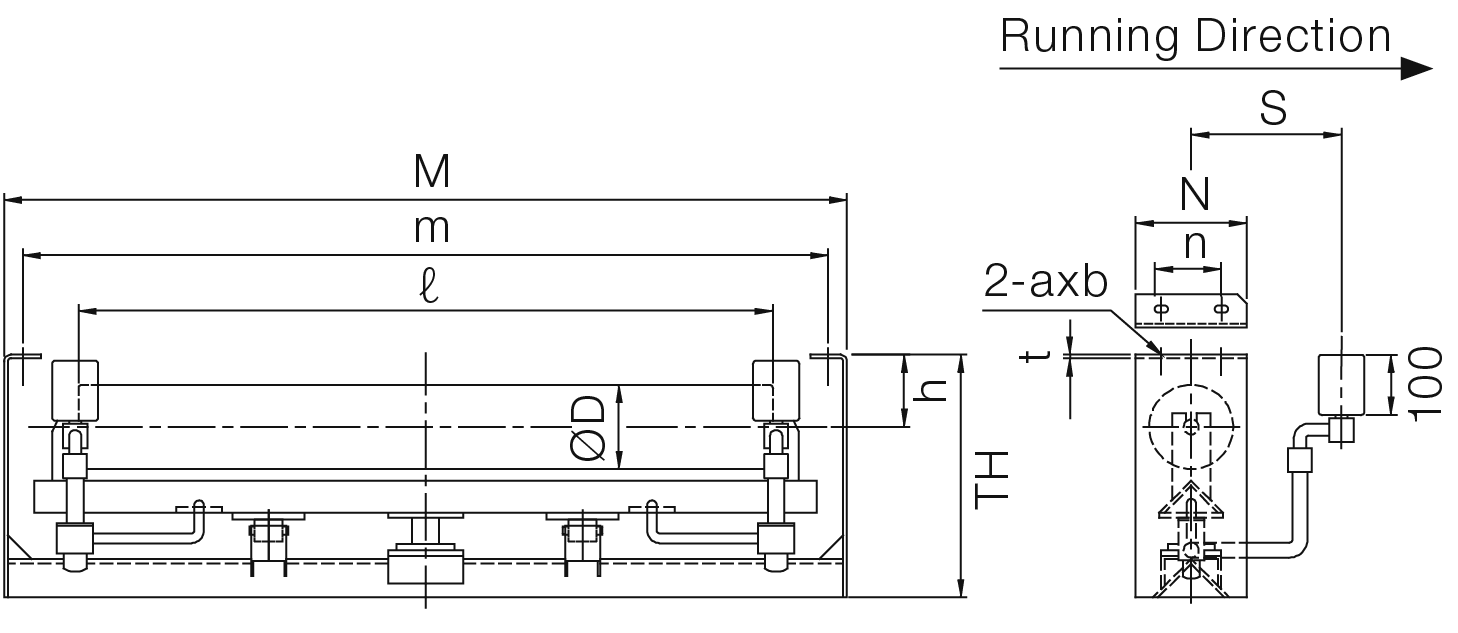

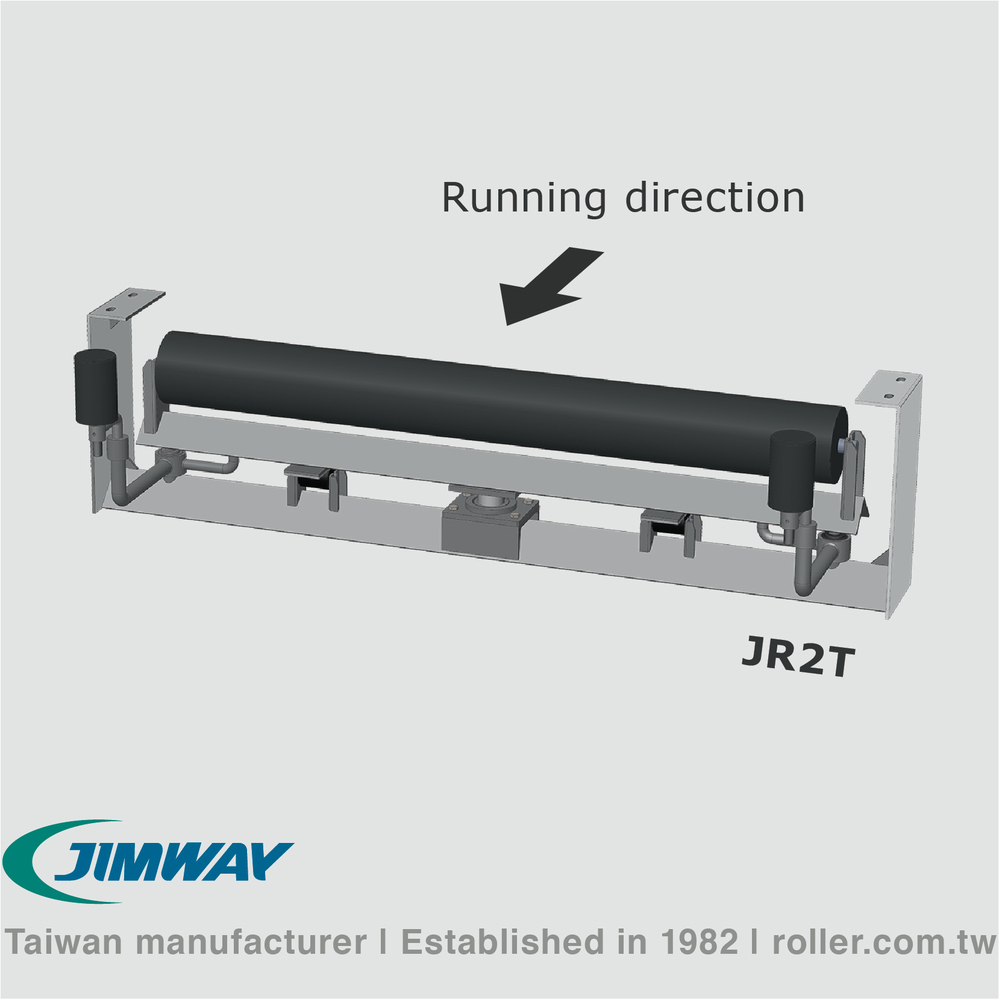

Type: JR2T

Unit:mm [in]

Model BW S ØD ℓ m M n N h TH t axb

JR2T-040 400 [16] 200 89.1 460 640 700 60 105 100 307 6 15x25

JR2T-045 450 [18] 200 89.1 510 690 750 60 105 100 307 6 15x25

JR2T-050 500 [20] 200 89.1 560 740 800 60 105 100 307 6 15x25

JR2T-060 600 [24] 200 89.1 660 840 900 60 105 100 307 6 15x25

JR2T-075 750 [30] 250 114.3 850 1040 1100 60 120 100 335 6 15x25

JR2T-090 900 [36] 250 114.3 1000 1190 1250 60 120 100 335 6 15x25

JR2T-105 1050 [42] 250 139.8 1150 1340 1400 100 185 120 400 6 15x25

JR2T-120 1200 [48] 250 139.8 1300 1490 1550 100 185 120 400 6 15x25

JR2T-140 1400 [54] 300 165.2 1530 1730 1800 120 220 150 533 9 19x29

JR2T-160 1600 [63] 300 165.2 1730 1930 2000 120 220 150 533 9 19x29

JR2T-180 1800 [72] 300 165.2 2000 2220 2290 120 220 150 552 9 19x29

JR2T-200 2000 [78] 300 165.2 2200 2420 2490 120 220 150 552 9 19x29

											Unit:mm [in]
Model	BW	S	ØD	ℓ	m	M	n	N	h	TH	t	axb
JR1T-040	400 [16]	200	89.1	460	640	700	60	105	100	307	6	15x25
JR1T-045	450 [18]	200	89.1	510	690	750	60	105	100	307	6	15x25
JR1T-050	500 [20]	200	89.1	560	740	800	60	105	100	361	6	15x25
JR1T-060	600 [24]	200	89.1	660	840	900	60	105	100	361	6	15x25
JR1T-075	750 [30]	250	114.3	850	1040	1100	60	120	100	335	6	15x25
JR1T-090	900 [36]	250	114.3	1000	1190	1250	60	120	100	335	6	15x25
JR1T-105	1050 [42]	250	139.8	1150	1340	1400	100	185	120	415	6	15x25
JR1T-120	1200 [48]	250	139.8	1300	1490	1550	100	185	120	415	6	15x25
JR1T-140	1400 [54]	300	165.2	1530	1730	1800	120	220	150	490	9	19x29
JR1T-160	1600 [63]	300	165.2	1730	1930	2000	120	220	150	510	9	19x29
JR1T-180	1800 [72]	300	165.2	2000	2220	2290	120	220	150	541	9	19x29
JR1T-200	2000 [78]	300	165.2	2200	2420	2490	120	220	150	546	9	19x29
