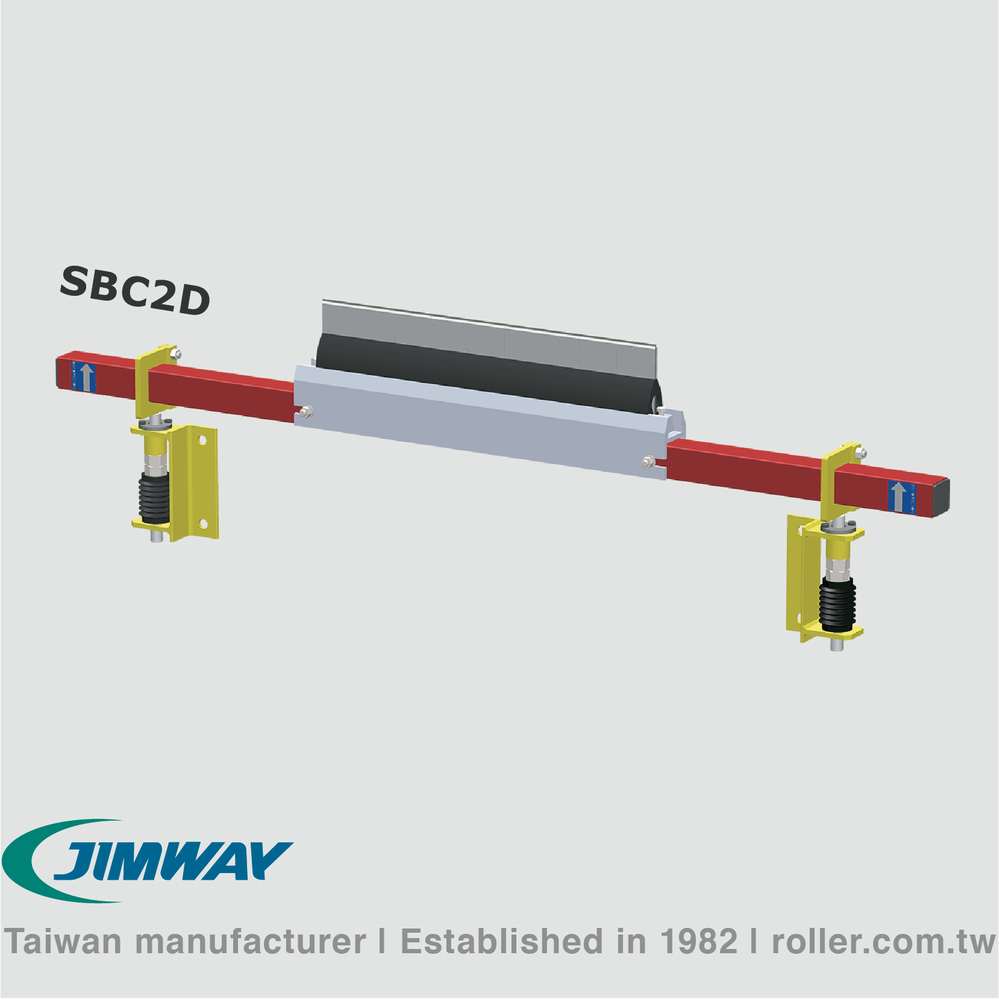

Reversing Secondary Cleaner

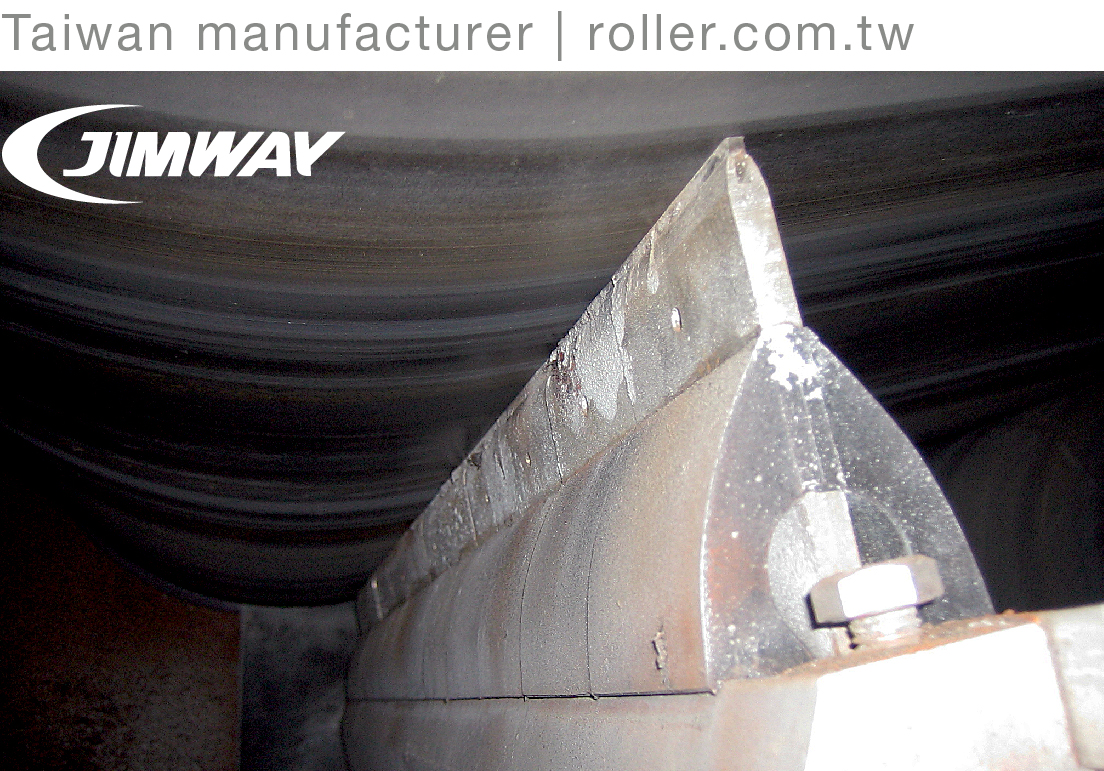

▪ Easy blade change

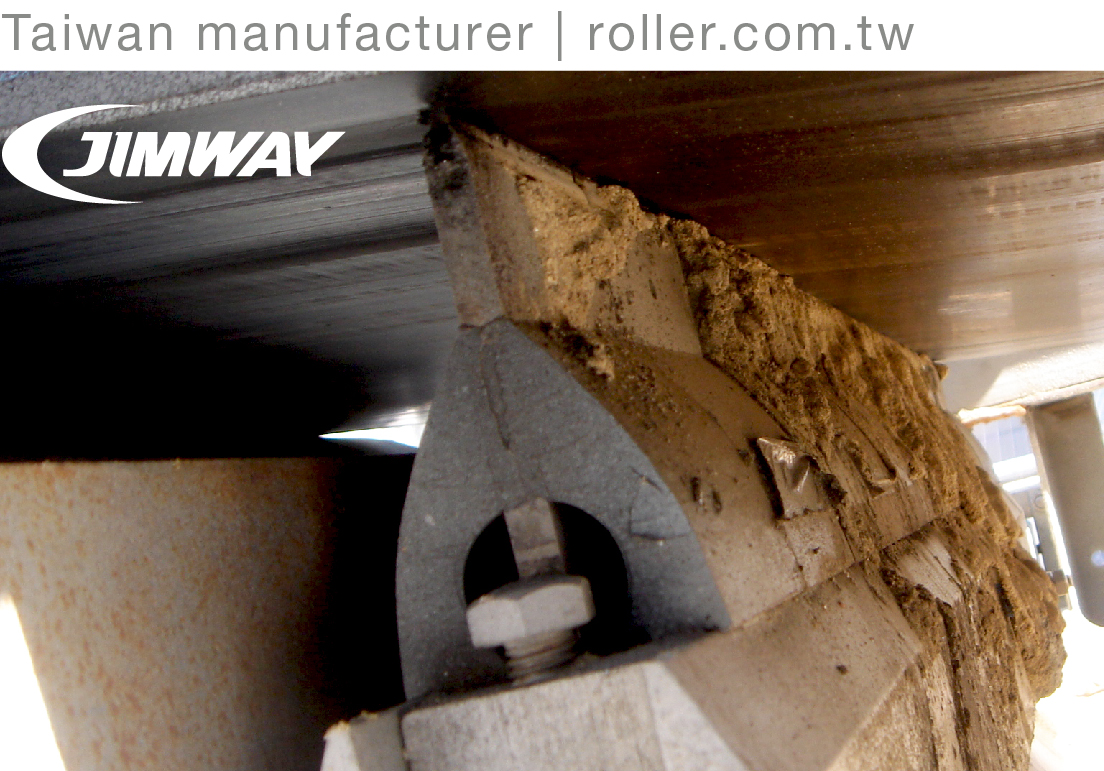

▪ For reversible belts
▪ Low maintenance
▪ Fast and easy adjustment
JIMWAY'S SBC2D BELT CLEANERS HAVE SLIDE-IN/SLIDE-OUT BLADE ASSEMBLY DESIGN, WHICH REPLACE BLADES QUICKLY AND EASILY TO MINIMIZE CONVEYOR DOWNTIME FOR REVERSIBLE BELTS.
Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Jimway's SBC2D reversible tungsten carbide belt cleaner blades thoroughly scrape conveyor belts clean and eliminate problems with carryback and spillage. In addition, the tungsten carbide vulcanized into rubber mount absorbs impact energy and minimizes transmission back to the belt.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤6m/s
Cleaning Direction reversible direction
Blade Material tungsten carbide

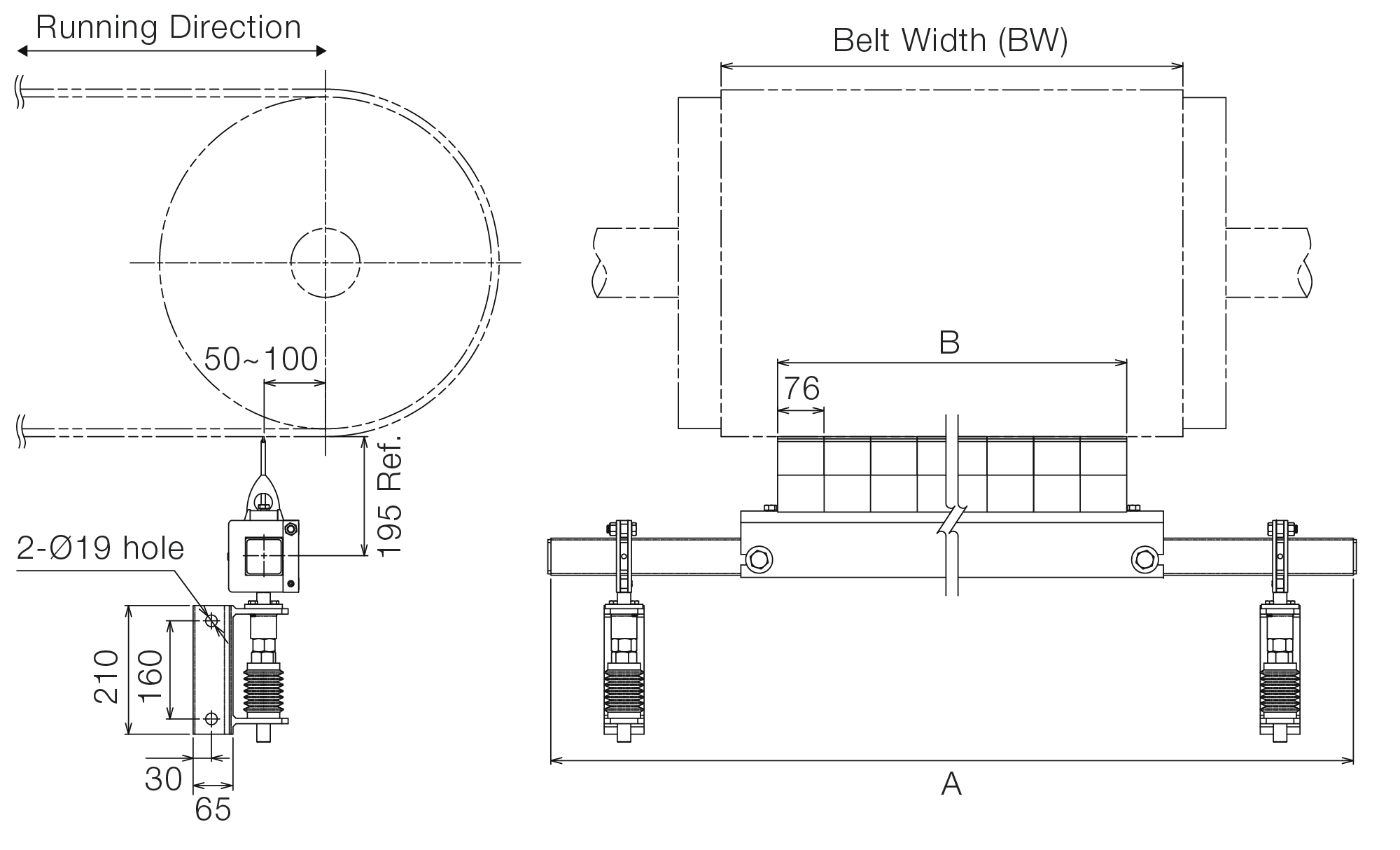

Unit:mm [in] | ||||
Model | BW | A | B | Blades Req. |
SBC2D-060 | 600 [24] | 1650 | 532 | 7 |
SBC2D-065 | 650 [26] | 1750 | 608 | 8 |
SBC2D-075 | 750 [30] | 1800 | 684 | 9 |
SBC2D-080 | 800 [31] | 1900 | 760 | 10 |
SBC2D-090 | 900 [36] | 1950 | 836 | 11 |
SBC2D-100 | 1000 [40] | 2100 | 912 | 12 |
SBC2D-105 | 1050 [42] | 2150 | 988 | 13 |
SBC2D-120 | 1200 [48] | 2250 | 1140 | 15 |
SBC2D-140 | 1400 [54] | 2450 | 1292 | 17 |
SBC2D-160 | 1600 [63] | 2750 | 1520 | 20 |
SBC2D-180 | 1800 [72] | 2950 | 1748 | 23 |
SBC2D-200 | 2000 [78] | 3150 | 1900 | 25 |
▪ Excellent elasticity ▪ Easy installation and adjustment
▪ For reversible belts
▪ Suitable for high-speed belts |

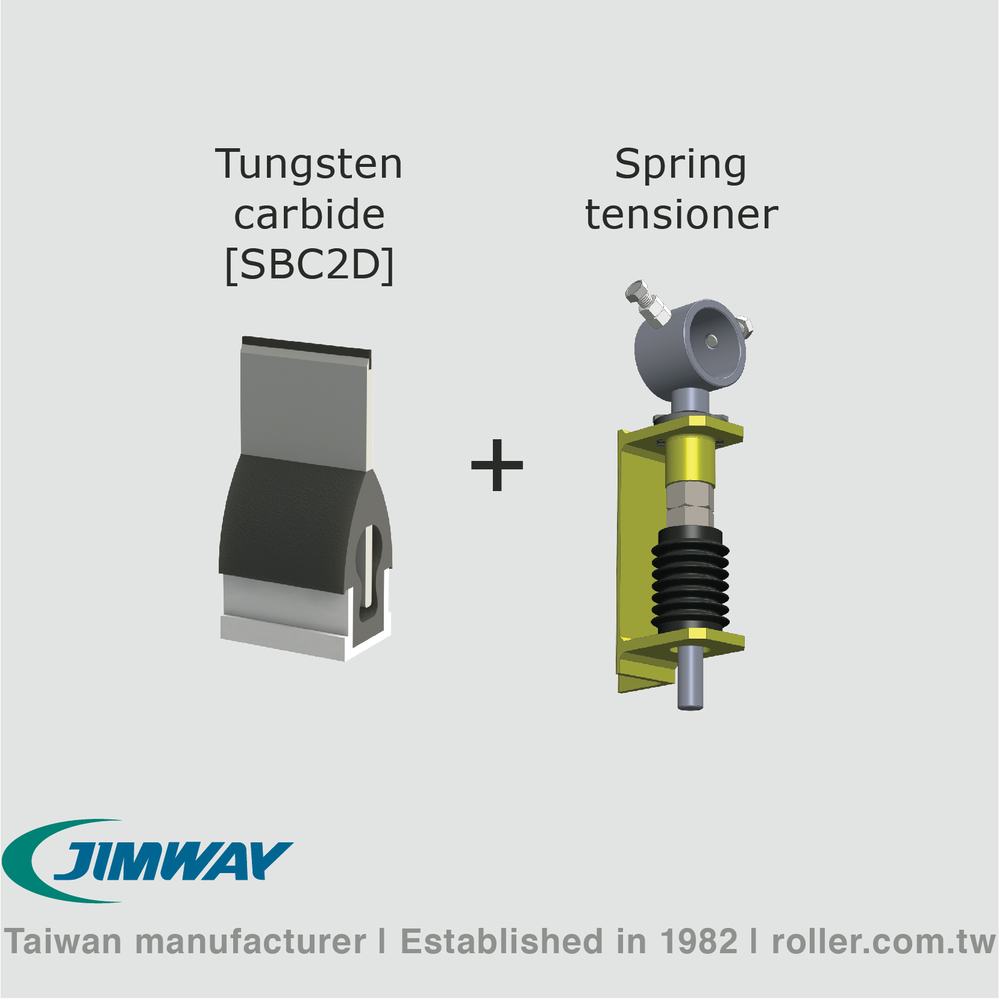

▪ Easy blade change ▪ Cost-saving spring tensioner ▪ Low maintenance
▪ Blade vulcanized into a rubber mount |
|
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
