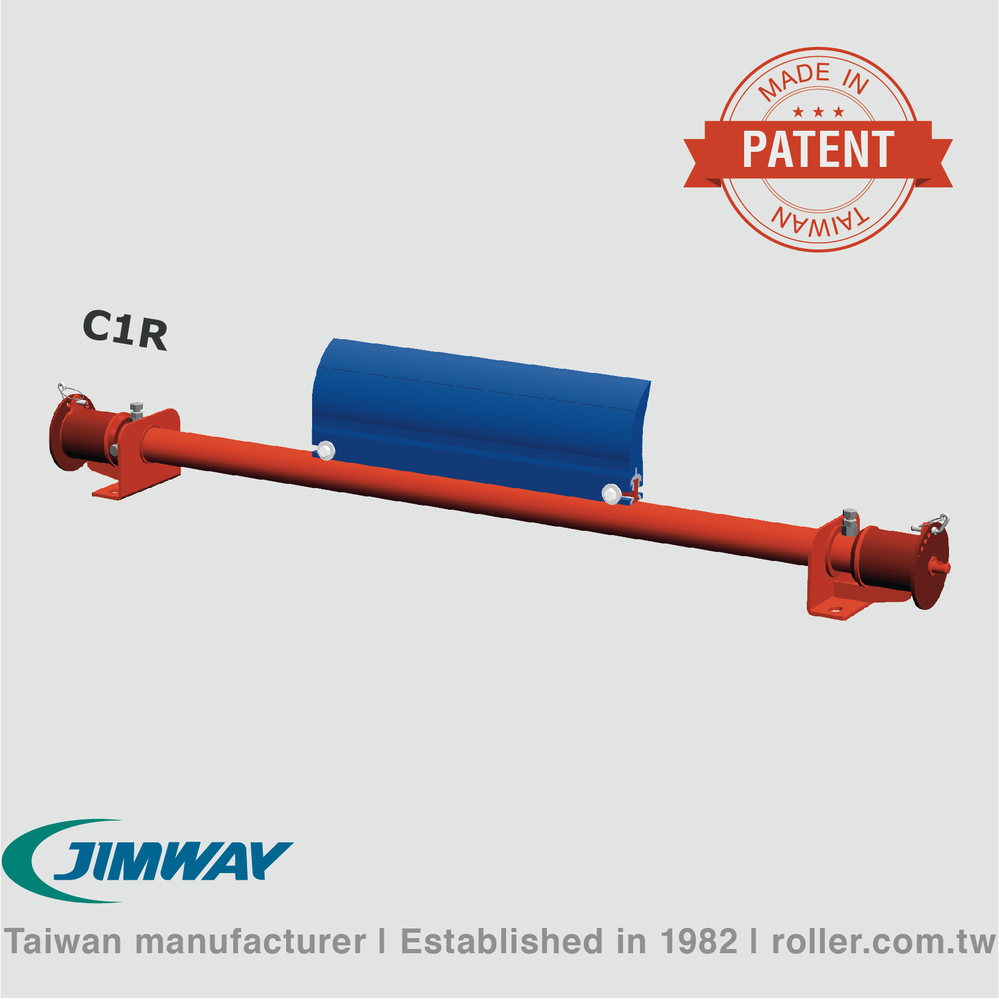

Torsion Tensioner Precleaner

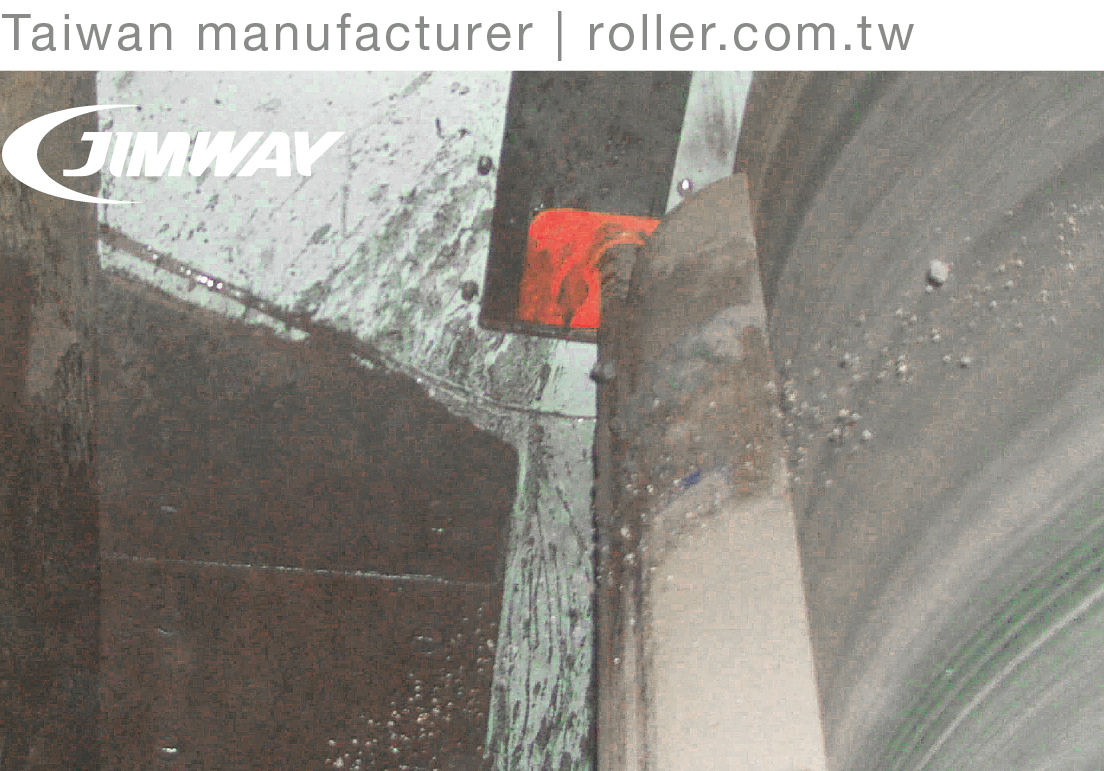

▪ Ensuring even blade-to-belt pressure
▪ Quick-change integrated PU blade

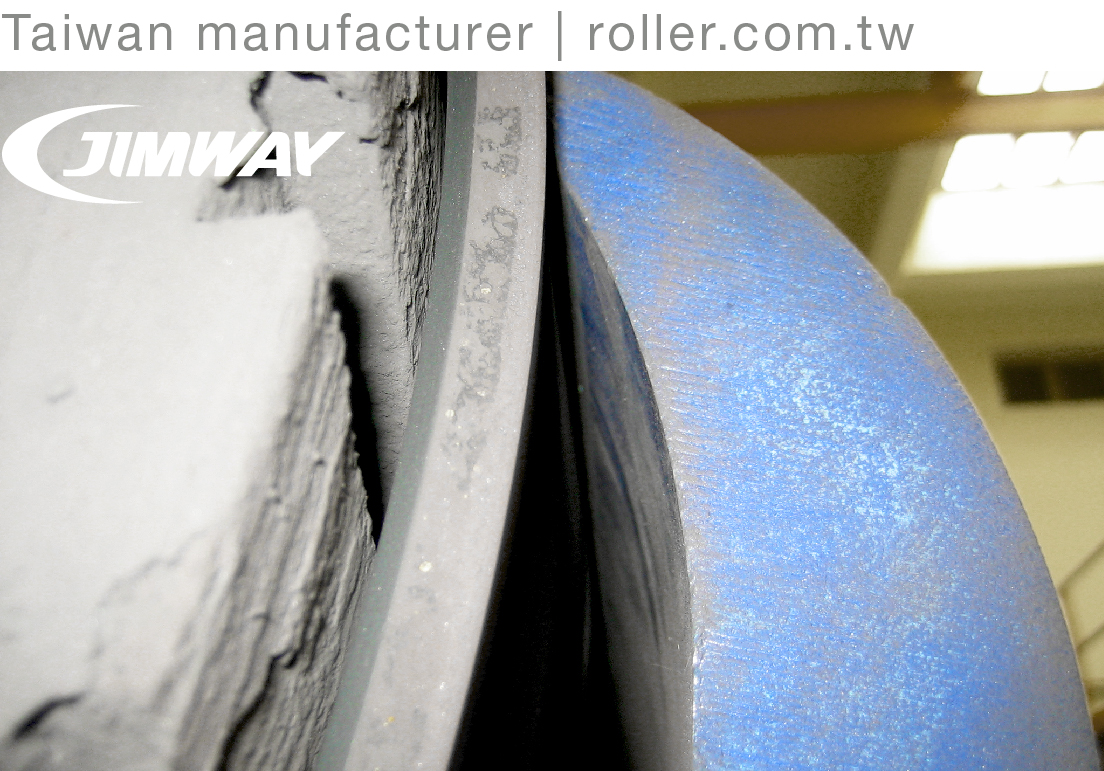

▪ Excellent wear resistance
▪ Low coefficient of friction
JIMWAY'S PATENTED INTEGRATED BELT CLEANER BLADE AND THE TORSION TENSIONER SYSTEM DELIVER HIGH CLEANING PERFORMANCE WITHOUT A HEFTY PRICE TAG, PROVIDING A PROMPT PAYBACK.

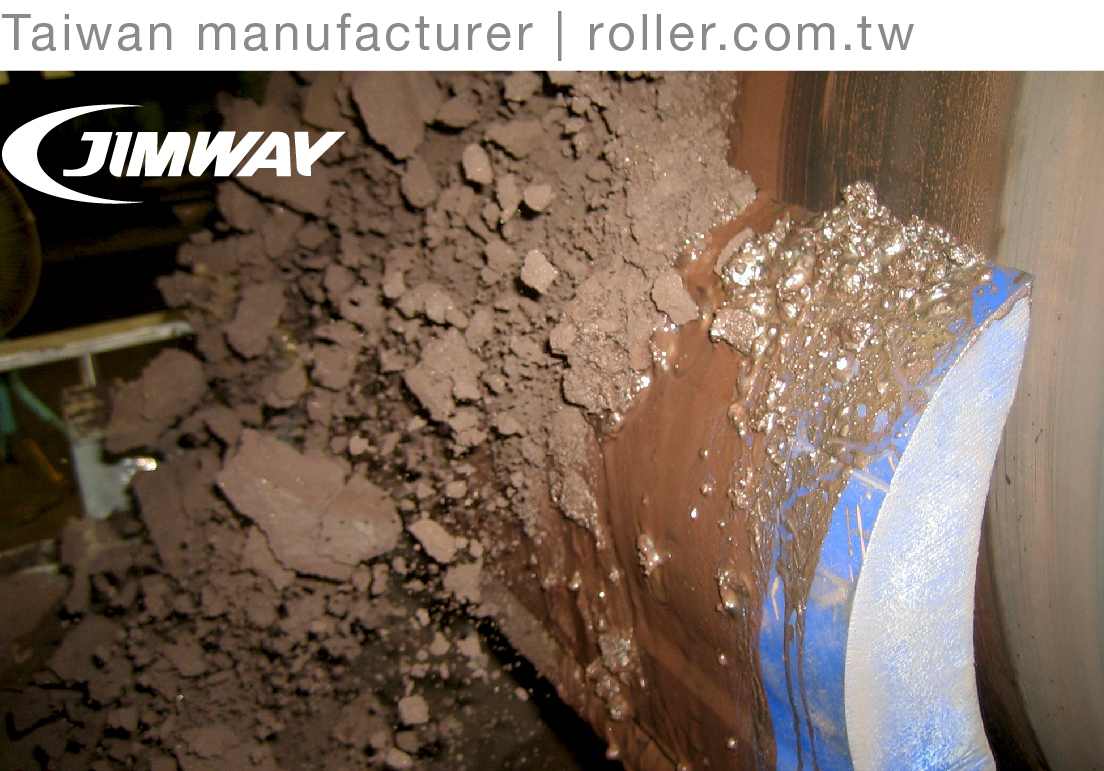

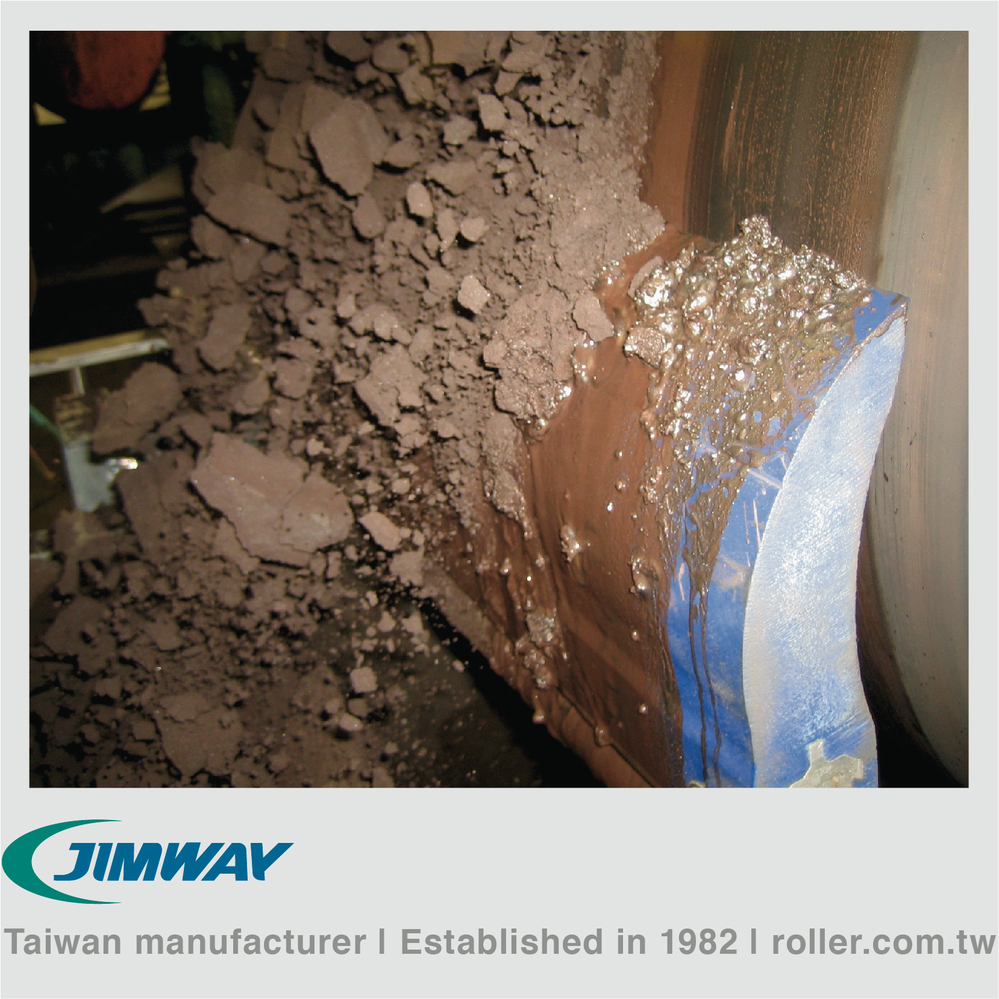

The torsion tensioner absorbs impact that let splices pass without damage. Powerful tensioners provide effective torsion tension for belt cleaners and stand up to tough conditions. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Jimway's C1R belt cleaner with the single piece blade, not segmented, provides carryback removal for high-speed belts, large head pulleys, and large sizes/volumes of material.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤6m/s
Cleaning Direction one direction only
Blade Material PU

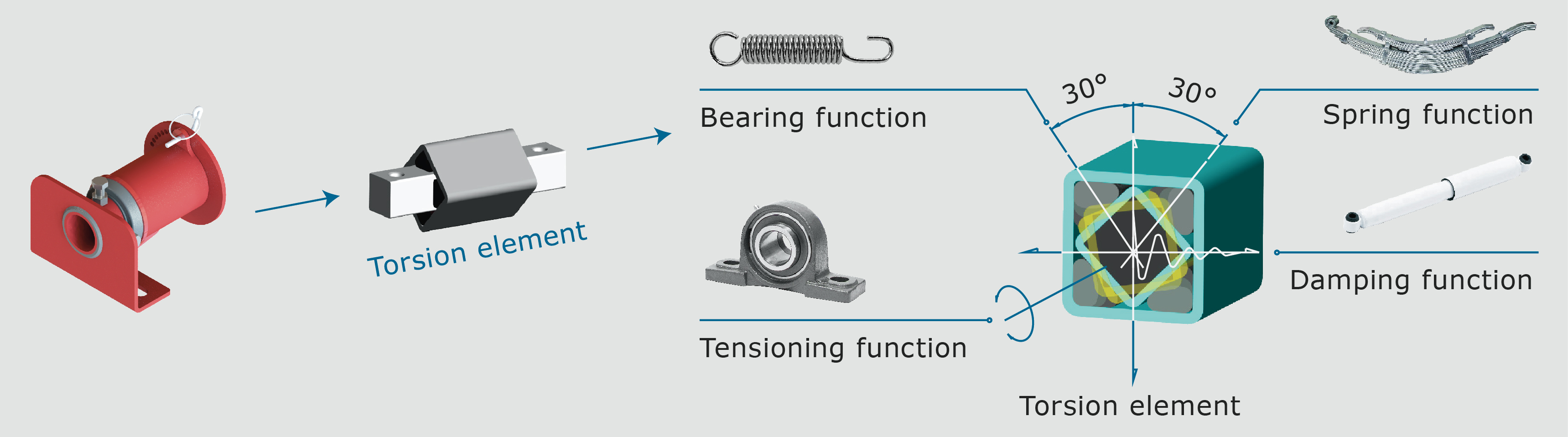

TORSION ELEMENT
Absorb and external force
- Simultaneously absorbing vibration and noise
- Maintenance-free
- No abrasion and wear problems

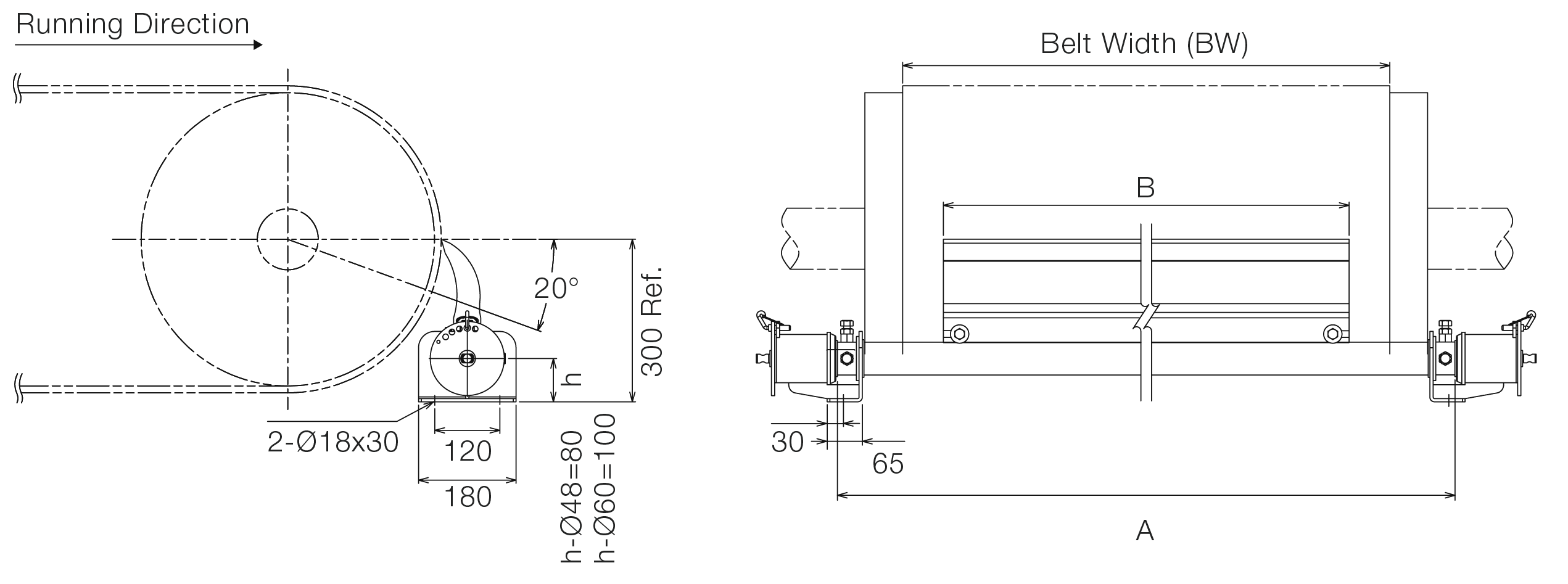

| Unit:mm [in] | |||
| Model | BW | A | B |
| C1R-060 | 600 [24] | 1300 | 450 |
| C1R-065 | 650 [26] | 1350 | 450 |
| C1R-075 | 750 [30] | 1400 | 600 |
| C1R-080 | 800 [31] | 1450 | 600 |
| C1R-090 | 900 [36] | 1700 | 750 |
| C1R-100 | 1000 [40] | 1800 | 900 |
| C1R-105 | 1050 [42] | 1850 | 900 |
| C1R-120 | 1200 [48] | 1950 | 1050 |
| C1R-140 | 1400 [54] | 2400 | 1200 |
| C1R-150 | 1500[60] | 2500 | 1300 |
| C1R-160 | 1600 [63] | 2500 | 1400 |
| C1R-180 | 1800 [72] | 2700 | 1500 |
| C1R-200 | 2000 [78] | 2900 | 1700 |
|

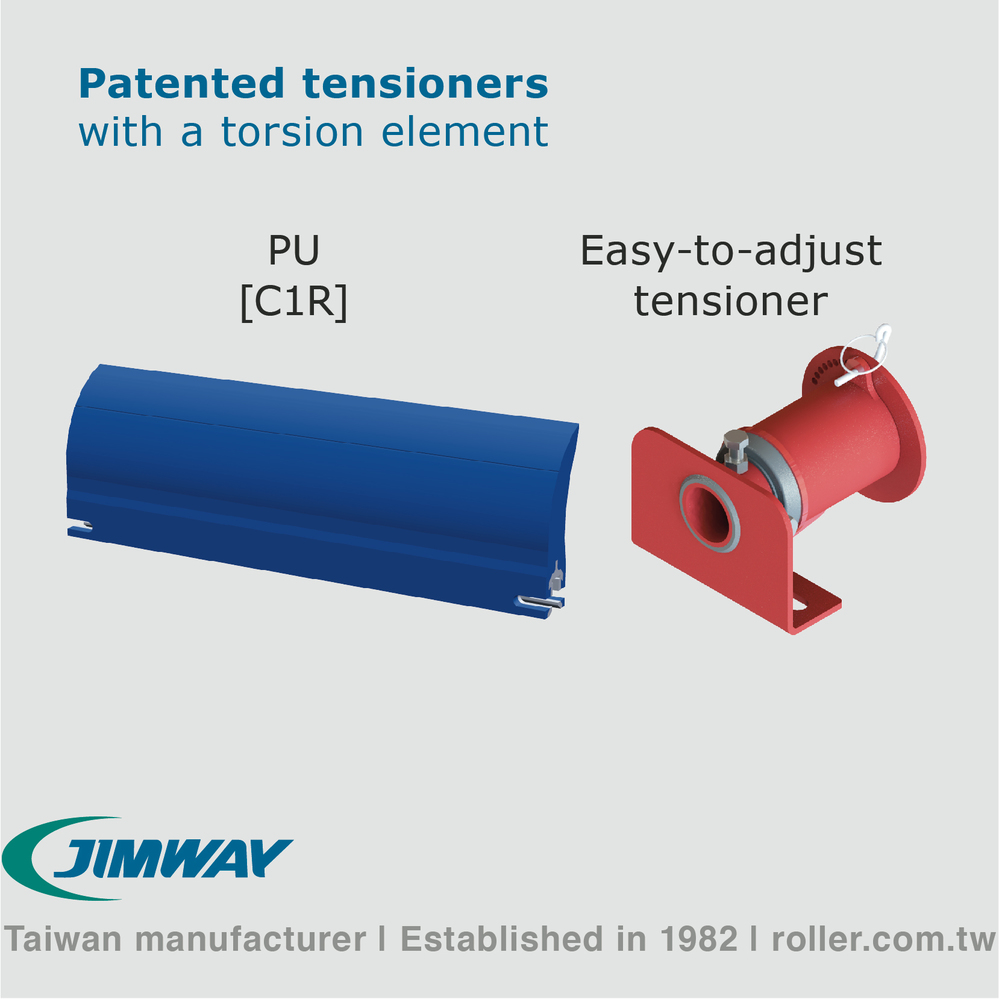

▪ Torsion tensioner ▪ Even blade-to-blade pressure ▪ Used on the spliced belts |

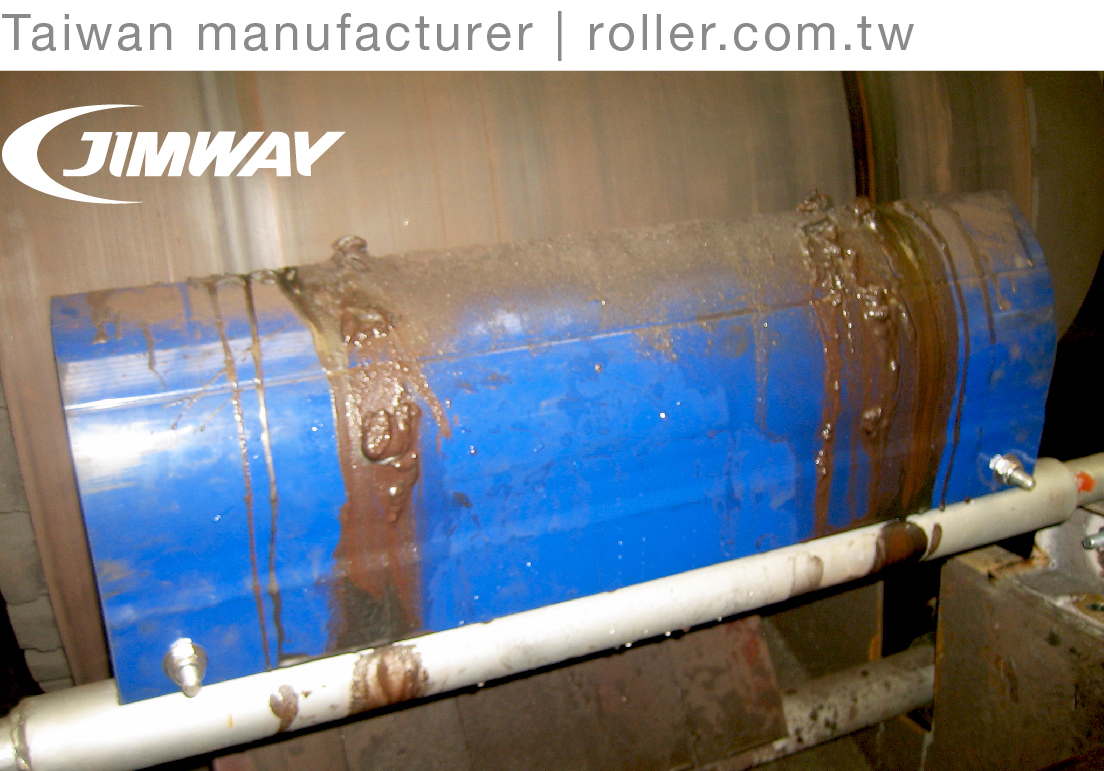

▪ Quick-change integrated blade ▪ Fast and easy installation ▪ Belt-friendly |
▪ Durable PU blade ▪ Excellent wear resistance ▪ Low coefficient of friction |
|
|
|
|
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, limestone, and sandstone etc.
