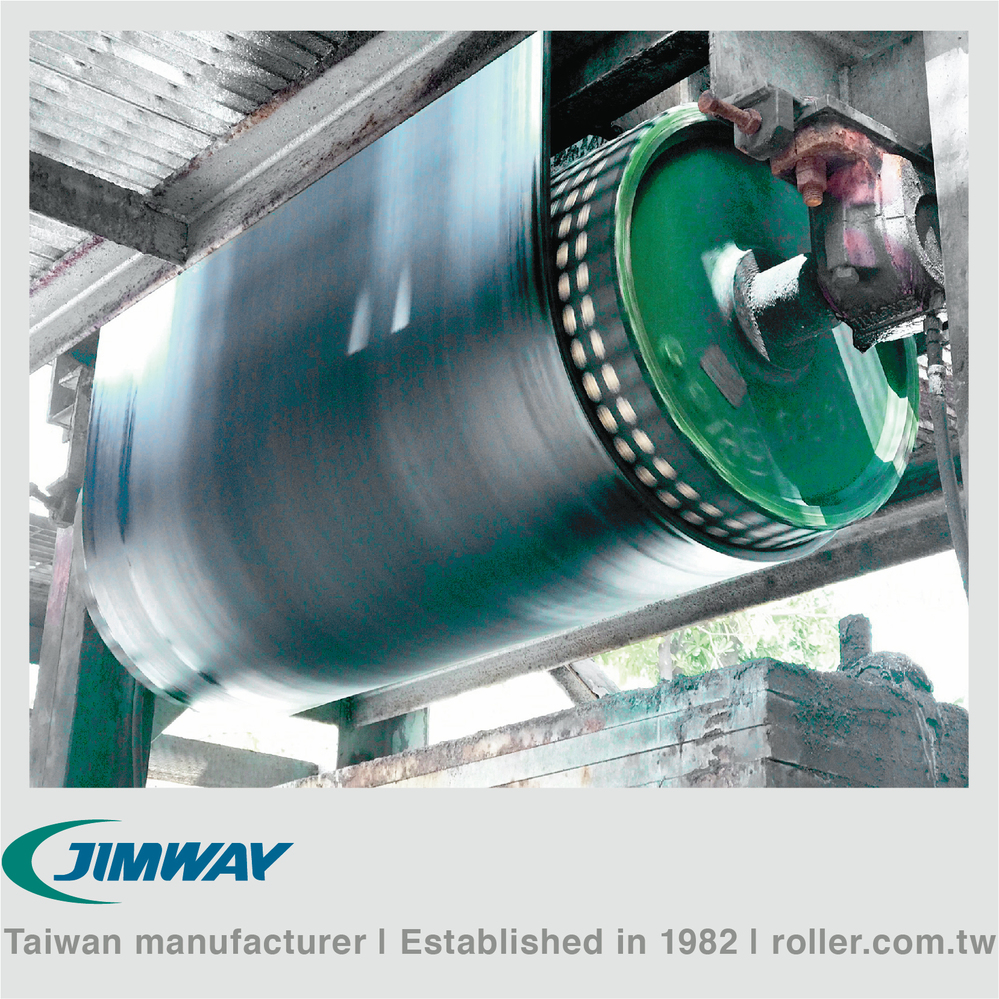

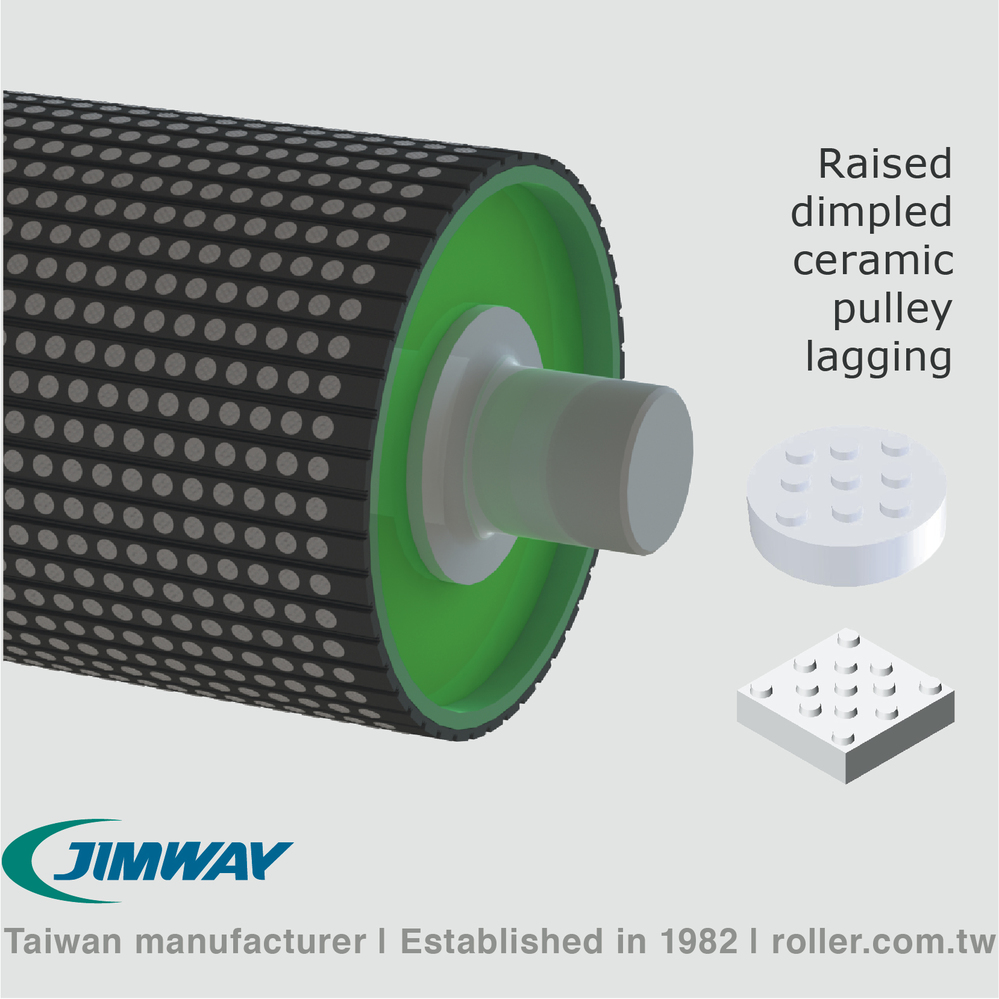

Raised Dimpled Ceramic Pulley Lagging

▪ For drive pulley
▪ High friction coefficient
▪ Improving belt centering
▪ Less system downtime
▪ Lifetime extension
▪ Less material build up
▪ Self-cleaning action



WHEN CONVENTIONAL RUBBER LAGGING FAILS TO CORRECT BELT SLIPPAGE AND WEARS PREMATURELY, JIMWAY'S CERAMIC PULLEY LAGGING PROVIDES A COST EFFECTIVE SOLUTION THAT ENSURES OPTIMUM TRACTION OF DRIVE PULLEYS UNDER WET AND SLIPPERY CONDITIONS.

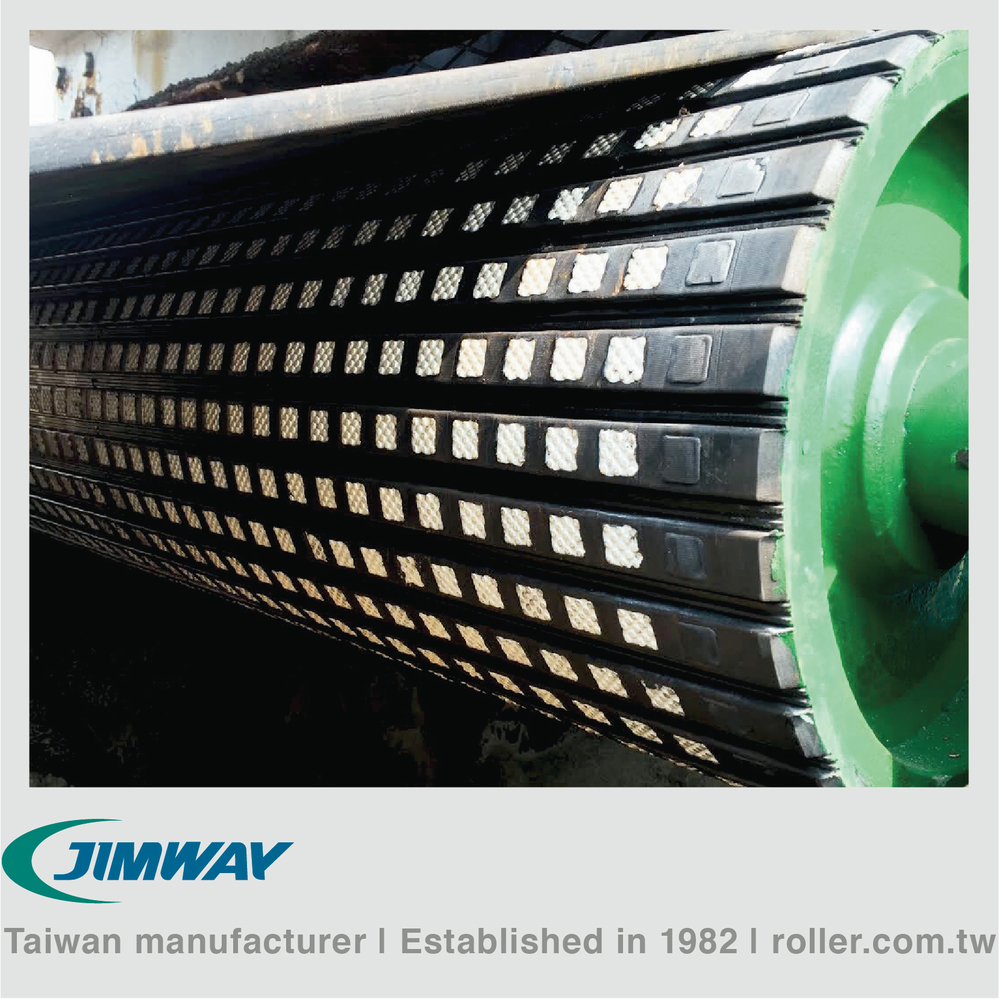

Reduced the conveyor belt's wear and slippage with Jimway's ceramic pulley lagging system, which not only increase uptime, but also dissipate water and residue via dewatering grooves. In addition, it serves as a maintenance free wear resistant cover; meanwhile, it also creates maximum traction, without the associated damage to belts. There are constructed of abrasion resistant square or round ceramic to control slippage and increase conveyor belt traction.


COMPARISON SHEET: RUBBER/CERAMIC PULLEY LAGGING

Rubber Pulley Lagging Ceramic Pulley Lagging

Rubber pulley lagging protects the belt and the residue is on the inside of the belt withoutdamaging the pulley; however, belt mistracking may happen.

Ceramic tiles are inserted into rubber pulley lagging to increase the friction and the wear resistance for the pulley's service life extension.

The Service Life Shorter 3X~5X service life
The Friction Normal >2X
Belt Mistracking Easily happen Rarely happen


THE COEFFICIENT OF FRICTION

Humidity of Material The Coefficient of Friction between the Lagging and the Belt
Bare Steel Groove Rubber Ceramic
Dry 0.30 0.40~0.50 0.70~0.80
Wet 0.10~0.20 0.20~0.25 0.40~0.80
Mud 0.10 0.18~0.20 0.40~0.50
