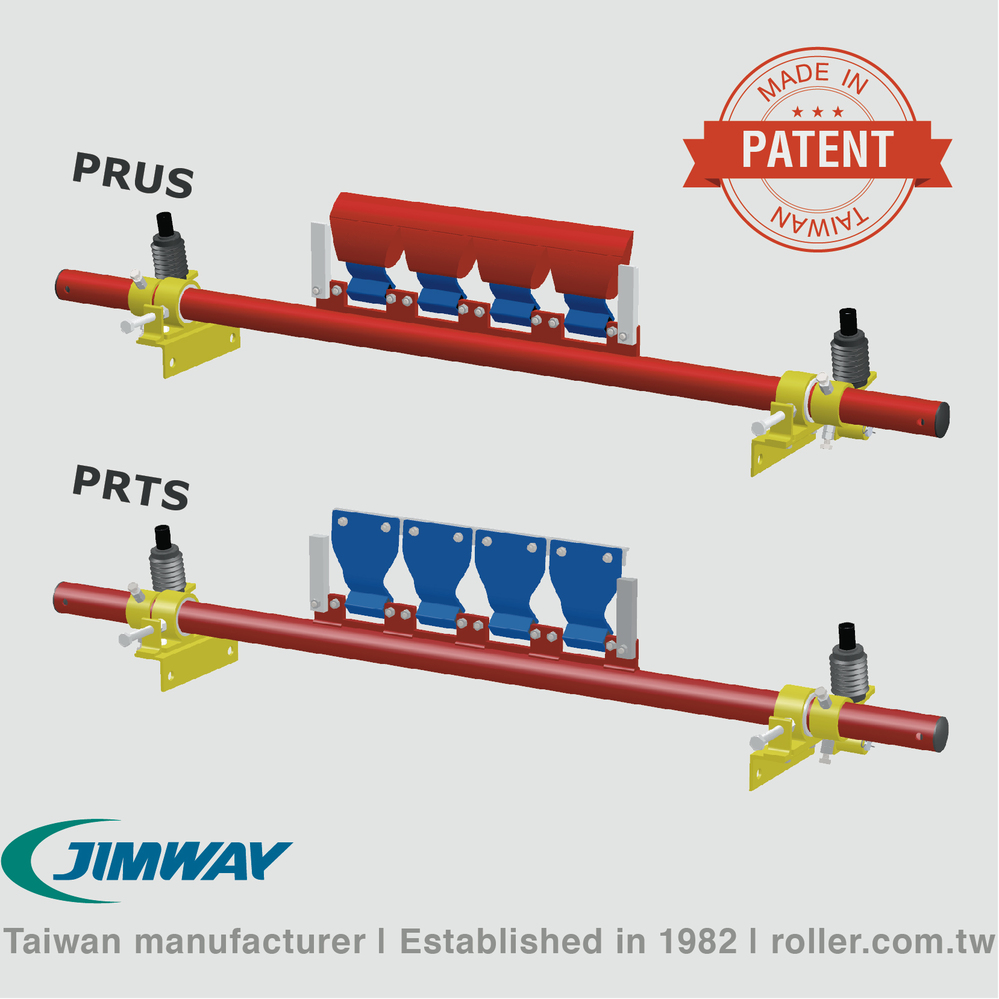

Torsion-Spring Precleaner

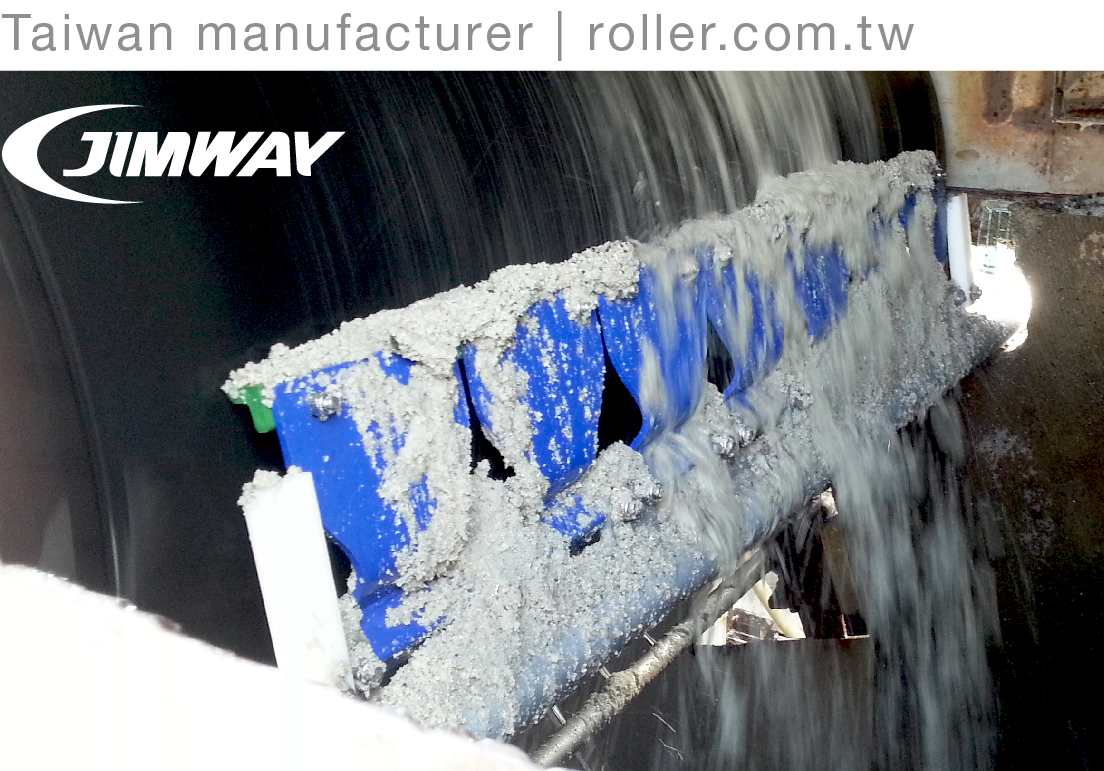

▪ Torsion element + spring design
▪ Used on spliced belts
▪ Belt-friendly
▪ Simplicity and economy of use

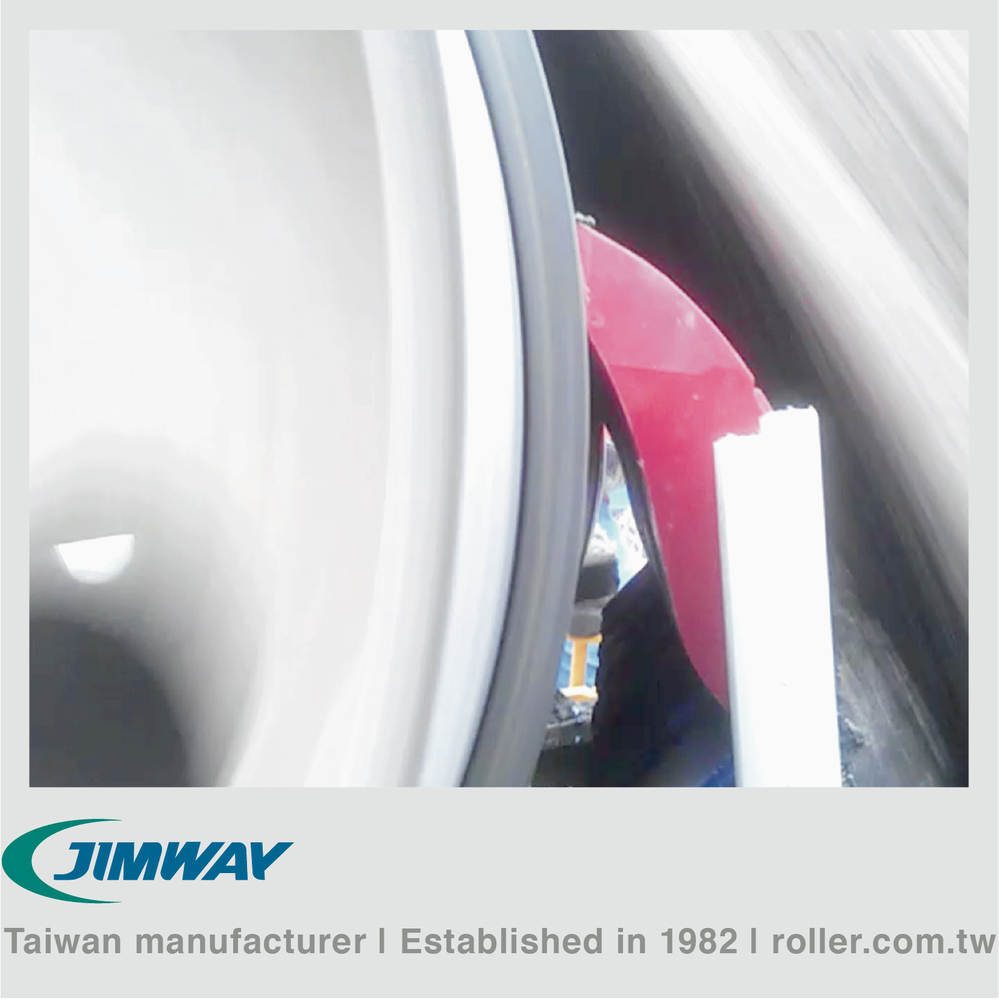

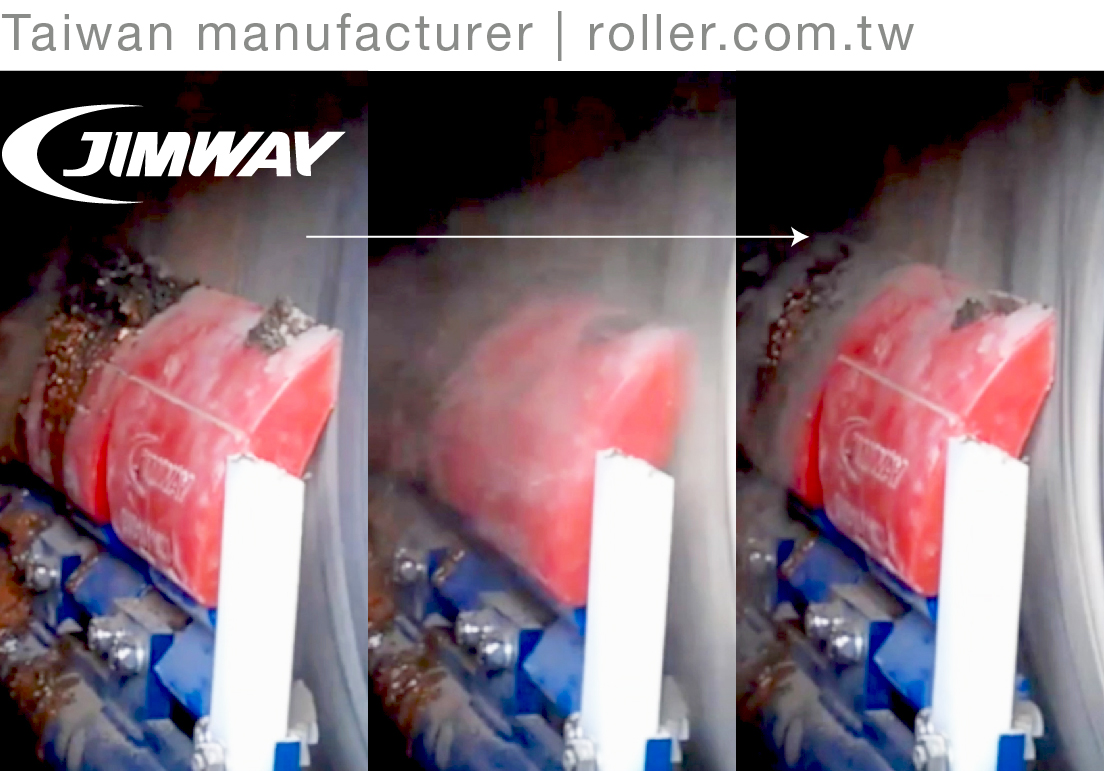

JIMWAY'S PATENTED TORSION-SPRING PRECLEANER, WHICH EACH BLADE BOUNCES AWAY FROM THE BELT FOR SPLICE PASSAGE AND QUICKLY RETURNS TO THE CLEANING POSITION.
The torsion-spring precleaner is a reliable solution for effectively removing bulk material carryback while protecting the belt and its splices. Moreover, patented blade can self-adjust and maintain blade-to-belt contact via a torsion element. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Depending on application, three materials of blades are available, PU, tungsten carbide and nano, which thoroughly scrape conveyor belts clean at the head pulley and eliminate problems with carryback and spillage.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤4m/s
Cleaning Direction one direction only

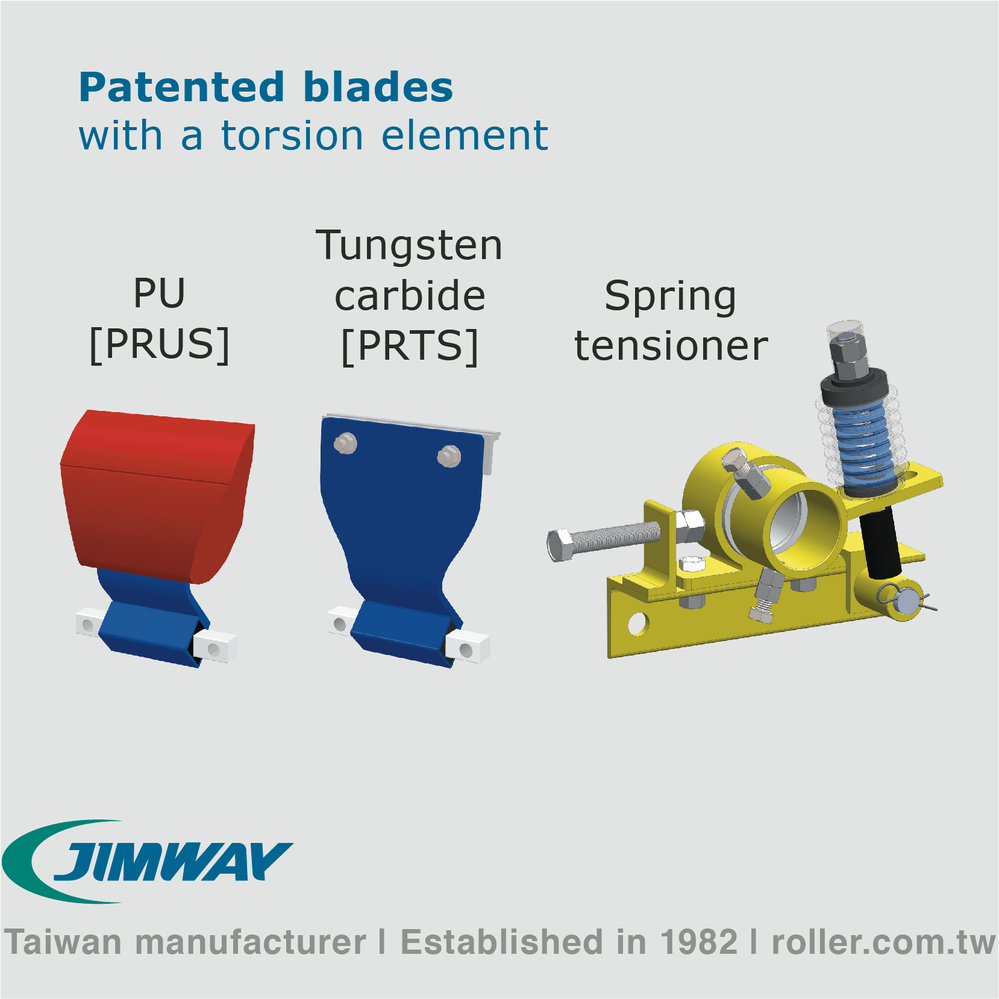

Material Selection of Blades PU[PRUS], tungsten carbide[PRTS], nano[PRNS]

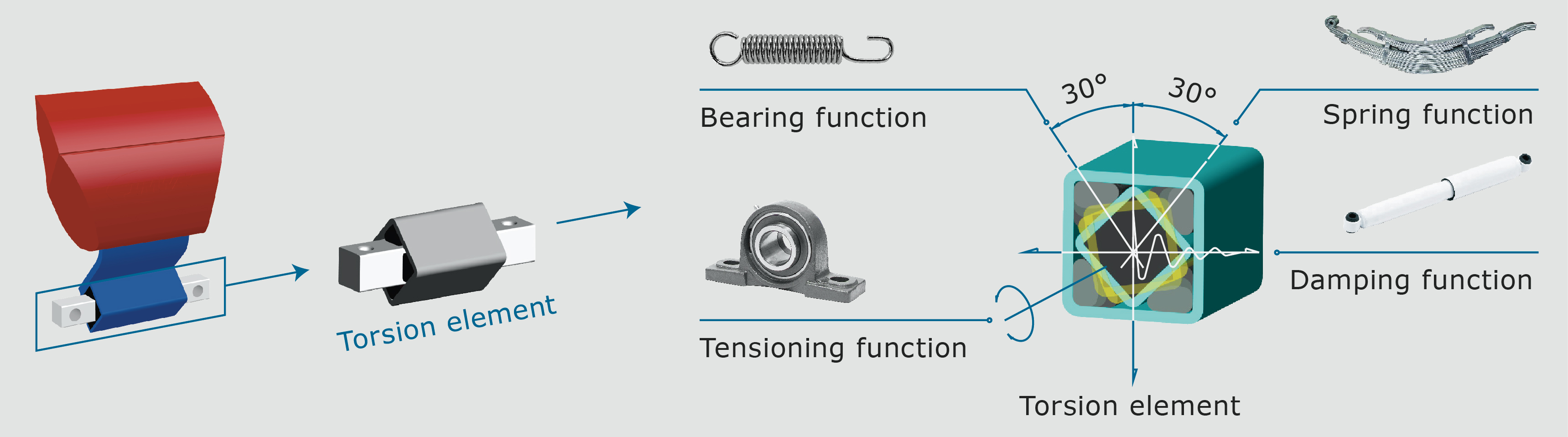

TORSION ELEMENT
Absorb and external force
- Simultaneously absorbing vibration and noise
- Maintenance-free
- No abrasion and wear problems

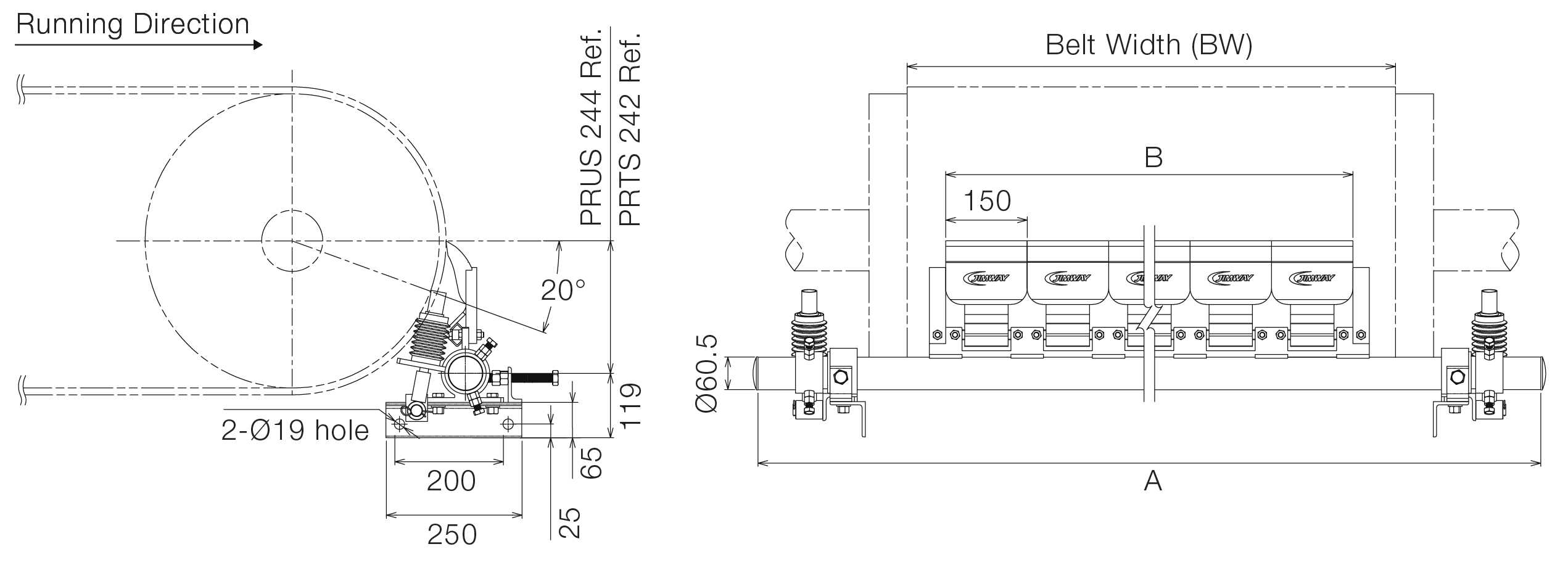

| Unit:mm [in] | ||||
| Model | BW | A | B | Blades Req. |
| PRUS-060 | 600 [24] | 1650 | 450 | 3 |
| PRUS-065 | 650 [26] | 1750 | 450 | 3 |
| PRUS-075 | 750 [30] | 1800 | 600 | 4 |
| PRUS-080 | 800 [31] | 1900 | 600 | 4 |
| PRUS-090 | 900 [36] | 1950 | 750 | 5 |
| PRUS-100 | 1000 [40] | 2100 | 900 | 6 |
| PRUS-105 | 1050 [42] | 2150 | 900 | 6 |
| PRUS-120 | 1200 [48] | 2250 | 1050 | 7 |
| PRUS-140 | 1400 [54] | 2450 | 1200 | 8 |
| PRUS-160 | 1600 [63] | 2750 | 1350 | 9 |
| PRUS-180 | 1800 [72] | 2950 | 1500 | 10 |
| PRUS-200 | 2000 [78] | 3150 | 1650 | 11 |
PRUS/PRTS/PRNS with the same specifications
|

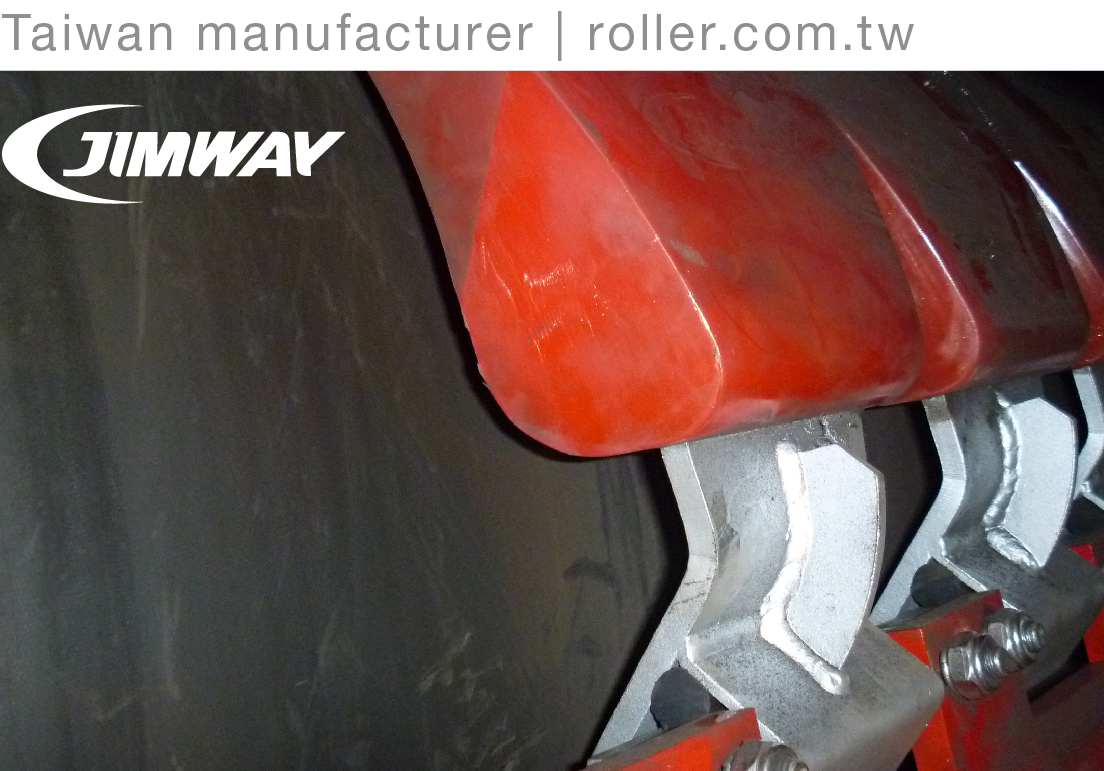

▪ Excellent elasticity ▪ Used on the spliced belts ▪ Self-adjust blade via torsion element for maintaining blade-to-belt contact |
▪ Simplicity and economy of use ▪ High-performance tension blade combined with spring tensioner ▪ Belt-friendly |
▪ Easy and fast installation and maintenance ▪ Easy visual tension check via the indicator |

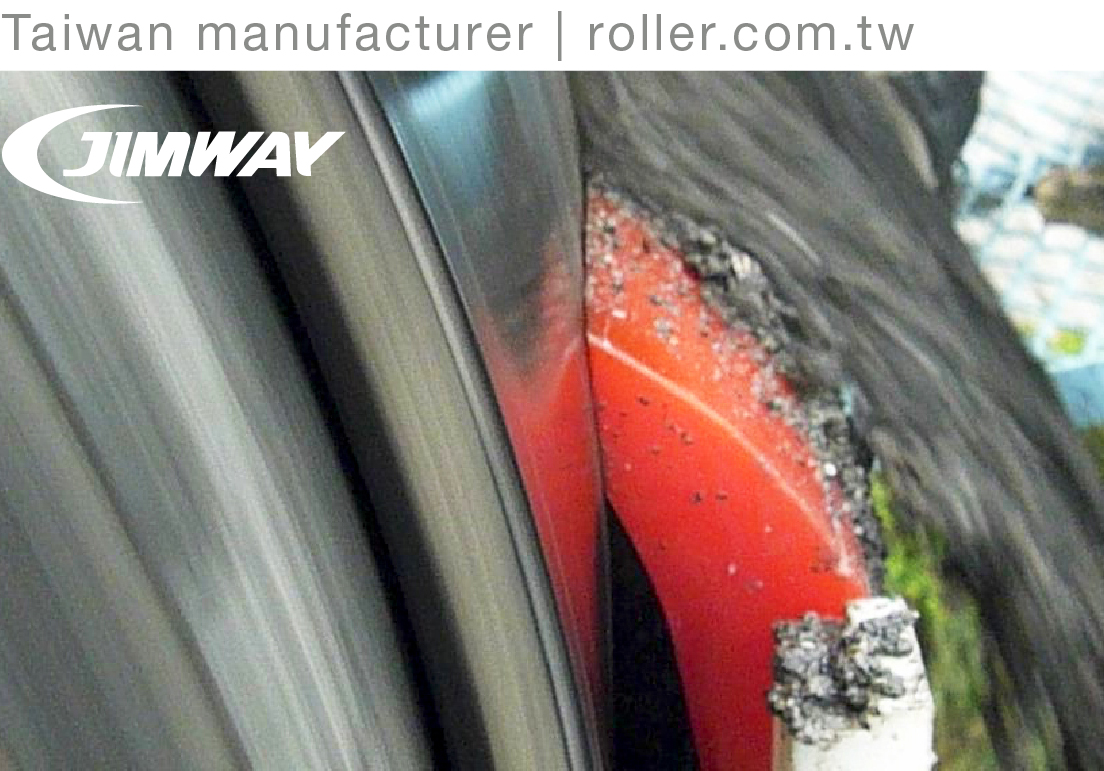

Cement

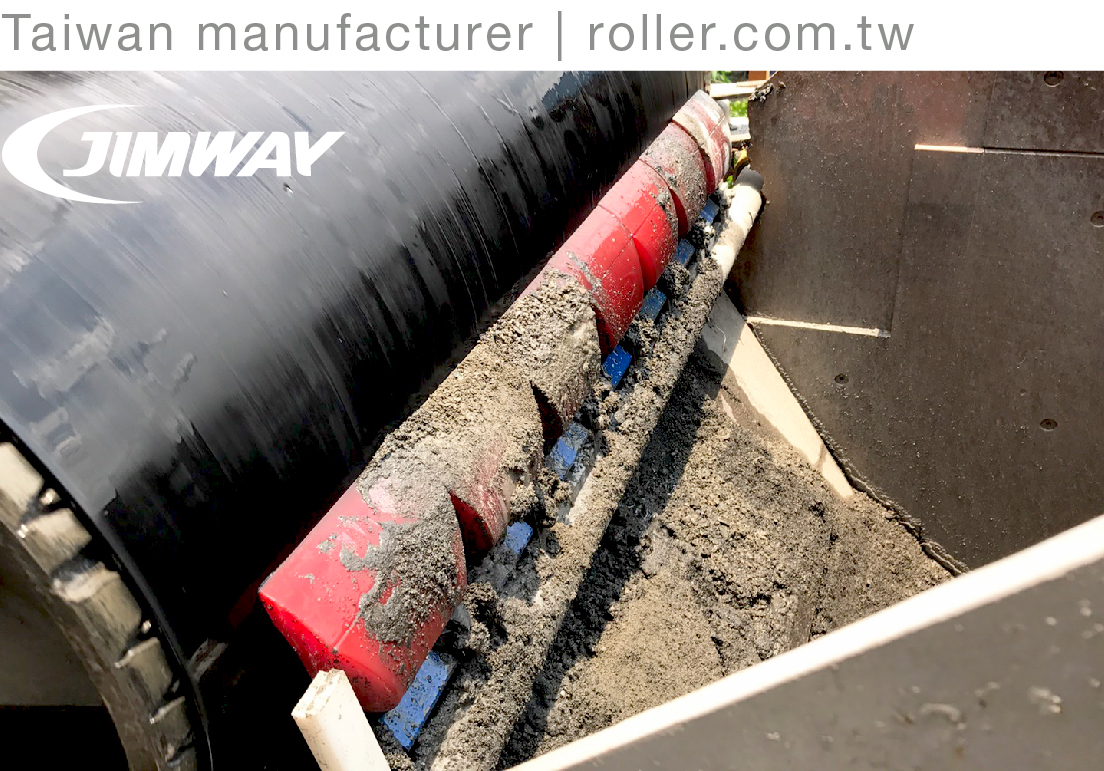

Furnace stone

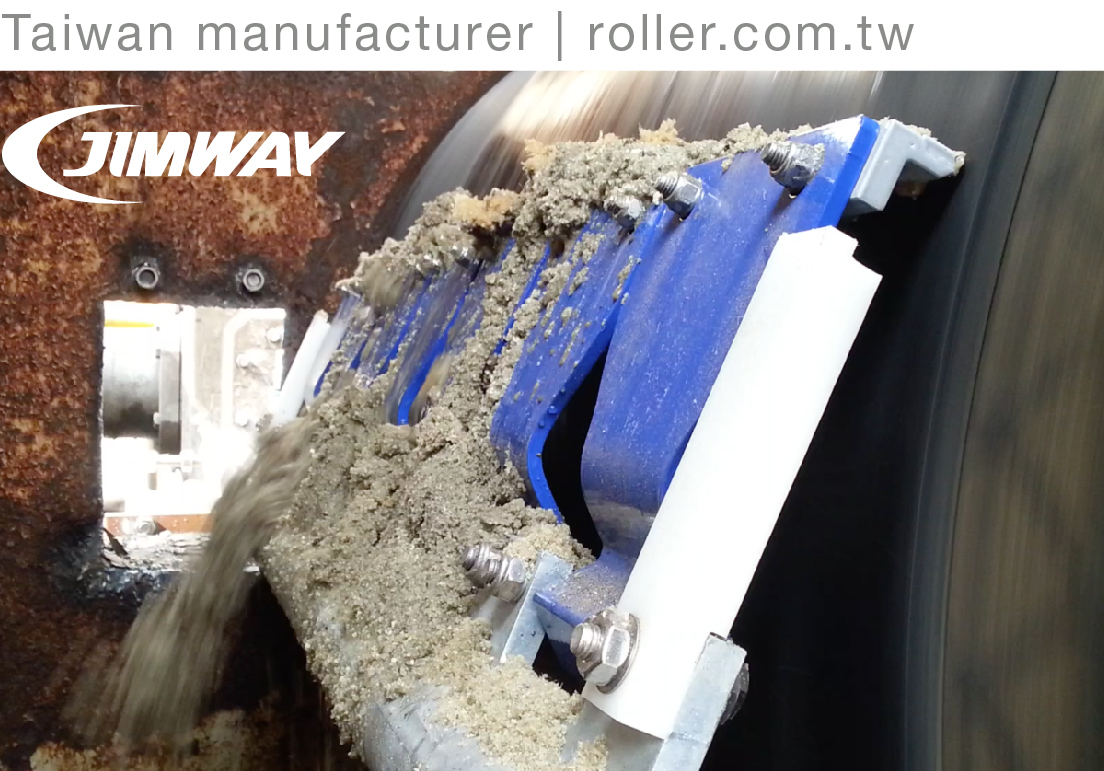

Furnace stone
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
