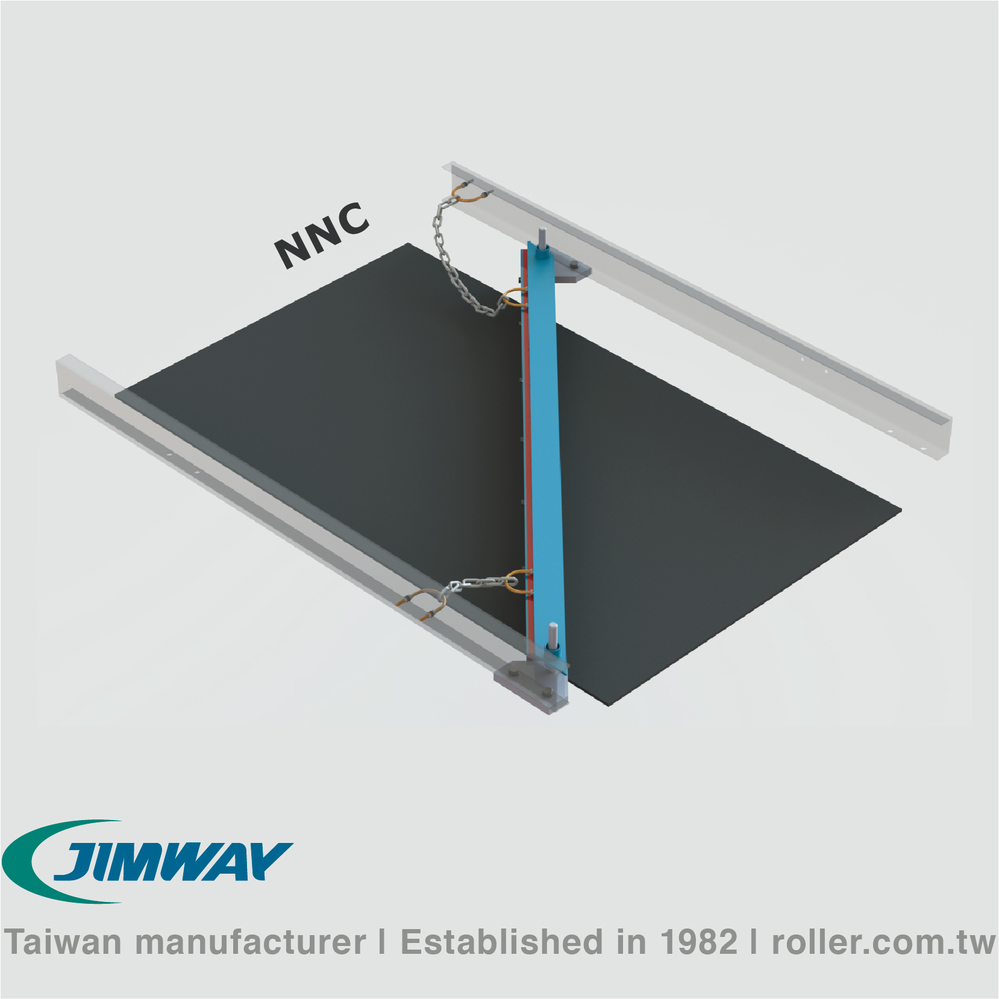

Diagonal Plow Belt Cleaner
▪ Adjusting by gravity

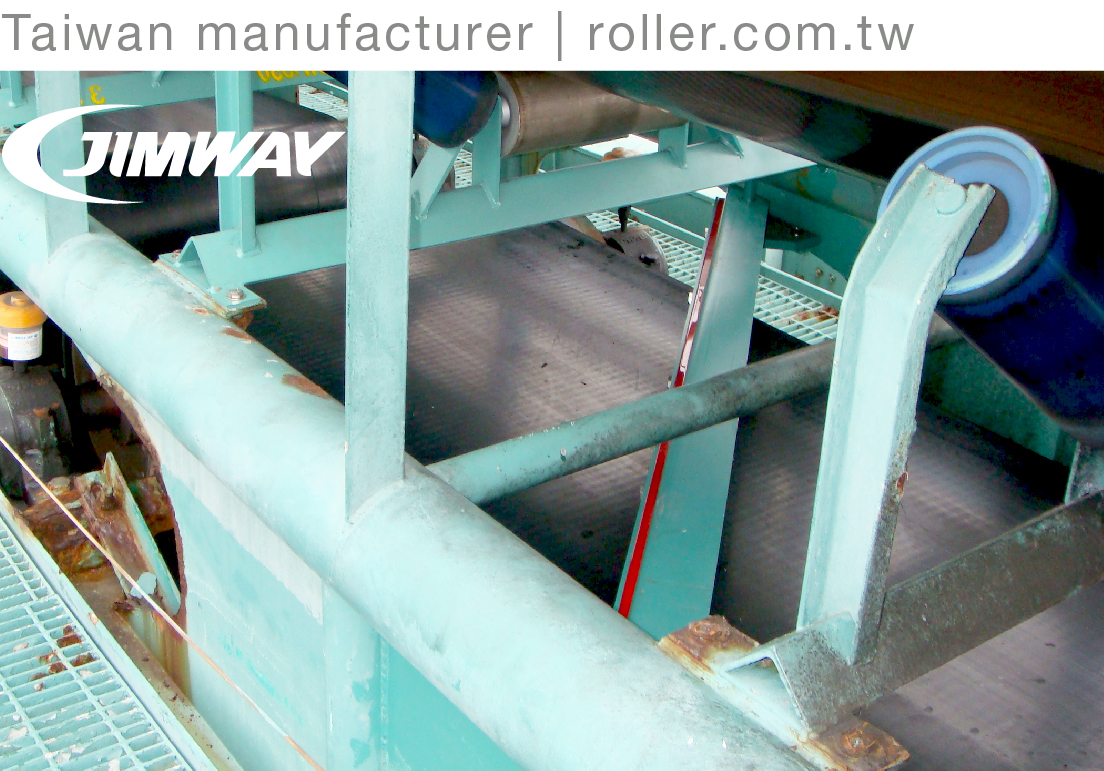

▪ Cleaning the inside of the return belt
▪ Without risk to the belt, splices, or itself
▪ Reducing residues on the tail pulley
▪ Easy blade change
UNIQUE ANGLED BLADE THAT CREATES QUICK, EFFECTIVE SPIRAL ACTION, JIMWAY'S NNC BELT CLEANER IS AN EFFECTIVE SOLUTION FOR TAIL PULLEY PROTECTION ON REVERSIBLE BELTS.

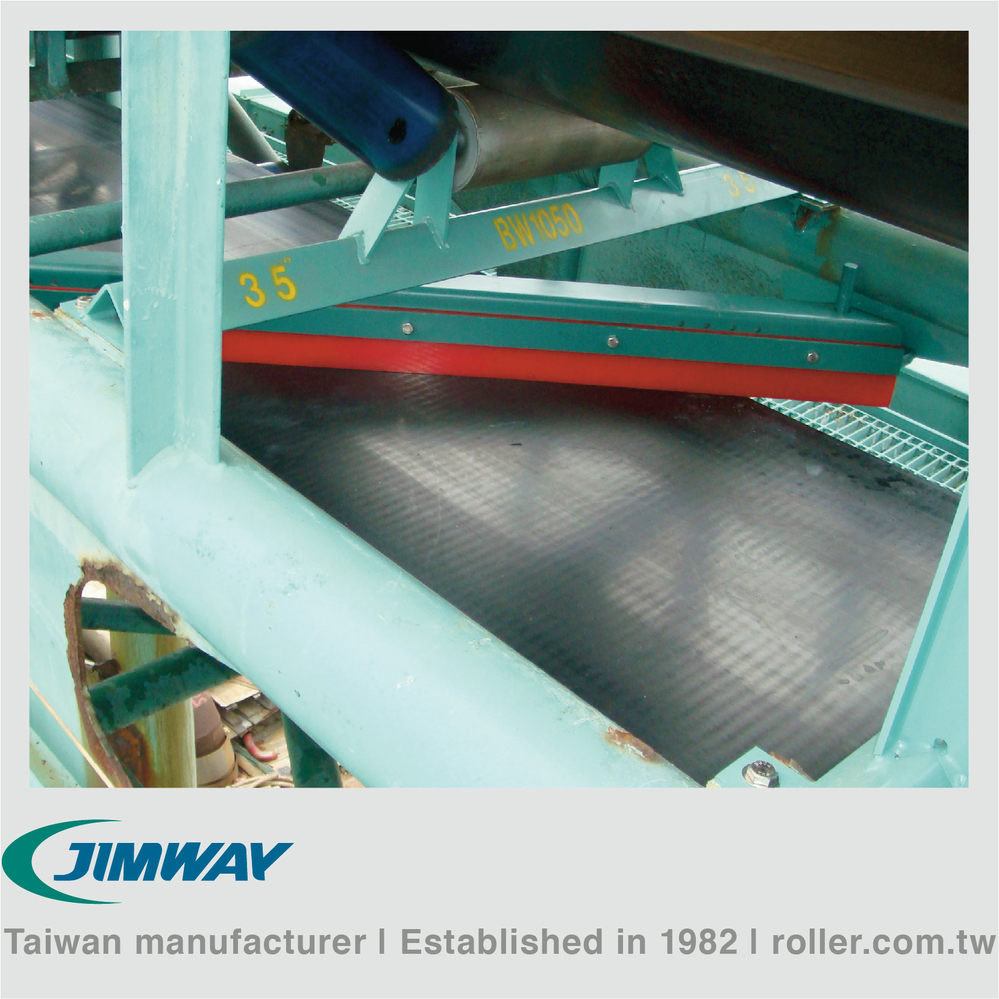

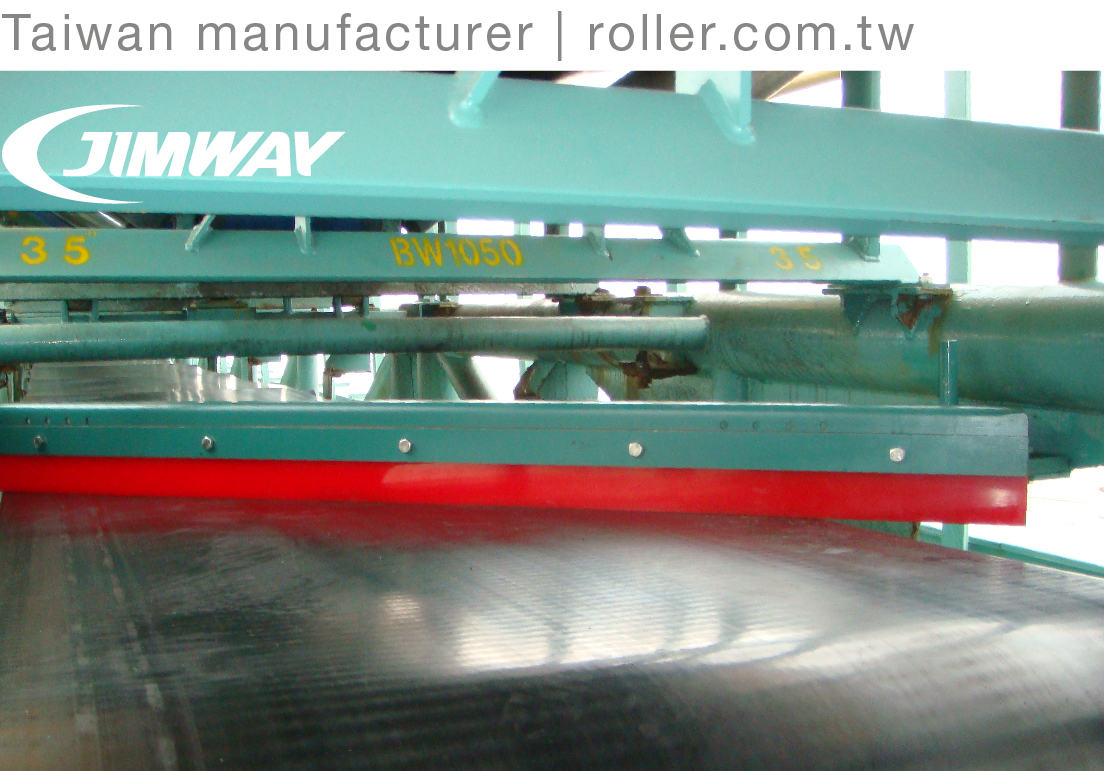

Jimway's NNC belt cleaner is designed to protect against carryback that may fall onto the inside of the return belt and cause damage or mistracking. Meanwhile, it protects tail pulleys, mechanical splices and pulley lagging. Carryback adheres to the belt, which may causes residue build-up on tail pulleys. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. The diagonal plow belt cleaner is no maintenance needed and floats on the belt surface to remove residue without needing adjustment.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤6.5m/s
Cleaning Direction reversible direction

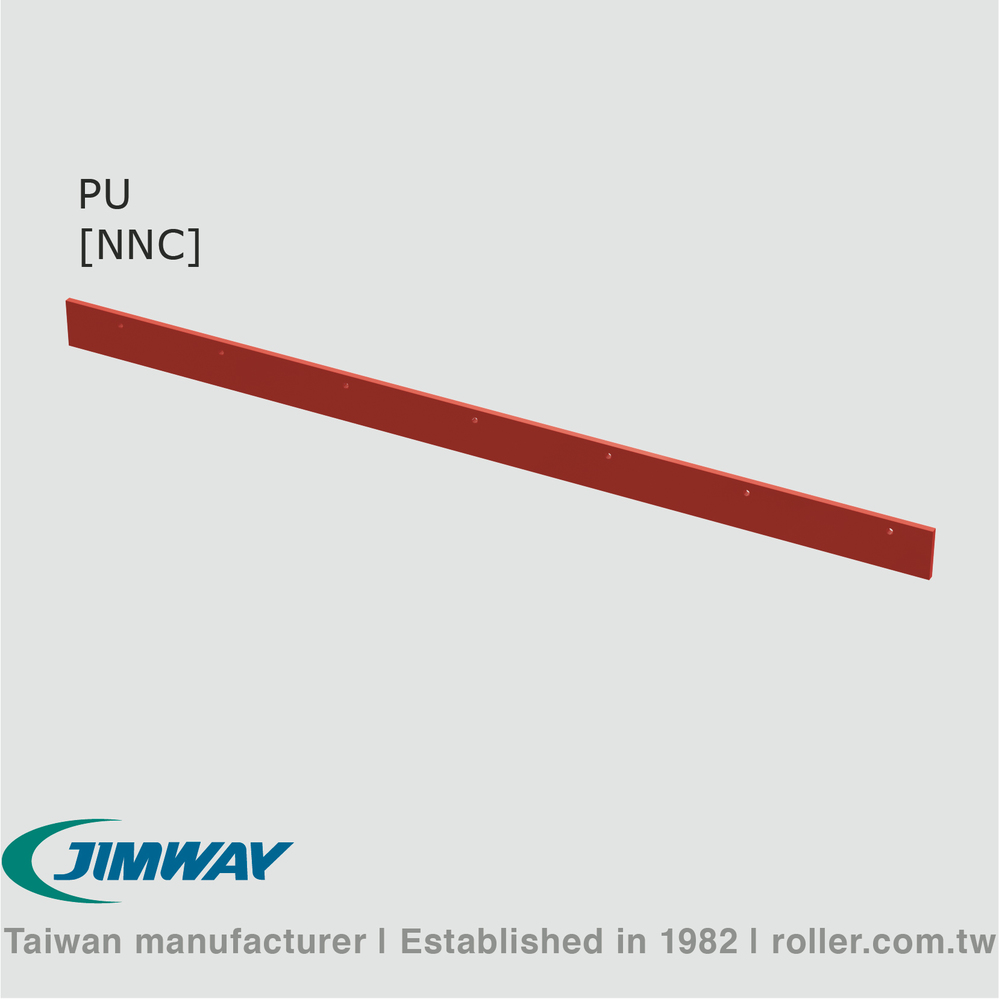

Blade Material PU

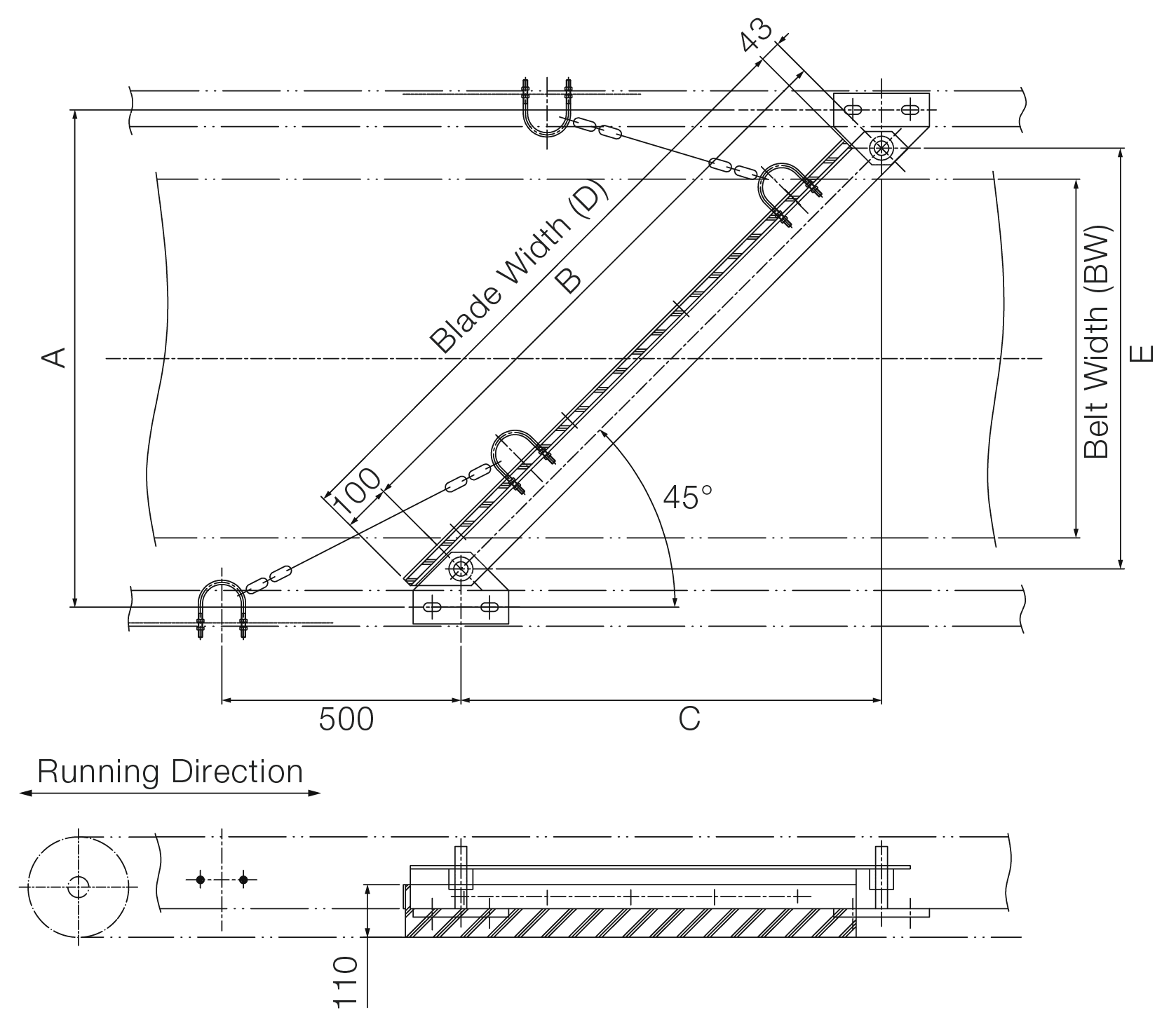

| Unit:mm [in] | ||||||
| Model | BW | A | B | C | D | E |
| NNC-060 | 600 [24] | 840 | 900 | 700 | 1047 | 700 |
| NNC-075 | 750 [30] | 1040 | 1245 | 880 | 1300 | 880 |
| NNC-090 | 900 [36] | 1190 | 1456 | 1030 | 1510 | 1030 |
| NNC-105 | 1050 [42] | 1340 | 1669 | 1180 | 1726 | 1180 |
| NNC-120 | 1200 [48] | 1490 | 1881 | 1330 | 1938 | 1330 |
| NNC-140 | 1400 [54] | 1730 | 2220 | 1570 | 2300 | 1570 |
| NNC-160 | 1600 [63] | 1930 | 2530 | 1770 | 2580 | 1770 |
| NNC-180 | 1800 [72] | 2220 | 2913 | 2060 | 2990 | 2060 |
|
▪ Operating on reversible belts ▪ Cleaning without risk to the belt, splices, or itself
▪ Extending the belt service life |
▪ Adjusting by gravity ▪ Easy blade change ▪ Reducing residues on the pulley
▪ No maintenance needed |
|
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
