V-Plow Belt Cleaner
▪ Adjusting by gravity
▪ Cleaning the inside of the return belt

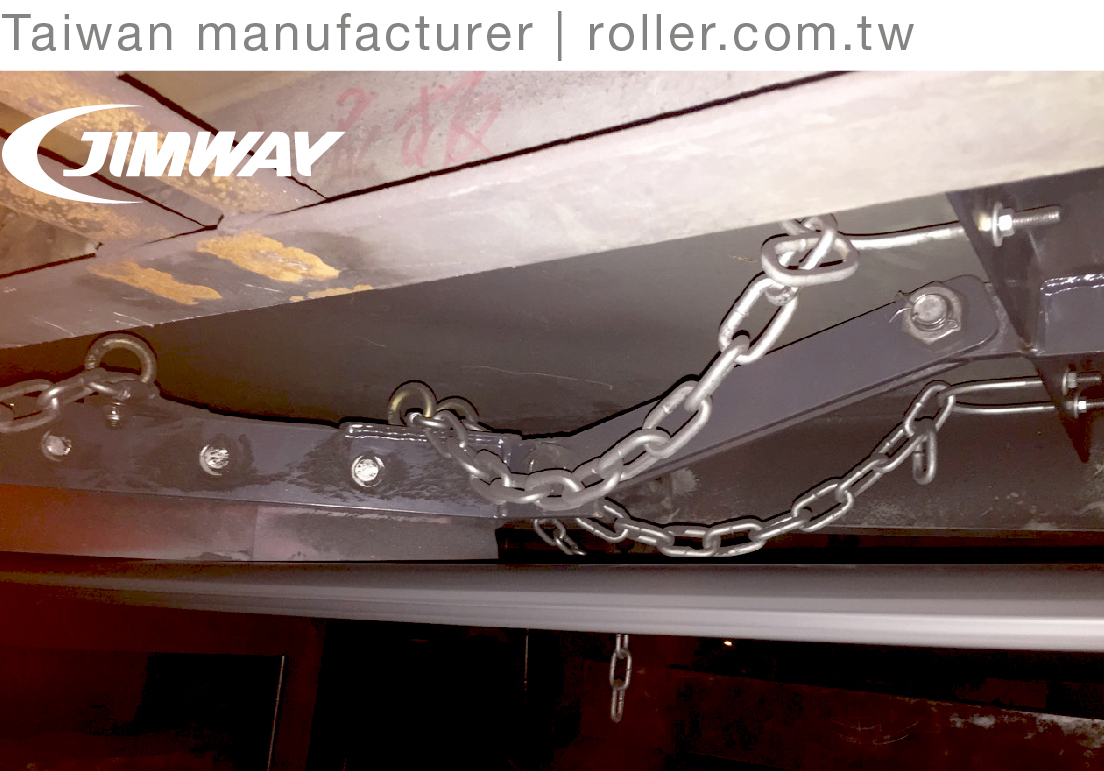

▪ Without risk to the belt, splices, or itself

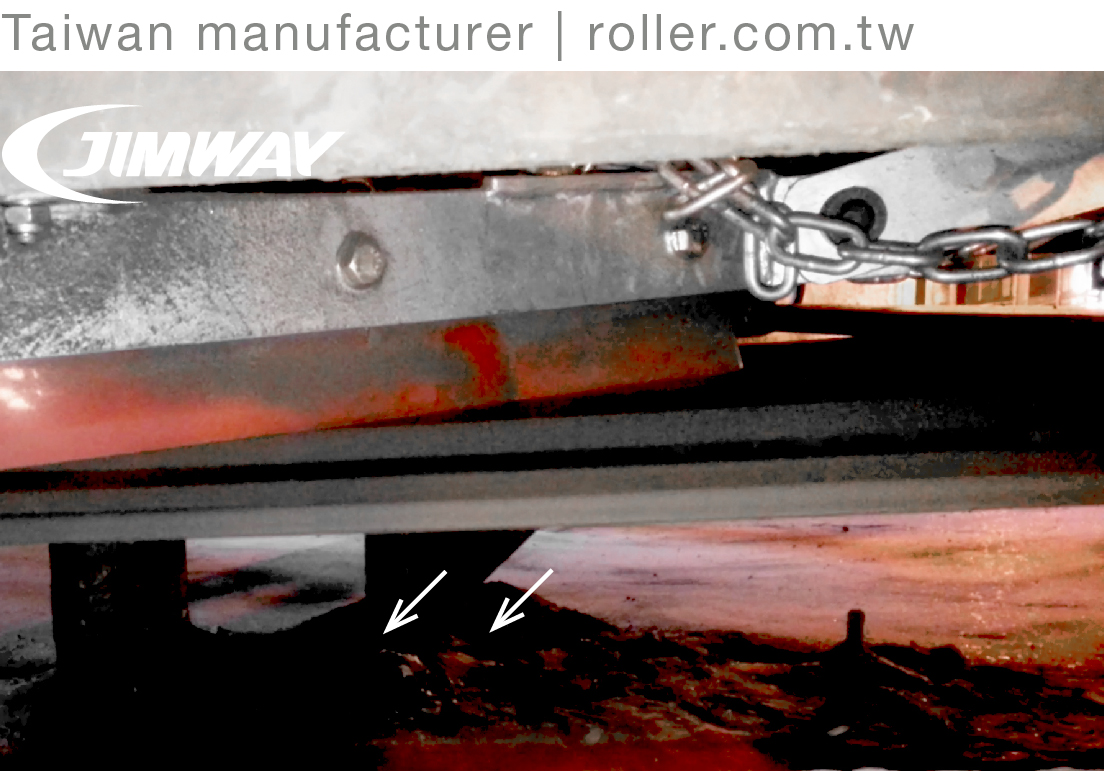

▪ Reducing residues on the tail pulley
▪ Easy blade change

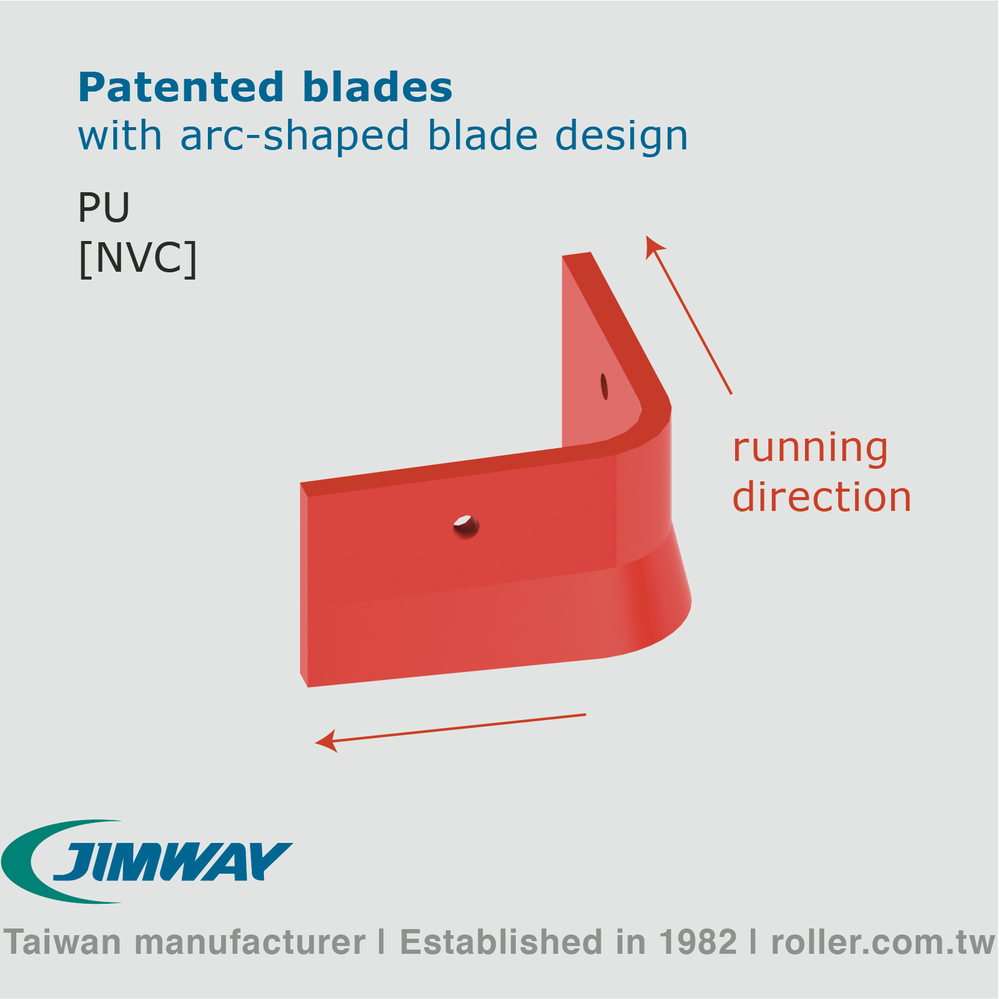

JIMWAY'S PATENTED ARC-SHAPED BLADE IS UNIQUELY DESIGNED TO CLEAN THE INSIDE OF THE RETURN BELT WITHOUT DAMAGING THE BELT AND ITSELF.

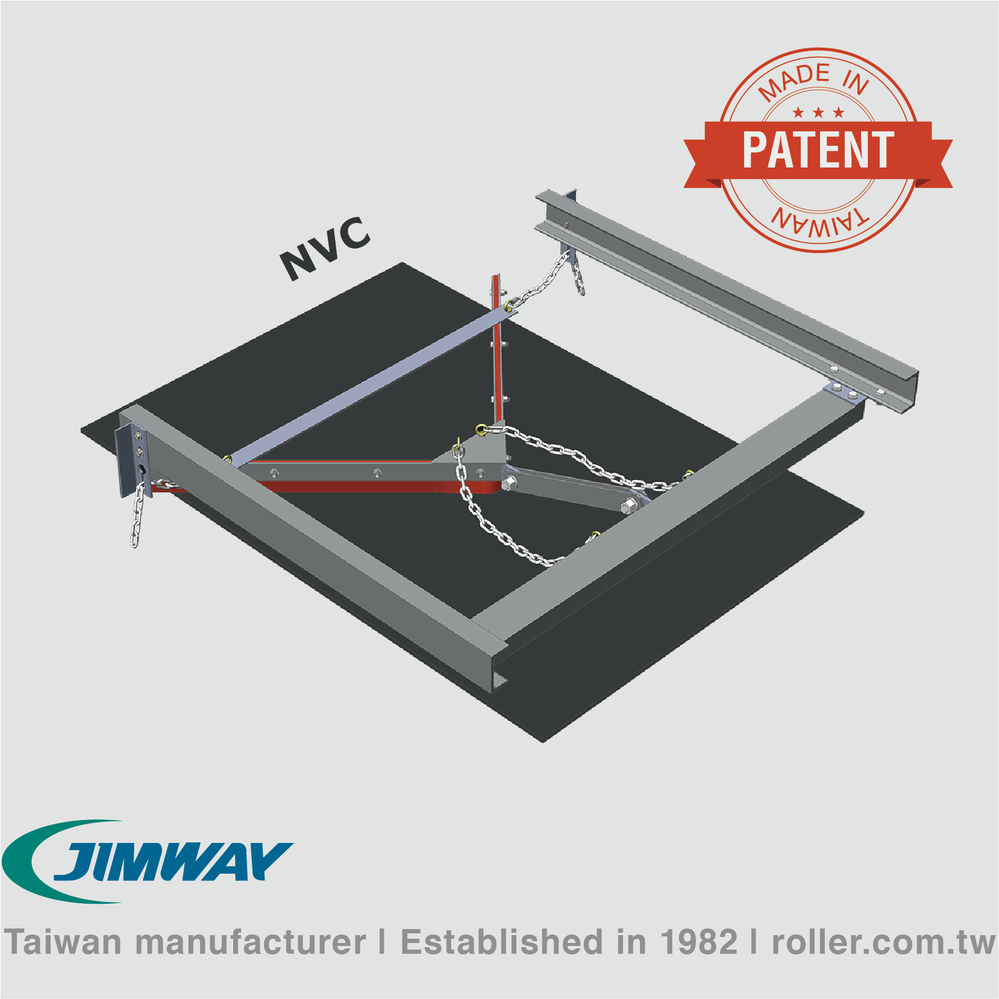

Jimway's NVC belt cleaner is an effective solution for protecting tail pulleys and also mechanical splices and pulley lagging. Carryback adheres to the belt, which may causes residue build-up on tail pulleys. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. The NVC belt cleaner is no maintenance needed and self-adjusts as the blade wears.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤6.5m/s
Cleaning Direction one direction only
Blade Material PU

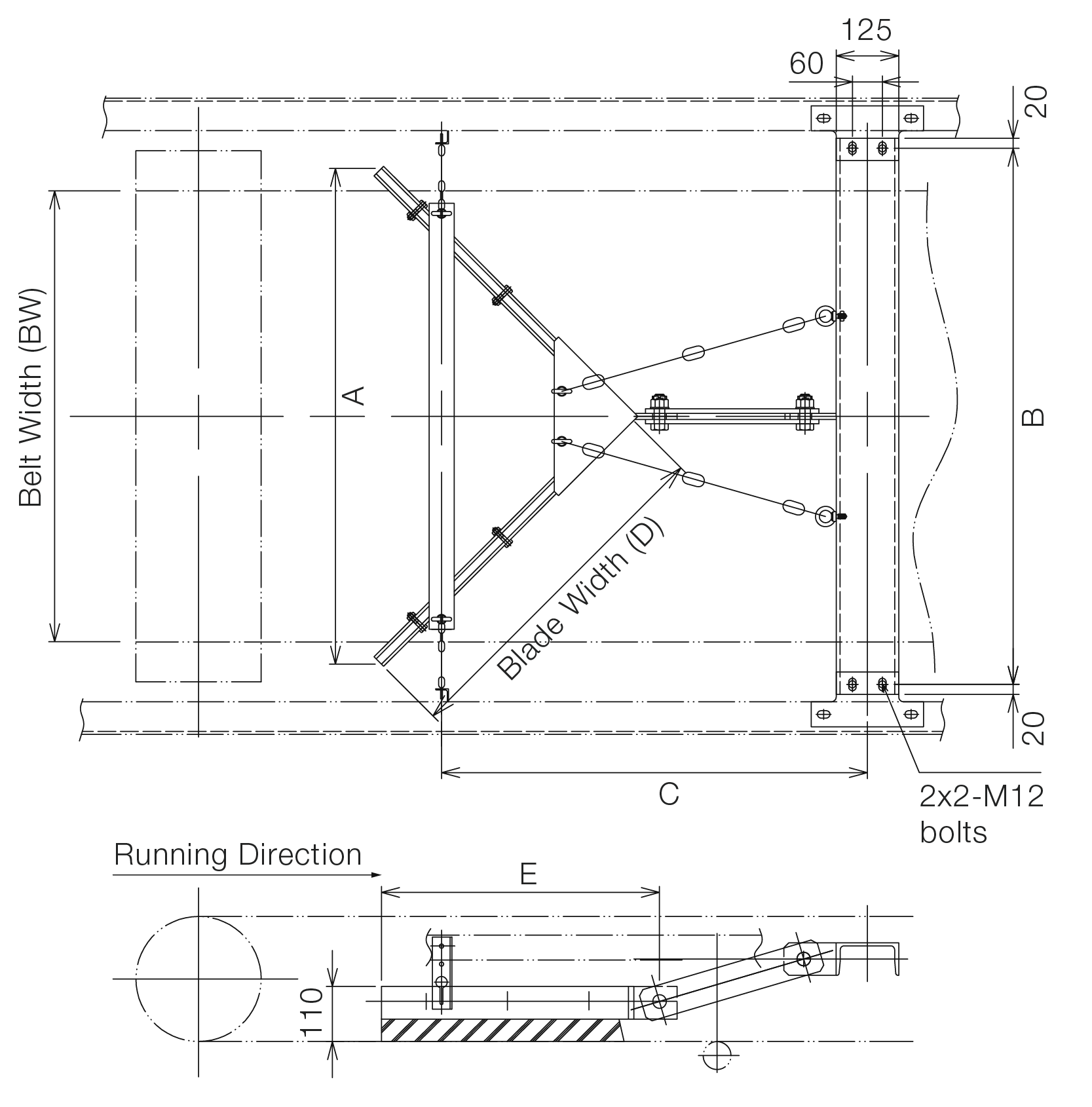

| Unit:mm [in] | ||||||
| Model | BW | A | B | C | D | E |
| NVC-060 | 600 [24] | 660 | 720 | 670 | 466 | 390 |
| NVC-075 | 750 [30] | 850 | 920 | 800 | 600 | 485 |
| NVC-090 | 900 [36] | 990 | 1070 | 850 | 700 | 555 |
| NVC-105 | 1050 [42] | 1140 | 1220 | 950 | 810 | 633 |
| NVC-120 | 1200 [48] | 1300 | 1370 | 1000 | 900 | 710 |
| NVC-140 | 1400 [54] | 1500 | 1610 | 1260 | 1060 | 810 |
| NVC-160 | 1600 [63] | 1700 | 1810 | 1360 | 1200 | 910 |
| NVC-180 | 1800 [72] | 1920 | 2100 | 1510 | 1358 | 1020 |
| NVC-200 | 2000 [78] | 2120 | 2300 | 1510 | 1499 | 1135 |
| NVC-220 | 2200 [87] | 2320 | 2500 | 1510 | 1640 | 1215 |
|

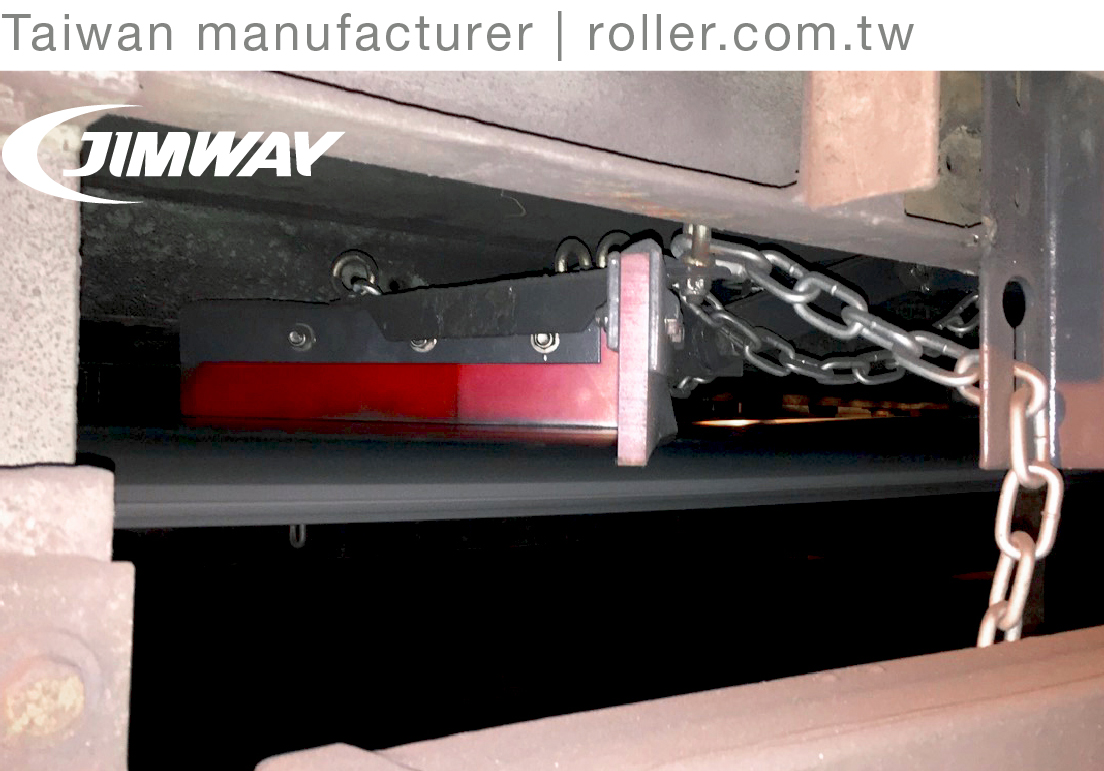

▪ The arc-shaped PU blade ▪ Cleaning without risk to the belt, splices, or itself |
▪ Adjusting by gravity ▪ Extending the belt service life ▪ Reducing residues on the pulley |
▪ Easy and fast installation ▪ Easy blade change
▪ No maintenance needed |
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, iron ore, furnace stone, limestone, and sandstone etc.
