Heavy-Duty Cartridge Precleaner
▪ Timely correcting blade pressure
▪ Quick-change blade
▪ No residue on the curved back blade
▪ Belt-friendly
JIMWAY'S PATENTED C1UD PRECLEANER IS A EASY SOLUTION TO PROVIDE MAXIMUM CLEANING POWER VIA A VISUAL INSPECTION FOR THE WORN BLADE AND A BLADE-TO-BELT PRESSURE INSPECTION WINDOW.
Performing a visual inspection for wear, Jimway's C1UD belt cleaner blade with bi-color design ensures workers easily to inspect when replace worn blades. The another main feature of this belt cleaner is the tensioner with blade-to-belt pressure inspection window, which makes timely and effective adjustments to increase scraping performance. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime.––––––––––––––––––––––––––––––––––––––
Belt Width 600~2000mm [23.6"~78.7"]
Belt Speed ≤6m/s
Cleaning Direction one direction only
Material Selection of Blades PU[C1UD], nano[C1UN]

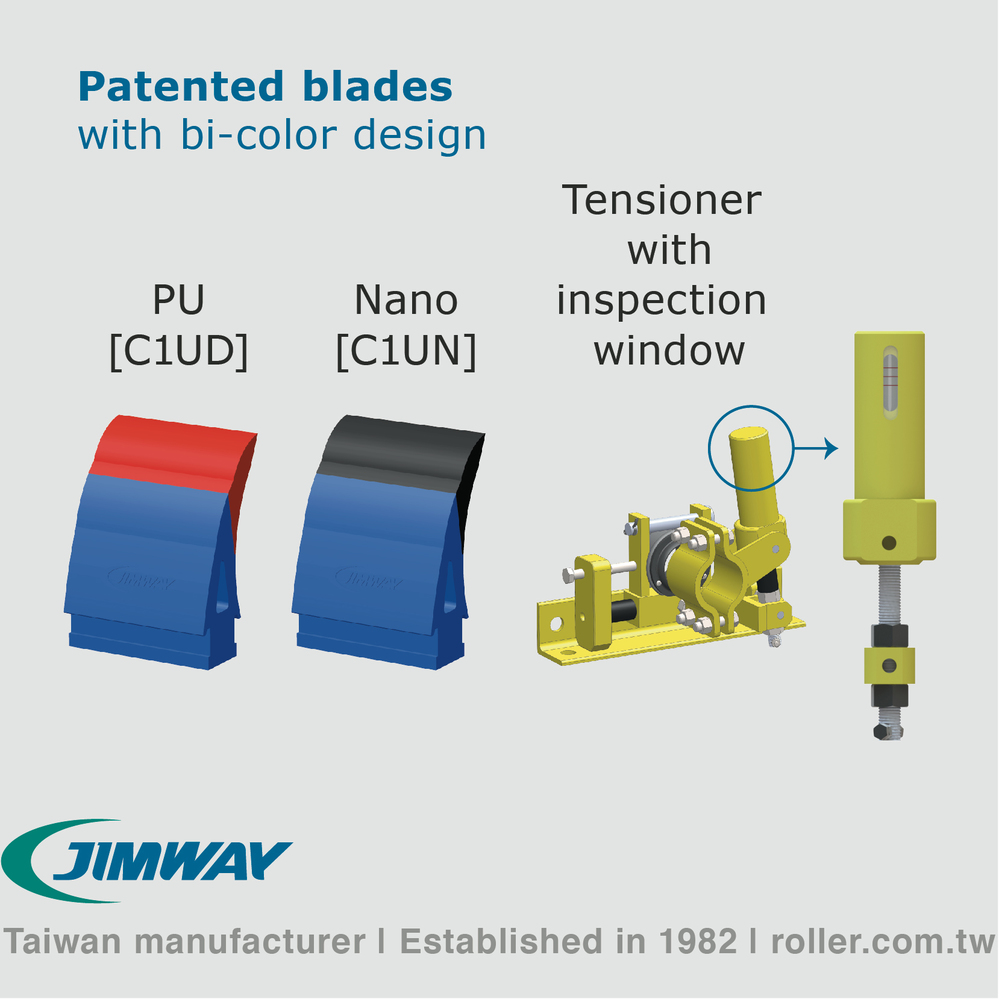

PATENTED BLADE + SPECIAL DESIGN FOR TENSIONER

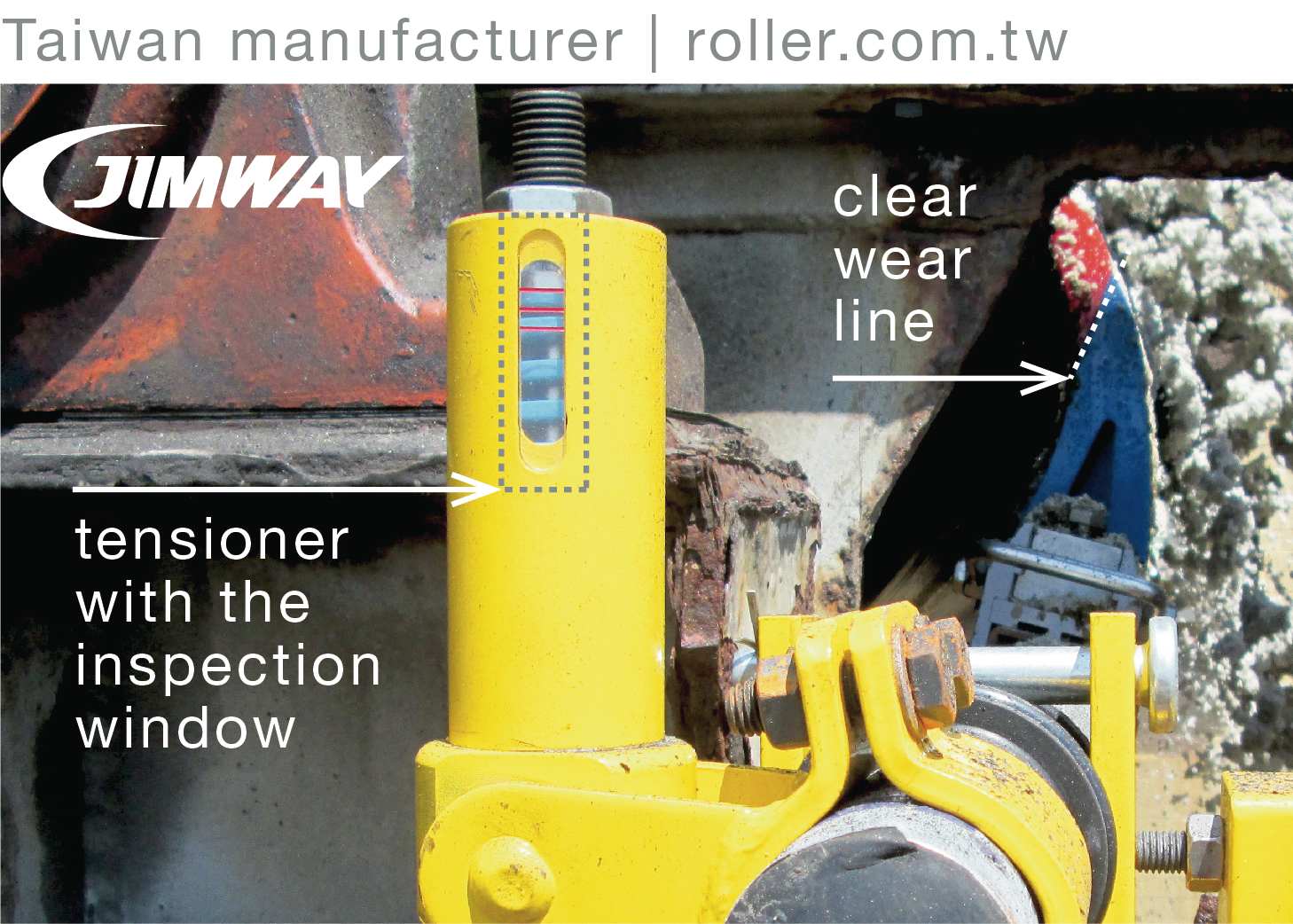

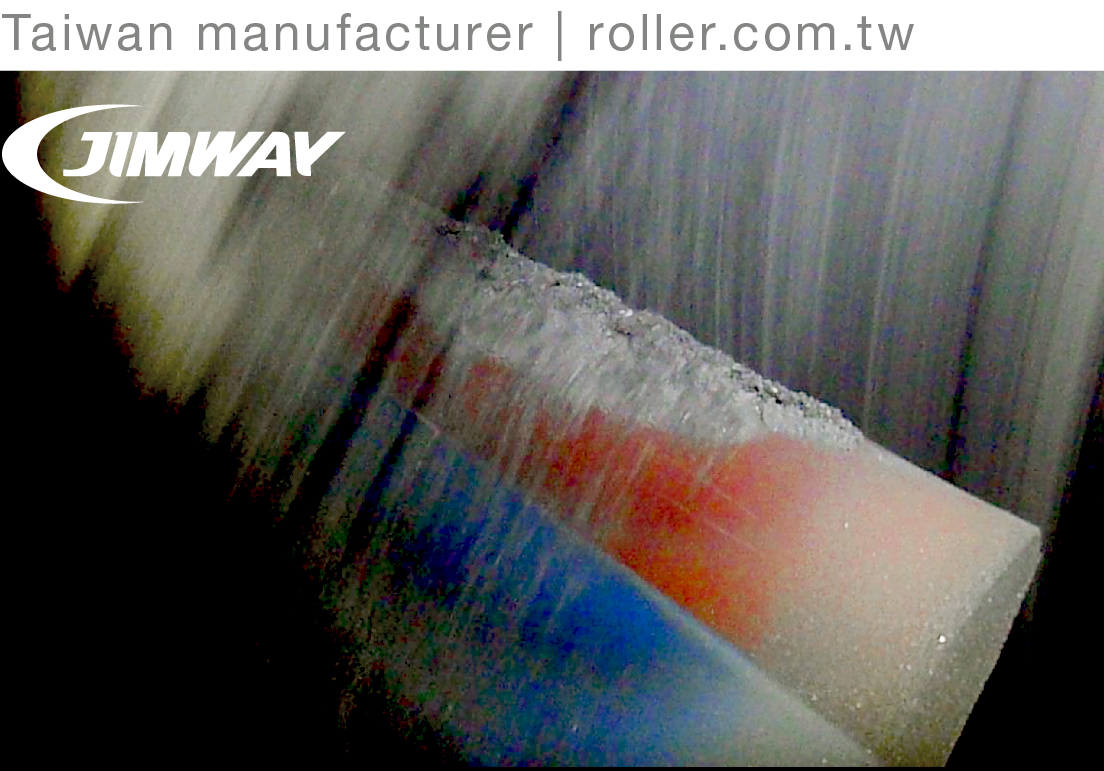

Clear wear line Replace the blade when the red part is lost.

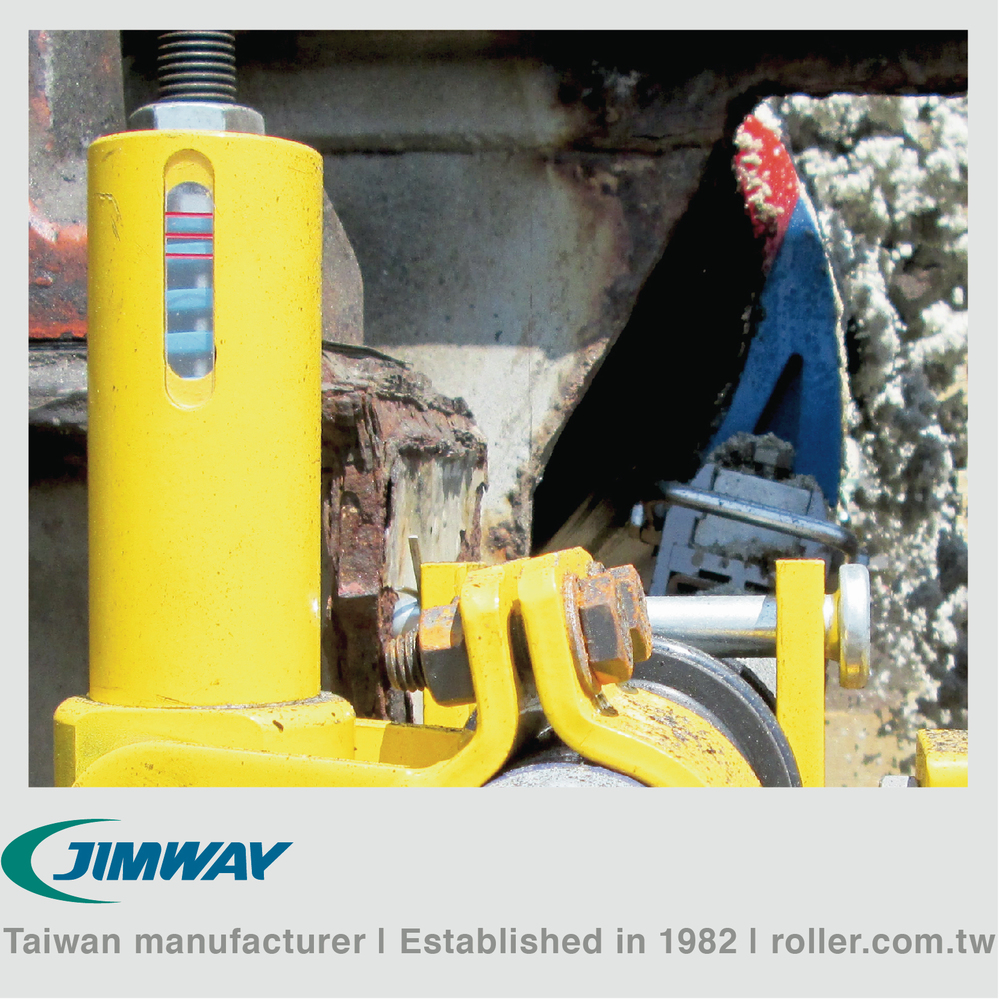

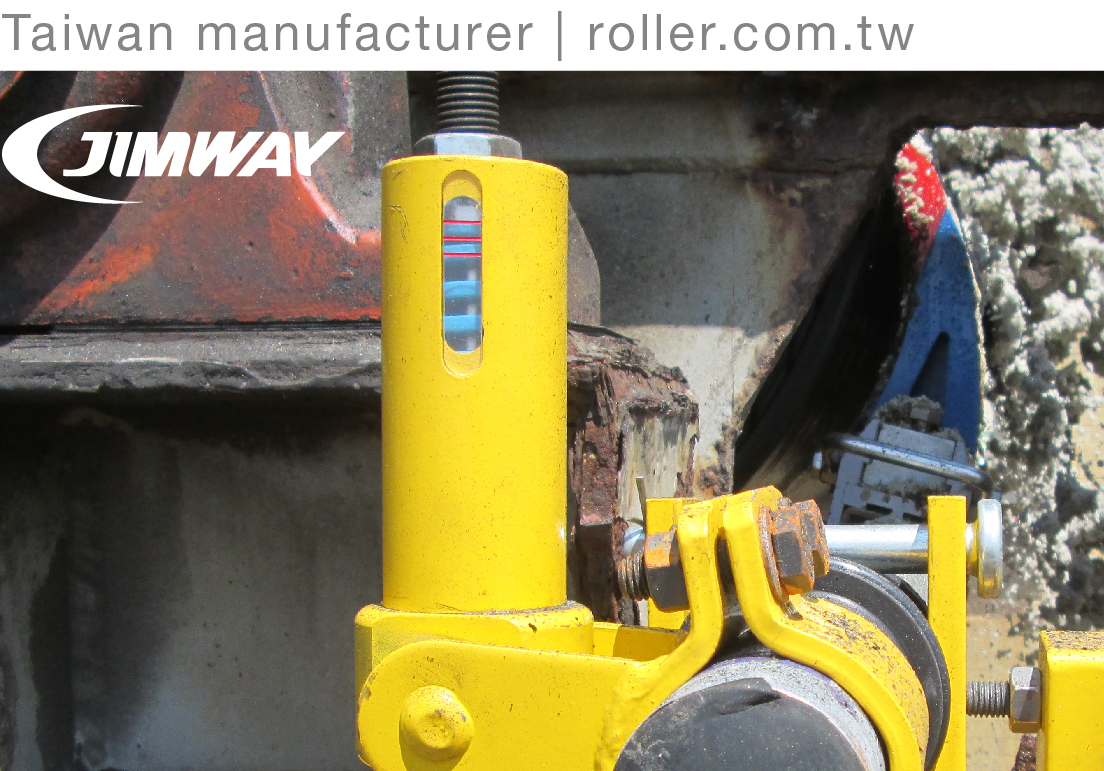

Tensioner with the inspection window The blade tension will get reduced as blades get worm. Check the tension of the cleaner blade to the belt and adjust it if necessary for better performance.

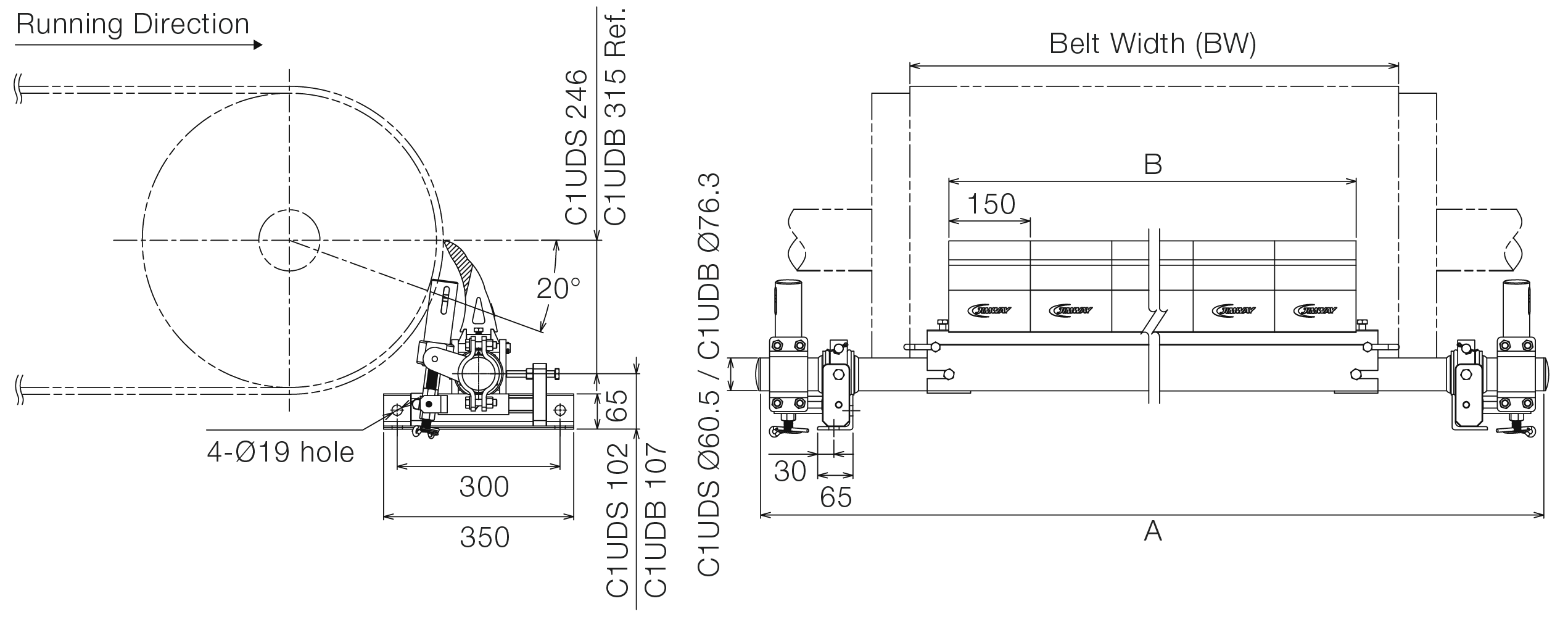

| Unit:mm [in] | |||||
| Model | BW | A | B | L | Blades Req. |
| C1UDS-060 | 600 [24] | 1650 | 450 | 530 | 3 |
| C1UDS-065 | 650 [26] | 1750 | 450 | 530 | 3 |
| C1UDS-075 | 750 [30] | 1800 | 600 | 680 | 4 |
| C1UDS-080 | 800 [31] | 1900 | 600 | 680 | 4 |
| C1UDS-090 | 900 [36] | 1950 | 750 | 830 | 5 |
| C1UDS-100 | 1000 [40] | 2100 | 900 | 980 | 6 |
| C1UDS-105 | 1050 [42] | 2150 | 900 | 980 | 6 |
| C1UDS-120 | 1200 [48] | 2250 | 1050 | 1130 | 7 |
| C1UDS-140 | 1400 [54] | 2450 | 1200 | 1280 | 8 |
| C1UDB-160 | 1600 [63] | 2750 | 1350 | 1430 | 9 |
| C1UDB-180 | 1800 [72] | 2950 | 1500 | 1580 | 10 |
| C1UDB-200 | 2000 [78] | 3150 | 1650 | 1730 | 11 |

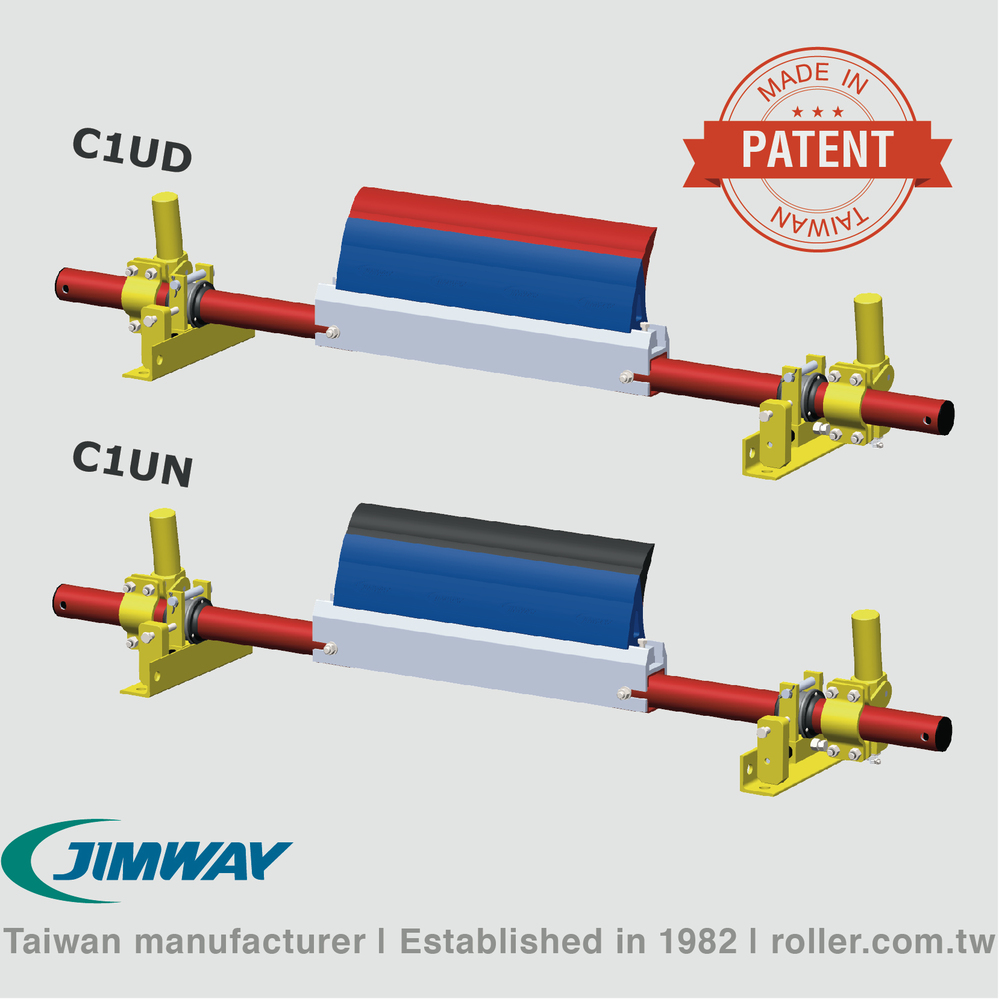

C1UD/C1UN with the same specifications

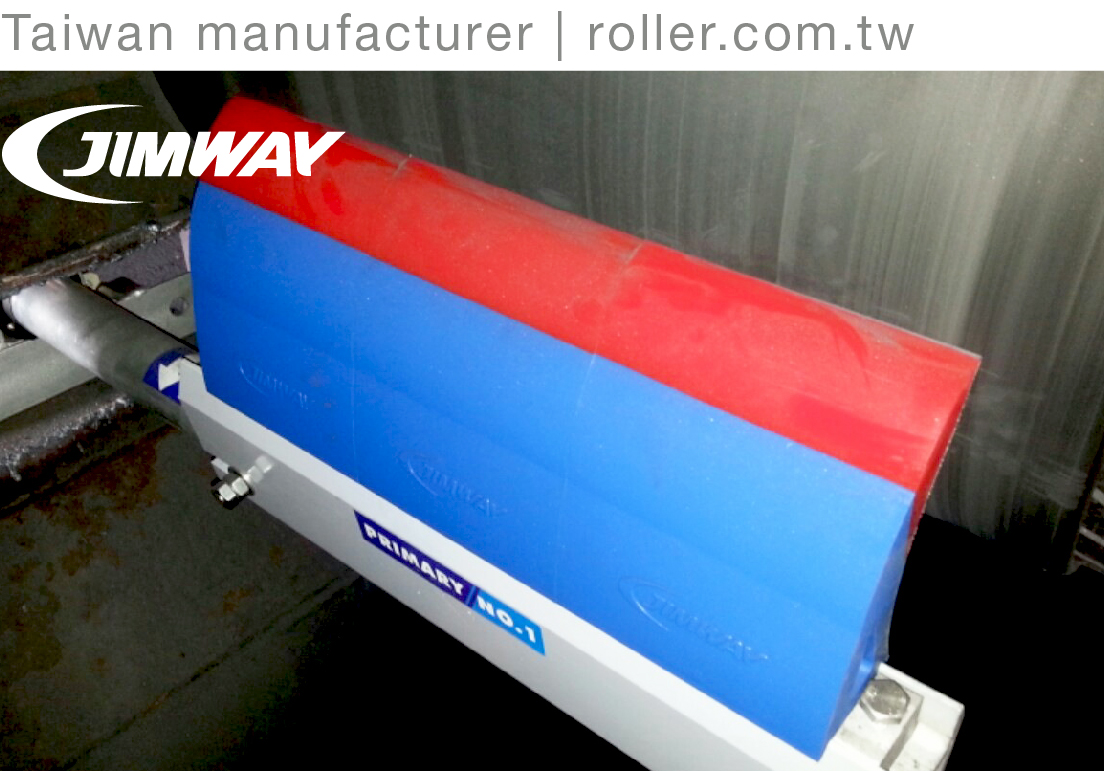

▪ Easy visual inspection
▪ Clear wear line
▪ Tensioner with inspection window

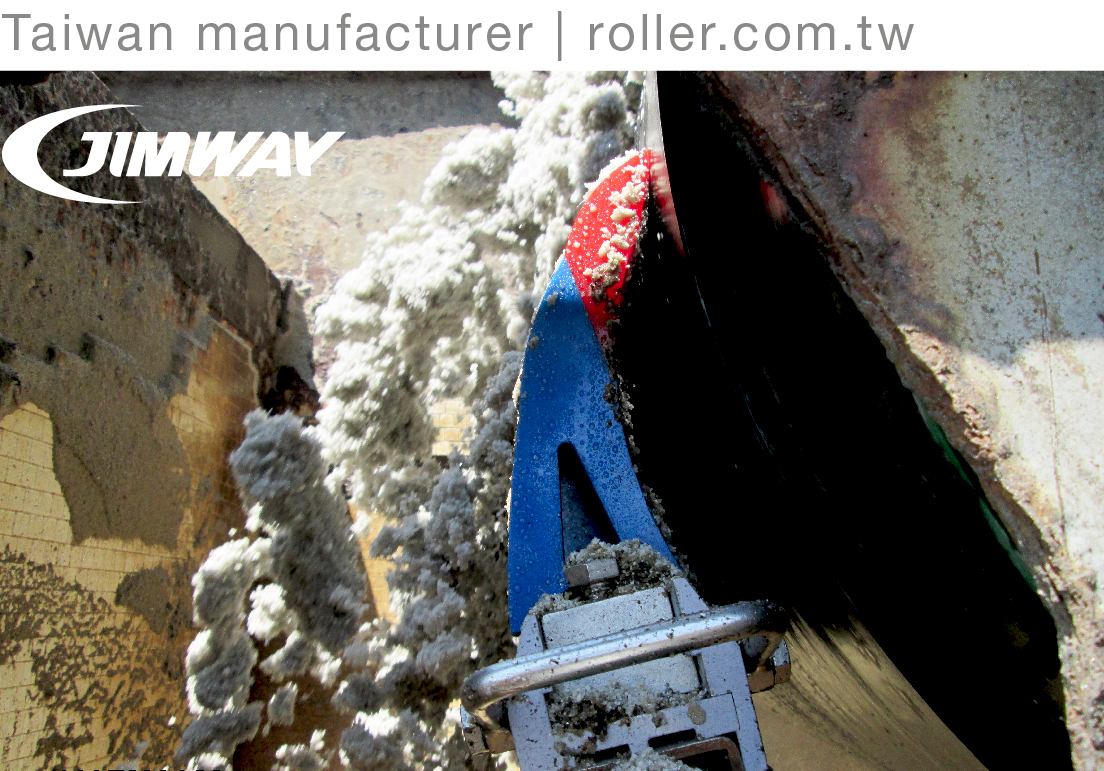

▪ Removing carryback effectively
▪ Quick-change blade
▪ Fast and easy installation
▪ Easy adjustment and maintenance
▪ Belt-friendly
▪ Durable PU blade
▪ Excellent wear resistance
▪ Low coefficient of friction

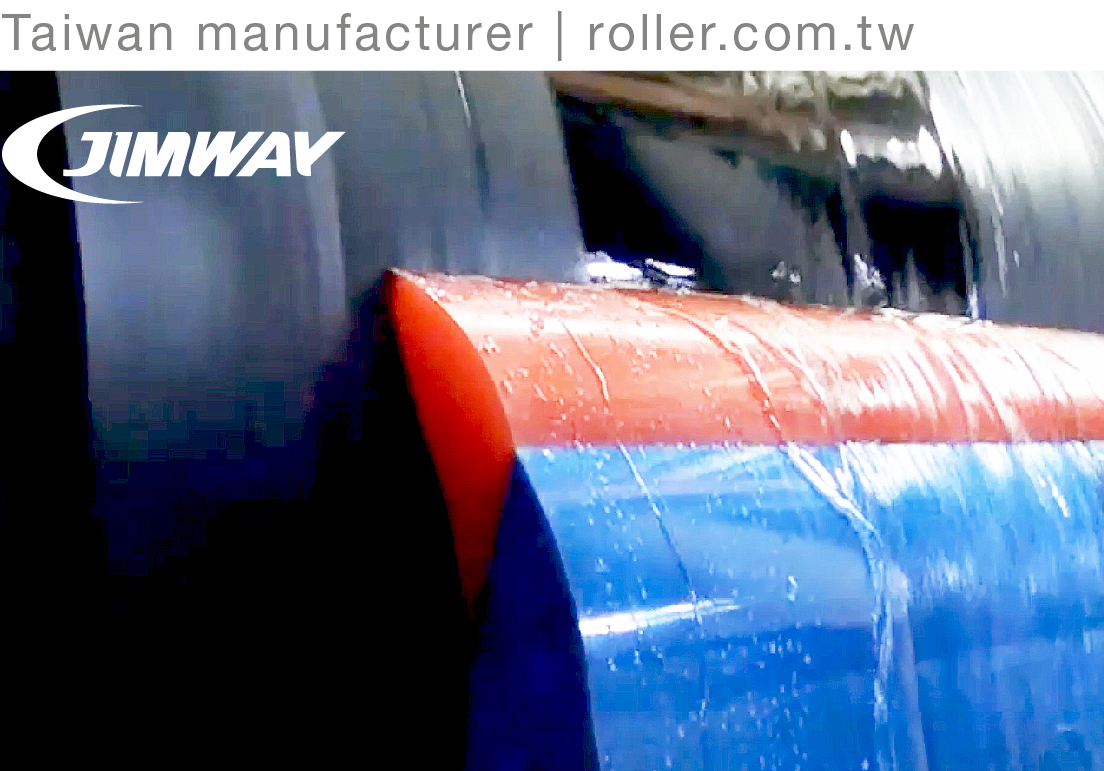

▪ No residue on the curved back blade
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, sinter, limestone, and sandstone etc.
